OEM PART NUMBERS:
• Exmark / Toro: 116-1620 (current)
• Exmark / Toro: 116-1604 (superseded by 116-1620)
• Exmark / Toro: 109-9282 (superseded by 116-1604)
• Exmark / Toro: 116-1947
• Exmark: 116-4477
• Exmark: 109-9275, 103-9780, 109-8462
• Exmark: 116-4172, 130-1848, 116-8517
• Warner: 5218-54
• Warner: 5218-207
• Warner: 5218-248
SPECIFICATIONS:

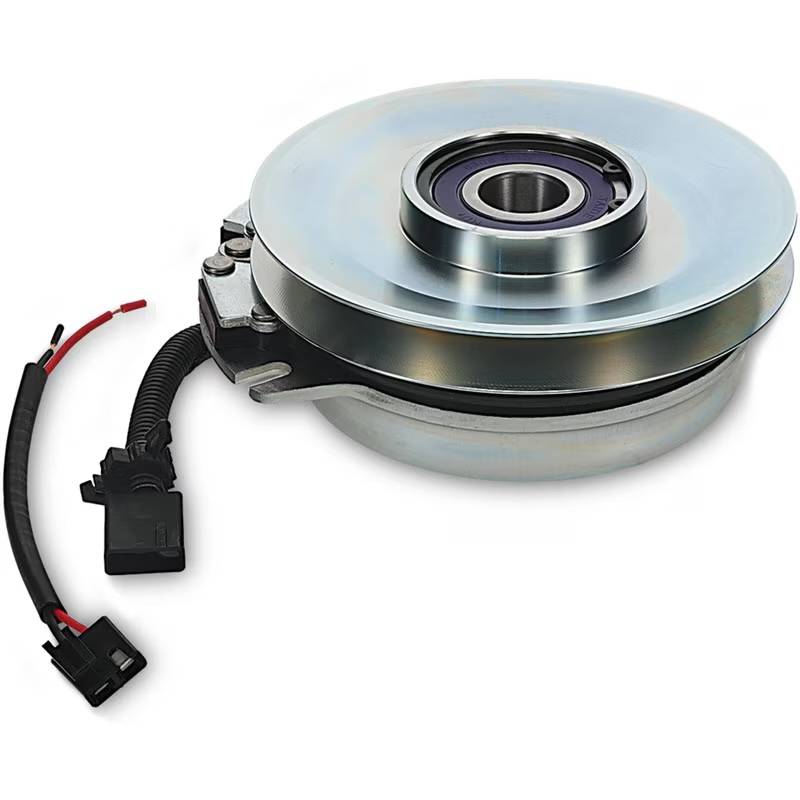

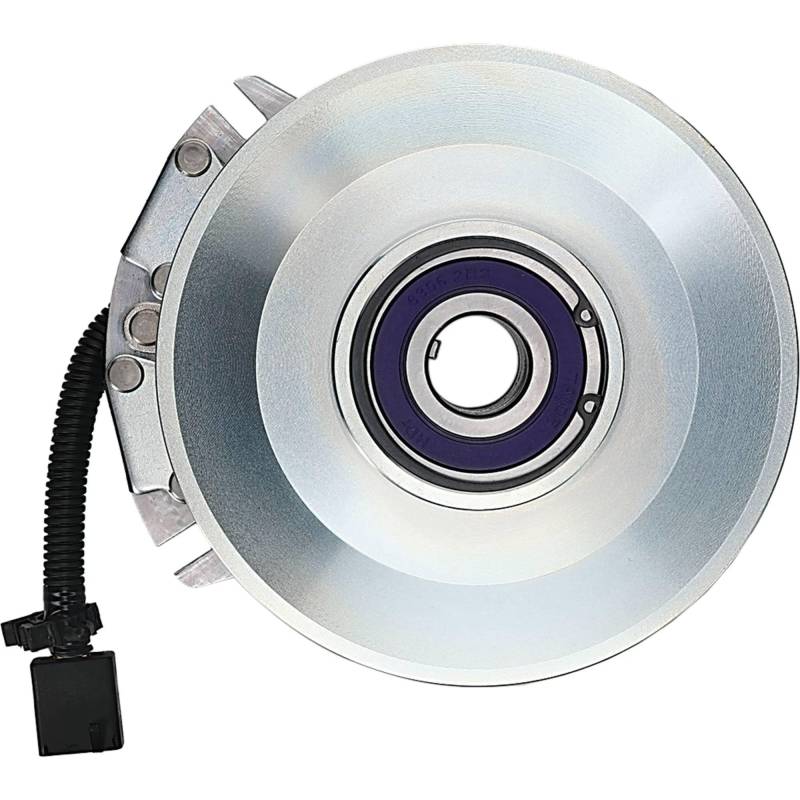

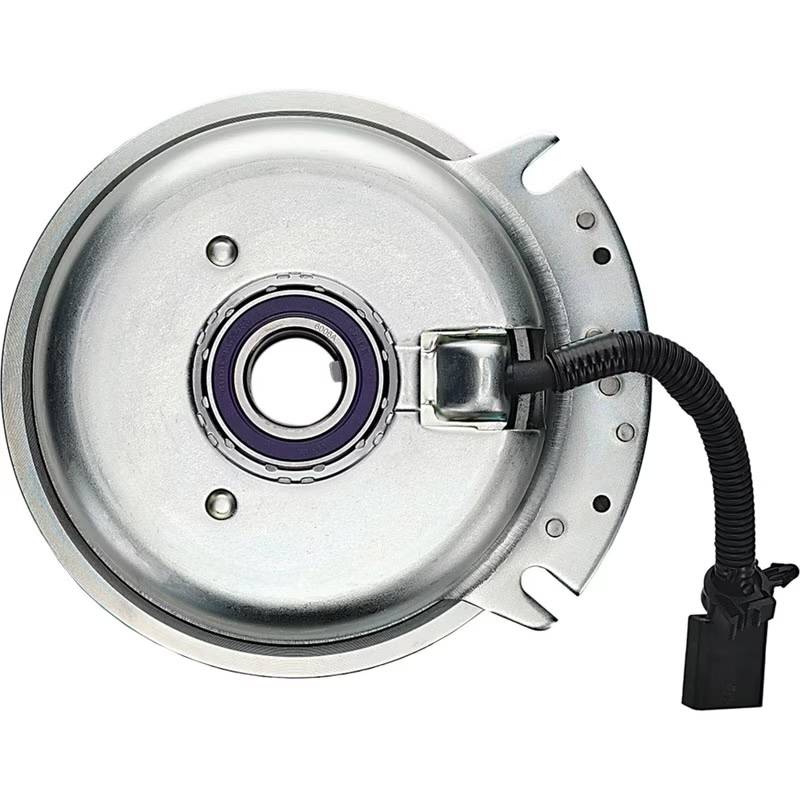

• Type: Electric PTO Clutch
• Crankshaft Diameter: 1.125 in (1-1/8 in)
• Pulley Diameter: 7.2 in
• Rotation: Counterclockwise (CCW)
• Torque: 200 ft-lbs
• Belt Width: 5/8 in
• Weight: 12 lbs
• Mounting: Vertical Engine Crankshaft
• Condition: New
FITS EXMARK LAZER Z SERIES:
• Lazer Z S Series - S/N 312,000 and up
• Lazer Z E Series - S/N 312,000 and up (2011-2019)
• Lazer Z X Series - S/N 312,000 and up
• Lazer Z AS, Z Series
• Next Lazer Z Air Cooled - S/N 790,000+, ASX - S/N 850,000+
FITS EXMARK QUEST, PIONEER, VANTAGE:
• Quest SP - S/N 850,000+, Quest P-Series
• Pioneer S-Series - S/N 312,000+, Pioneer E-Series
• Vantage Stand-On - VT25EKC524, VT730EKC524, VT740EKC604
FITS TORO Z MASTER SERIES:
• Z Master G3 Turbo Force 48, 52, 60 in
• Z Master 3000 Series 48, 52, 60, 72 in Turbo Force
• Z Master 4000 Series 48, 52, 60, 72 in Turbo Force
• Z Master 5000 Series 48, 52, 60, 72 in Turbo Force
• Z Master 2000 HDX MyRide 60 in Turbo Force
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
