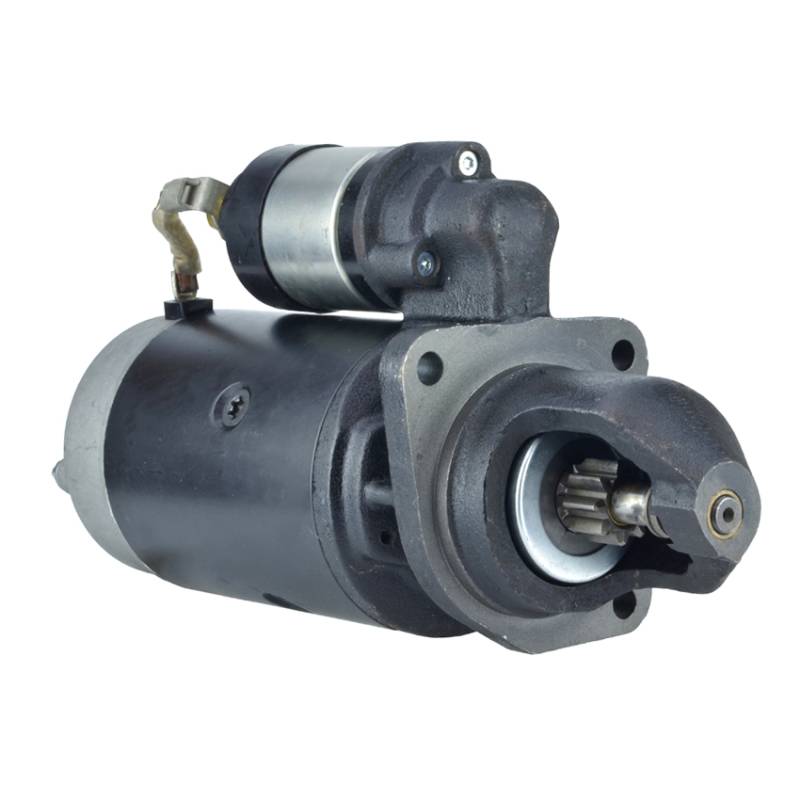

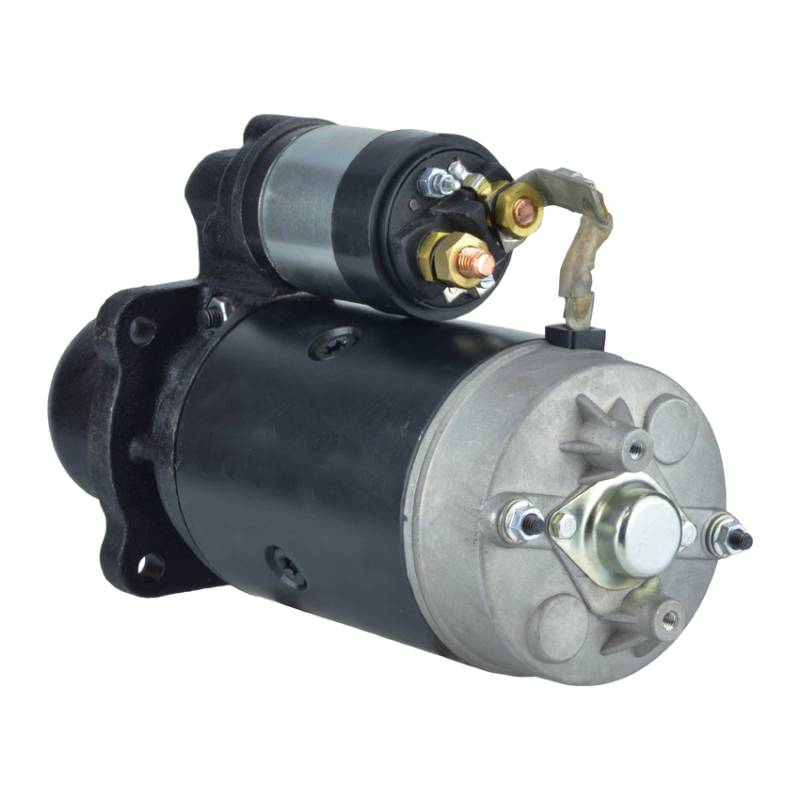

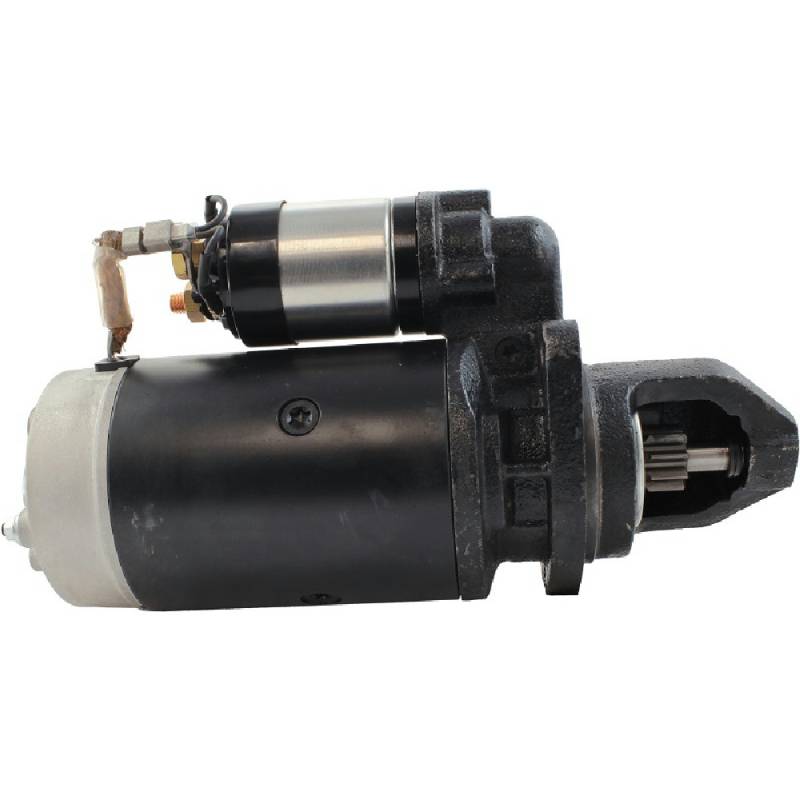

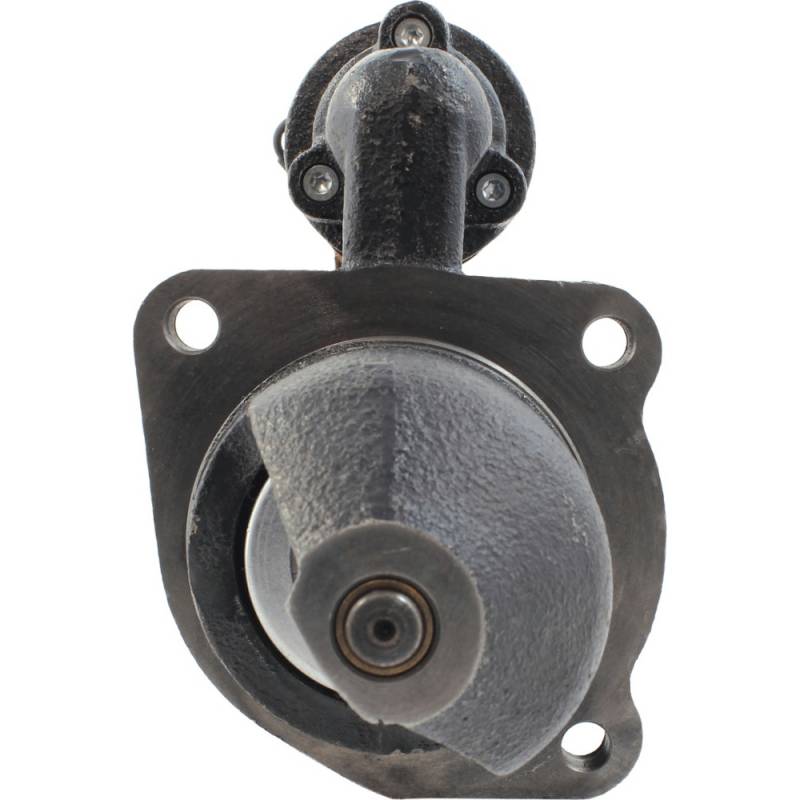

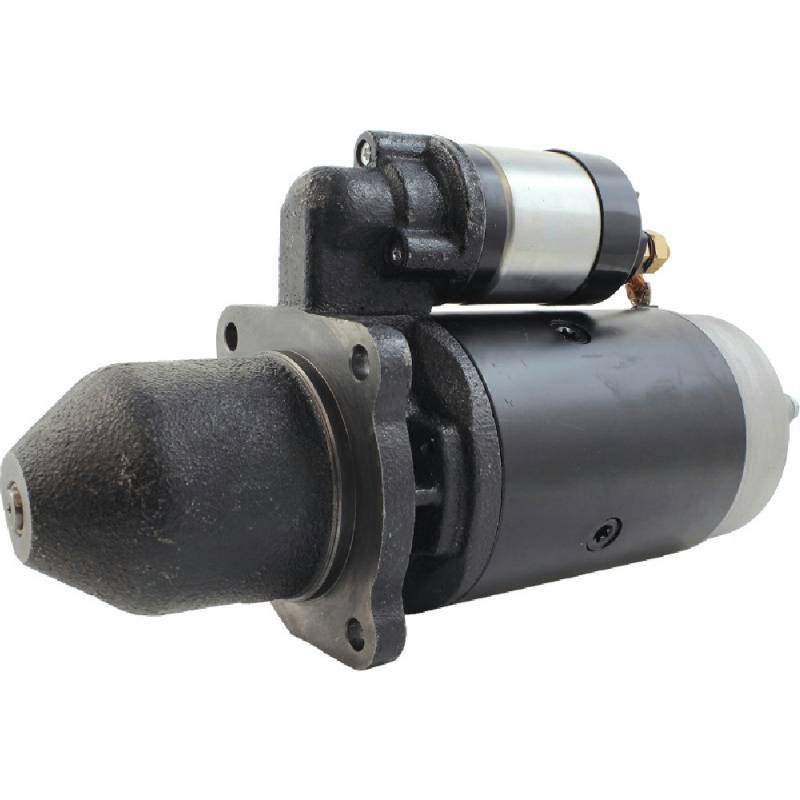

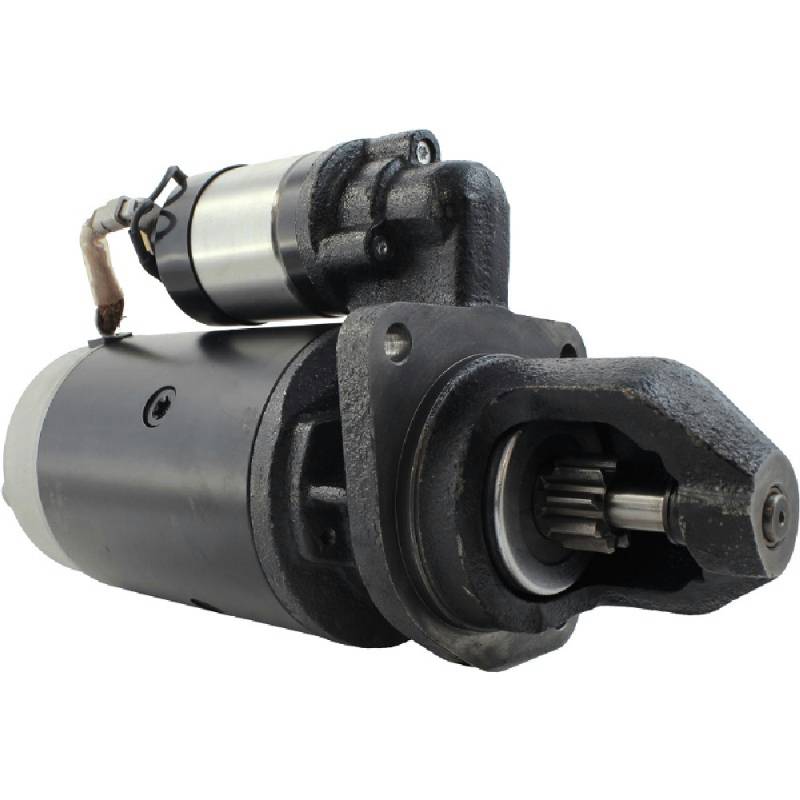

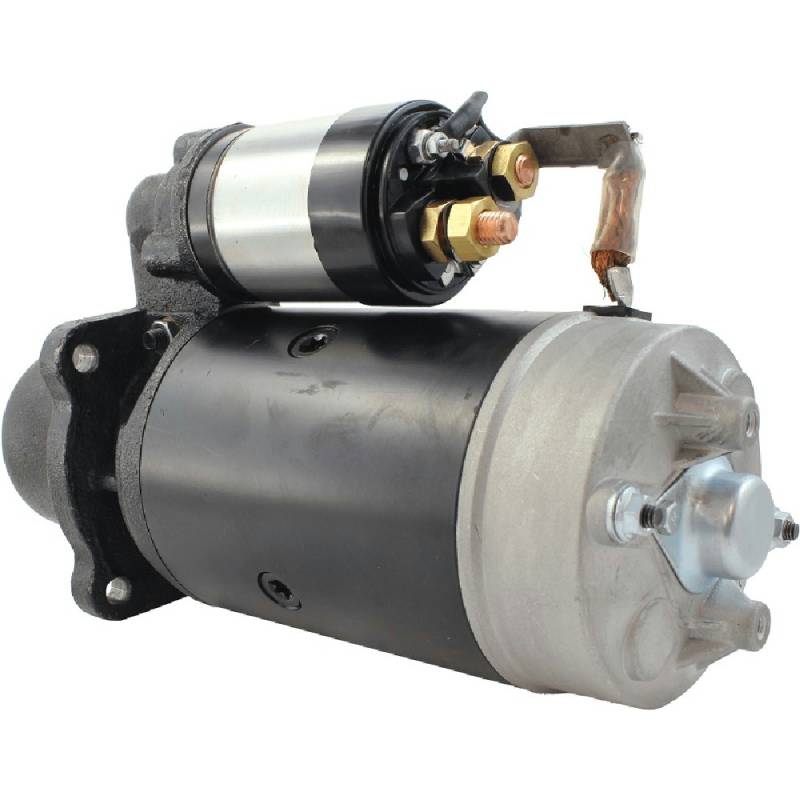

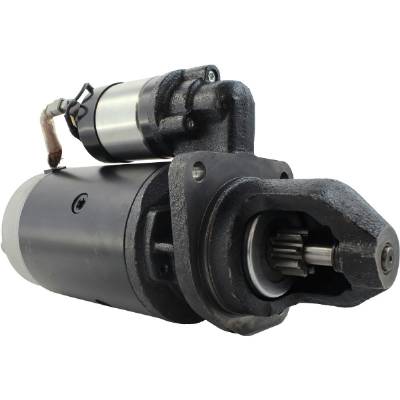

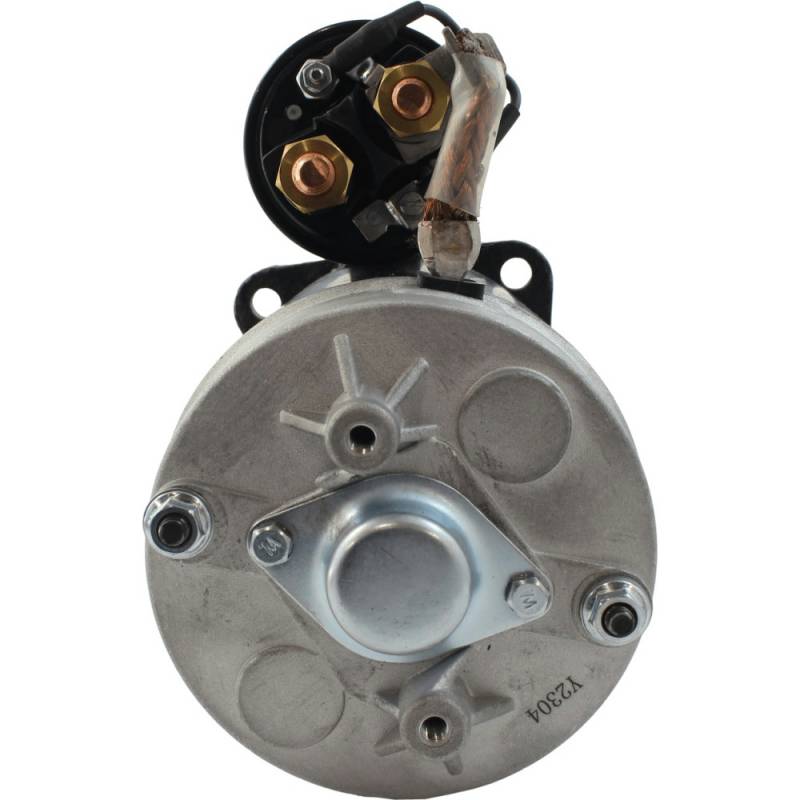

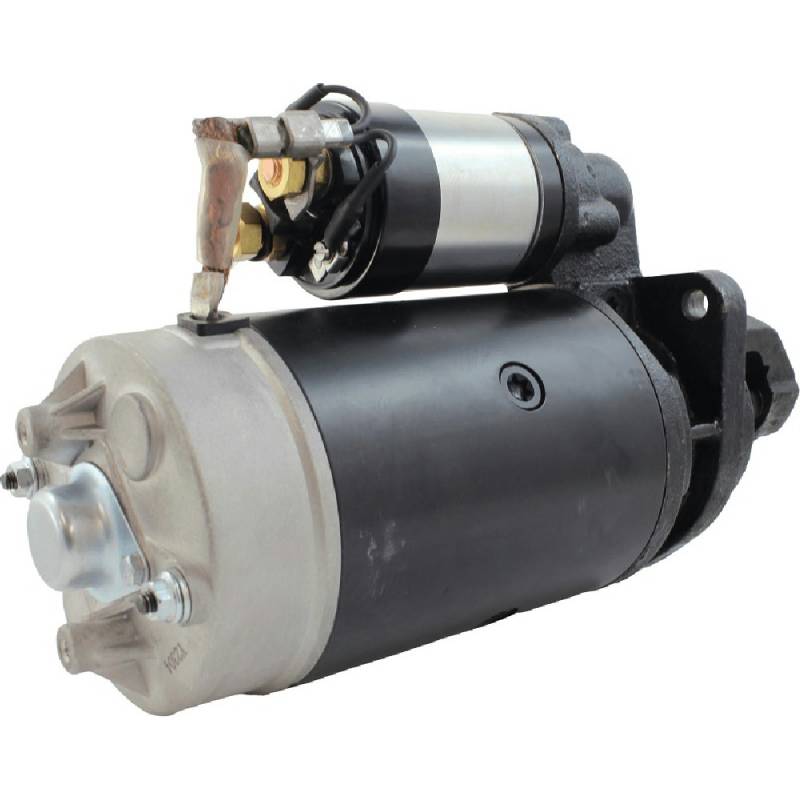

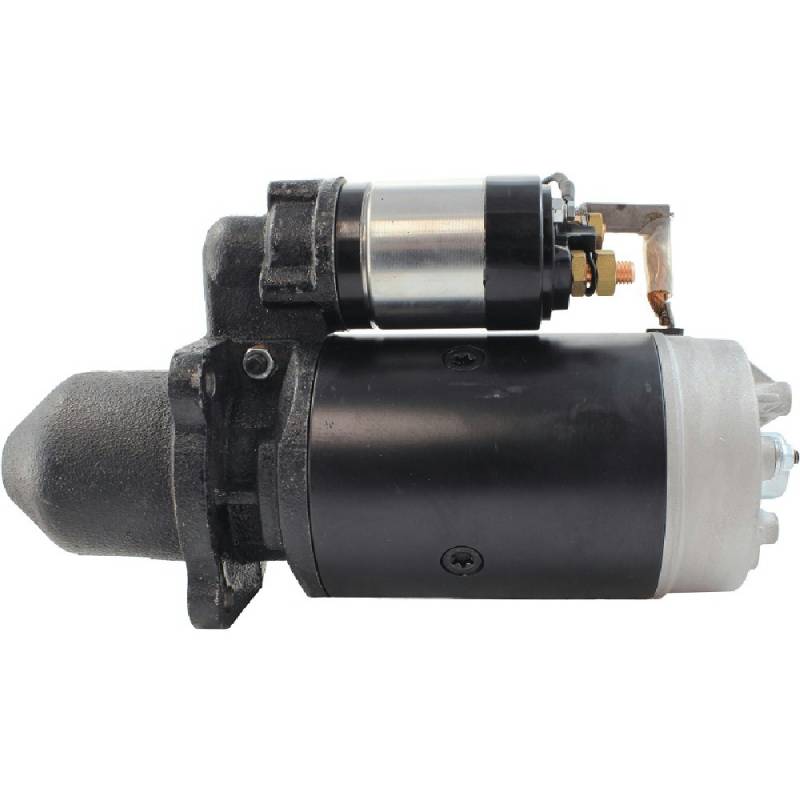

New 12 Volt 9 Tooth Starter Fits Case Combine 1680 1682 85-92 1688 92-95 Sr9939x

⚠️ 12 VOLT 3 KW BOSCH STARTER, REVERSE FEEDER MOTOR:
• 12 volt, 3.0 kW, counterclockwise, direct drive, 9 tooth pinion
• 29.1 mm gear OD, 89 mm flange, 48 mm pinion rest position, 341 mm long
• 3 mounting ears, 11 mm unthreaded holes, without thermal switch
• Weight 31.89 lb / 14.49 kg
• Replaces Bosch 0-001-367-061 / SR9939X and Case IH 245927C93

CASE IH 16 SERIES COMBINES:
• 1985-1994 Case IH 1620, reverse feeder motor
• 1985-1994 Case IH 1640, reverse feeder motor
• 1985-1992 Case IH 1660, reverse feeder motor
• 1985-1992 Case IH 1680, reverse feeder motor
• 1985-1992 Case IH 1682, reverse feeder motor
• 1993-1995 Case IH 1644, reverse feeder motor
• 1993-2002 Case IH 1666, reverse feeder motor
• 1993-2002 Case IH 1668, reverse feeder motor
• 1992-1995 Case IH 1688, reverse feeder motor

CASE IH 21 AND 23 SERIES COMBINES:
• 1995-1998 Case IH 2144, reverse feeder motor
• 1995-1998 Case IH 2166, reverse feeder motor
• 1995-2006 Case IH 2188, reverse feeder motor
• 1998-2002 Case IH 2344, reverse feeder motor
• 1998-2006 Case IH 2366, reverse feeder motor
• 1998-2010 Case IH 2388, reverse feeder motor

INTERNATIONAL AXIAL-FLOW COMBINES:
• 1980-1985 International 1420, reverse feeder motor
• 1977-1985 International 1440, reverse feeder motor
• 1977-1985 International 1460, reverse feeder motor
• 1978-1985 International 1480, reverse feeder motor

ENGINES:
• IH D466, DT466 (early 1640, 1660, 1680)
• Case 6T-590, 6TA-590 (1620, 1640, 1644, 2144, 2344)
• Case 6T-830, 6TA-830 (1660, 1666, 1680, 1688, 2166, 2188, 2366, 2388)
