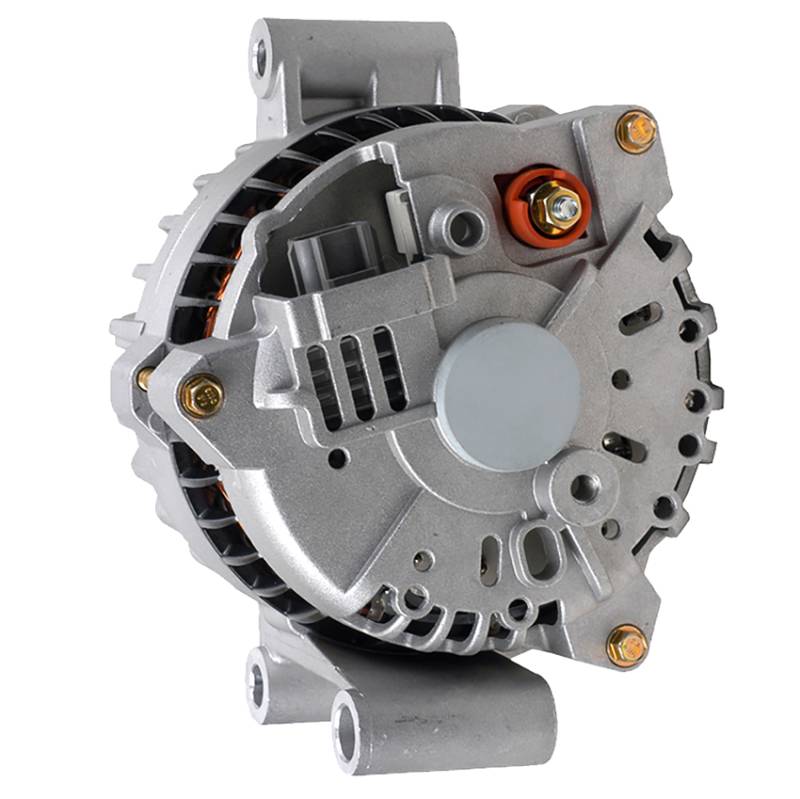

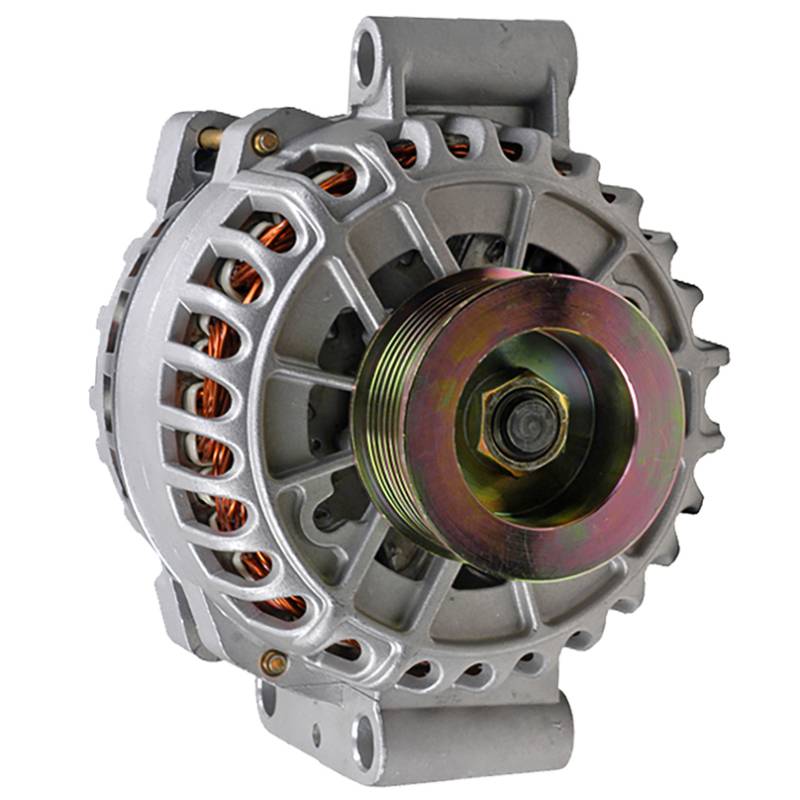

New Alternator Fits Ford F-550 Super Duty 6.0L 2005-2007 5C3z10v346bbrm Gl8697rm

FORD: 6C3Z-10346-BBRM 5C3Z10V346BBRM 6C3T-10300-BA 5C3T10300BA 6C3Z-10346-BA 5C3Z10346BA
FORD ENGINEERING: 6C3T-BA 5C3TBA
MOTORCRAFT: GL-643 NGL8478N GLV-8683-RM GL647 GL8697RM

ITEM DESCRIPTION: ALTERNATOR
UNIT TYPE: FORD
VOLTAGE: 12
AMPERAGE: 205
FAN: INTERNAL
REGULATOR: INTERNAL
GROOVES: 8
PULLEY TYPE: SOLID
PULLEY OD: 2.902IN / 73.7MM
MOUNT TYPE: T
MOUNTING EAR 1 HOLE: 10.2MM UNTHREADED
MOUNTING EAR 2 HOLE: 10.2MM X 11.7MM SLOTTED
MOUNTING EAR 3 HOLE: 13.7MM UNTHREADED
MOUNTING EAR 1 THICKNESS: 2.181IN / 55.4MM
MOUNTING EAR 2 THICKNESS: 2.181IN / 55.4MM
MOUNTING EAR 3 THICKNESS: 2.181IN / 55.4MM
B+ TERMINAL: M6-1.0
TERMINAL 2 ID: S
TERMINAL 3 ID: D
TERMINAL 4 ID: L
POLARITY: NEGATIVE
SPECIFICATIONS: STANDARD ALTERNATOR IN SINGLE ALTERNATOR APPLICATIONS AND TOP ALTERNATOR IN DUAL ALTERNATOR APPLICATIONS
WEIGHT: 15 LBS / 6.82 KG

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
