FORD PART NUMBERS: • 1L2U-10300-AA, 1L2U10300AA
• 1L2U-10300-AB, 1L2U10300AB
• 1L2Z-10346-AB, 1L2Z10346AB
• XL2Z-10346-AA, XL2Z10346AA
• XL2U-10300-AA, XL2U10300AA
• F77Z-10346-AB, F77Z10346AB
• F77U-10300-AB, F77U10300AB
• F77U-10300-AC, F77U10300AC
• 4G7U-10300-AA, 4G7U10300AA
• 4G7Z-10346-AA, 4G7Z10346AA
FORD REMAN NUMBERS REPLACED: • 1L2Z-10V346-ADRM, 1L2Z10V346ADRM
• XL2Z-10346-AARM, XL2Z10346AARM
• F77Z-10346-ABRM, F77Z10346ABRM
• F77Z-10V346-ACRM, F77Z10V346ACRM
• 4G7Z-10346-AARM2, 4G7Z10346AARM2
• 4U2Z-10V346-CZRM, 4U2Z10V346CZRM
• XL2Z-10V346-ABRM, XL2Z10V346ABRM
FORD STAMP CODES (ON THE LABEL): • 1L2U-AA, 1L2UAA
• 1L2U-AB, 1L2UAB
• XL2U-AA, XL2UAA
• F77U-AB, F77UAB
• F77U-AC, F77UAC
MOTORCRAFT PART NUMBERS: • GL-613, GL613
• GL-423, GL423
• GL-363, GL363
• GL-454, GL454
• GL-607, GL607
MOTORCRAFT REMAN AND VALUE SERIES NUMBERS REPLACED: • GL-423-RM, GL423RM
• GL-363-RM, GL363RM
• GLV-8613-RM, GLV8613RM
• GLV-8695-RM, GLV8695RM
• GLV-8423-RM, GLV8423RM
• GLV-8363-RM, GLV8363RM
• GLV-8693-RM, GLV8693RM
BOSCH NUMBERS REPLACED: • AL7562X
• AL7543X

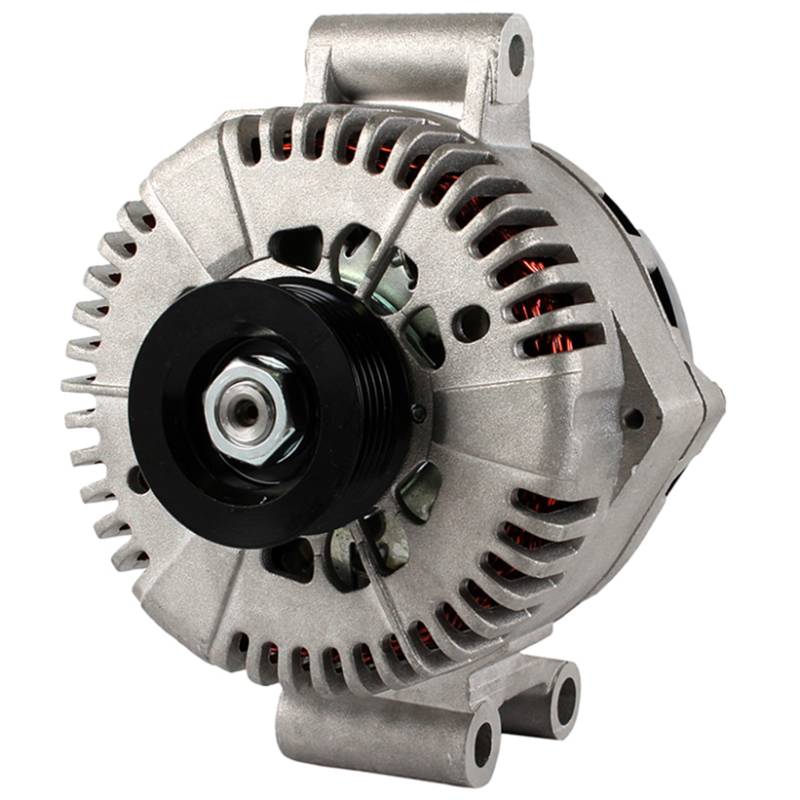

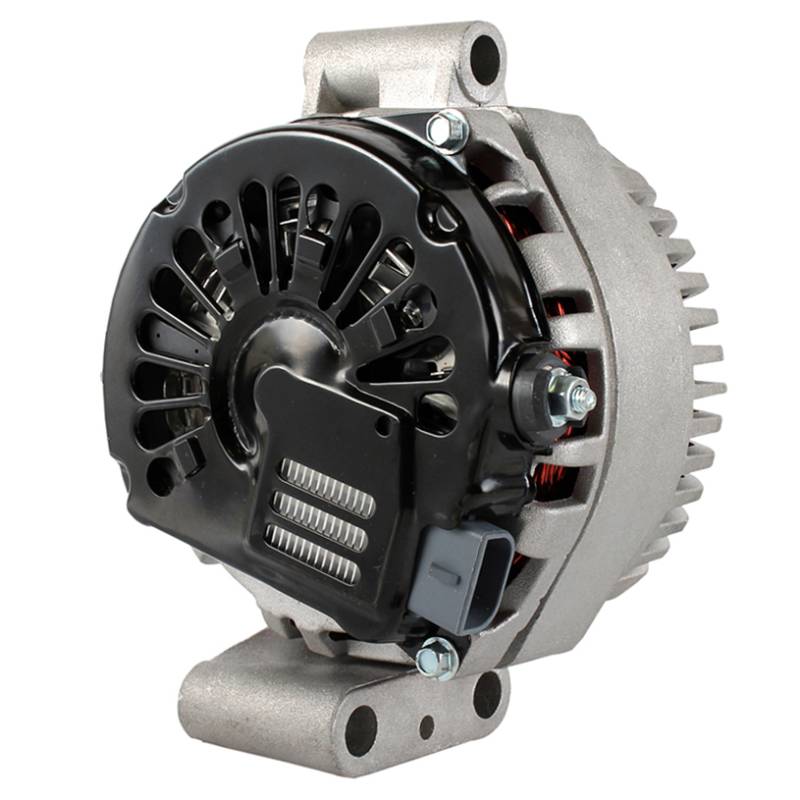

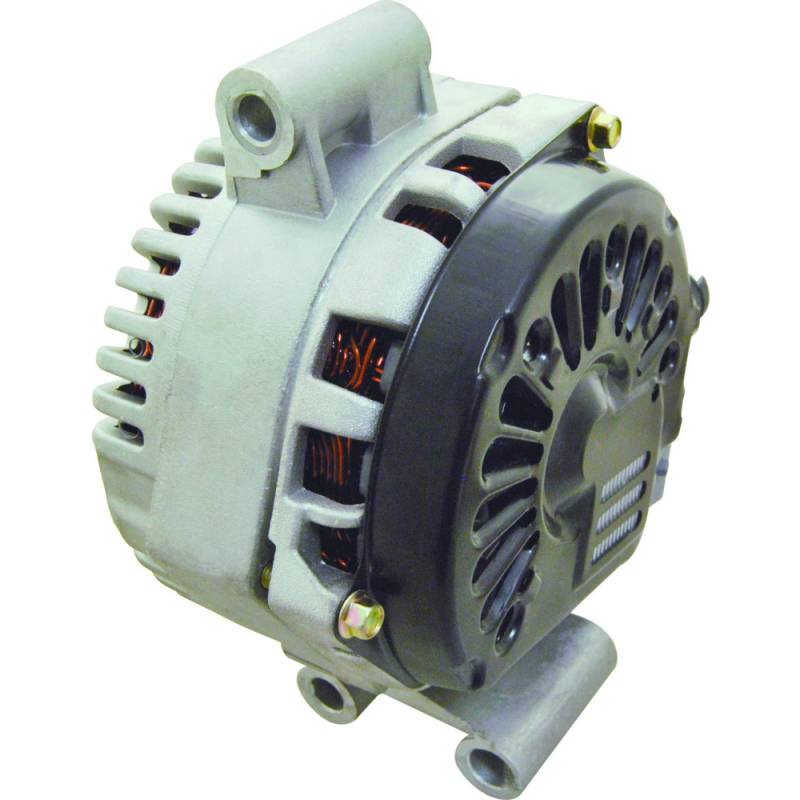

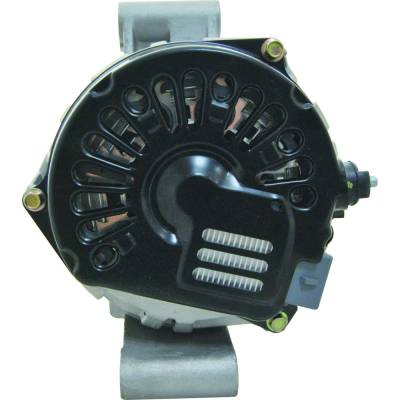

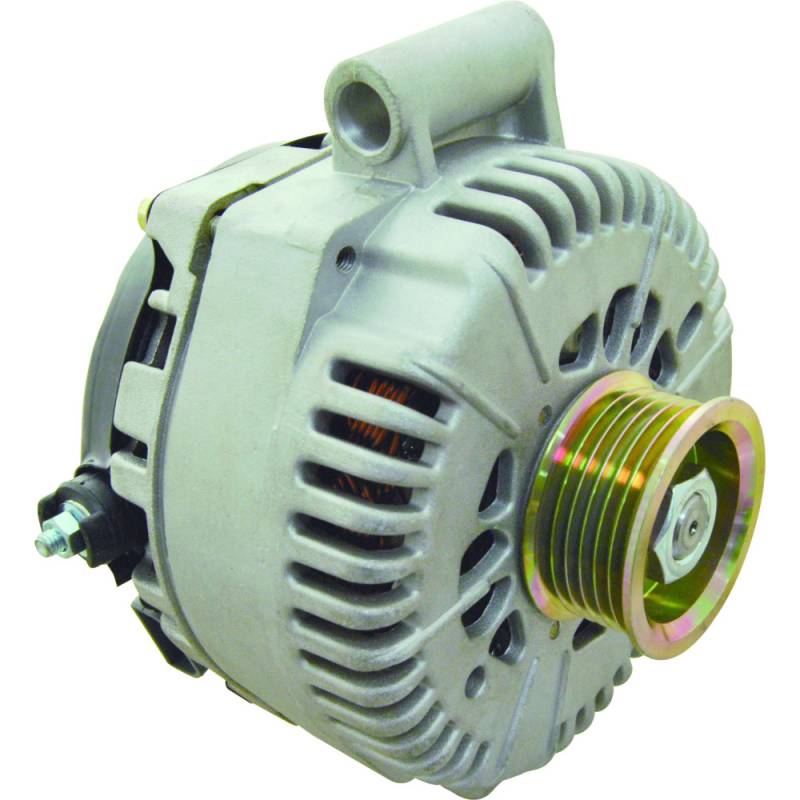

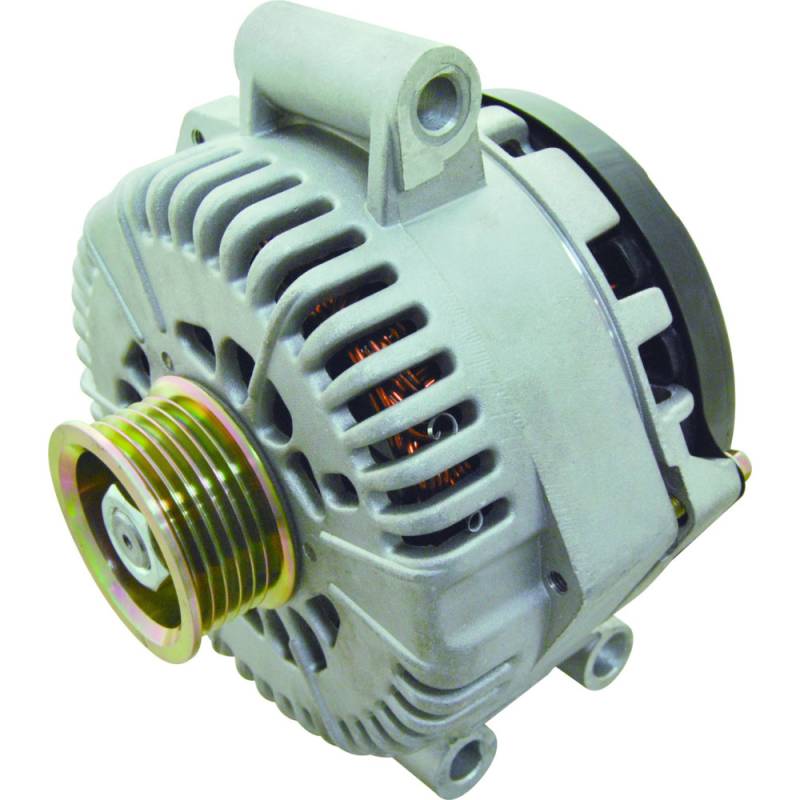

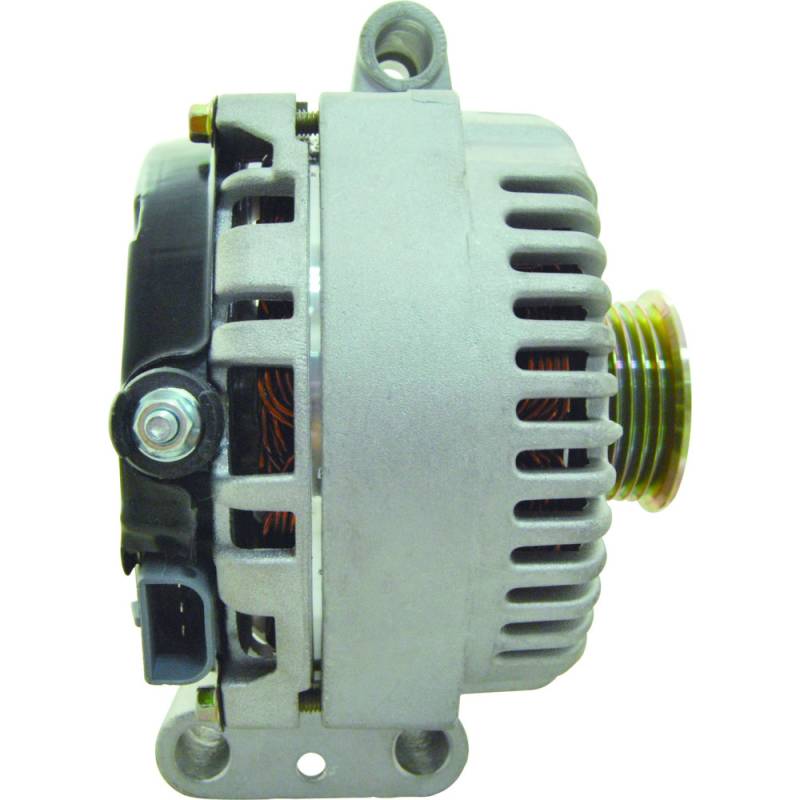

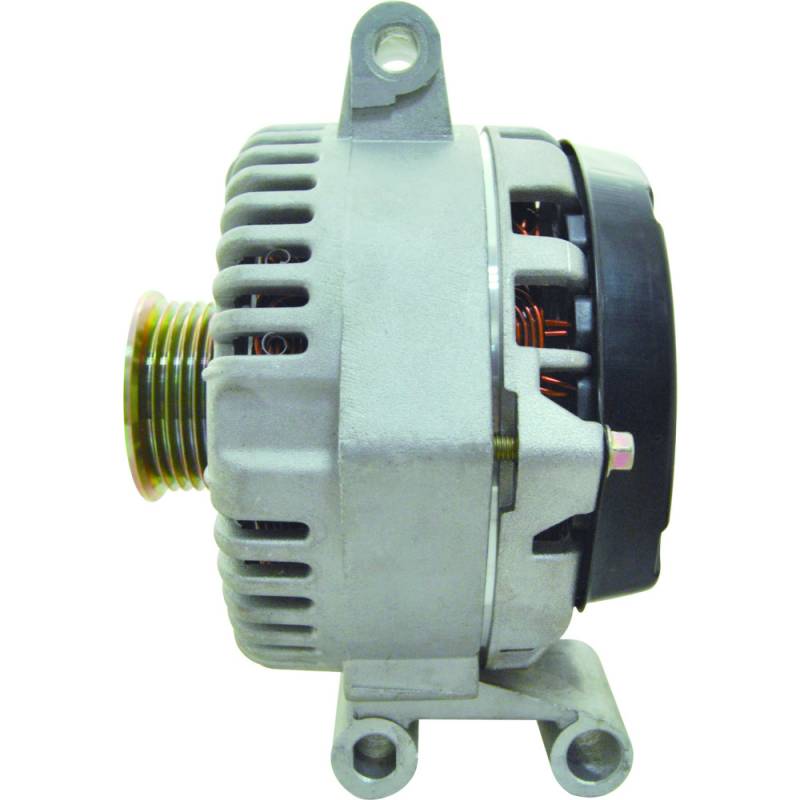

SPECIFICATIONS: • Voltage: 12 Volt
• Output: 130 Amp
• Family: 6G type
• Rotation: Clockwise (CW)
• Regulator: internal
• Fan: internal

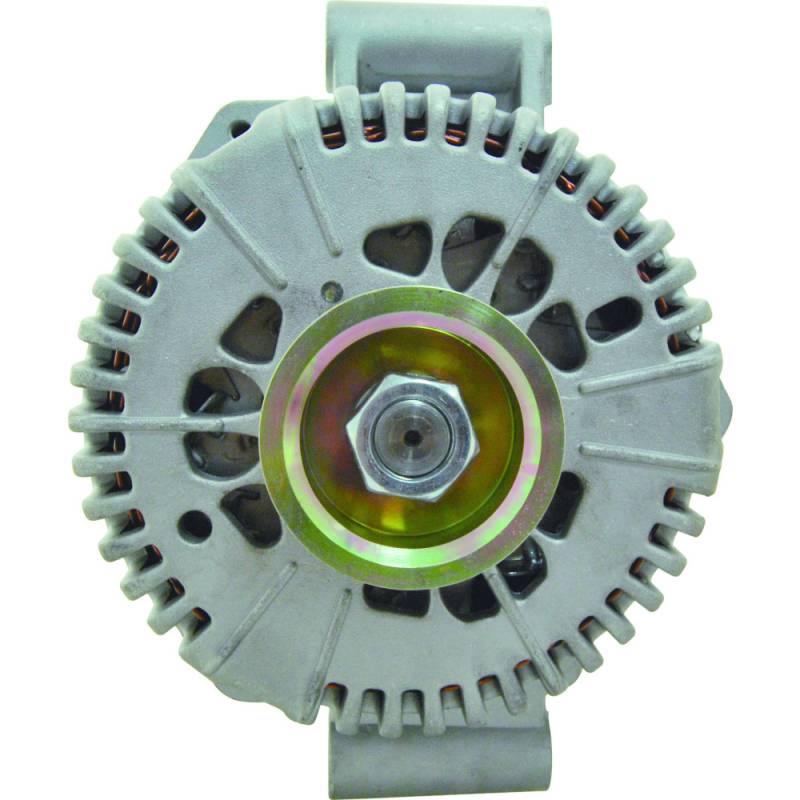

• Pulley: 6 groove solid, 2.504 in / 63.6 mm OD
• Regulator plug clock position: 4:00, 3 spade terminals A, N/C, L
• Polarity: negative ground
• B+ terminal: M6-1.0 stud
• Mounting: T mount, 3 ears (10.4 mm, 10.5 x 11.5 mm slotted, 12.5 mm)
• Weight: 14.46 lb / 6.57 kg
• Condition: New aftermarket, not a Ford or Motorcraft branded unit
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
