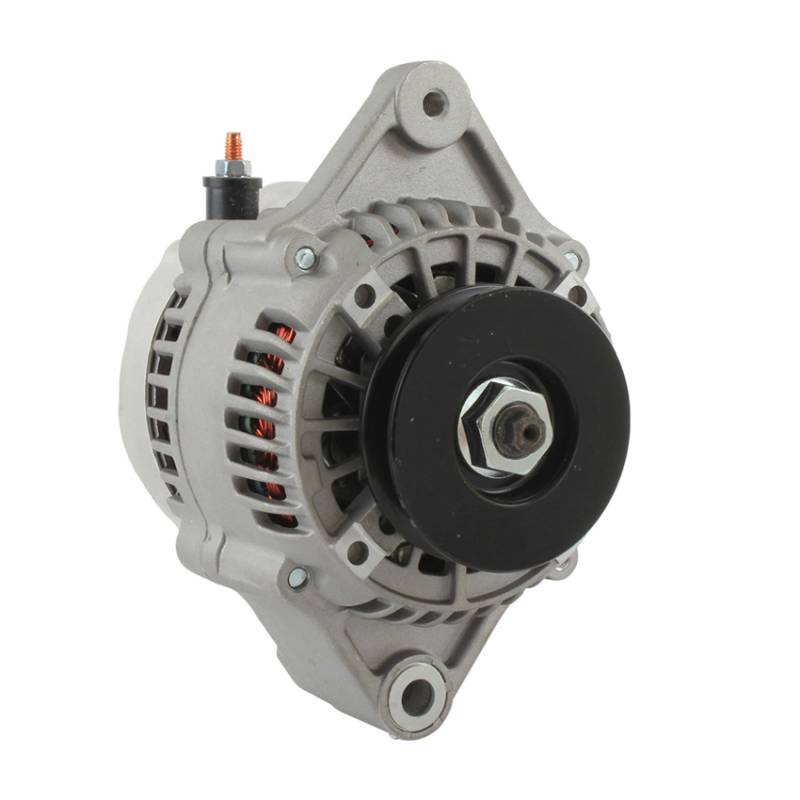

New 12V 60A Alternator Compatible With Toyota 7Fd20 7Fd23 7Fd25 7Fd30 7Fdjk20 Forklift Lift Truck

12853*5
OEM PART NUMBERS:
• Toyota: 27060-78700-71 / 27060-78701-71 / 27060-78700
• Toyota: 27060-74221 / 27060-30530
• Denso: 102211-5190 / 1022115190
• Denso: 102211-5850 / 1022115850
• Denso: 102211-5240 / 1022115240
• Denso First Time Fit: 210-7024 / 2107024
• Hella: 8EL 737 839-001 / 8EL737839001

CROSS REFERENCES:
• 400-52441 / 90-29-5461 / 90-29-5467
• Lester: 12853

SPECIFICATIONS:
• Type: Denso (Nippondenso) Alternator — Permanent Magnet
• Voltage: 12V
• Amperage: 60A
• Rotation: CW
• Pulley: 1-Groove V-Belt (85mm OD)
• Fan: Internal
• Regulator: Internal (IR/IF)
• Mount: M8-1.25 Threaded
• Weight: 10 lbs
• Condition: New

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $387.12
Sale: $218.58
Save: 44%
Save: $168.54
Qty:
Free Shipping!

Description

TOYOTA 7FD FORKLIFTS w/1DZ ENGINE (1998-2016):
• 7FD10 w/1DZ 2.5L I4 Diesel (1998-2016)
• 7FD14 w/1DZ 2.5L I4 Diesel (1998-2016)
• 7FD15 w/1DZ 2.5L I4 Diesel (1998-2016)
• 7FD18 w/1DZ 2.5L I4 Diesel (1998-2016)
• 7FD20 w/1DZ 2.5L I4 Diesel (1998-2016)
• 7FD30 w/1DZ 2.5L I4 Diesel (1998-2016)
• 7FDJK20 w/1DZ 2.5L I4 Diesel (1998-2016)

TOYOTA 7FD FORKLIFTS w/2Z ENGINE (1998-2016):
• 7FD10/7FD14/7FD15/7FD18/7FD20 w/2Z Engine (1998-2016)
• 7FD23 w/2Z Engine (1998-2016)
• 7FD25 w/2Z Engine (1998-2016)

ENGINES: Toyota 1DZ — 2.5L I4 Diesel. Toyota 2Z — I4 Engine. 7FD-series = diesel forklift trucks (1.0-3.0 ton capacity). Model number indicates lift capacity (e.g., 7FD10=1.0 ton, 7FD25=2.5 ton).

TYPE: Denso (Nippondenso) alternator. 12V, 60A, CW. Internal fan/regulator (IR/IF). 1-groove V-belt pulley (85mm OD). Permanent magnet type. M8-1.25 threaded mount.
