DELCO OEM PART NUMBERS:
• Delco: 8000397
• Delco: 8000502
HYUNDAI OEM PART NUMBERS:
• Hyundai: 361003C230
• Hyundai: 36100-3C230
• Hyundai: 361003F100
• Hyundai: 36100-3F100
CATALOG CROSS-REFERENCE:
• Item Reference: 6969N
SPECIFICATIONS:

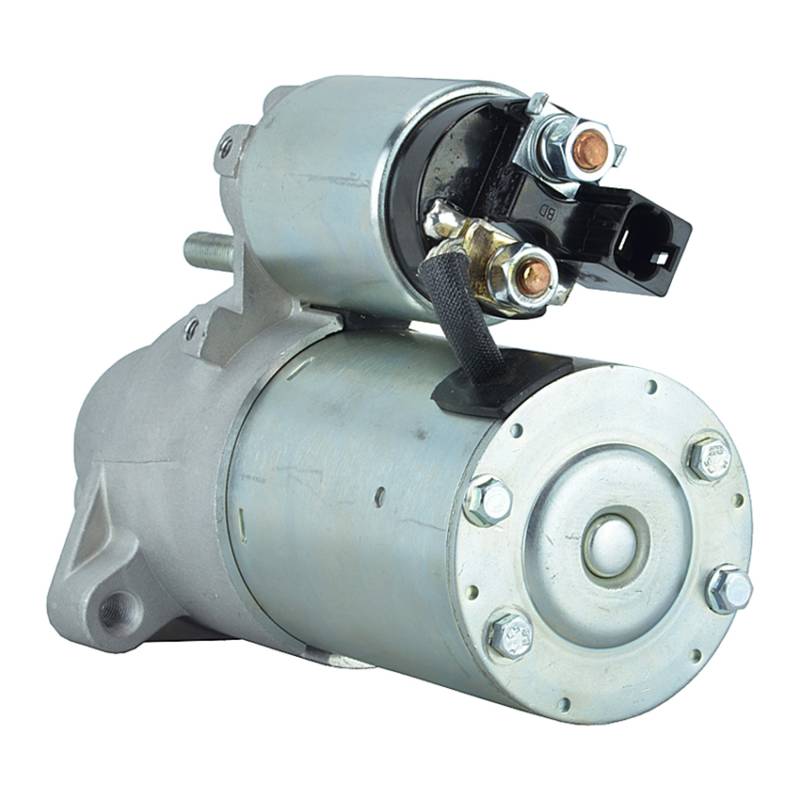

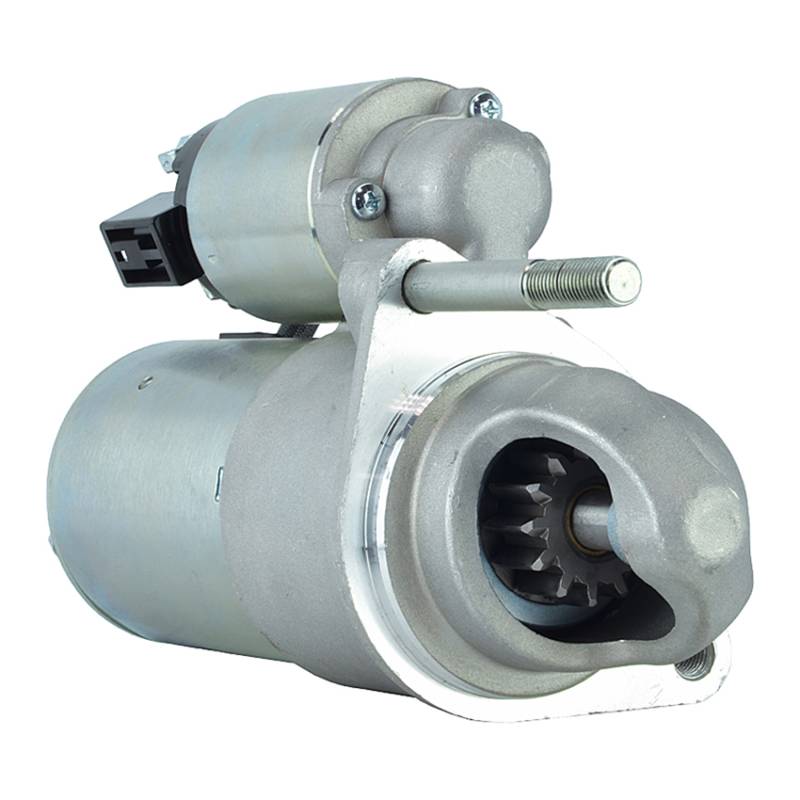

• Product Type: Starter Motor
• Unit Type: Delco OEM Design
• Starter Type: PMGR (Permanent Magnet Gear Reduction)
• Voltage: 12V DC
• Power Output: 1.7 kW
• Rotation: Clockwise (CW)
• Teeth on Drive: 13
• Overall Length: 8.583 in / 218 mm
• Mounting Ear 1 Hole: M10-1.25 Threaded
• Mounting Ear 2 Hole: M10-1.25 Threaded
• Registry OD: 2.752 in / 69.9 mm
• Top Mounting Hole: 67.5mm Long Threaded Extension
• (2) M6-1.0 Threaded Heat Shield Holes in DE
• Weight: 8.36 lbs / 3.8 kg
• Quantity: 1 Unit
• Condition: New Aftermarket
• Source: Aftermarket Quality Parts
• Recommended Use: OE Replacement for Hyundai Equus/Genesis Delco Starters
• Product Fit: Direct Fit for 2011-2016 Hyundai V6/V8 Applications
VEHICLE APPLICATIONS SUMMARY:
• Hyundai Equus 4.6L V8 2011
• Hyundai Equus 5.0L V8 2012-2014
• Hyundai Genesis 4.6L V8 2011-2012
• Hyundai Genesis 5.0L V8 2012-2013
• Hyundai Genesis Coupe 3.8L V6 2013-2016
• Engine Families: Hyundai Tau V8 / Lambda V6
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
