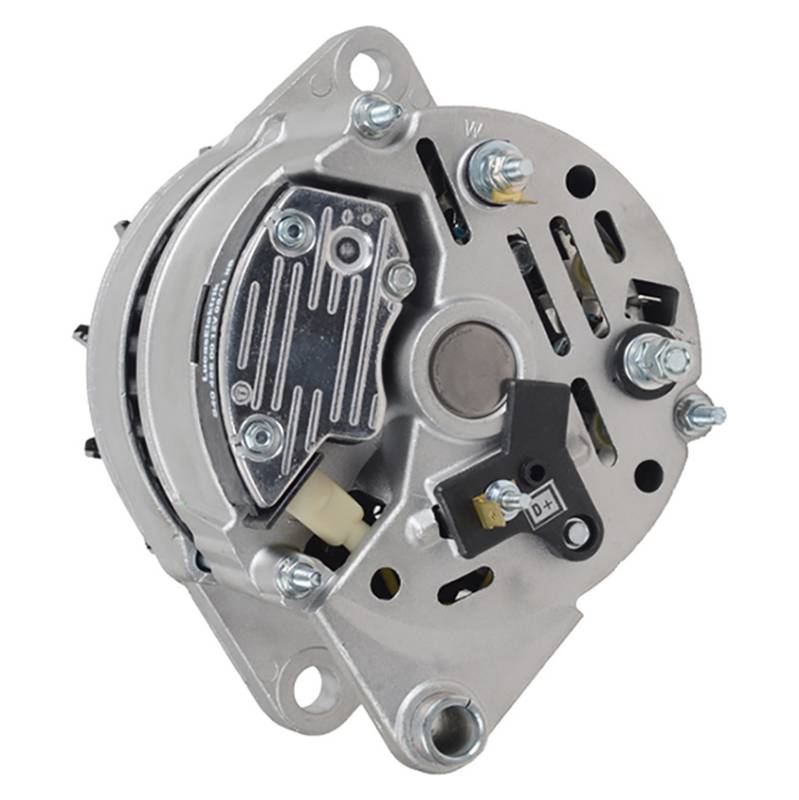

New 12V 65 Amp Alternator Compatible With New Holland Tl70 1998 63320124 63321458 Ia0493

12581N*4
MAGNETI MARELLI PART NUMBERS:
• 63320137
• 63320124
• 63321458

NEW HOLLAND PART NUMBERS:
• 99478834
• R013240
• 84522025
• 500322764
• 500322672
• 500322671
• 500322762
• 500322763
• 500322763R
• 500322771
• 500343742
• 99482141

CASE IH PART NUMBERS:
• 47134023
• 395250A1
• 405078A1

LUCAS PART NUMBERS:
• LRA01915

HELLA PART NUMBERS:
• 8EL-749-556-001, 8EL 749 556-001, 8EL749556001

MAHLE PART NUMBERS:
• IA0493
• IA0463, IA 0463

WILSON PART NUMBERS:
• 90-19-2524, 90192524

SPECIFICATIONS:
Type: Alternator, Magneti Marelli design
Voltage: 12V
Amperage: 65A
Rotation: Clockwise (CW)
Regulator: Internal
Fan: External
B+ terminal: M6-1.0
Polarity: Negative
Weight: 10.5 lbs / 4.77 kg
Condition: New aftermarket

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $306.79
Sale: $175.31
Save: 43%
Save: $131.48
Qty:
Free Shipping!

Description

NEW HOLLAND TN SERIES TRACTORS:
• New Holland TN55D tractor, L3 2.9L 179cid Iveco 8035.05, 1999-2004
• New Holland TN55S tractor, L3 2.9L 179cid Iveco 8035.05, 1999-2004
• New Holland TN60VA tractor, L3 2.9L 179cid New Holland 57HP, 2004-2008
• New Holland TN65D tractor, L3 2.9L 179cid New Holland 65HP, 1998-2004
• New Holland TN65F tractor, L3 2.9L 179cid New Holland 65HP, 1998-2003
• New Holland TN65S tractor, L3 2.9L 179cid New Holland 65HP, 1999-2004
• New Holland TN65V tractor, L3 2.9L 179cid New Holland 65HP, 2000-2004
• New Holland TN70A tractor, L3 2.9L 179cid New Holland 67HP, 2004-2008
• New Holland TN70D tractor, L3 2.9L 179cid New Holland 67HP, 2000-2003
• New Holland TN70DA tractor, L3 2.9L 179cid New Holland 67HP, 2004-2008
• New Holland TN70F tractor, L3 2.9L 179cid New Holland 67HP, 1998-2004
• New Holland TN70NA tractor, L3 2.9L 179cid New Holland 67HP, 2004-2008
• New Holland TN70S tractor, L3 2.9L 179cid New Holland 67HP, 2000-2003
• New Holland TN70VA tractor, L3 2.9L 179cid New Holland 67HP, 2004-2008
• New Holland TN75 tractor, L3 2.9L 179cid New Holland 75HP, 1999-2003
• New Holland TN75D tractor, L3 2.9L 179cid New Holland 75HP, 1999-2004
• New Holland TN75F tractor, L3 2.9L 179cid New Holland 75HP, 1998-2004
• New Holland TN75V tractor, L3 2.9L 179cid New Holland 75HP, 2000-2004
• New Holland TN75VA tractor, L3 2.9L 179cid New Holland 75HP, 2004-2014
• New Holland TN80F tractor, L3 2.9L 179cid New Holland 80HP, 2001-2004
• New Holland TN90F tractor, L4 3.9L 238cid Iveco 88HP, 1997-2001
• New Holland TN95F tractor, L4 3.9L 238cid Iveco 95HP, 2002-2004
• New Holland TN95VA tractor, L4 3.9L 238cid Iveco 95HP, 2004-2014
• New Holland TN55 tractor
• New Holland TN60A tractor
• New Holland TN60DA tractor
• New Holland TN60SA tractor
• New Holland TN65 tractor
• New Holland TN70 tractor
• New Holland TN70SA tractor
• New Holland TN75A tractor
• New Holland TN75DA tractor
• New Holland TN75FA tractor
• New Holland TN75S tractor
• New Holland TN75SA tractor
• New Holland TN85FA tractor
• New Holland TN95FA tractor

NEW HOLLAND TD SERIES TRACTORS:
• New Holland TD55D tractor, L3 2.9L 179cid Iveco 55HP, 2002-2008
• New Holland TD60D tractor, L3 2.9L 179cid Iveco 60HP, 2002-2008
• New Holland TD70D tractor, L3 2.9L 179cid New Holland 51HP, 2002-2008
• New Holland TD75D tractor, L4 3.9L 238cid Iveco 72HP, 2002-2008
• New Holland TD80D tractor, L4 3.9L 238cid Iveco 72HP, 2002-2008
• New Holland TD90D tractor, L4 3.9L 238cid Iveco 90HP, 2002-2008
• New Holland TD95D tractor

NEW HOLLAND TK SERIES CRAWLER TRACTORS:
• New Holland TK80MA crawler tractor, L4 3.9L 238cid Iveco 77HP, 2004-2009
• New Holland TK90A crawler tractor, L4 3.9L 238cid Iveco 90HP, 2004-2009
• New Holland TK90MA crawler tractor, L4 3.9L 238cid Iveco 90HP, 2004-2009
• New Holland TK100A crawler tractor, L4 3.9L 238cid Iveco 93HP, 2004-2009
• New Holland TK75VA crawler tractor
• New Holland TK80A crawler tractor

CASE IH JX SERIES TRACTORS:
• Case IH JX55 tractor, L3 2.7L 165cid Iveco, 2002-2006
• Case IH JX60 tractor, L4 2.9L 179cid Iveco, 2006-2008
• Case IH JX65 tractor, L4 2.9L 179cid Iveco, 2002-2006
• Case IH JX70 tractor, L4 2.9L 179cid Iveco, 2006-2008
• Case IH JX80 tractor, L4 3.9L 239cid Iveco, 2006-2008
• Case IH JX85 tractor, L4 3.9L 239cid Iveco, 2002-2006
• Case IH JX90 tractor, L4 3.9L 239cid Iveco, 2006-2008
• Case IH JX95 tractor, L4 3.9L 239cid Iveco, 2002-2014
• Case IH JX1070N tractor, L4 2.9L 179cid Iveco, 2004-2008
• Case IH JX1075N tractor, L4 2.9L 179cid Iveco, 2004-2008
• Case IH JX1095N tractor, L4 3.9L 238cid Iveco, 2005-2008

DEUTZ-FAHR AGROCLIMBER AND AGROCOMPACT:
• Deutz-Fahr Agroclimber 105 crawler tractor, 4.0L 247cid Deutz 4-4000 (SDF), 2010-2016
• Deutz-Fahr Agroclimber 310 V crawler tractor, 4.0L 247cid Deutz 4-4000 (SDF), 2010-2016
• Deutz-Fahr Agroclimber 410 SIX crawler tractor, 4.0L 247cid Deutz 4-4000 (SDF), 2010-2016
• Deutz-Fahr Agroclimber F90 crawler tractor, 4.0L 247cid Deutz 4-4000 (SDF), 2010-2016
• Deutz-Fahr Agroclimber F100 crawler tractor, 4.0L 247cid Deutz 4-4000 (SDF), 2010-2016
• Deutz-Fahr Agroclimber F400 crawler tractor, 4.0L 247cid Deutz 4-4000 (SDF), 2010-2016
• Deutz-Fahr Agroclimber F410 crawler tractor, 4.0L 247cid Deutz 4-4000 (SDF), 2010-2016
• Deutz-Fahr Agroclimber V70 crawler tractor, L4 3.0L 183cid Deutz 4-1000 (SDF), 2007-2015
• Deutz-Fahr Agroclimber V80 crawler tractor, L4 3.0L 183cid Deutz 4-1000 (SDF), 2007-2015
• Deutz-Fahr Agrocompact F100 tractor, 4.0L 247cid Deutz 4-4000 (SDF), 2012-2016

ALSO FITS:
• New Holland TL70, TL80, TL90, TL100 tractors (New Holland and New Holland Industrial), 1998-2004
• Ford and New Holland 4835 with cab, New Holland 4635, 5635, 6635, 7635 tractors, 1995-1999
• New Holland / Fiat L60, L65, L75, L85 tractors, 1996-1999
• New Holland LB75 backhoe loader, LM425, LM430, LM640 telehandlers, 1998-2009

SPECIFICATIONS:
• Type: alternator, internal regulator, external fan, Magneti Marelli design
• Voltage: 12 volt
• Output: 65 amp
• Rotation: clockwise (CW)
• Polarity: negative
• B+ terminal: M6-1.0
• Weight: 10.5 lbs / 4.77 kg
• Condition: New aftermarket, not a Magneti Marelli branded unit
• ⚠️ This is the 65 amp alternator. The 45 amp Marelli alternator, New Holland / Fiat 4808498, fitted to the same tractors without a cab (4835, 5635, 6635, 7635, TL70, TL80, TL90, TL100), is a different part: match the amps and the number on your old alternator.
