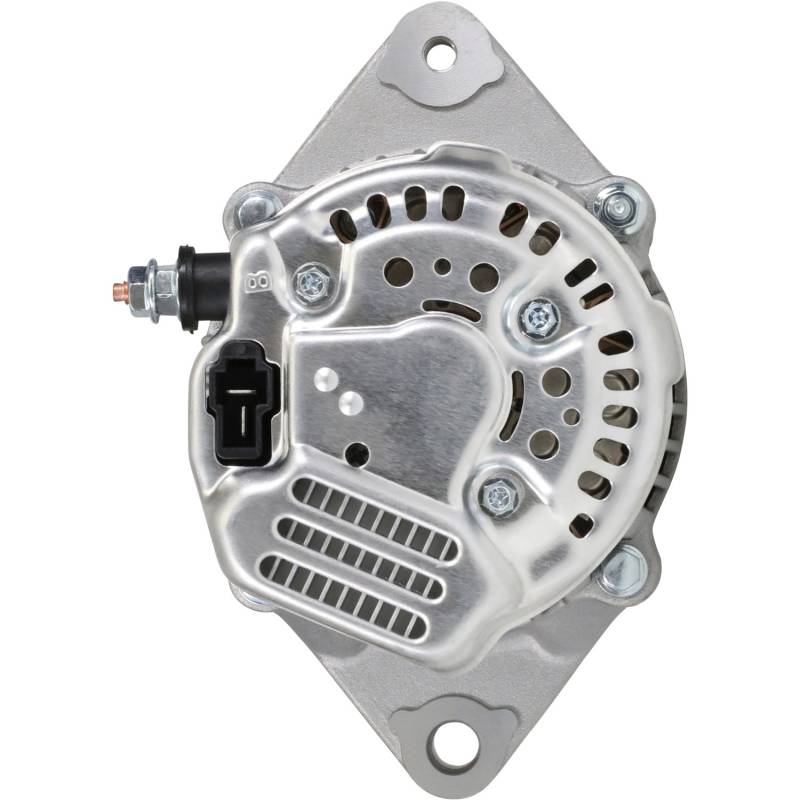

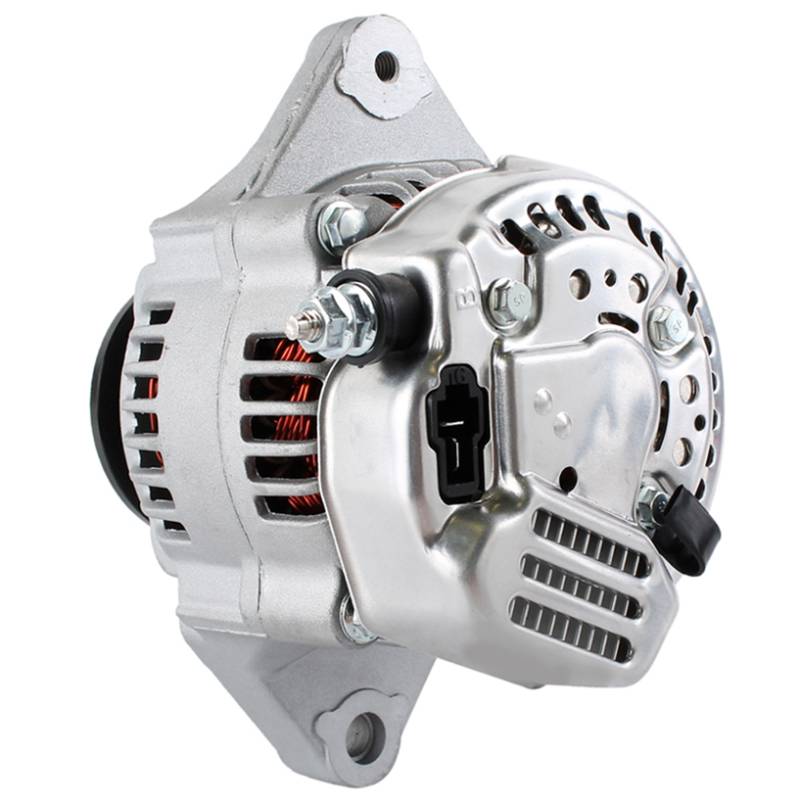

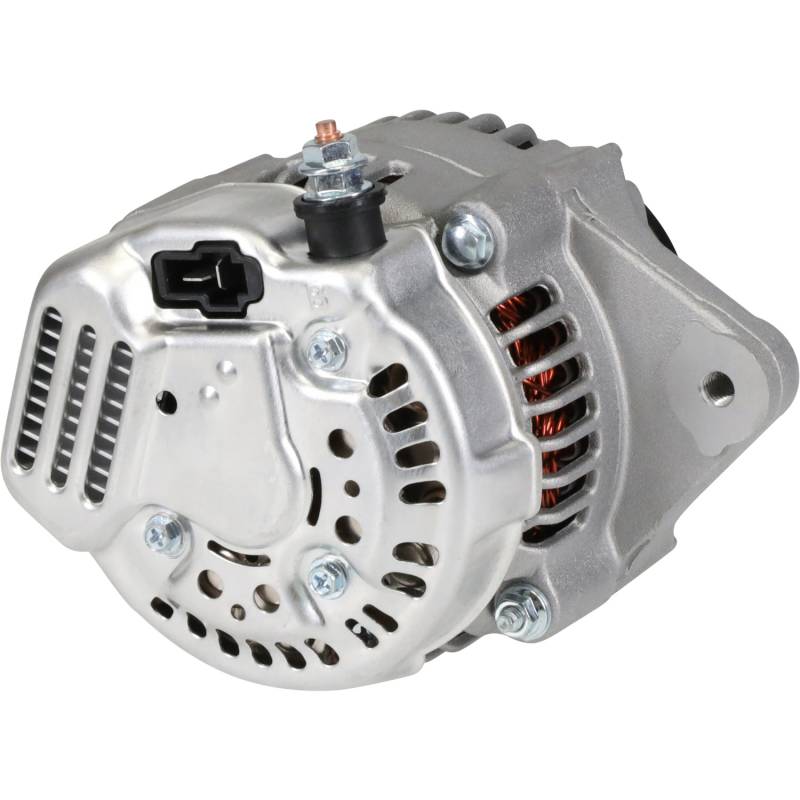

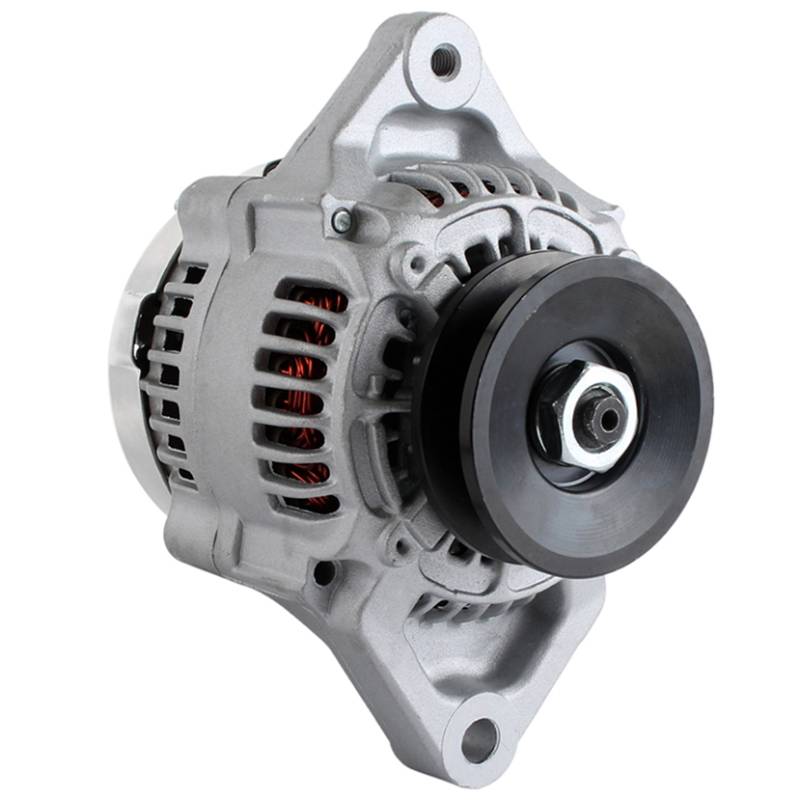

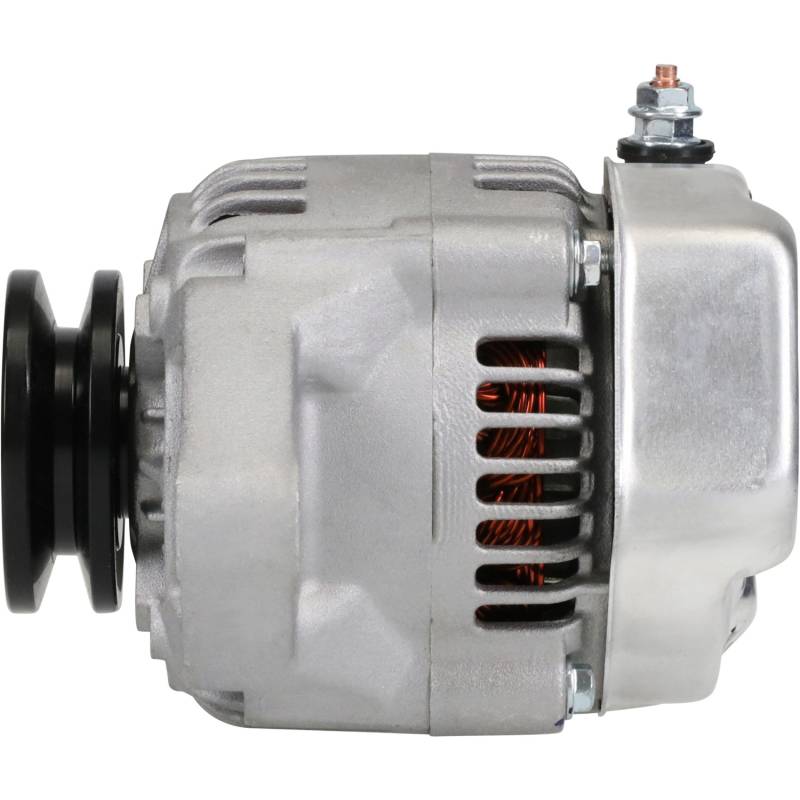

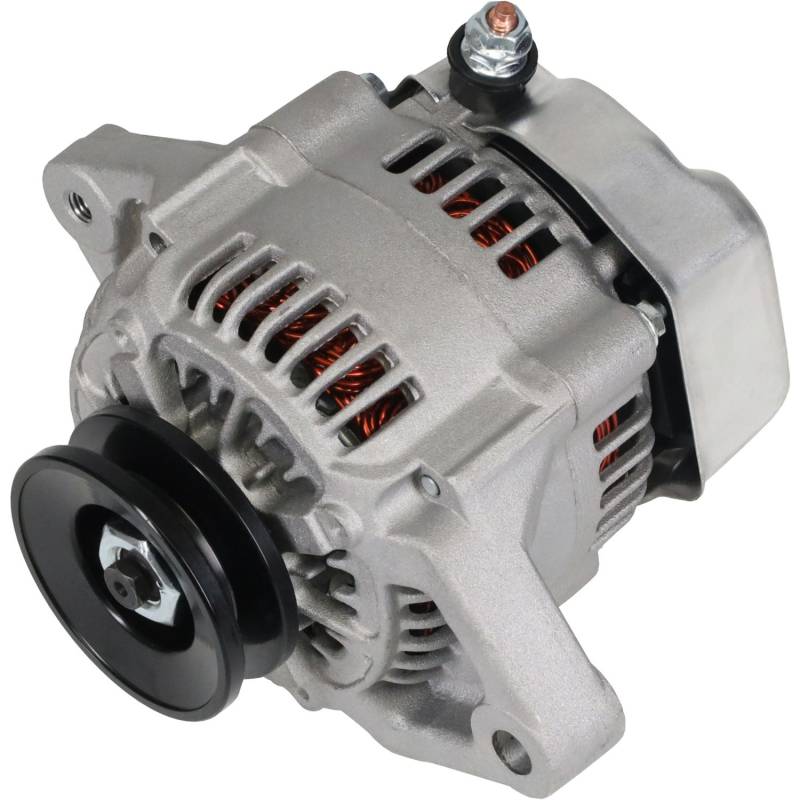

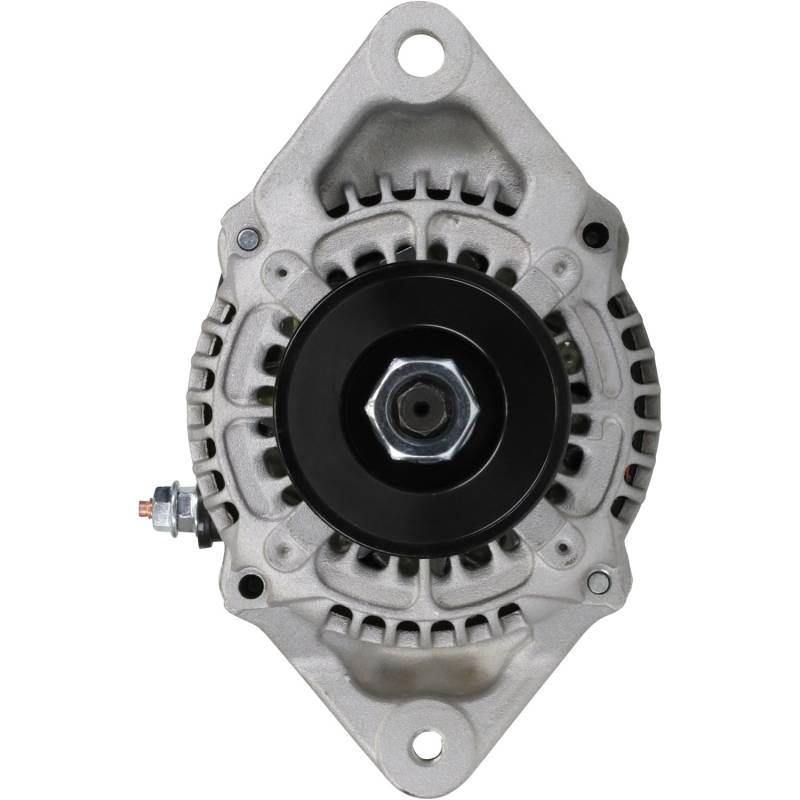

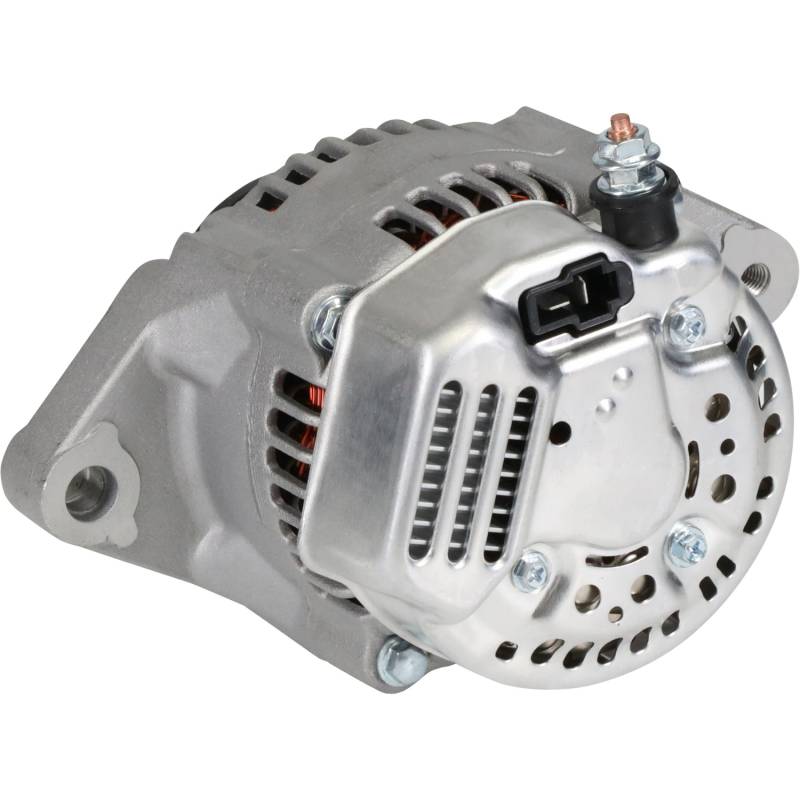

Alternator Compatible With 2005-2015 Mf-1547 Mf-1552 Compact Tractor 1994-2007 T95 Skid Steer V1305b

OEM PART NUMBERS:
• Denso 101211-2850 (1012112850)
• Denso 101211-2851 (1012112851)
• Denso 101211-2490 (1012112490)
• Denso 101211-8520 (1012118520)
• Denso 101211-8521 (1012118521)
• Denso 101211-8522 (1012118522)
• Denso 101211-8523 (1012118523)
• Denso 101211-2200 (1012112200)
• Denso 101211-2201 (1012112201)
• Denso 9761219-852 (9761219852)
• Denso 9761219-285 (9761219285)
• Kubota 16615-64011 (1661564011)
• Kubota 16615-64012 (1661564012)
• Kubota TA043-74010 (TA04374010)
• Kubota TA043-74011 (TA04374011)
• Kubota TA043-74012 (TA04374012)
• Kubota 3A611-74010 (3A61174010)
• Kubota 3A611-74011 (3A61174011)
• Kubota 3A611-74012 (3A61174012)
• Kubota KEARA16615
• Iseki 6281-200-015-0 (62812000150)
• Massey Ferguson 3606220M91
• Yanmar 129052-77220 (12905277220)
• Yanmar 129052-77221 (12905277221)
• AM880701
• MIU800942
• LRA02198 (LRA2198)
• LRA03514 (LRA3514)

SPECIFICATIONS:
• Voltage: 12V
• Amperage: 60 Amps
• Unit Type: Denso
• Rotation: Clockwise (CW)
• Fan: Internal
• Regulator: Internal (IR)
• Grooves: 1 (V-Belt)
• Pulley Type: Solid
• Pulley OD: 2.476in / 62.9mm
• Mount Type: Spool
• Mounting Ear 1 Hole: M8-1.25 Threaded
• Mounting Ear 1 Thickness: 0.626in / 15.9mm
• Mounting Ear 2 Hole: 10.5mm Unthreaded
• Mounting Ear 2 Thickness: 0.807in / 20.5mm
• B+ Terminal: M6-1.0
• IG Terminal: Spade
• L Terminal: Spade
• Polarity: Negative
• Weight: 7.89 lbs / 3.59 kg

FITS HUSQVARNA:
• HUV 4421 DXL Utility Vehicle - D722 20HP Diesel (2006-2010)

FITS ISEKI:
• TG5390 Compact Tractor - 1498cc 29kW Diesel (2005-2015)

FITS MASSEY FERGUSON:
• MF-1547 Compact Tractor - Iseki 3 Cyl. 36kW Diesel (2005-2015)
• MF-1552 Compact Tractor - Iseki Diesel

FITS THOMAS EQUIPMENT:
• T95 Skid Steer - V1305-B Kubota Diesel (1994-2007)

FITS KUBOTA ENGINES:
• D722 20HP Diesel
• V1305-B Diesel
• Engine G3B-H (1995+)
• Engine D950-B (1998)

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
