OEM PART NUMBERS:
• Harley Davidson: 29967-84 / 2996784 (original)
• Harley Davidson: 29967-84A / 2996784A
• Harley Davidson: 29967-84B / 2996784B
• Harley Davidson: 29967-84C / 2996784C (current)
SPECIFICATIONS:

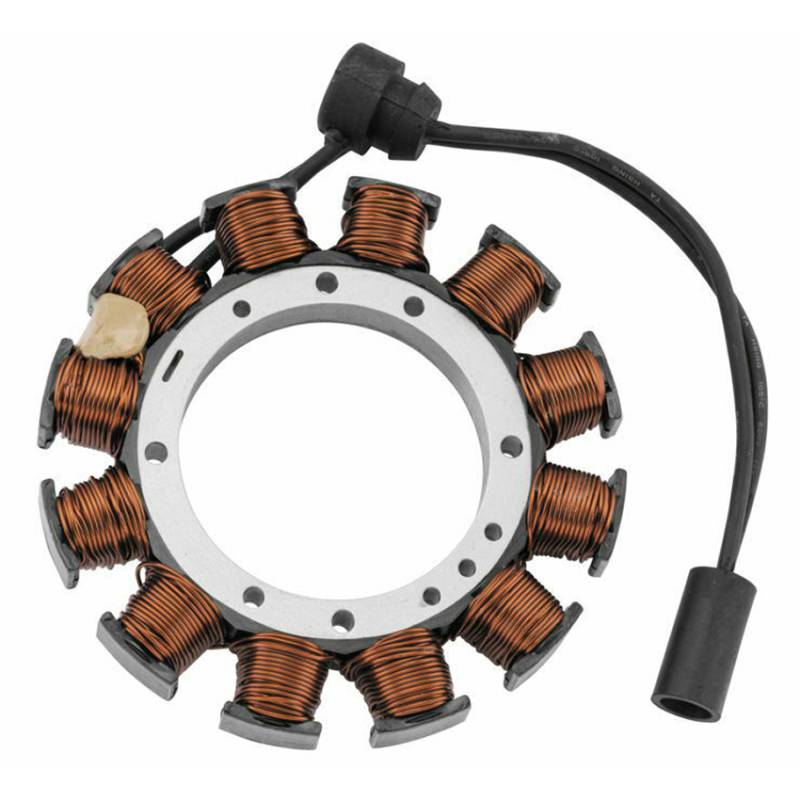

• Type: Stator
• Voltage: 12V
• Amperage: 19 Amp
• Wires: 2-Wire / 2-Pin Female Plug
• Poles: 12
• Lamination Stack ID: 2.795" / 71mm
• Lamination Stack OD: 5.315" / 135mm
• Lamination Stack Thickness: 0.512" / 13mm
• Wire-to-Wire Resistance: 0.6 Ohms ±20%
• Engines: Ironhead 998cc (1984-1985) / Evolution 883cc-1200cc (1986-1990)
• Condition: New
HARLEY DAVIDSON SPORTSTER APPLICATIONS:
• 1000cc Ironhead: XLH 1000, XLS 1000 Roadster, XLX 1000, XR-1000 (1984-1985)
• 883cc Evolution: Sportster 883 / 883 Deluxe / 883 Hugger XLH883 (1986-1990)
• 1100cc Evolution: Sportster 1100 XLH1100 (1986-1987)
• 1200cc Evolution: Sportster 1200 XLH1200 (1988-1990)
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
