HITACHI: S114-823SBX S114254S1BX

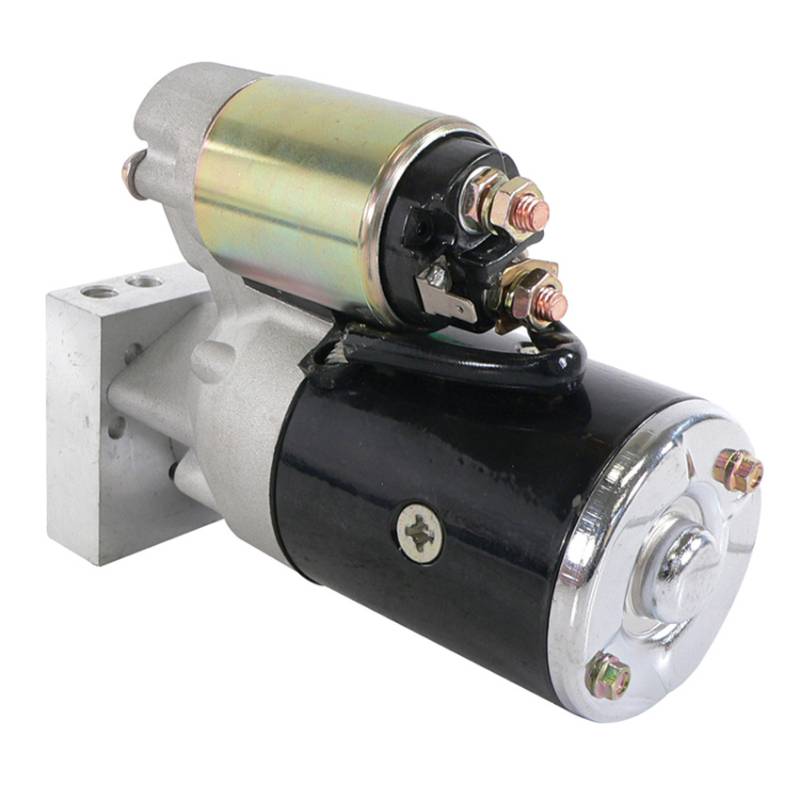

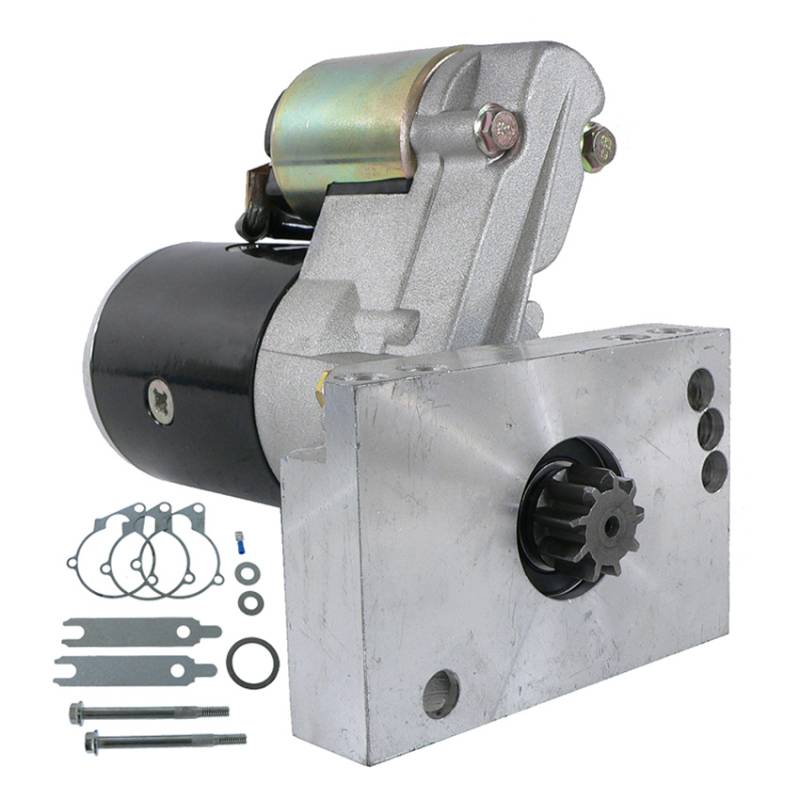

ITEM DESCRIPTION: STARTER
UNIT TYPE: HITACHI
TYPE: OSGR
VOLTAGE: 12
ROTATION: CW
TEETH: 9
GEAR OD: 0.988IN / 25.1MM
LENGTH: 8.276IN / 210.2MM
MOUNTING EARS: 10.0MM UNTHREADED
SPECIFICATIONS: STANDARD TORQUE VERSION
SPECIFICATIONS: 3-CLOCKING POSITIONS
SPECIFICATIONS: CHEVY V8 & V6 A/T & M/T WITH 153 OR 168 TOOTH RING GEAR
PRODUCT FINISH: NONE
WEIGHT: 11.77 LBS / 5.35 KG
ALSO AVAILABLE IN CHROME: 18492CH
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
GMC C25 SUBURBAN 6.6L/400CI V8 1978
GMC C25 SUBURBAN 7.4L/454CI V8 1975 - 1978
GMC C25/C2500 PICKUP 4.6L/283CI V8 1967
GMC C25/C2500 PICKUP 5.0L/307CI V8 1968 - 1973
GMC C25/C2500 PICKUP 5.3L/327CI V8 1967 - 1968
GMC C25/C2500 PICKUP 5.4L/327CI V8 1968
GMC C25/C2500 PICKUP 5.7L/350CI V8 1969 - 1974
GMC C25/C2500 PICKUP 6.5L/396CI V8 1968 - 1969
GMC C25/C2500 PICKUP 6.6L/402CI V8 1970 - 1972
GMC C25/C2500 PICKUP 7.4L/454CI V8 1973 - 1974
GMC C25/C2500 SUBURBAN 5.0L/307CI V8 1968 - 1973
GMC C25/C2500 SUBURBAN 5.3L/327CI V8 1968
GMC C25/C2500 SUBURBAN 5.4L/327CI V8 1968
GMC C25/C2500 SUBURBAN 5.7L/350CI V8 1969 - 1974
GMC C25/C2500 SUBURBAN 6.5L/396CI V8 1968 - 1969
GMC C25/C2500 SUBURBAN 6.6L/402CI V8 1970 - 1972
GMC C25/C2500 SUBURBAN 7.4L/454CI V8 1973 - 1974
GMC C2500 5.0L/305CI V8 1979 - 1986
GMC C2500 5.7L/350CI V8 1979 - 1986
GMC C2500 6.6L/400CI V8 1979
GMC C2500 7.4L/454CI V8 1979 - 1985
GMC C2500 SUBURBAN 5.0L/305CI V8 1982 - 1986
GMC C2500 SUBURBAN 5.7L/350CI V8 1979 - 1986
GMC C2500 SUBURBAN 6.6L/400CI V8 1980
GMC C2500 SUBURBAN 7.4L/454CI V8 1979 - 1985
GMC C35 5.0L/305CI V8 1978
GMC C35 5.7L/350CI V8 1975 - 1978
GMC C35 6.6L/400CI V8 1976 - 1978
GMC C35 7.4L/454CI V8 1975 - 1978
GMC C35/C3500 PICKUP 4.6L/283CI V8 1967
GMC C35/C3500 PICKUP 5.0L/307CI V8 1968 - 1973
GMC C35/C3500 PICKUP 5.3L/327CI V8 1967 - 1968
GMC C35/C3500 PICKUP 5.4L/327CI V8 1968
GMC C35/C3500 PICKUP 5.7L/350CI V8 1969 - 1974
GMC C35/C3500 PICKUP 6.5L/396CI V8 1968 - 1969
GMC C35/C3500 PICKUP 6.6L/402CI V8 1970 - 1972
GMC C35/C3500 PICKUP 7.4L/454CI V8 1973 - 1974
GMC C3500 5.0L/305CI V8 1986
GMC C3500 5.7L/350CI V8 1979 - 1986
GMC C3500 6.6L/400CI V8 1979
GMC C3500 7.4L/454CI V8 1979 - 1985
GMC CABALLERO 4.4L/267CI V8 1979 - 1982
GMC CABALLERO 5.0L/305CI V8 1978 - 1986
GMC CABALLERO 5.7L/350CI V8 1978 - 1979
GMC F350 4.7L/288CI V8 1955
GMC F350 5.2L/316CI V8 1955 - 1956
GMC F350 5.3L/324CI V8 1955 - 1956
GMC F350 5.5L/337CI V8 1958 - 1959
GMC F370 4.7L/288CI V8 1955
GMC F370 5.2L/316CI V8 1955 - 1956
GMC F370 5.3L/324CI V8 1955 - 1956
GMC F370 5.5L/337CI V8 1958 - 1959
GMC FM340 1955 - 1956
GMC FM340 5.5L/337CI V8 1958 - 1959
GMC FM350 1955 - 1956
GMC FM350 5.5L/337CI V8 1958 - 1959
GMC G15 5.0L/305CI V8 1977 - 1978
GMC G15 5.7L/350CI V8 1975 - 1978
GMC G15 6.6L/400CI V8 1976
GMC G15/G1500 VAN 4.6L/283CI V8 1967
GMC G15/G1500 VAN 5.0L/307CI V8 1968 - 1973
GMC G15/G1500 VAN 5.4L/327CI V8 1967
GMC G15/G1500 VAN 5.7L/350CI V8 1972 - 1974
GMC G15/G1500 VAN BASE 5.0L/307CI V8 1970 - 1971
GMC G15/G1500 VAN BASE 5.7L/350CI V8 1971
GMC G1500 5.0L/305CI V8 1979 - 1986
GMC G1500 5.7L/350CI V8 1979 - 1986
GMC G1500 6.6L/400CI V8 1979
GMC G25 5.0L/305CI V8 1977 - 1978
GMC G25 5.7L/350CI V8 1975 - 1978
GMC G25 6.6L/400CI V8 1975 - 1978
GMC G25 7.4L/454CI V8 1975 - 1976
GMC G25/G2500 VAN 4.6L/283CI V8 1967
GMC G25/G2500 VAN 5.0L/307CI V8 1968 - 1973
GMC G25/G2500 VAN 5.4L/327CI V8 1967
GMC G25/G2500 VAN 5.7L/350CI V8 1970 - 1974
GMC G2500 5.0L/305CI V8 1979 - 1986
GMC G2500 5.7L/350CI V8 1979 - 1986
GMC G2500 6.6L/400CI V8 1979 - 1980
GMC G35 5.7L/350CI V8 1975 - 1978
GMC G35 6.6L/400CI V8 1975 - 1978
GMC G35 7.4L/454CI V8 1976
GMC G35/G3500 VAN 5.0L/307CI V8 1970 - 1973
GMC G35/G3500 VAN 5.7L/350CI V8 1970 - 1974
GMC G35/G3500 VAN 7.4L/454CI V8 1973 - 1974
GMC G3500 5.0L/305CI V8 1981
GMC G3500 5.7L/350CI V8 1979 - 1986
GMC G3500 6.6L/400CI V8 1979 - 1980
GMC G3500 RALLY CUSTOM 5.7L/350CI V8 1988
GMC JIMMY 5.0L/305CI V8 1977 - 1986
GMC JIMMY 5.0L/307CI V8 1970 - 1973
GMC JIMMY 5.7L/350CI V8 1970 - 1986
GMC JIMMY 6.6L/400CI V8 1975 - 1979
GMC JIMMY 7.4L/454CI V8 1973 - 1976
GMC K15 5.0L/305CI V8 1977 - 1978
GMC K15 5.7L/350CI V8 1975 - 1978
GMC K15 6.6L/400CI V8 1975 - 1978
GMC K15 7.4L/454CI V8 1976
GMC K15 SUBURBAN 5.0L/305CI V8 1977 - 1978
GMC K15 SUBURBAN 5.7L/350CI V8 1975 - 1978
GMC K15 SUBURBAN 6.6L/400CI V8 1975 - 1978
GMC K15/K1500 PICKUP 4.6L/283CI V8 1967
GMC K15/K1500 PICKUP 5.0L/307CI V8 1968 - 1973
GMC K15/K1500 PICKUP 5.3L/327CI V8 1967 - 1968
GMC K15/K1500 PICKUP 5.4L/327CI V8 1968
GMC K15/K1500 PICKUP 5.7L/350CI V8 1969 - 1974
GMC K15/K1500 PICKUP 6.5L/396CI V8 1968 - 1969
GMC K15/K1500 PICKUP 6.6L/402CI V8 1970 - 1972
GMC K15/K1500 PICKUP 7.4L/454CI V8 1973 - 1974
GMC K15/K1500 SUBURBAN 4.6L/283CI V8 1967
GMC K15/K1500 SUBURBAN 5.0L/307CI V8 1968 - 1973
GMC K15/K1500 SUBURBAN 5.3L/327CI V8 1967 - 1968
GMC K15/K1500 SUBURBAN 5.4L/327CI V8 1968
GMC K15/K1500 SUBURBAN 5.7L/350CI V8 1969 - 1974
GMC K15/K1500 SUBURBAN 6.5L/396CI V8 1968 - 1969
GMC K15/K1500 SUBURBAN 6.6L/402CI V8 1970 - 1972
GMC K15/K1500 SUBURBAN 7.4L/454CI V8 1973 - 1974
GMC K1500 5.0L/305CI V8 1979 - 1986
GMC K1500 5.7L/350CI V8 1979 - 1986
GMC K1500 6.6L/400CI V8 1979 - 1980
GMC K1500 7.4L/454CI V8 1979 - 1980
GMC K1500 SUBURBAN 5.0L/305CI V8 1979 - 1985
GMC K1500 SUBURBAN 5.7L/350CI V8 1979 - 1986
GMC K1500 SUBURBAN 6.2L/379CI V8 1984
GMC K1500 SUBURBAN 6.6L/400CI V8 1979 - 1980
GMC K25 5.0L/305CI V8 1977 - 1978
GMC K25 5.7L/350CI V8 1975 - 1978
GMC K25 6.6L/400CI V8 1975 - 1978
GMC K25 7.4L/454CI V8 1976 - 1978
GMC K25 SUBURBAN 5.0L/305CI V8 1977 - 1978
