New 250A Alternator Fits Ford E-450 E-550 2003 Gl-373-Rm Gl485 Gl432 F6zu10300ac

FORD: XL3U-10300-BA XL3U-10300-BC F6PZ-10346-EARM1 2L3U10300BB F6ZU10300AC F6PZ10346B
FORD ENGINEERING: XL3U-BA GL-373-RM F6AUAA GL485RM GL485
MOTORCRAFT: GL432

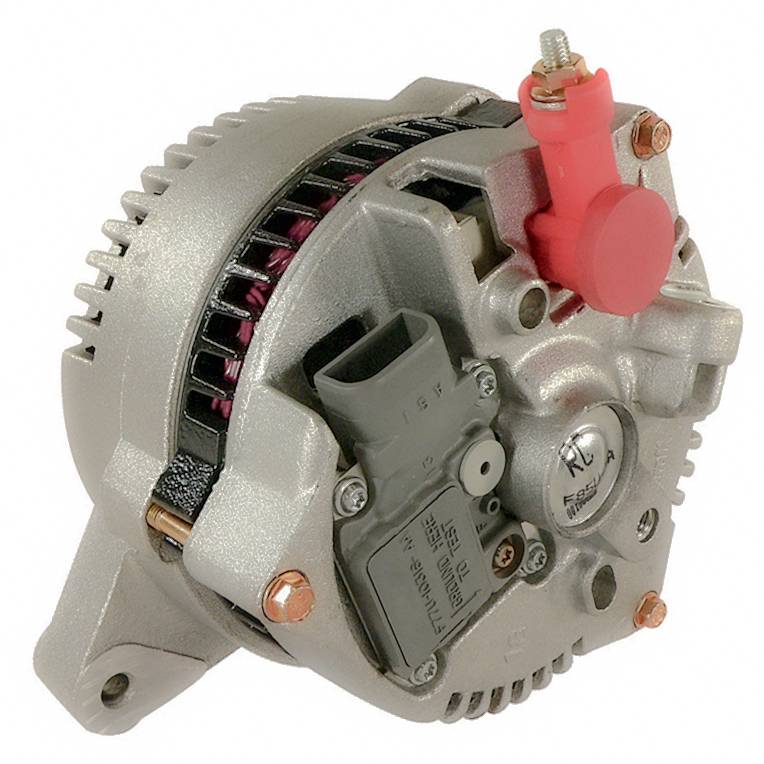

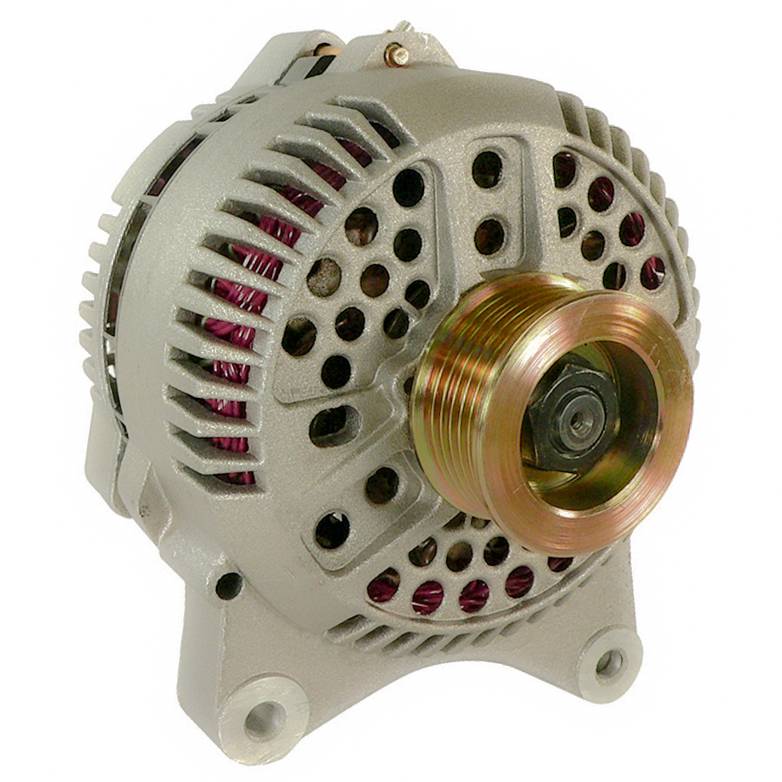

ITEM DESCRIPTION: HIGH OUTPUT ALTERNATOR
UNIT TYPE: FORD
VOLTAGE: 12
AMPERAGE: 250
FAN: INTERNAL
REGULATOR: INTERNAL
GROOVES: 6
SERPENTINE GROOVES OD: 2.224IN / 56.5MM
PULLEY TYPE: SOLID
PULLEY OD: 2.409IN / 61.2MM
MOUNT TYPE: SPOOL
MOUNTING EAR 1 HOLE: 9.3MM UNTHREADED
MOUNTING EAR 2 HOLE: 9.3MM UNTHREADED
MOUNTING EAR 1 THICKNESS: 1.008IN / 25.6MM
MOUNTING EAR 2 THICKNESS: 1.008IN / 25.6MM
B+ TERMINAL: M6-1.0
L TERMINAL: SPADE
S TERMINAL: SPADE
A TERMINAL: SPADE
POLARITY: NEGATIVE
SPECIFICATIONS: INCLUDES BATTERY TERMINAL EXTENSION
WEIGHT: 14.84 LBS / 6.74 KG

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
