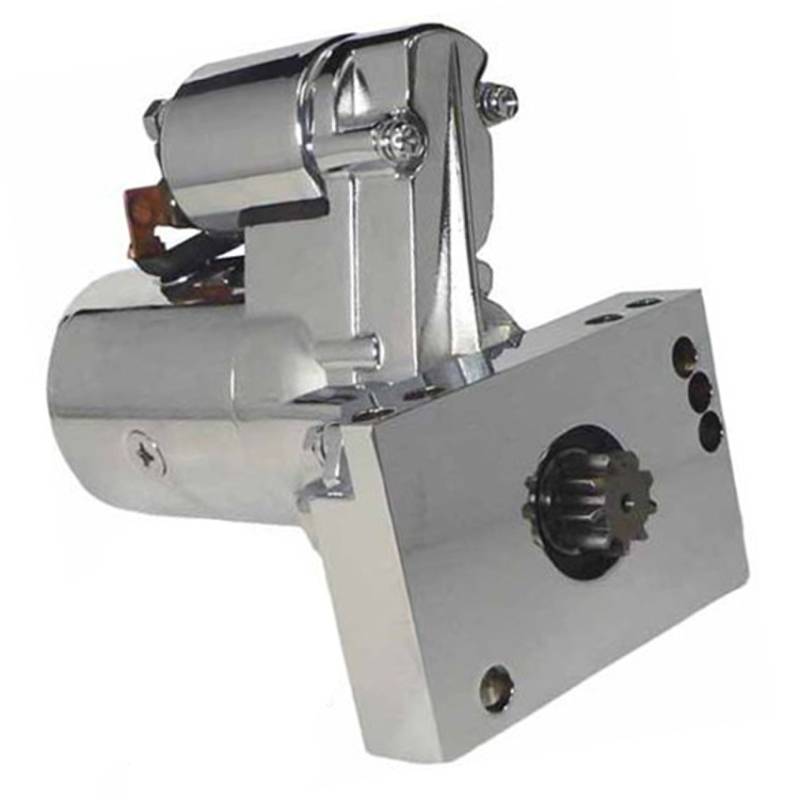

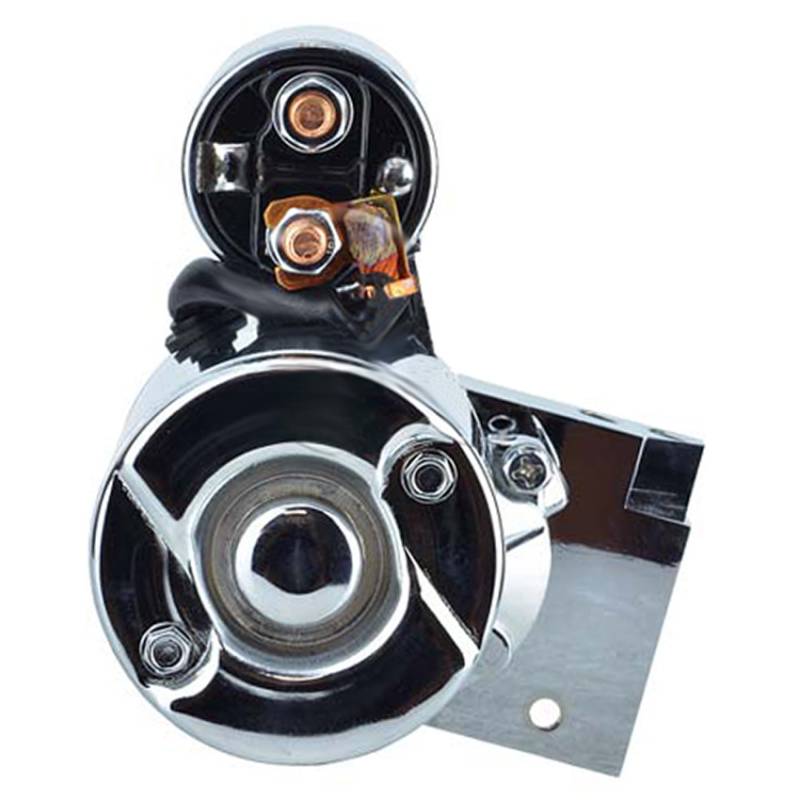

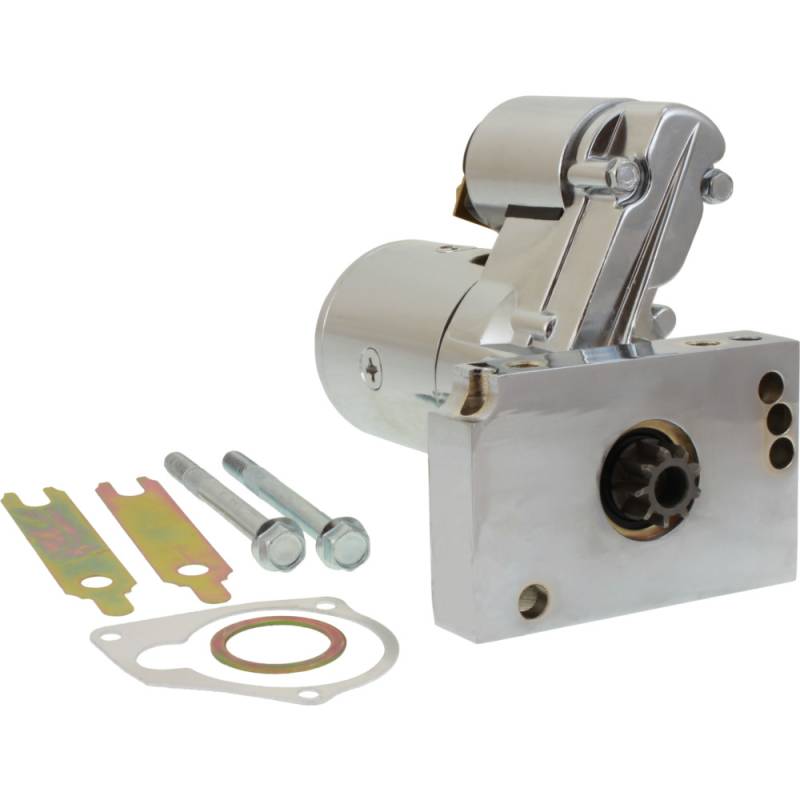

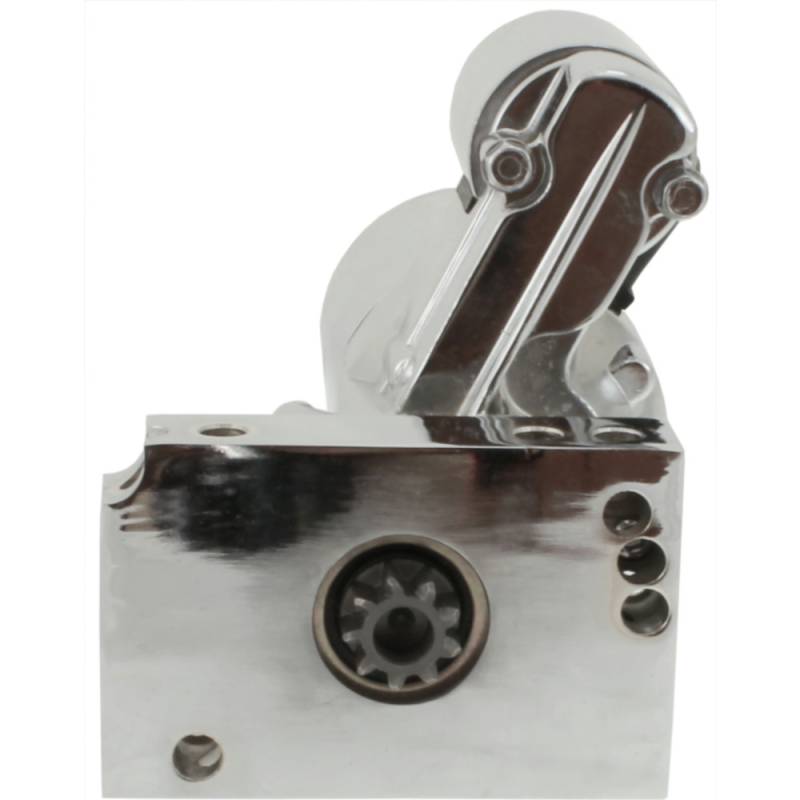

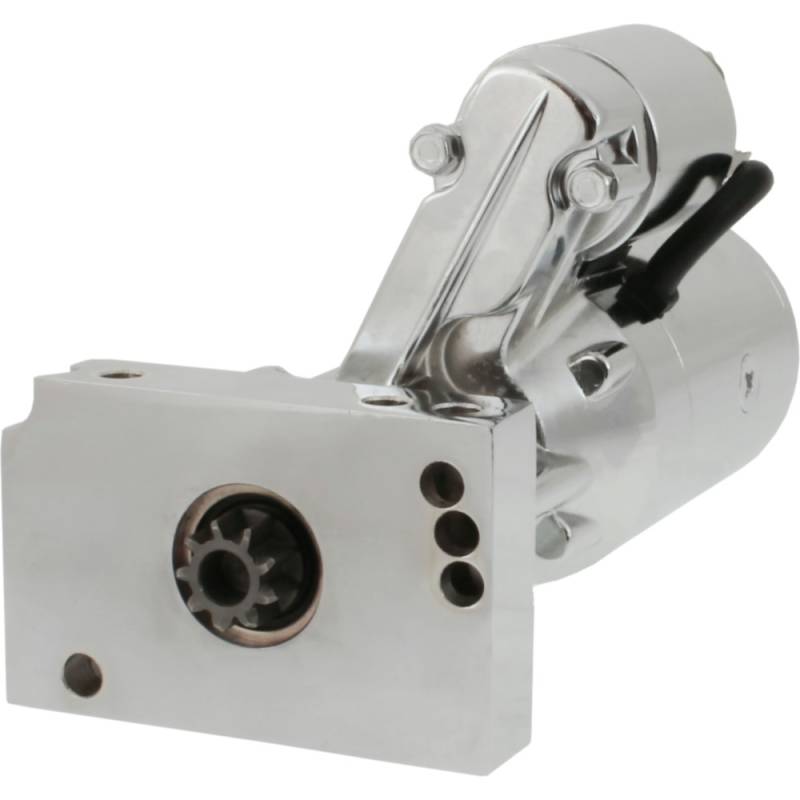

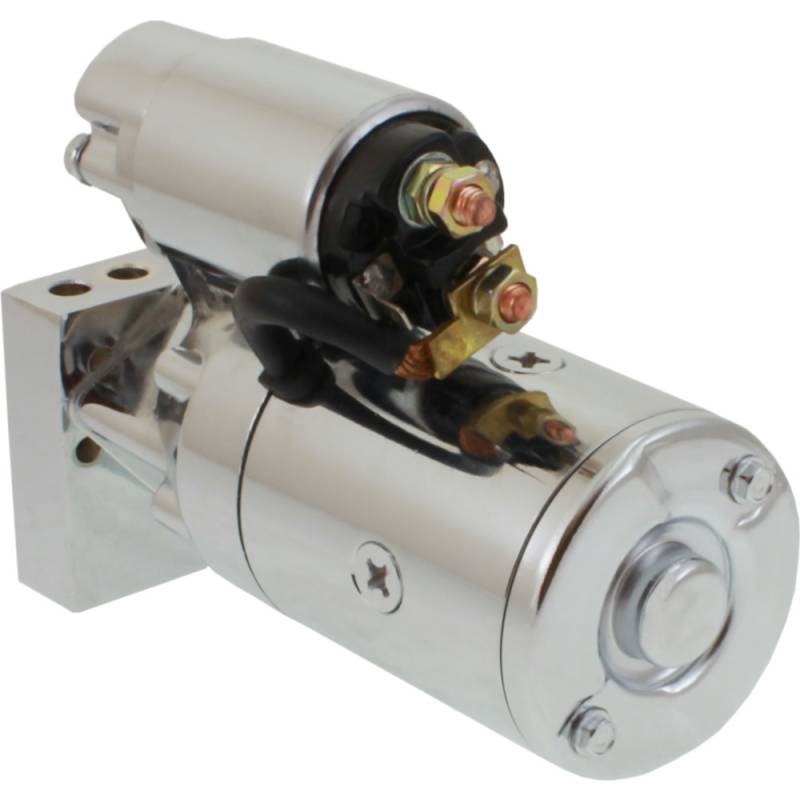

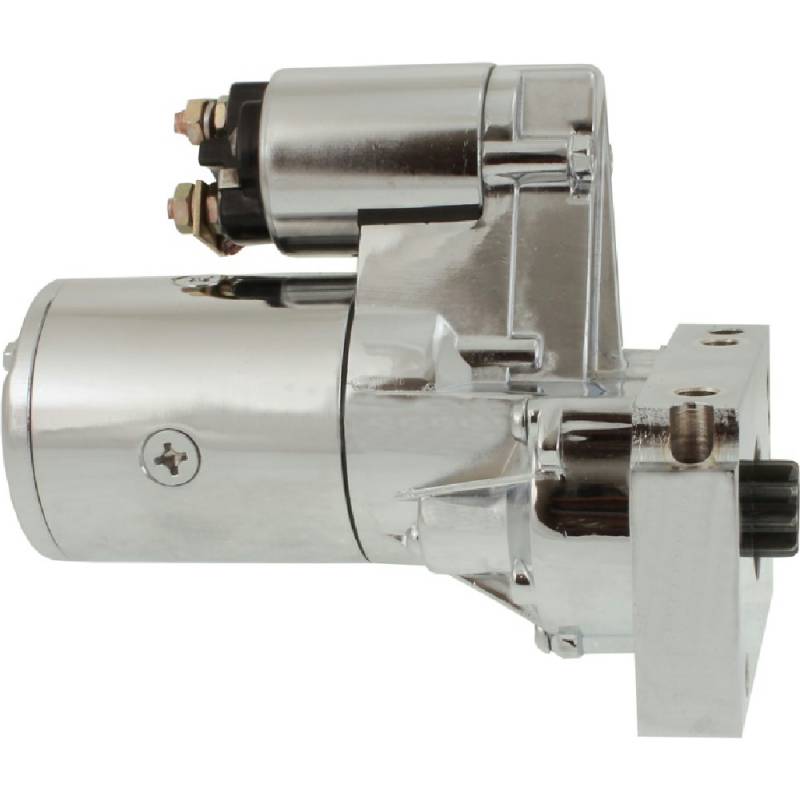

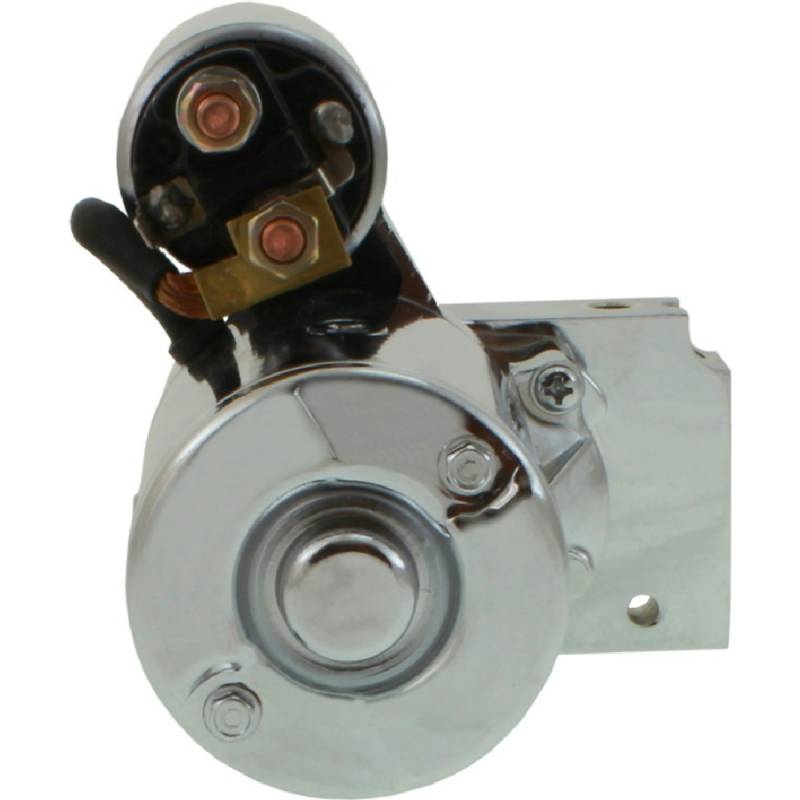

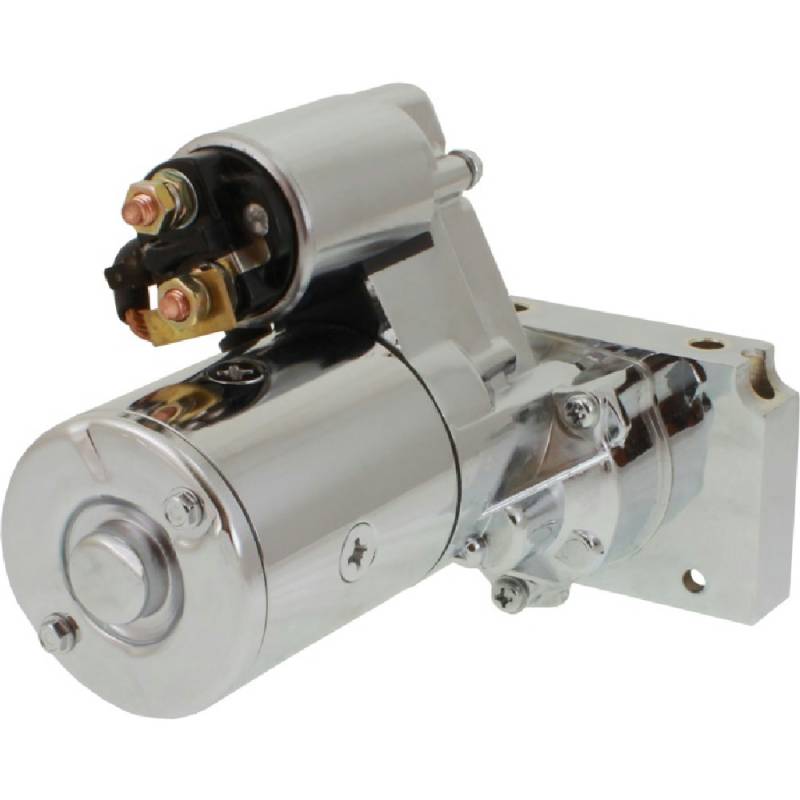

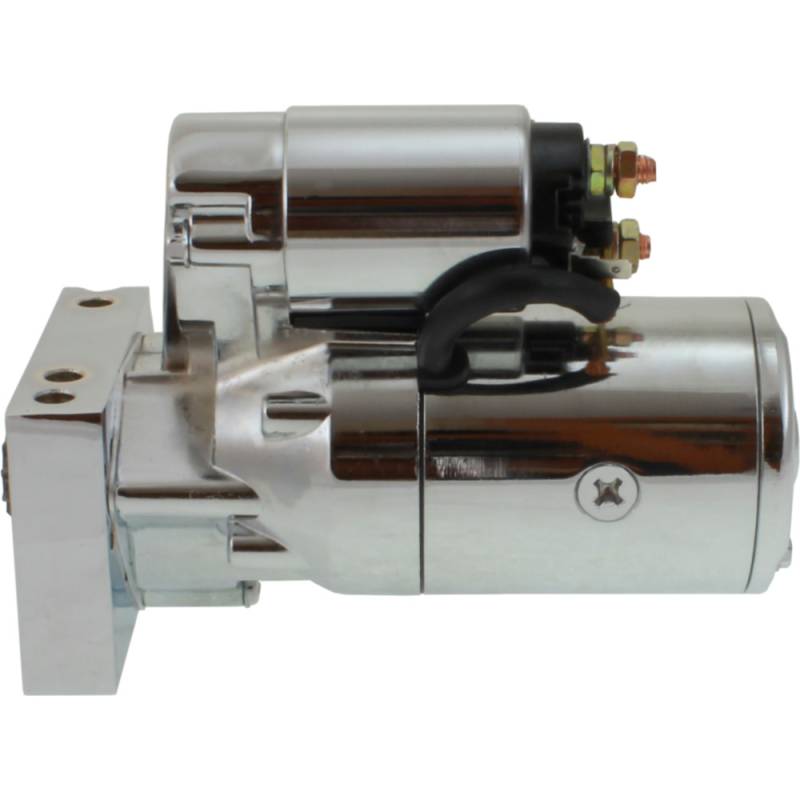

New 12V Chrome Starter Fits Chevrolet Estate 1969 1970 5.3L 5.7L 6.6L Sd114254s1

18492CHC5
HITACHI PART NUMBERS:
• SD114-254S1, SD114254S1
• S114-823SBX, S114823SBX
• S114-254S1BX, S114254S1BX
• PP106, PP-106

WILSON PART NUMBERS:
• 91-25-1122, 91251122
• 91-25-1122N, 91251122N

POWERMASTER PART NUMBERS:
• 19000 PowerMax Plus (PP106 Hitachi style)

SPECIFICATIONS:
• Type: Hitachi PP106 type offset gear reduction (OSGR), 3.73:1
• Voltage: 12 Volt
• Power: 1.4 kW (1.9 HP)
• Rotation: Clockwise (CW)
• Pinion: 9 teeth, 25.1 mm (0.988 in) OD
• Flywheel: Chevrolet 153 tooth (12-3/4 in) or 168 tooth (14 in)
• Mounting: pad mount block, 4 bolt holes, 10 mm unthreaded, straight and staggered patterns
• Clocking: 3 positions
• Case: grounded
• Nose: open nose
• Length: 210.2 mm (8.276 in)
• Compression: up to 14:1
• Finish: chrome
• Weight: 11.77 lb (5.35 kg)
• Condition: New

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $363.81
Sale: $207.89
Save: 43%
Save: $155.92
Qty:
Free Shipping!

Description

⚠️ CHROME 1.4 KW 9 TOOTH CW HITACHI PP106 TYPE OSGR STARTER, CHEVROLET CAMARO, CAPRICE, C20, C30, C40:
• 12V, 1.4 kW (1.9 HP), clockwise, Hitachi offset gear reduction (OSGR) 3.73:1, 9 tooth pinion, 25.1 mm (0.988 in) gear OD
• Pad mount block with 4 bolt holes (10 mm unthreaded) for the straight 153 tooth and staggered 168 tooth Chevrolet patterns, 3 clocking positions
• Grounded case, open nose, chrome finish, 210.2 mm (8.276 in) long, 11.77 lb (5.35 kg), rated to 14:1 compression, new
• Chevrolet-built V8 and V6 only, automatic or manual; Pontiac, Oldsmobile and Buick-built V8s use a 166 tooth flywheel and a different starter

CHEVROLET CAMARO:
• Chevrolet Camaro 4.9L 302 V8 1967-1969, 5.4L 327 V8 1967-1969, 5.7L 350 V8 1967-1981, 6.5L 396 V8 1967-1969, 5.0L 307 V8 1969-1973, 7.0L 427 V8 1969, 6.6L 402 V8 1970-1972, 5.0L 305 V8 1976-1986, 4.4L 267 V8 1980-1981
• Chevrolet Camaro Berlinetta 5.0L 305 V8 1982-1983
• Chevrolet Camaro Sport 5.0L 305 V8 1982-1983
• Chevrolet Camaro Z28 5.0L 305 V8 1982-1983
• Chevrolet Camaro Z28 Indianapolis 500 Pace Car 5.0L 305 V8 1982

CHEVROLET CAPRICE:
• Chevrolet Caprice 4.6L 283 V8 1966-1967, 5.4L 327 V8 1966-1969, 6.5L 396 V8 1966-1969, 7.0L 427 V8 1966-1969, 5.0L 307 V8 1968-1973, 5.7L 350 V8 1969-1986, 6.6L 400 V8 1970-1973, 6.6L 402 V8 1970-1972, 7.4L 454 V8 1970-1973, 5.0L 305 V8 1977-1986, 4.4L 267 V8 1980-1982, 1975-1976 (Chevrolet V8)

CHEVROLET C20 / C30 / C40 TRUCKS:
• Chevrolet C20 7.4L 454 V8 1975-1985
• Chevrolet C20 Pickup 4.6L 283 V8 1960-1967, 5.4L 327 V8 1966-1969, 5.0L 307 V8 1968-1973, 6.5L 396 V8 1968-1969, 5.7L 350 V8 1969-1974, 6.6L 402 V8 1970-1972, 7.4L 454 V8 1973-1974
• Chevrolet C20 Suburban 4.6L 283 V8 1967, 5.4L 327 V8 1967-1969, 5.0L 307 V8 1968-1973, 6.5L 396 V8 1968-1969, 5.7L 350 V8 1969-1986, 6.6L 402 V8 1970-1972, 7.4L 454 V8 1973-1985, 6.6L 400 V8 1976-1980, 5.0L 305 V8 1977-1986
• Chevrolet C30 5.7L 350 V8 1975-1986, 7.4L 454 V8 1975-1985, 6.6L 400 V8 1976-1979, 5.0L 305 V8 1978-1979
• Chevrolet C30 Pickup 4.6L 283 V8 1960-1967, 5.4L 327 V8 1966-1969, 5.0L 307 V8 1968-1973, 6.5L 396 V8 1968-1969, 5.7L 350 V8 1969-1974, 6.6L 402 V8 1970-1972, 7.4L 454 V8 1973-1974
• Chevrolet C40 4.6L 283 V8 1960-1962
