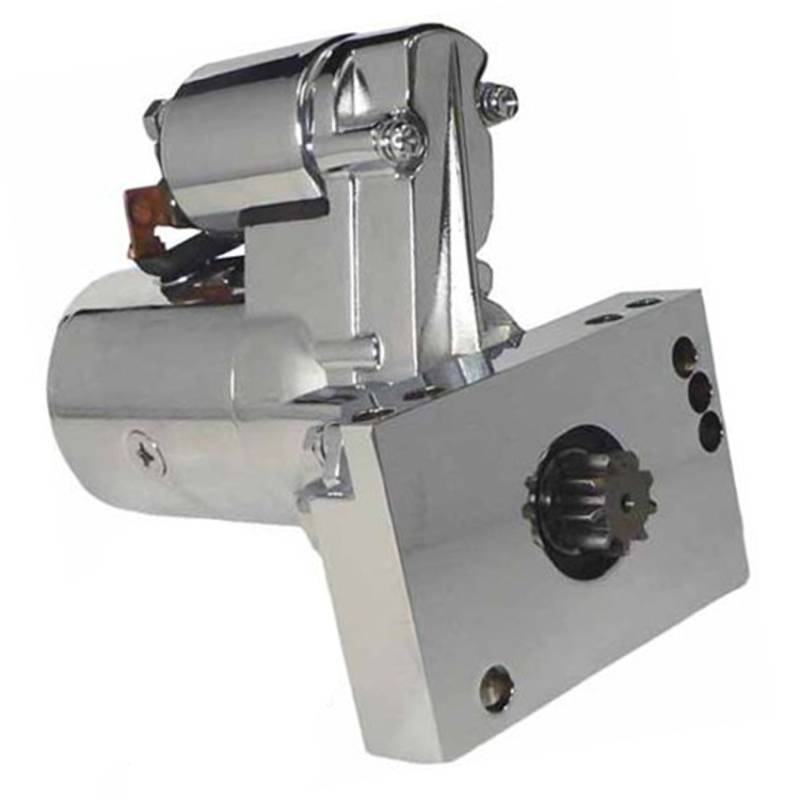

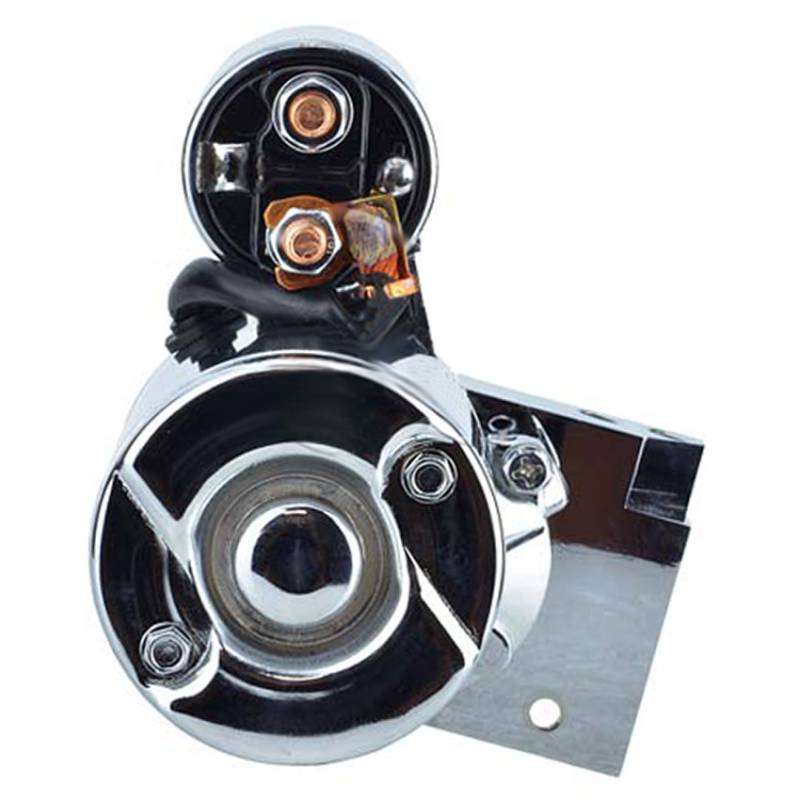

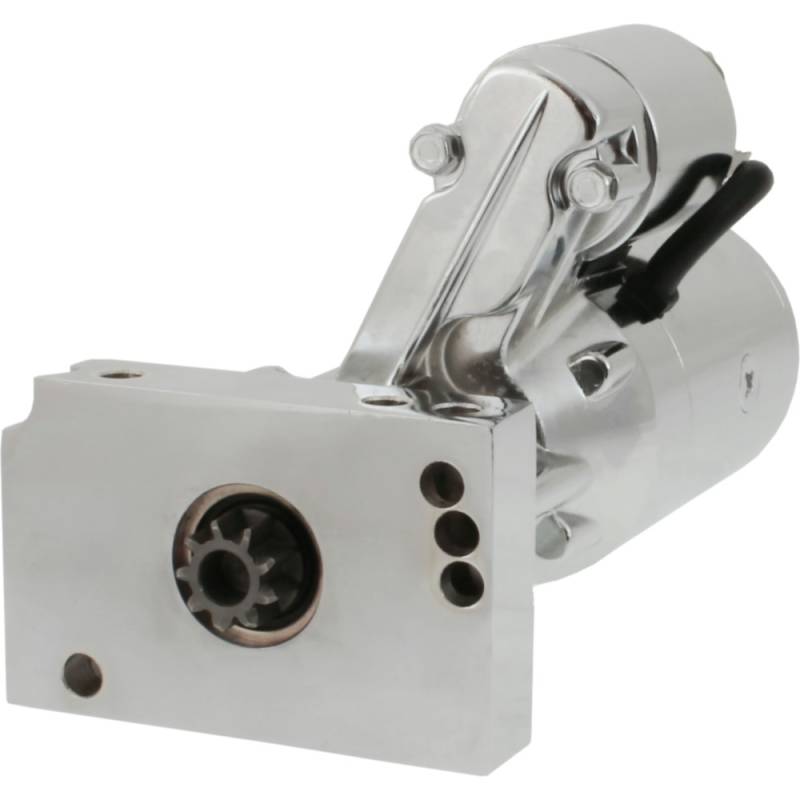

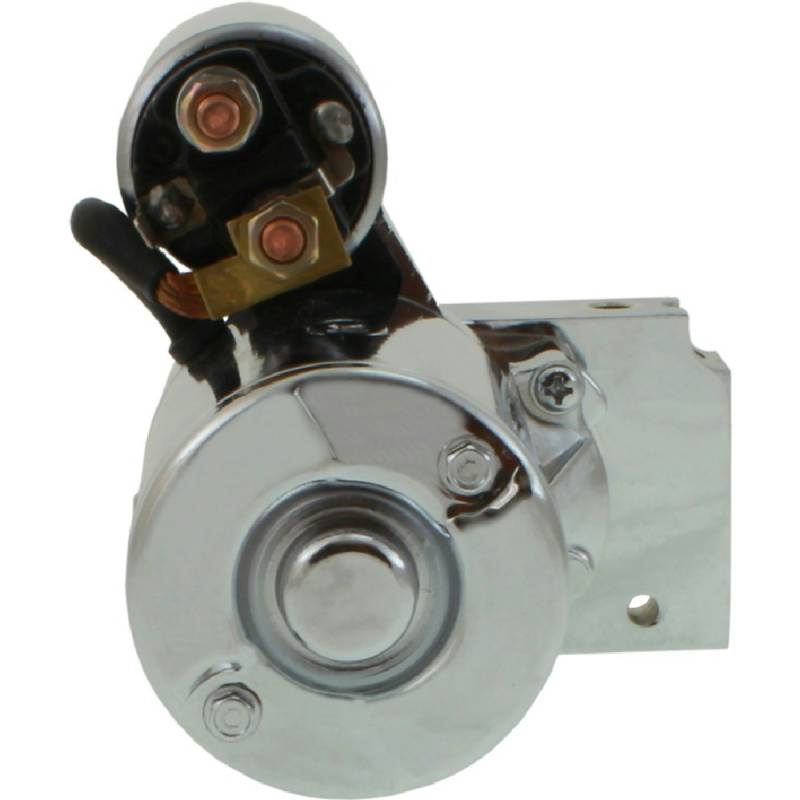

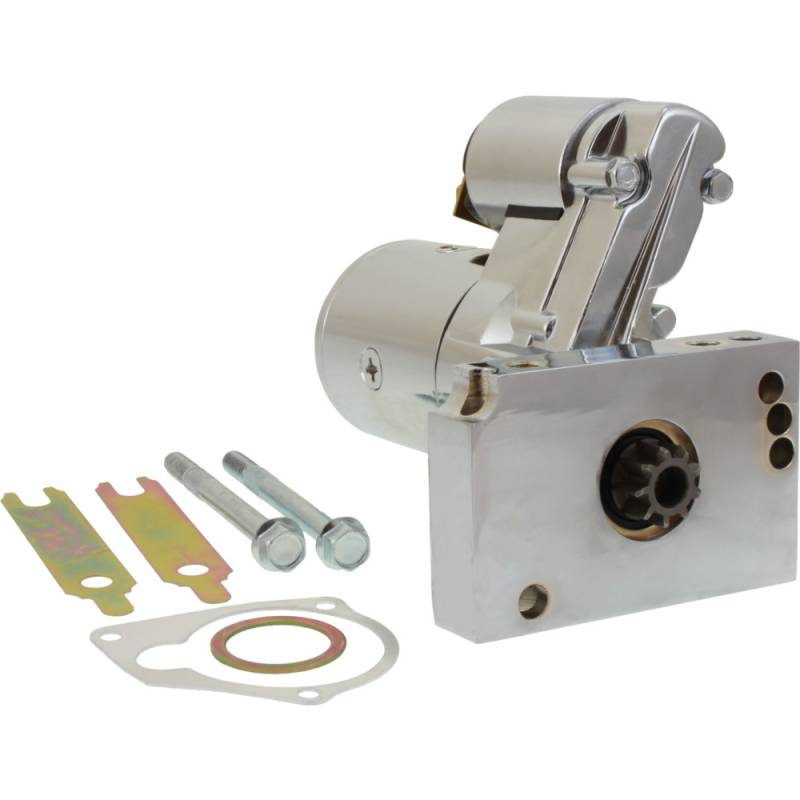

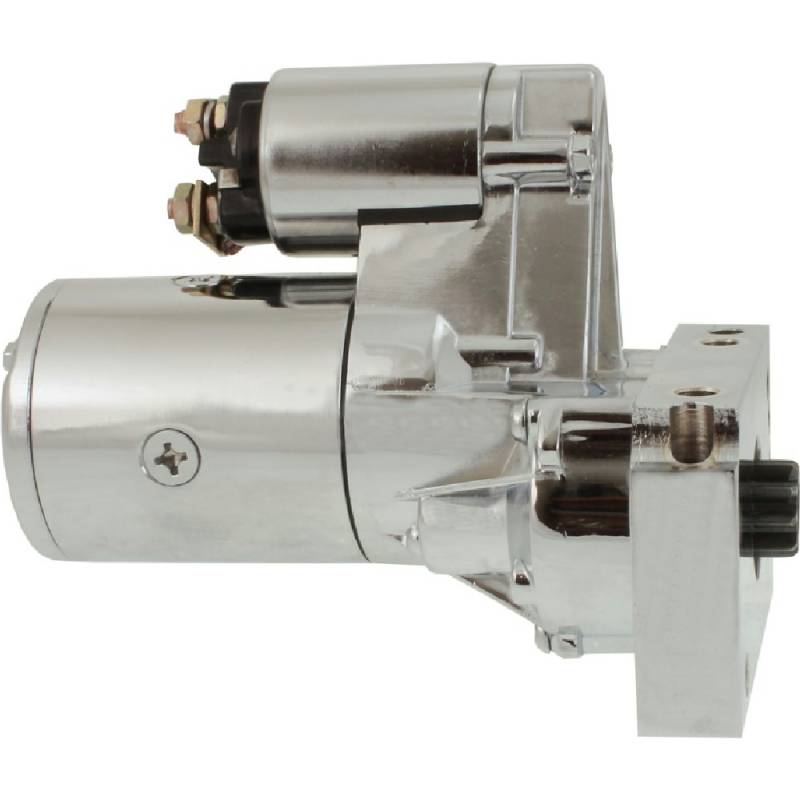

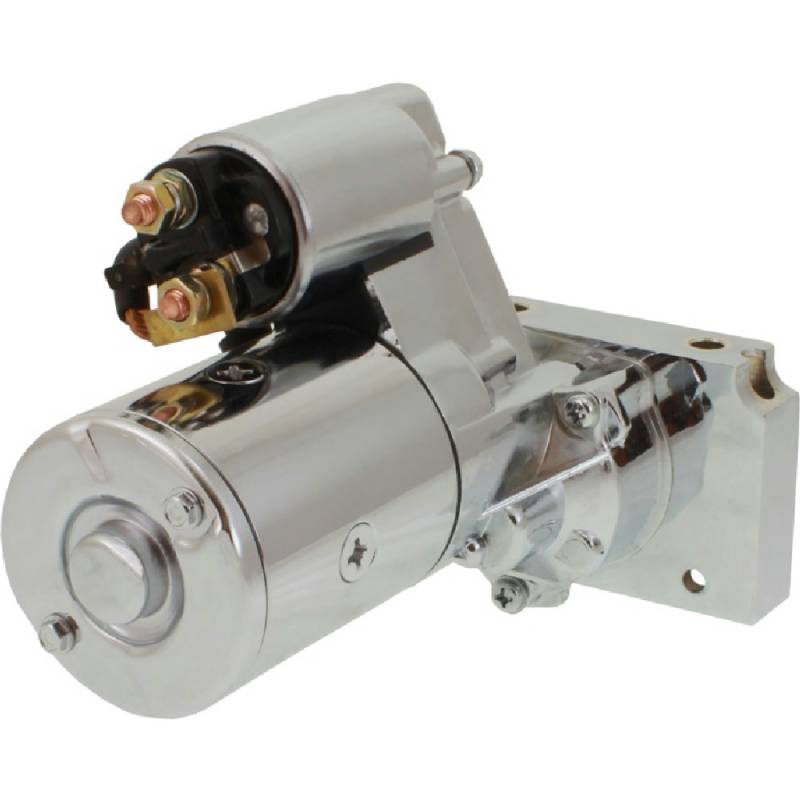

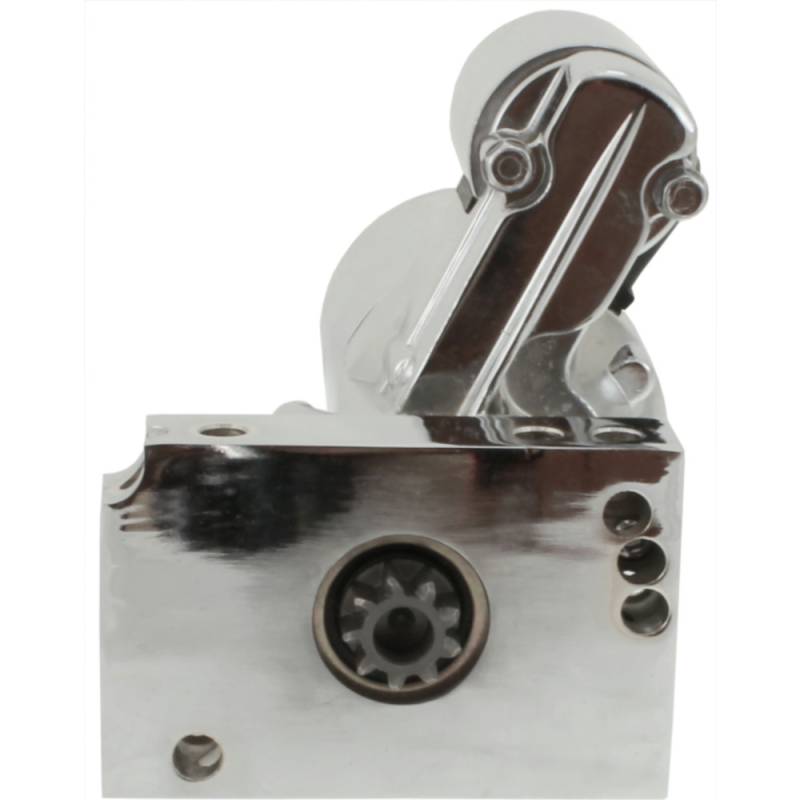

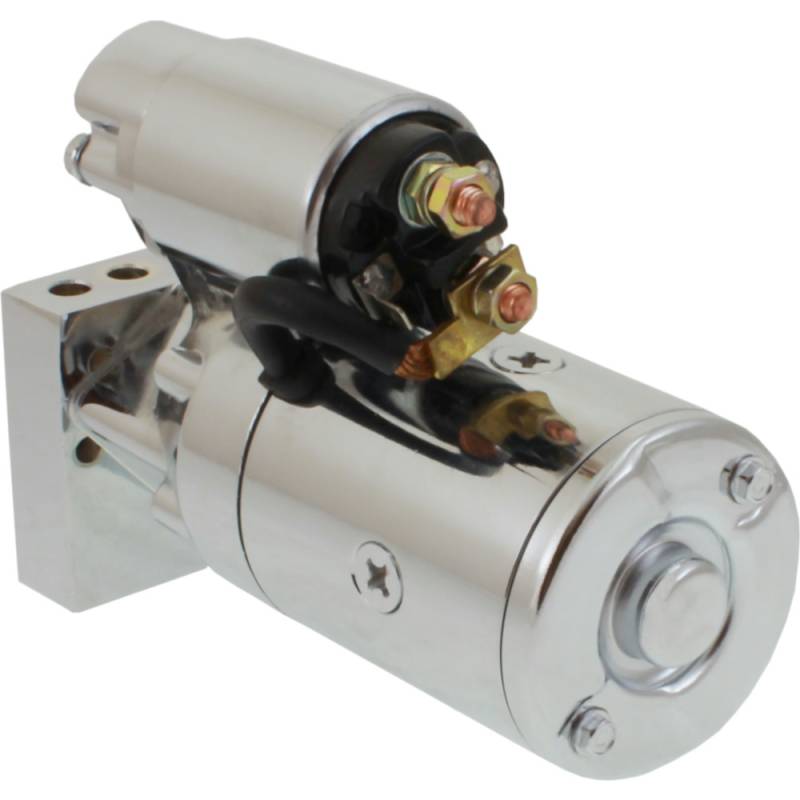

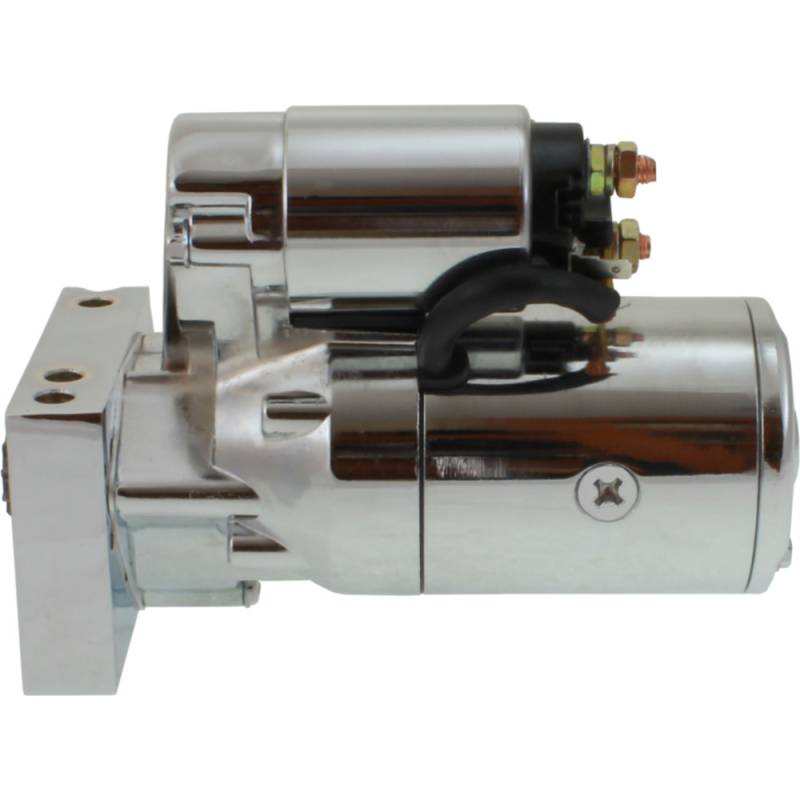

New 12V Chrome Starter Fits Chevrolet Nomad One-Fifty P10 P20 70-80S S114254s1bx

18492CHF5
HITACHI PART NUMBERS:
• PP106, PP-106
• SD114-254S1, SD114254S1
• S114-254S1BX, S114254S1BX
• S114-823SBX, S114823SBX

WILSON PART NUMBERS:
• 91-25-1122, 91251122
• 91-25-1122N, 91251122N

POWERMASTER PART NUMBERS:
• 19000 PowerMax Plus (PP106 Hitachi style)

SPECIFICATIONS:
• Type: Hitachi PP106 type offset gear reduction (OSGR), 3.73:1
• Voltage: 12 Volt
• Power: 1.4 kW (1.9 HP)
• Rotation: Clockwise (CW)
• Pinion: 9 teeth, 25.1 mm (0.988 in) OD
• Flywheel: Chevrolet 153 tooth (12-3/4 in) or 168 tooth (14 in)
• Mounting: pad mount block, 4 bolt holes, 10 mm unthreaded, straight and staggered patterns
• Clocking: 3 positions
• Case: grounded
• Nose: open nose
• Length: 210.2 mm (8.276 in)
• Compression: up to 14:1
• Finish: chrome
• Weight: 11.77 lb (5.35 kg)
• Condition: New

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $363.81
Sale: $207.89
Save: 43%
Save: $155.92
Qty:
Free Shipping!

Description

⚠️ CHROME 1.4 KW 9 TOOTH CW HITACHI PP106 TYPE OSGR STARTER, GMC WITH THE CHEVROLET V8:
• 12V, 1.4 kW (1.9 HP), clockwise, Hitachi offset gear reduction (OSGR) 3.73:1, 9 tooth pinion, 25.1 mm (0.988 in) gear OD
• Pad mount block with 4 bolt holes (10 mm unthreaded) for the straight 153 tooth and staggered 168 tooth Chevrolet patterns, 3 clocking positions
• Grounded case, open nose, chrome finish, 210.2 mm (8.276 in) long, 11.77 lb (5.35 kg), rated to 14:1 compression, new
• Chevrolet-built V8 and V6 only, automatic or manual; Pontiac, Oldsmobile and Buick-built V8s use a 166 tooth flywheel and a different starter

GMC C25 / C2500 / C35 / C3500 PICKUP AND SUBURBAN:
• GMC C25 Suburban 7.4L 454 V8 1975-1978, 6.6L 400 V8 1978
• GMC C25/C2500 Pickup 4.6L 283 V8 1967, 5.4L 327 V8 1967-1968, 5.0L 307 V8 1968-1973, 6.5L 396 V8 1968-1969, 5.7L 350 V8 1969-1974, 6.6L 402 V8 1970-1972, 7.4L 454 V8 1973-1974
• GMC C25/C2500 Suburban 5.0L 307 V8 1968-1973, 5.4L 327 V8 1968, 6.5L 396 V8 1968-1969, 5.7L 350 V8 1969-1974, 6.6L 402 V8 1970-1972, 7.4L 454 V8 1973-1974
• GMC C2500 5.0L 305 V8 1979-1986, 5.7L 350 V8 1979-1986, 6.6L 400 V8 1979, 7.4L 454 V8 1979-1985
• GMC C2500 Suburban 5.7L 350 V8 1979-1986, 7.4L 454 V8 1979-1985, 6.6L 400 V8 1980, 5.0L 305 V8 1982-1986
• GMC C35 5.7L 350 V8 1975-1978, 7.4L 454 V8 1975-1978, 6.6L 400 V8 1976-1978, 5.0L 305 V8 1978
• GMC C35/C3500 Pickup 4.6L 283 V8 1967, 5.4L 327 V8 1967-1968, 5.0L 307 V8 1968-1973, 6.5L 396 V8 1968-1969, 5.7L 350 V8 1969-1974, 6.6L 402 V8 1970-1972, 7.4L 454 V8 1973-1974
• GMC C3500 5.7L 350 V8 1979-1986, 6.6L 400 V8 1979, 7.4L 454 V8 1979-1985, 5.0L 305 V8 1986

GMC K15 / K1500 / K25 4X4 PICKUP AND SUBURBAN:
• GMC K15 5.7L 350 V8 1975-1978, 6.6L 400 V8 1975-1978, 7.4L 454 V8 1976, 5.0L 305 V8 1977-1978
• GMC K15 Suburban 5.7L 350 V8 1975-1978, 6.6L 400 V8 1975-1978, 5.0L 305 V8 1977-1978
• GMC K15/K1500 Pickup 4.6L 283 V8 1967, 5.4L 327 V8 1967-1968, 5.0L 307 V8 1968-1973, 6.5L 396 V8 1968-1969, 5.7L 350 V8 1969-1974, 6.6L 402 V8 1970-1972, 7.4L 454 V8 1973-1974
• GMC K15/K1500 Suburban 4.6L 283 V8 1967, 5.4L 327 V8 1967-1968, 5.0L 307 V8 1968-1973, 6.5L 396 V8 1968-1969, 5.7L 350 V8 1969-1974, 6.6L 402 V8 1970-1972, 7.4L 454 V8 1973-1974
• GMC K1500 5.0L 305 V8 1979-1986, 5.7L 350 V8 1979-1986, 6.6L 400 V8 1979-1980, 7.4L 454 V8 1979-1980
• GMC K1500 Suburban 5.0L 305 V8 1979-1985, 5.7L 350 V8 1979-1986, 6.6L 400 V8 1979-1980
• GMC K25 5.7L 350 V8 1975-1978, 6.6L 400 V8 1975-1978, 7.4L 454 V8 1976-1978, 5.0L 305 V8 1977-1978
• GMC K25 Suburban 5.0L 305 V8 1977-1978

GMC G15 / G25 / G35 VAN AND RALLY:
• GMC G15 5.7L 350 V8 1975-1978, 6.6L 400 V8 1976, 5.0L 305 V8 1977-1978
• GMC G15/G1500 Van 4.6L 283 V8 1967, 5.4L 327 V8 1967, 5.0L 307 V8 1968-1973, 5.7L 350 V8 1972-1974
• GMC G15/G1500 Van Base 5.0L 307 V8 1970-1971, 5.7L 350 V8 1971
• GMC G1500 5.0L 305 V8 1979-1986, 5.7L 350 V8 1979-1986, 6.6L 400 V8 1979
• GMC G25 5.7L 350 V8 1975-1978, 6.6L 400 V8 1975-1978, 7.4L 454 V8 1975-1976, 5.0L 305 V8 1977-1978
• GMC G25/G2500 Van 4.6L 283 V8 1967, 5.4L 327 V8 1967, 5.0L 307 V8 1968-1973, 5.7L 350 V8 1970-1974
• GMC G2500 5.0L 305 V8 1979-1986, 5.7L 350 V8 1979-1986, 6.6L 400 V8 1979-1980
• GMC G35 5.7L 350 V8 1975-1978, 6.6L 400 V8 1975-1978, 7.4L 454 V8 1976
• GMC G35/G3500 Van 5.0L 307 V8 1970-1973, 5.7L 350 V8 1970-1974, 7.4L 454 V8 1973-1974
• GMC G3500 5.7L 350 V8 1979-1986, 6.6L 400 V8 1979-1980, 5.0L 305 V8 1981
• GMC G3500 Rally Custom 5.7L 350 V8 1988

GMC JIMMY:
• GMC Jimmy 5.0L 307 V8 1970-1973, 5.7L 350 V8 1970-1986, 7.4L 454 V8 1973-1976, 6.6L 400 V8 1975-1979, 5.0L 305 V8 1977-1986

GMC CABALLERO:
• GMC Caballero 5.0L 305 V8 1978-1986, 5.7L 350 V8 1978-1979, 4.4L 267 V8 1979-1982
