OEM PART NUMBERS:
• GM: 19011185
• 90-01-4411 / 90014411
• ADR0444
• J & N: 400-12167 / 400-12167R / 400-12338
• 8576 / 8576N
• Dixie: A-1729
• Premier Gear: PG-8576
SPECIFICATIONS:
• Type: Alternator — 34SI Series Heavy-Duty Brushless
• Voltage: 24V
• Amperage: 100A
• Mount Type: Quad Pad Mount (gear-driven)
• Fan: External (EF)
• Regulator: Internal (IR)
• Rotation: Bidirectional (CW/CCW)
• B+ Terminal: 1/4-28 Battery Stud
• R-Terminal: #10 Universal
• I-Terminal: #10-24
• Pad Span: 4.97 in / 126.24 mm
• Pulley: 0PK (No Pulley — Pad / Gear-Driven)
• Weight: 27.3 lbs / 12.41 kg
• Condition: New
VEHICLE APPLICATIONS:
• Kenworth W900 Series 6 — 14.0L 14039cc 856CID Detroit Diesel 12V-71 V12 2-Stroke Diesel (2002-2003)
ENGINE NOTE:
• Detroit Diesel 12V-71: V12 configuration, two-stroke diesel, 14.0L displacement
• 24V charging system — 34SI Quad Pad Mount (gear-driven, no belt/pulley)

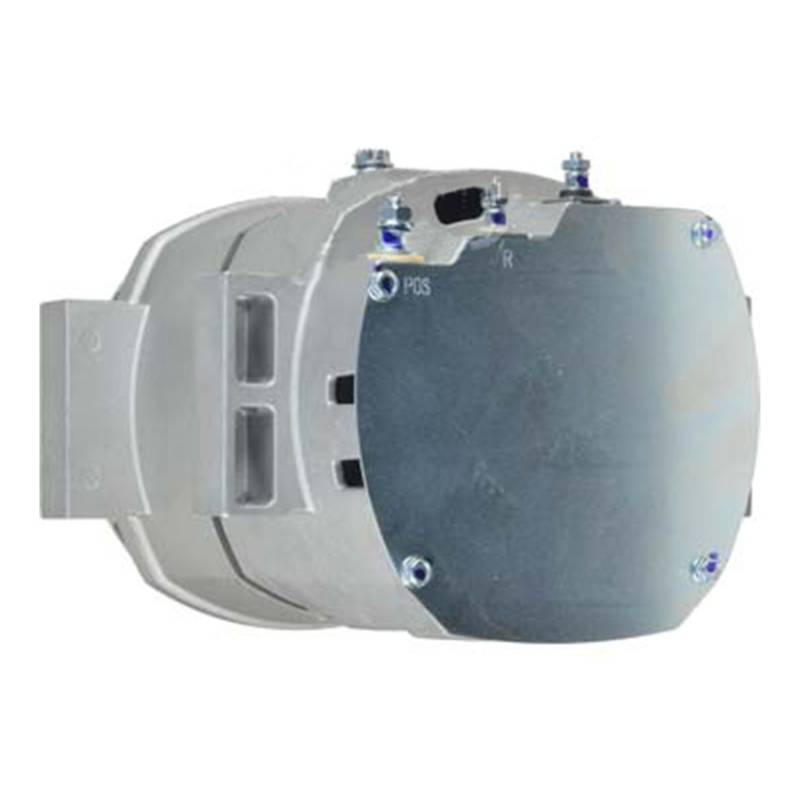

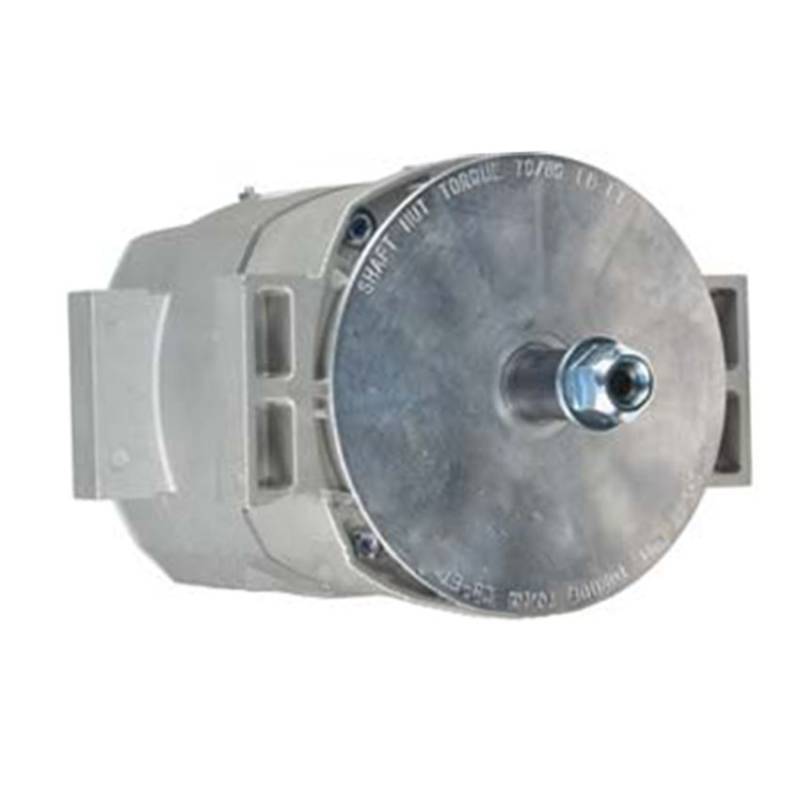

ALTERNATOR — 24 Volt 100 Amp 34SI Pad Gear Mount Kenworth W900 14.0L DD12V-71 Bidirectional:
New 24V 100A 34SI-series heavy-duty brushless alternator with quad pad (gear-driven) mount for Kenworth W900 with Detroit Diesel 12V-71 14.0L V12 two-stroke diesel (2002-2003). Bidirectional — compatible with CW or CCW engine drive. External fan, internal regulator, 1/4-28 B+, 4.97 in pad span, 27.3 lbs. Replaces 19011185, 90-01-4411, 400-12167 / 400-12167R, 8576, Premier Gear PG-8576.
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
