OEM PART NUMBERS:
• Hitachi: LR160-741 / LR160741
• Lucas: LRA03783
• Yanmar: 128271-77200 / 12827177200

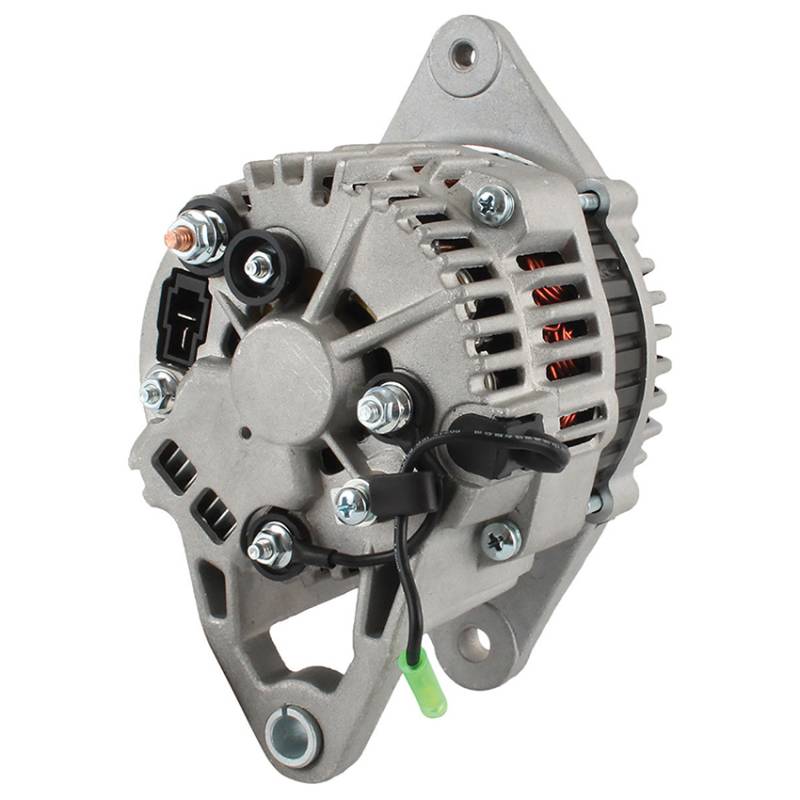

SPECIFICATIONS:
• Series: Hitachi LR160 Permanent Magnet
• Voltage: 12V
• Amperage: 60 Amp
• Rotation: Clockwise (CW)
• Design: IR/IF (Internal Regulator / Internal Fan)

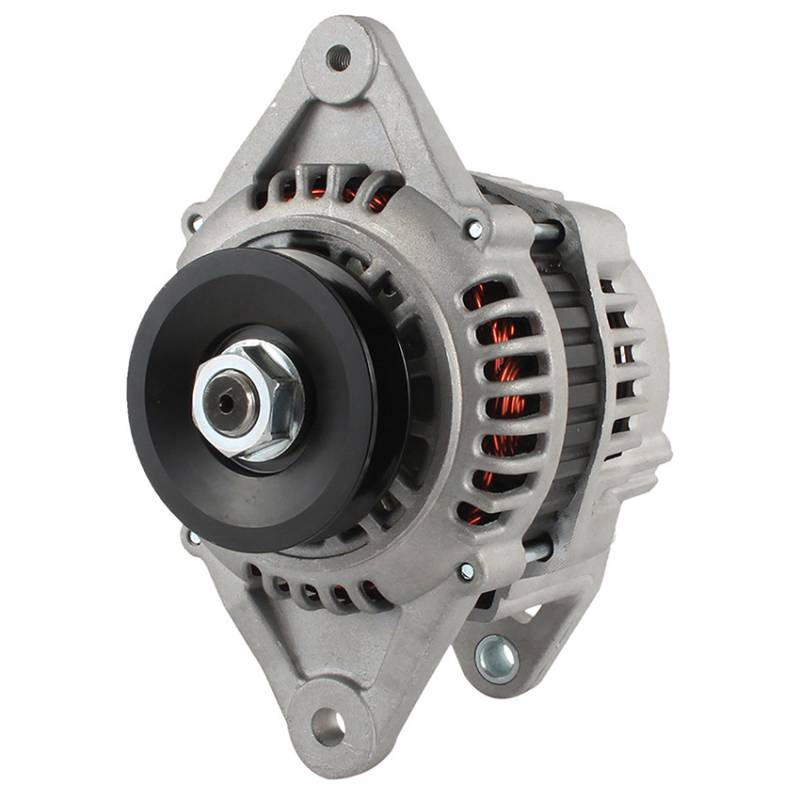

• Pulley: V-Belt 1-Groove 73.9mm OD (2.909 in)
• Regulator Clock: 10:00
• Plug Code: 193 / Rear Orientation
• Mounting Ear 1: M8-1.25 Threaded, 13.3mm Thick
• Mounting Ear 2: 10.4mm Unthreaded, 13.3mm Thick
• Mounting Ear 3: 10.5mm Unthreaded, 16mm Thick
• B+ Terminal: M6-1.0
• IG Terminal: Spade / L Terminal: Spade
• Polarity: Negative Ground
• Weight: 10.16 lbs / 4.62 kg
• Condition: New
YANMAR MARINE ENGINE APPLICATIONS:
• 2-Cyl: 2GM20F, 2YM15 (10.5HP)
• 3-Cyl: 3JH3E (39HP), 3JH4E 1.64L (39HP), 3YM20 (21HP), 3YM30 1.116L (29HP)
• 4-Cyl: 4JH3-CE (52HP), 4JH3-TCE Turbo (64HP), 4JH3E (52HP) — 1994-2003
