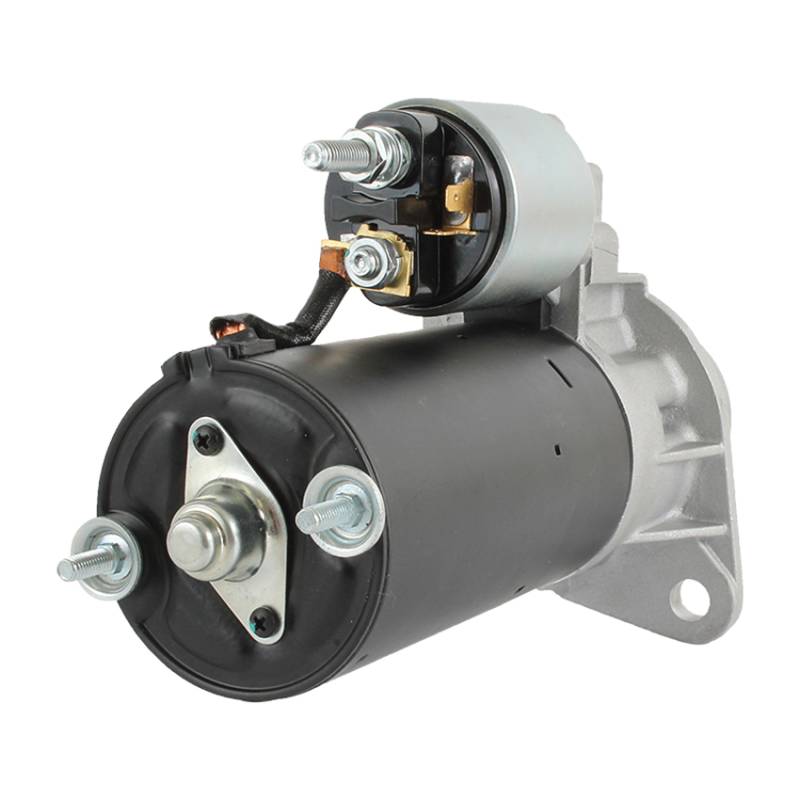

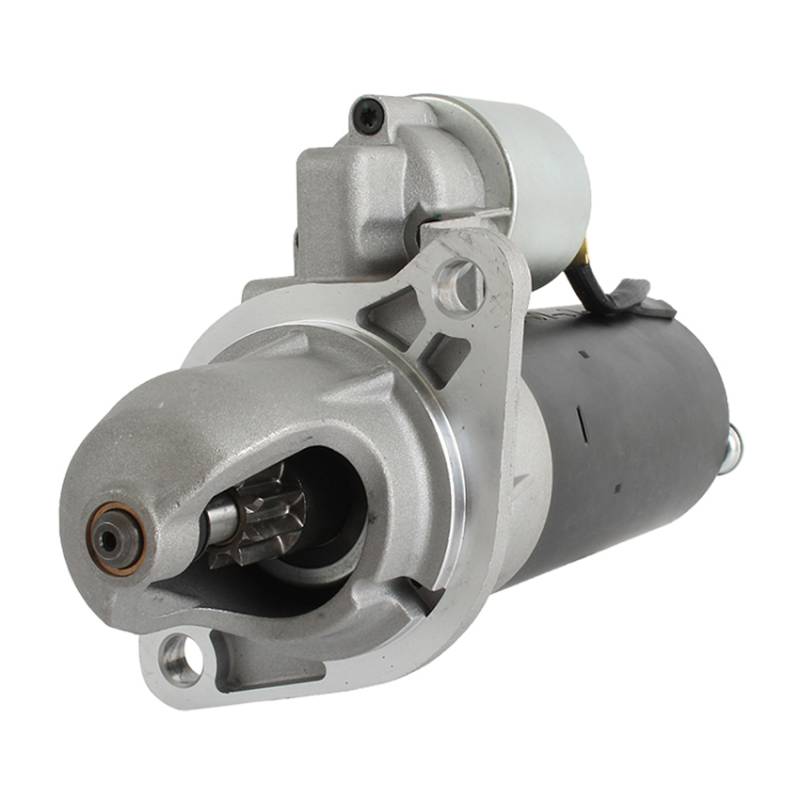

New 9T Starter Fits Volkswagen Europe Transporter Iii Platform 89-90 068911023Jx

BOSCH: 0-001-110-009 0001310013 0 001 317 012 0-001-317-017
BOSCH SERVICE EUROPE: 0986013350
LETRIKA (ISKRA) SALES: IS 0772
LUCAS: LRS564
MAHLE: 11 130 772 MS0285
VOLKSWAGEN: 068 911 0023MX 068-911-023DX 068911023JX

ITEM DESCRIPTION: STARTER
UNIT TYPE: BOSCH
STARTER TYPE: PMGR
VOLTS: 12
ROTATION: COUNTERCLOCKWISE
TEETH ON DRIVE: 9
KW: 1.7
GEAR OD: 0.984IN / 25MM
LENGTH: 8.228IN / 209MM
MOUNTING EAR 1 HOLE: 12.5MM UNTHREADED
MOUNTING EAR 2 HOLE: 12.5MM UNTHREADED
MOUNTING EAR CENTER TO CENTER 1: 4.988IN / 126.7MM
REGISTRY OD: 3.256IN / 82.7MM
SPECIFICATIONS: M6-1.0 THREADED DOUBLE EXTENDED THRU BOLTS
SPECIFICATIONS: M8-1.25 B+ & MOTOR STUDS
SPECIFICATIONS: DOUBLE SPADE S TERMINALS
WEIGHT: 10.61 LBS / 4.82 KG
