OEM PART NUMBERS: • Cummins: 5316342, C5316342, JFZ1135111
• JLG: 70026232
• Interchange: 110-15101 / 11015101

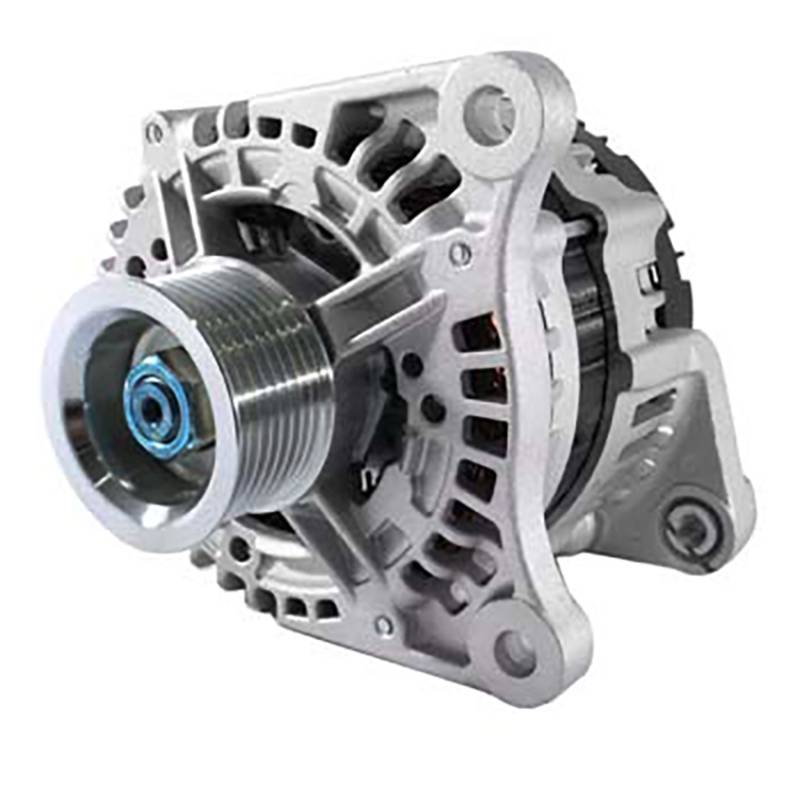

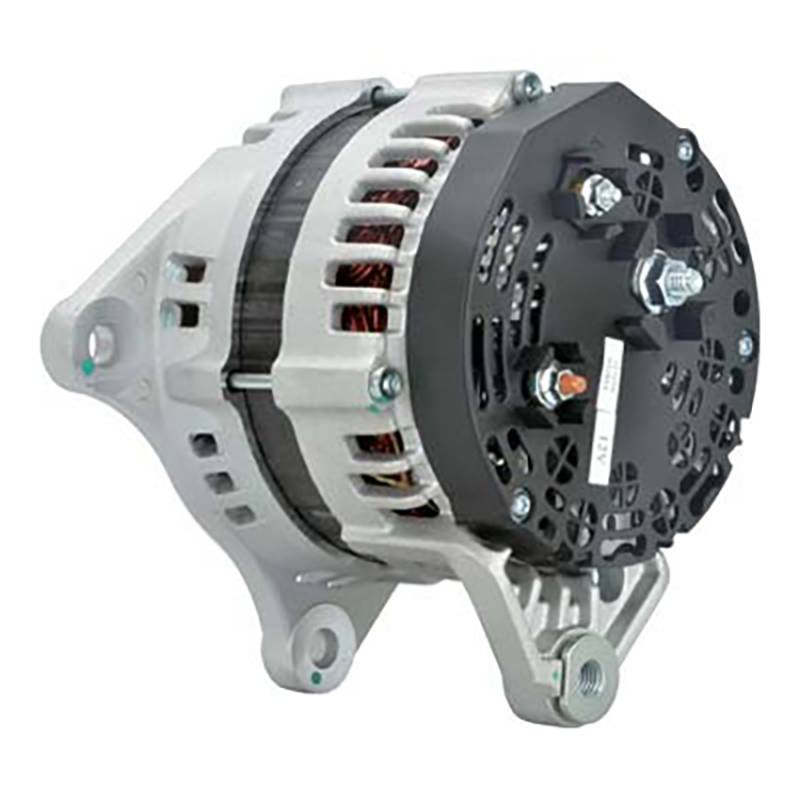

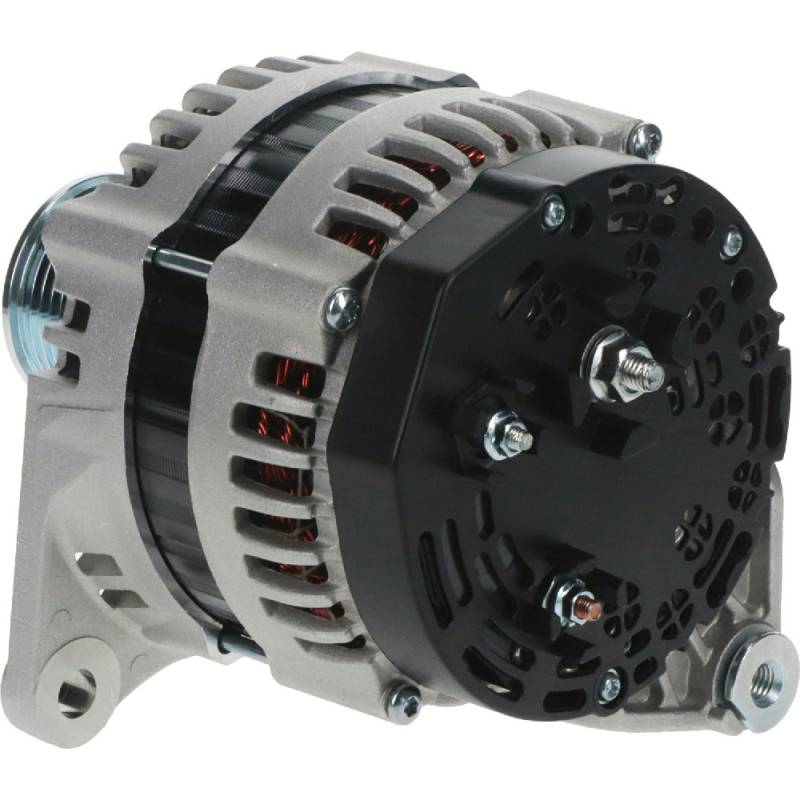

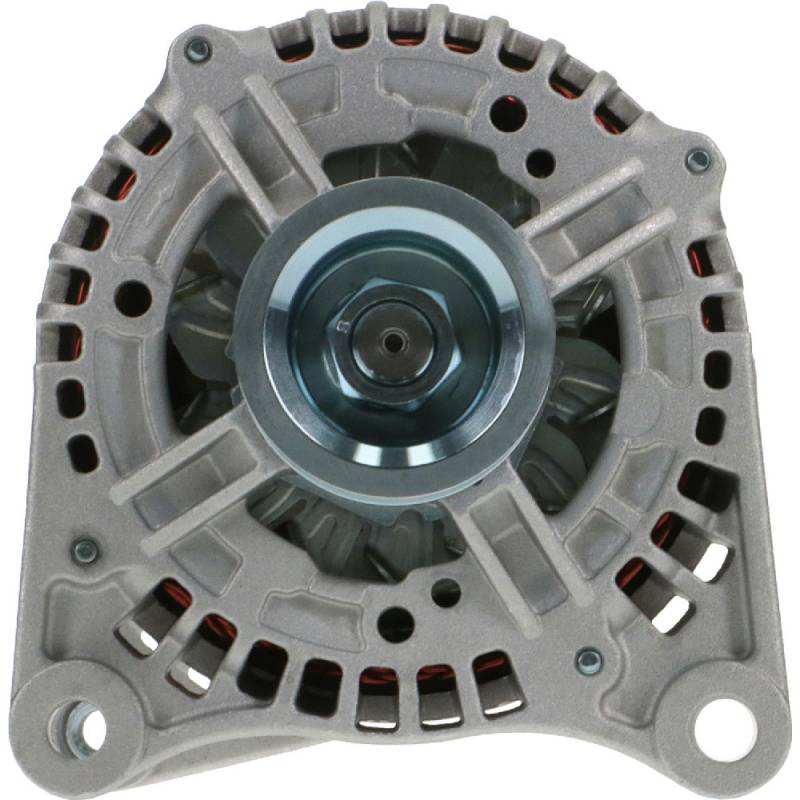

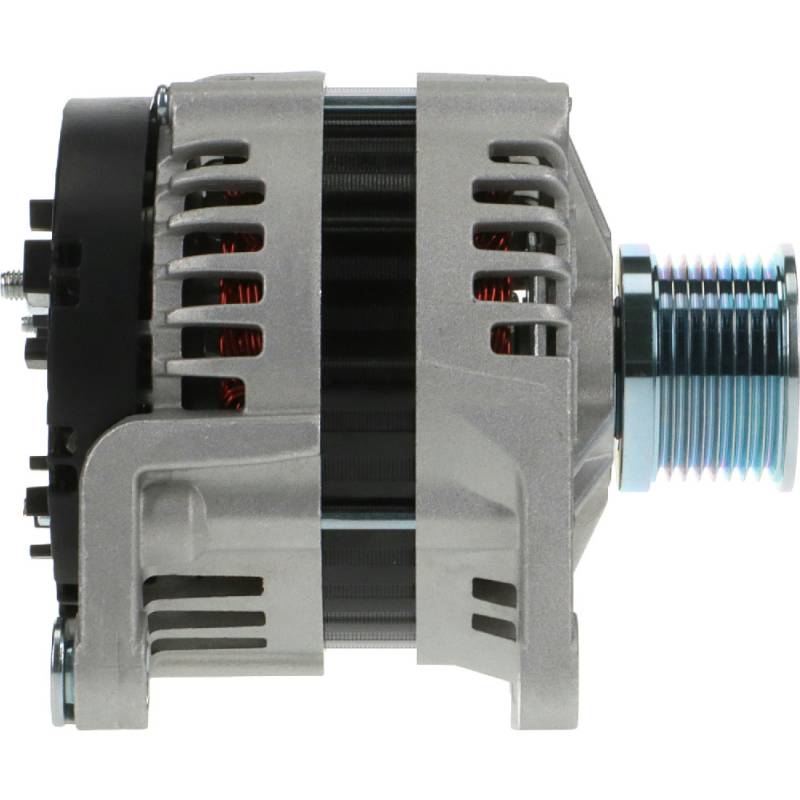

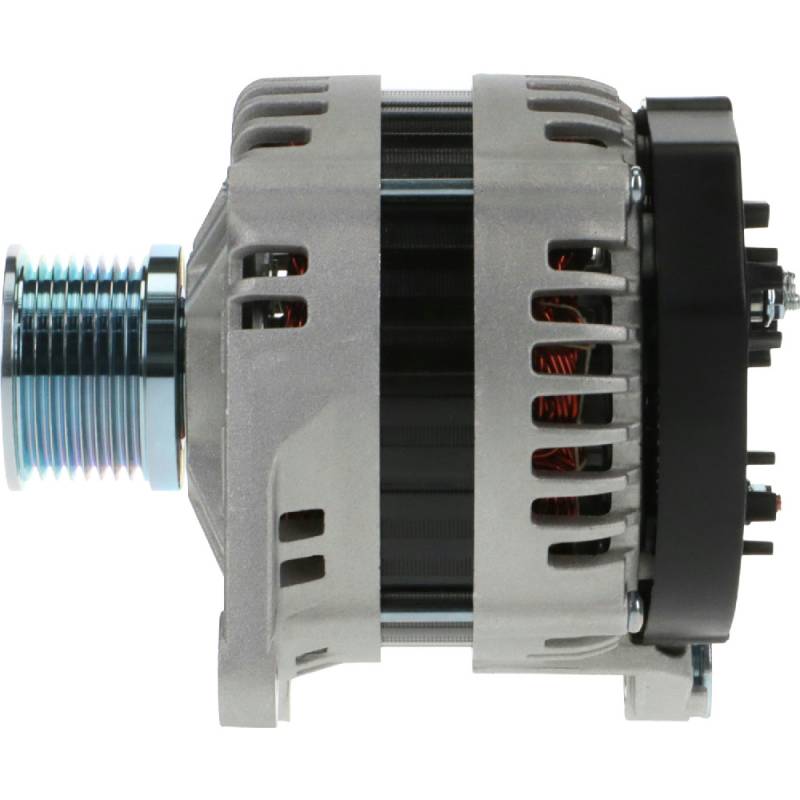

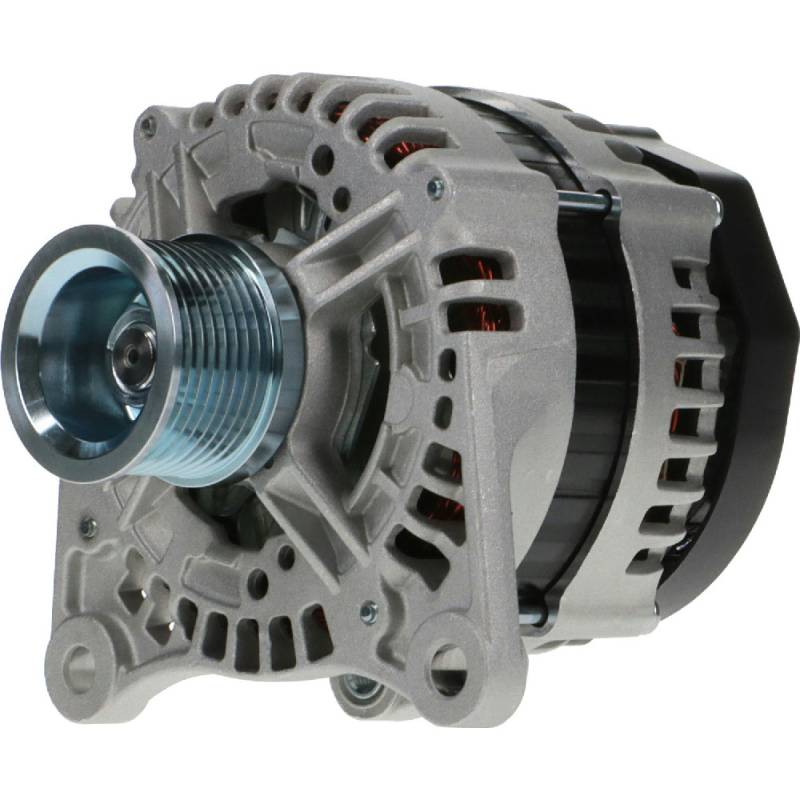

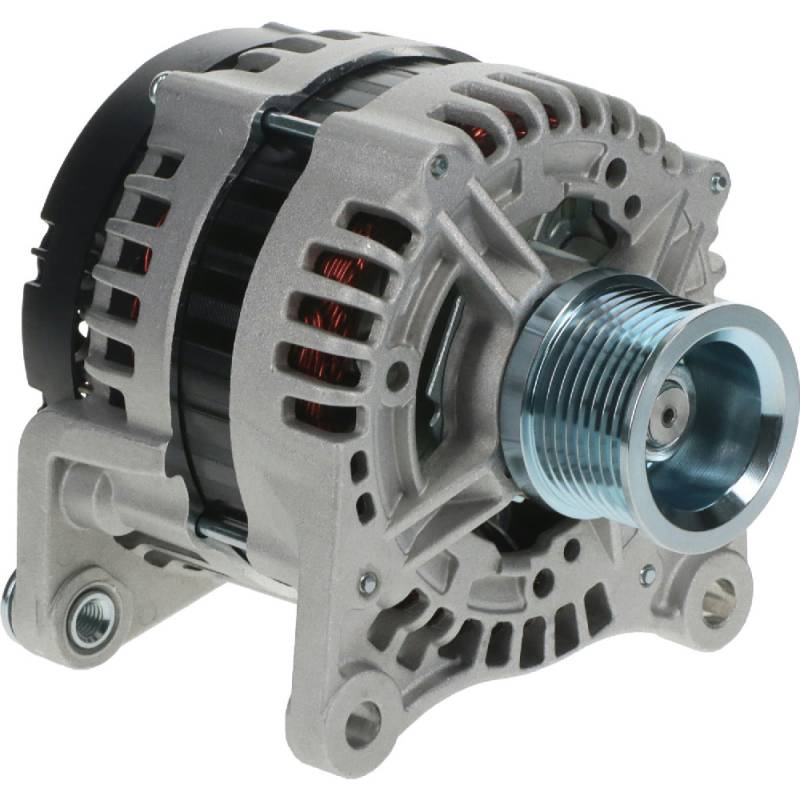

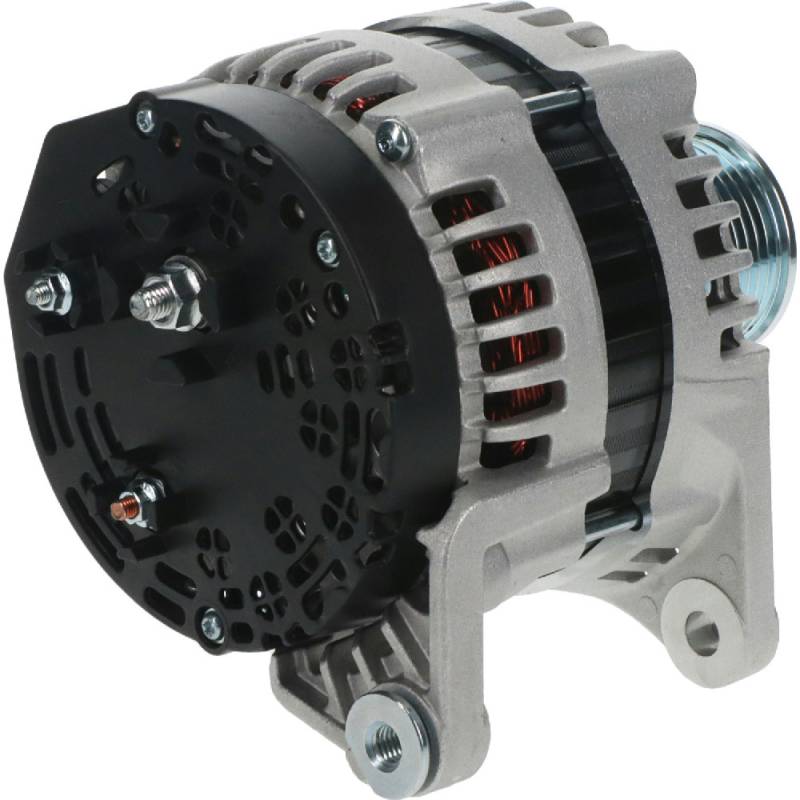

SPECIFICATIONS: • Type: Alternator
• Unit Type: Cummins
• Voltage: 12V
• Amperage: 135A
• Fan: Internal
• Regulator: Internal
• Regulator Clock: 10 oclock
• Pulley Type: Solid Serpentine
• Pulley Grooves: 8
• Pulley OD: 60mm / 2.362 in
• Serpentine Groove OD: 55mm / 2.165 in
• B+ Terminal: M8-1.25
• L Terminal: M5-0.8
• W Terminal: M5-0.8
• Polarity: Negative
• Mounting Ear 1: 11.6mm Unthreaded, 13.5mm Thick
• Mounting Ear 2: 11.6mm Unthreaded, 13.5mm Thick
• Mounting Ear 3: M10-1.5 Threaded, 21.5mm Thick
• Weight: 15.94 lbs / 7.24 kg
• Condition: New
APPLICATIONS: • JLG SkyTrak 6036, 6042 and 8042 with the Cummins QSF3.8 2014-2023
• JLG SkyTrak 10042, 10054 and 12054 with the Cummins QSF3.8 2013-2023
• JLG G6-42A, G9-43A and G10-43 with the Cummins QSF3.8 2011-2019
• Cummins QSF3.8, ISF3.8, ISF2.8, ISB and QSB diesel engines
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
