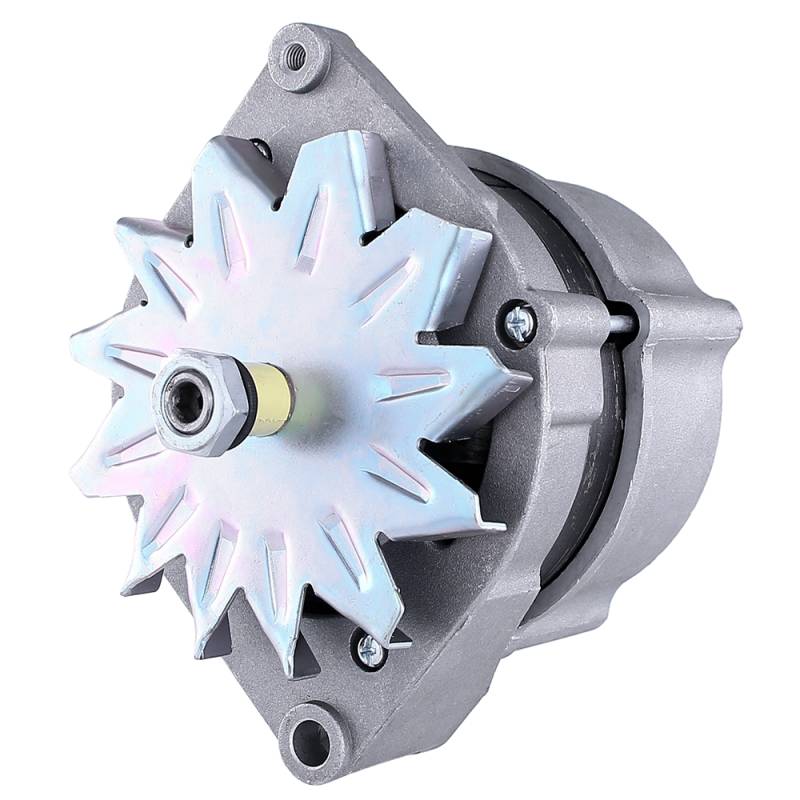

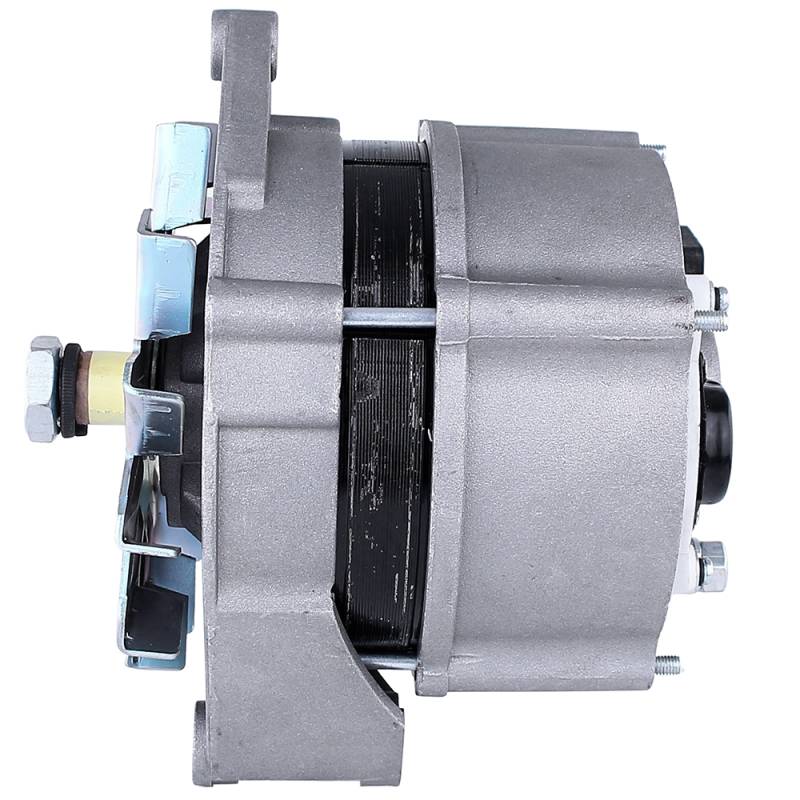

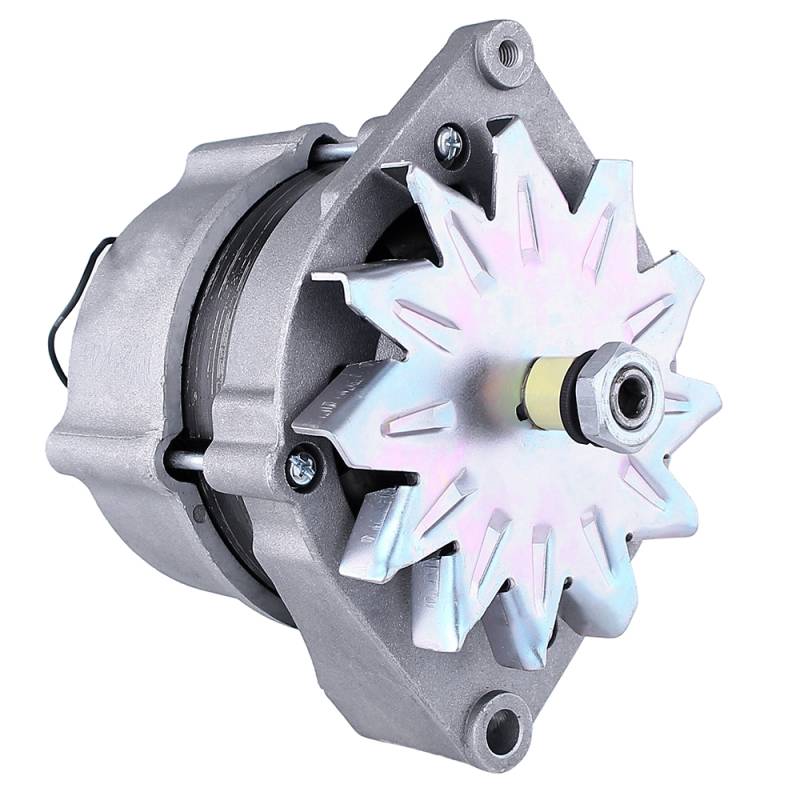

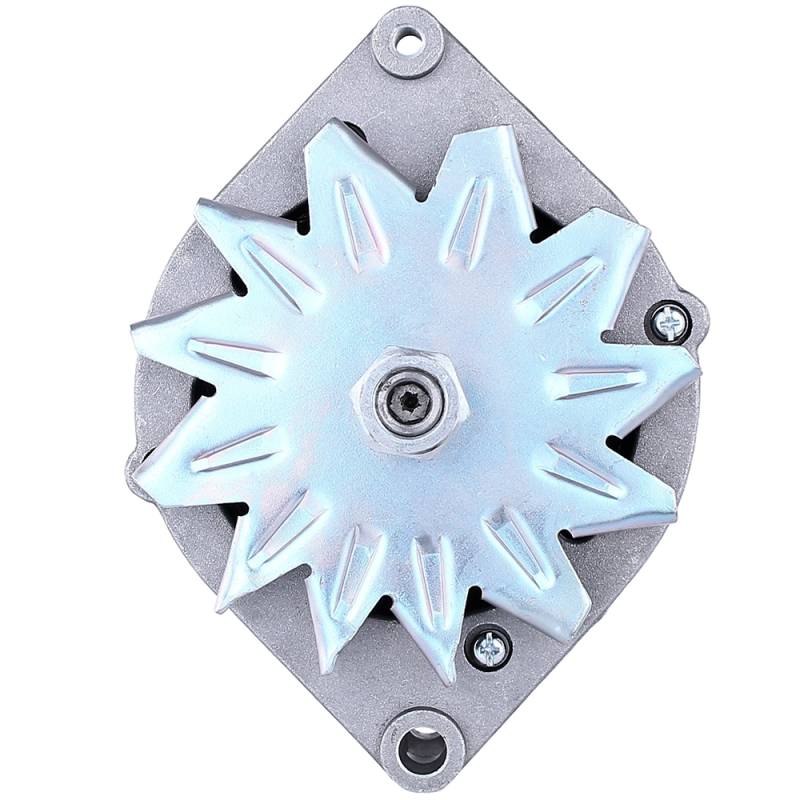

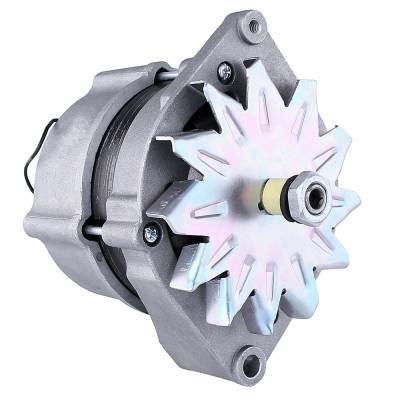

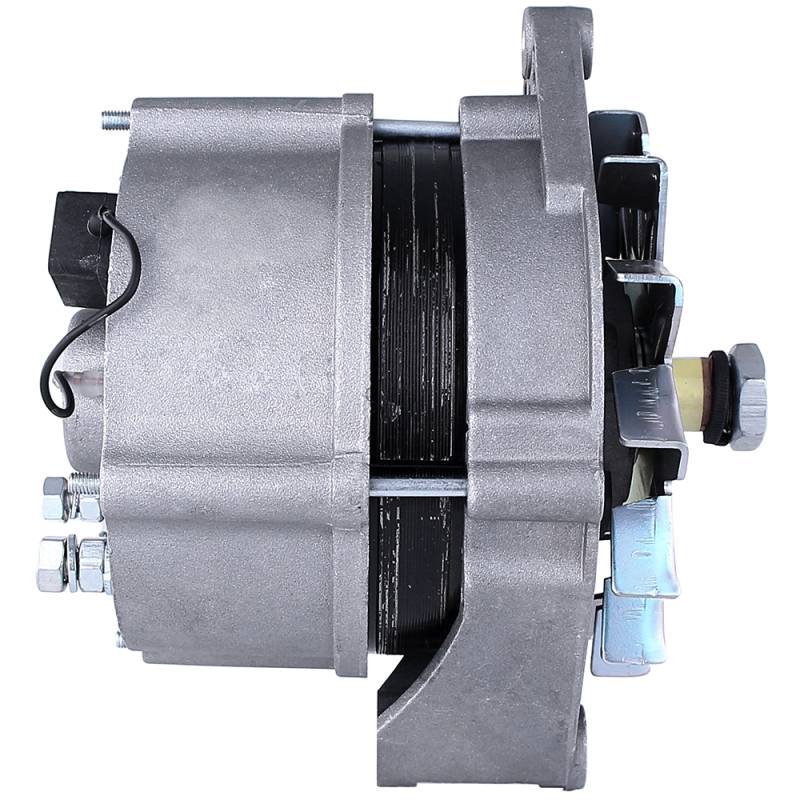

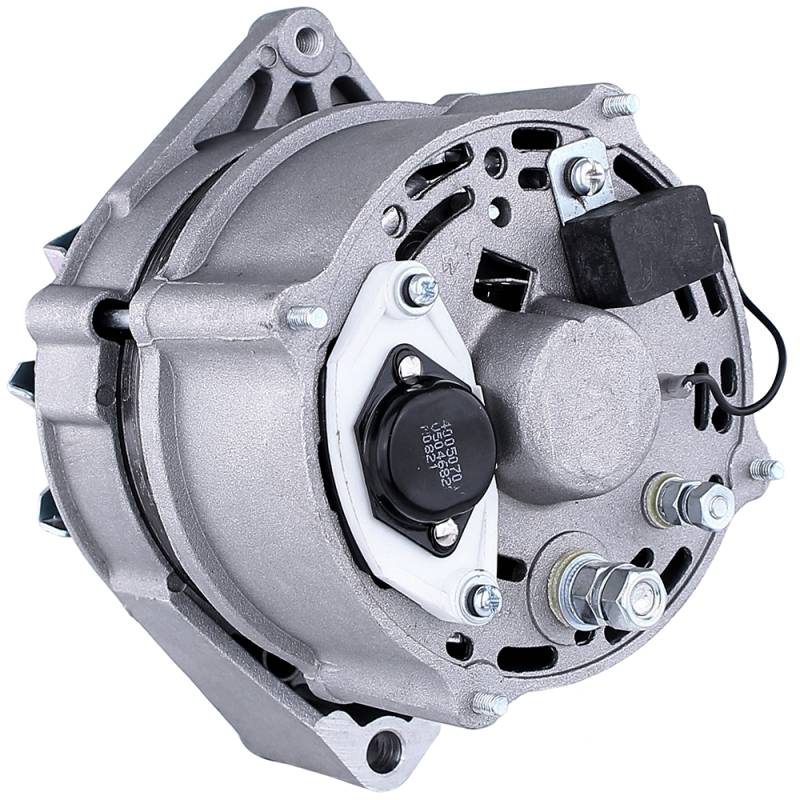

Alternator Compatible With 1989-1994 Case Crawler 850Xl 880Xl Case 360 Deutz Engine Caterpillar

OEM PART NUMBERS:
• : 0120489475 / 0-120-489-475
• Service Europe: 0986040290 / 0-986-040-290
• Case: A186125
• 3E7295
• Cummins: 3675270NW
• Hella: 8EL737217001 / 8EL-737-217-001
• John Deere: RE553516
• Letrika (Iskra): 11204382 / IA0998 / IA0727 / AAK4825 / AAK3359

SPECIFICATIONS:
• Voltage: 12V
• Amperage: 65A
• Fan: External
• Regulator: Internal
• Grooves: 5
• Shaft OD: 0.669in / 17mm
• Shaft Threads: M16-1.5
• Mounting Ear 1: M8-1.25 Threaded
• Mounting Ear 2: 10.5mm Unthreaded
• Mounting Ear 1 Thickness: 0.65in / 16.5mm
• Mounting Ear 2 Thickness: 2.008in / 51mm
• Mount Type: Spool

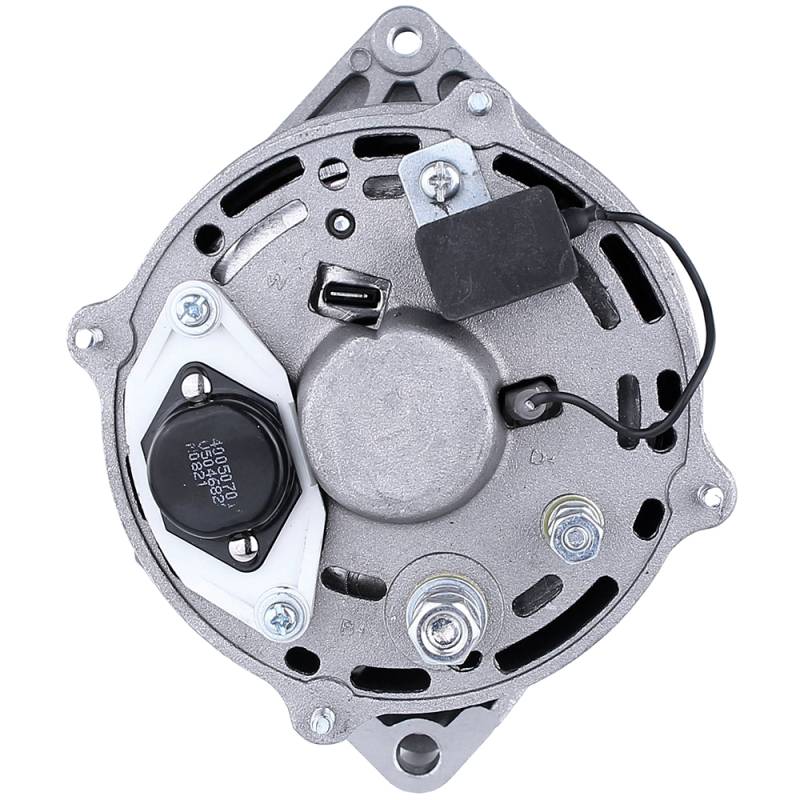

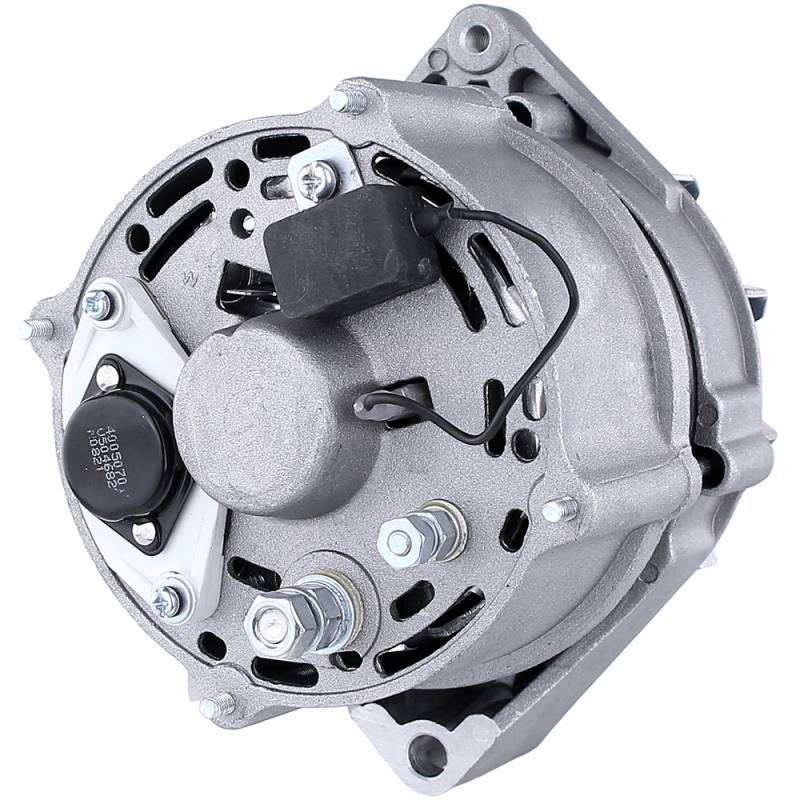

• B+ Terminal: M6-1.0
• D+ Terminal: Spade
• W Terminal: Spade
• Weight: 10.54 lbs / 4.79 kg
• Condition: New

APPLICATION:
• Case Tractor 1896/2096/5120-5250/5420/Maxxum (1984-2001)
• Case Tractor MX100/MX110/MX120/MX135/MX100C (1997-2007)
• Case M968A/M975A 320 Sisu Diesel (1998-2007)
• Case Crawler 850XL/880XL (1989-1994)
• Case 360 Deutz Engine (1988-1992)

12V 65A Alternator — Case Agricultural Tractors / Crawlers
Direct replacement -type 12V 65A alternator for Case agricultural tractors, Maxxum series, and crawler tractors (1984-2007). Spool mount with 5-groove pulley. Replaces 0120489475, 0986040290, Case A186125, Cat 3E7295, Hella 8EL737217001, JD RE553516, Letrika 11204382.
