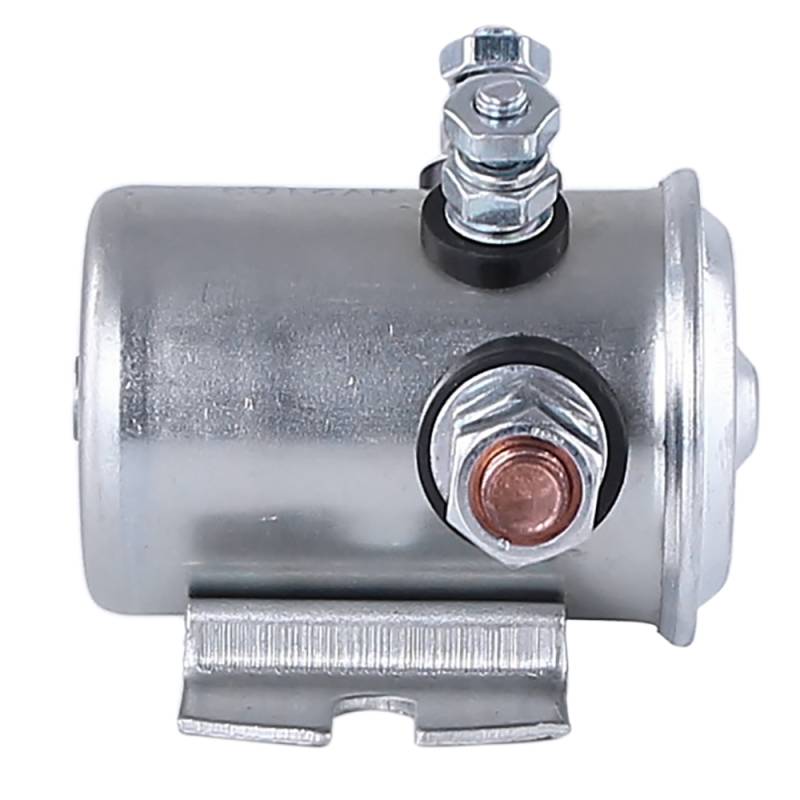

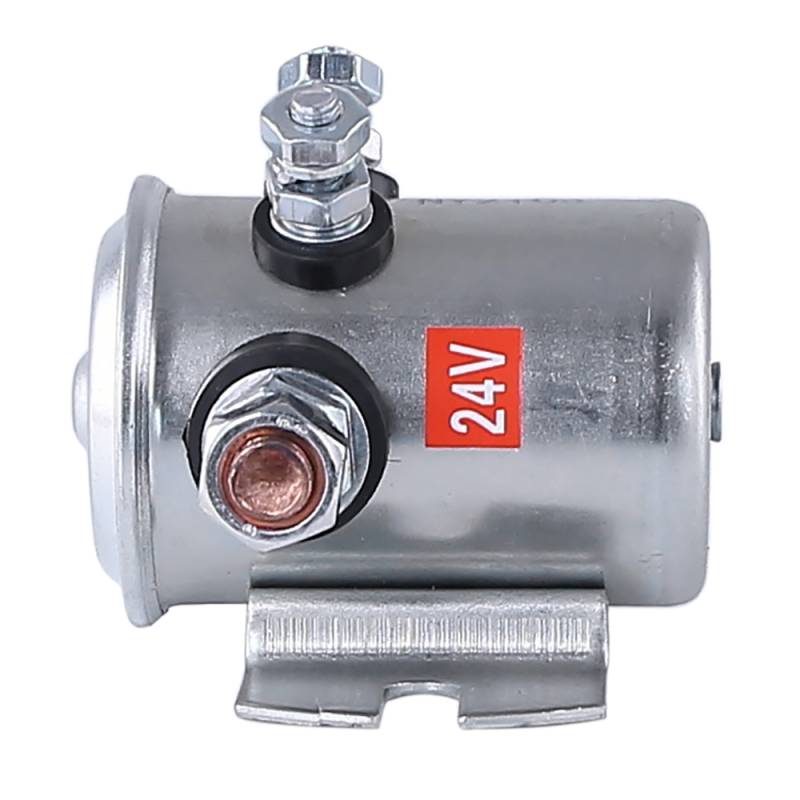

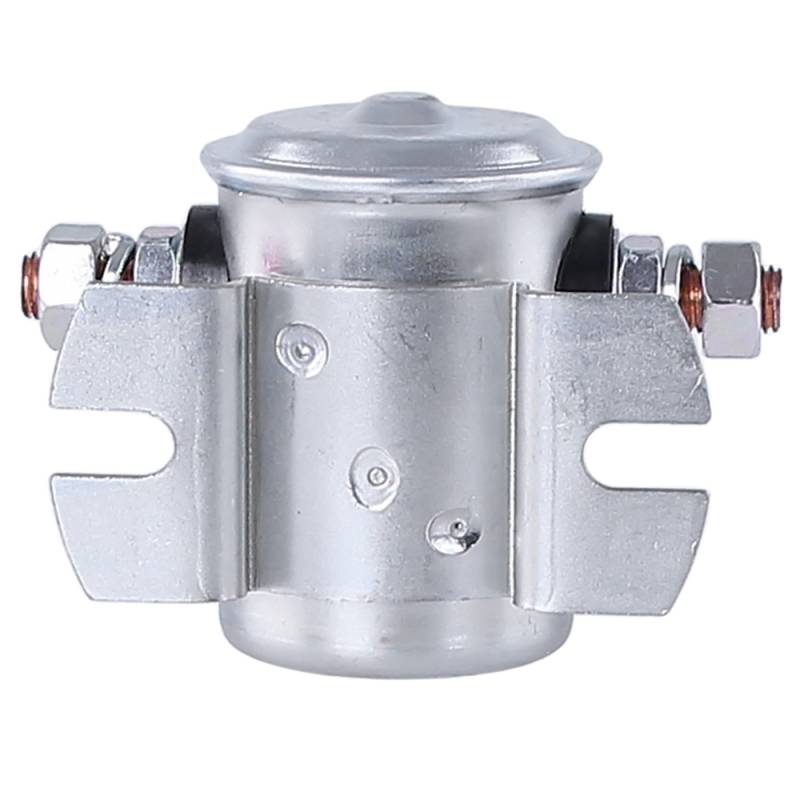

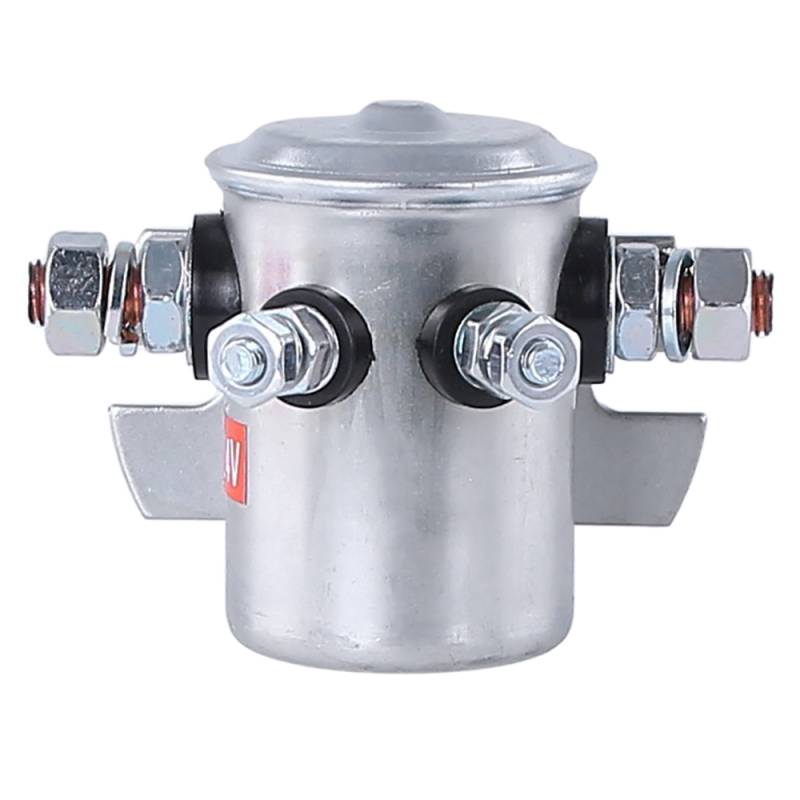

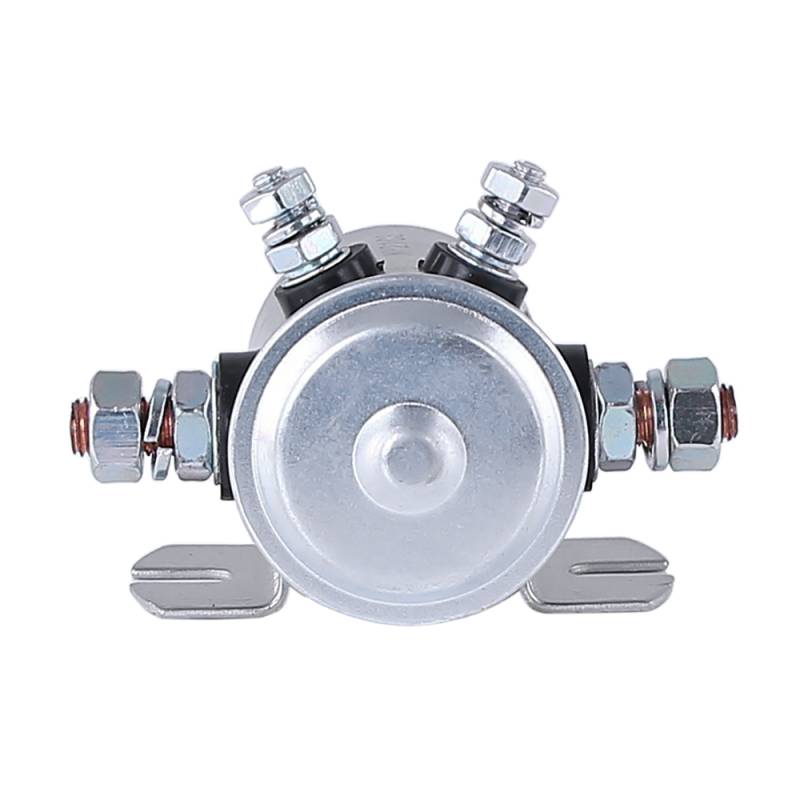

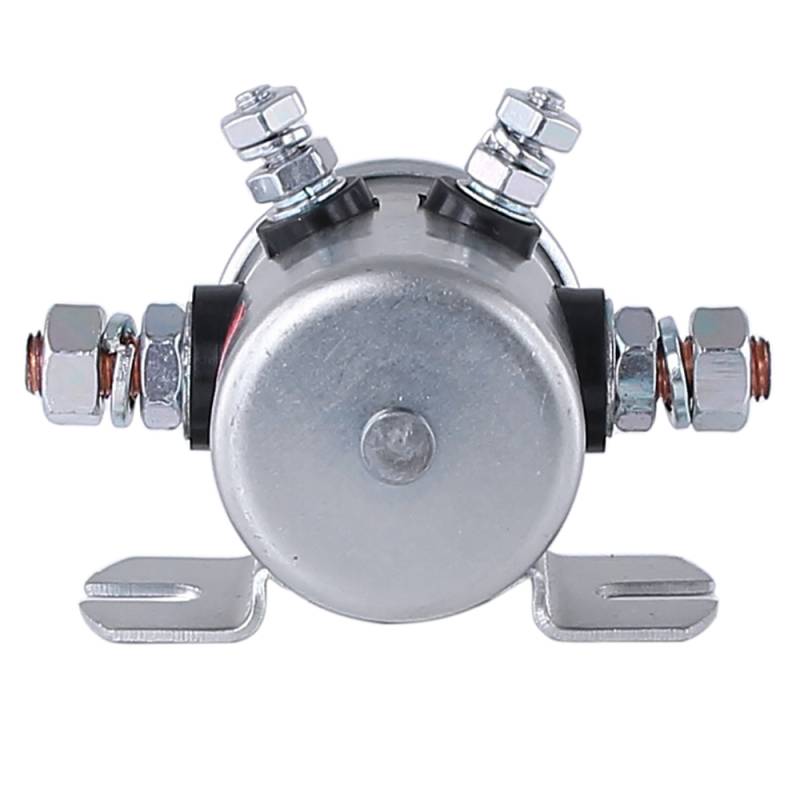

New Starter Solenoid Relay Compatible With 15-141 15-196 15-304 Sas-4401 Caterpillar 9F3099 24V 4

67-703*4
OEM PART NUMBERS:
• Caterpillar: 9F3099
• Delco: 1114533 / 1115615 / 1481
• Prestolite: 15-141 / 15-196 / 15-304 / SAS-4401 / SAS-4408 / SAS-5401A
• Cole Hersee: 24063 / 24063-08 / 24063BX
• United Technologies: SO-51181
• Additional: SPL6033 / SPL6032 / 240-01010 / 240-01001

SPECIFICATIONS:
• Type: Continuous Duty Solenoid / Relay Switch
• Voltage: 24V
• Continuous: 60 Amps | Surge: 100 Amps
• Terminals: 4 (5/16-24 Contact + 10-32 Switch)
• Mounting: Flat 180 (F180)
• Case: Metal | Contacts: Copper
• Insulated Base
• Condition: New

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals such as Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $58.78
Sale: $32.80
Save: 44%
Save: $25.98
Qty:
Free Shipping!

Description

UNIVERSAL - FITS VARIOUS STARTERS BY PART NUMBER:
• Caterpillar Equipment with Prestolite/Delco 24V Starters
• Case Equipment with 24V Starter Systems
• Heavy Equipment, Industrial, Marine Applications
• Any Application Using Listed OEM Part Numbers

SPECIFICATIONS:
• Voltage: 24V
• Continuous Amps: 60A
• Surge Amps: 100A
• Duty Cycle: Continuous
• Terminals: 4 (Battery 5/16-24, Motor 5/16-24, Switch 10-32)
• Mounting: Flat 180 (F180)
• Mounting Holes: 5/16 x 19/32, 2-13/64 on Center
• Case Material: Metal (Steel Housing)
• Contact Material: Copper
• Insulated Base
• Made in USA

Details

Shipping Information

  • Item Requires Shipping
  • 1.1 lbs.
  • W4.0000” x H4.0000” x L6.0000”
  • Free Shipping!
