GM (ACDELCO) PART NUMBERS: • 12652772
• 12619241
• 12662757
• 12740951
• 12714470
• 12724248
• 12691976
MITSUBISHI PART NUMBERS: • M000T23671, M0T23671
• M000T23672, M0T23672
• 12160041604248BC
REMY PART NUMBERS: • 26015
WILSON PART NUMBERS: • 91-27-3556, 91273556
• 91-27-3561, 91273561

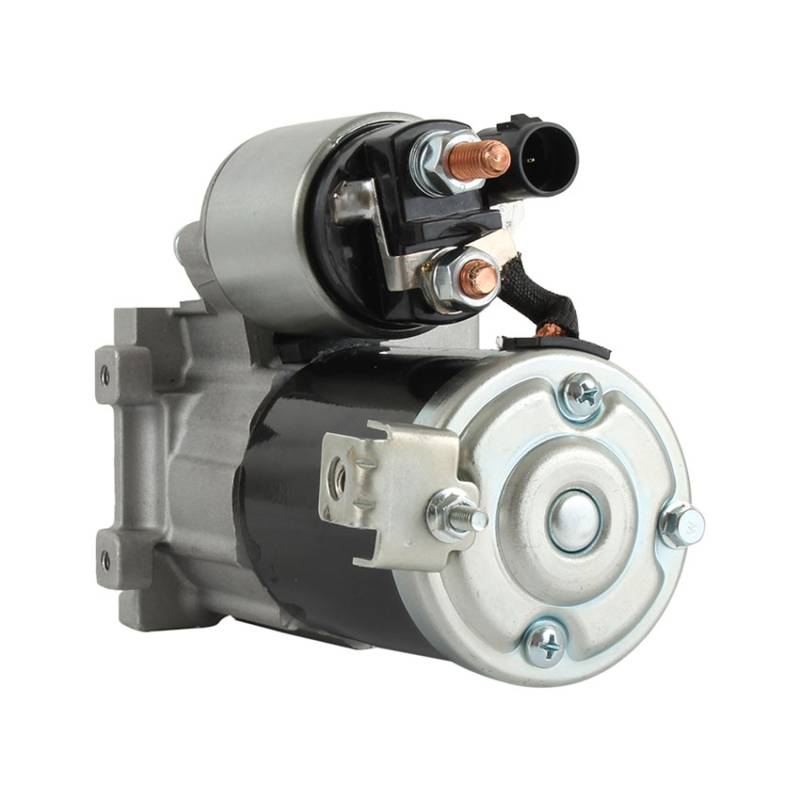

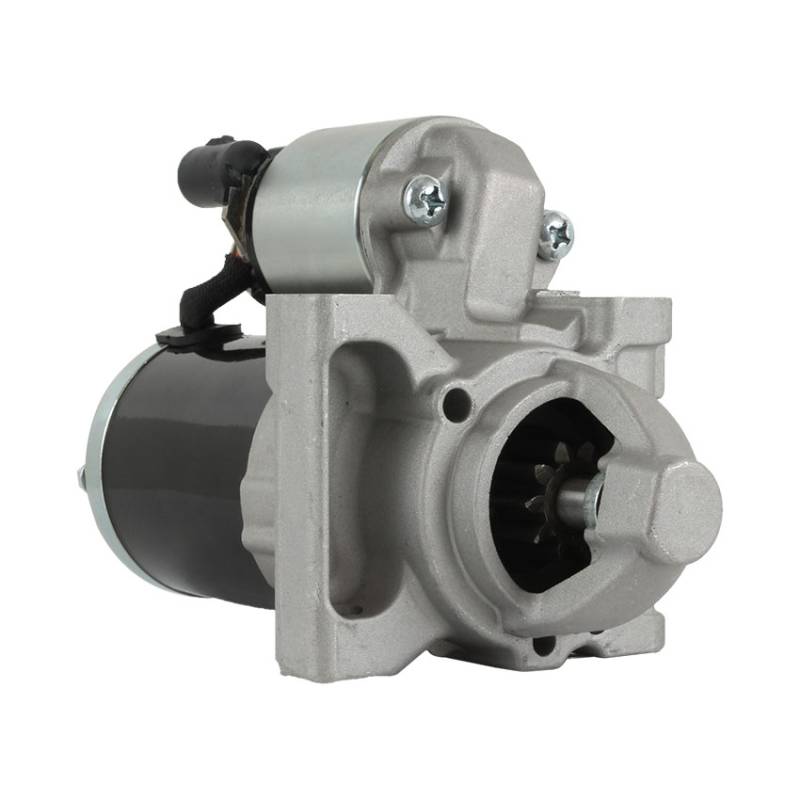

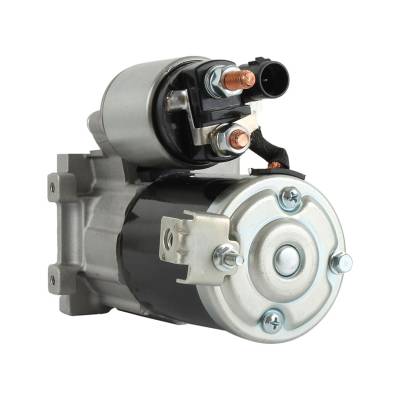

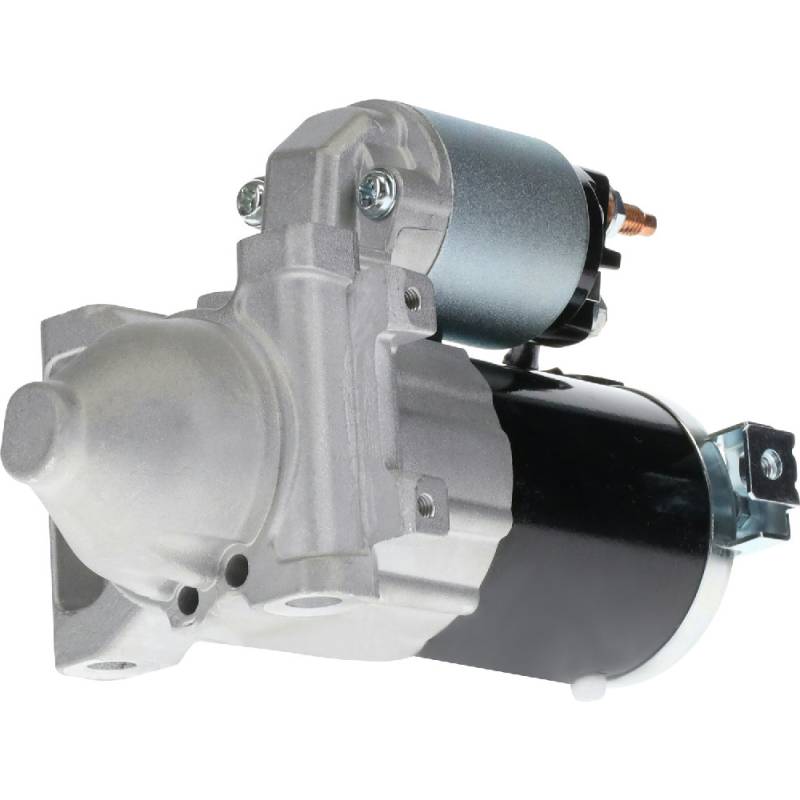

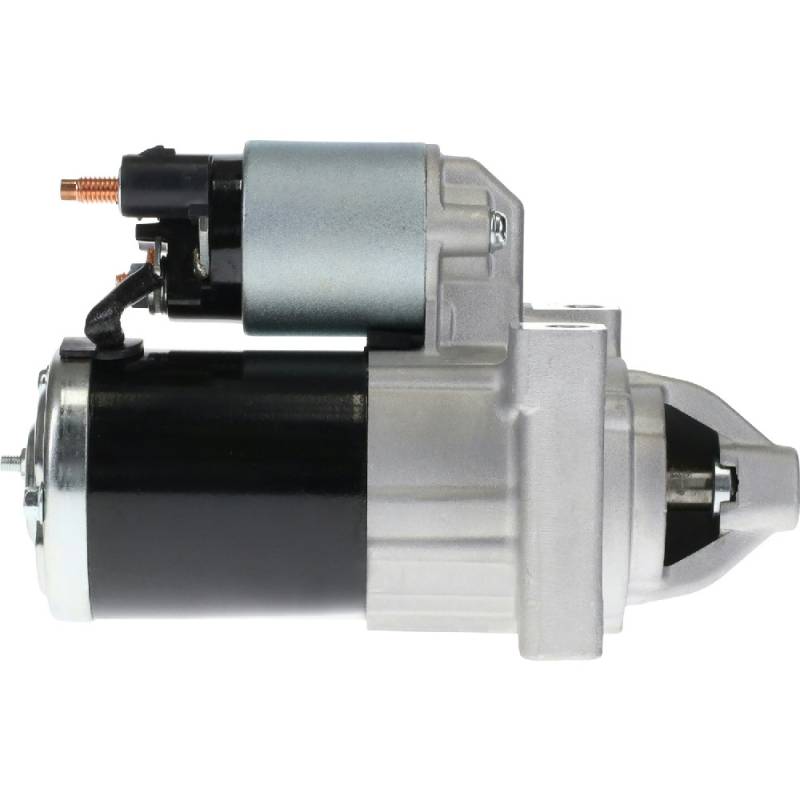

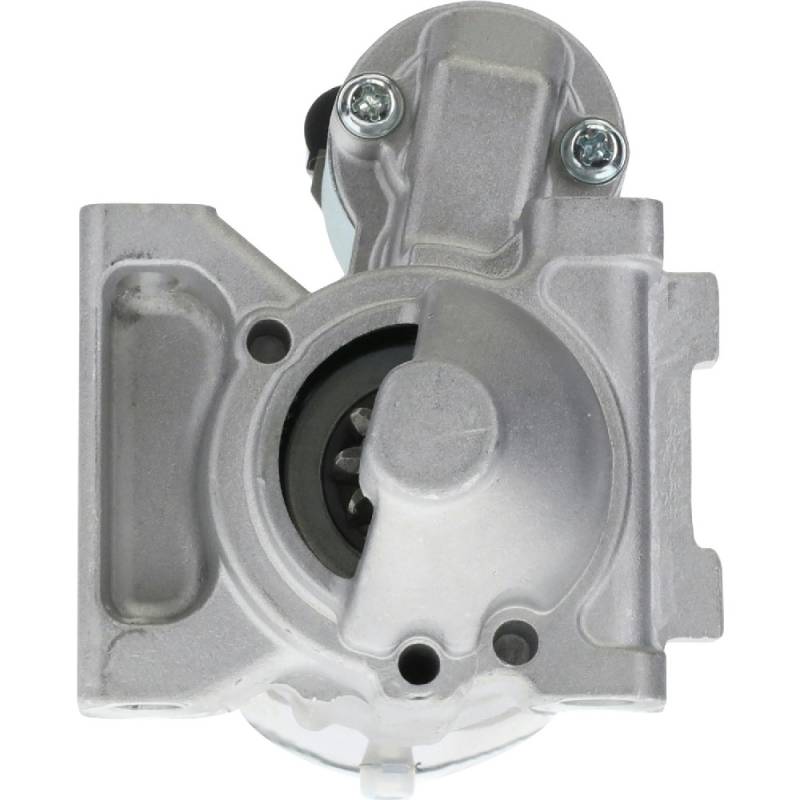

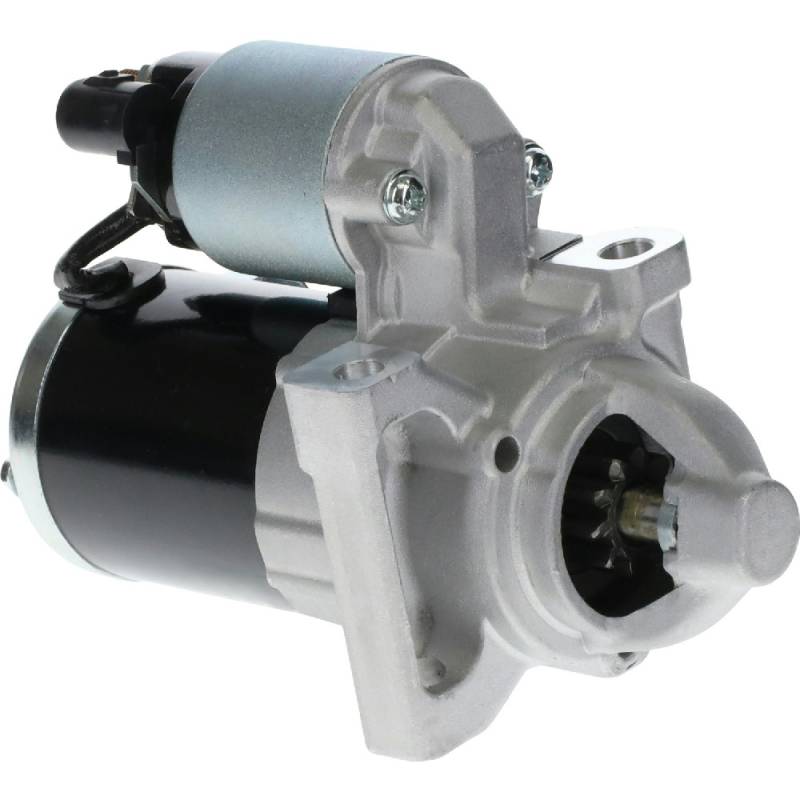

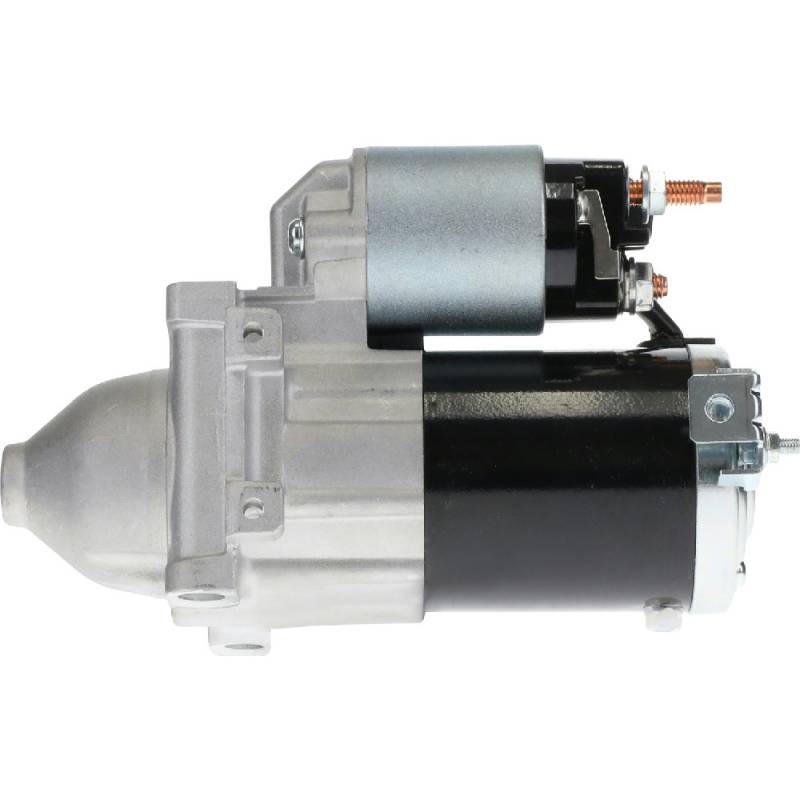

SPECIFICATIONS: • Type: Starter
• Voltage: 12V
• Design: Mitsubishi M0T Type permanent magnet gear reduction (PMGR)
• Rotation: Clockwise (CW)
• Pinion: 10 teeth, gear OD 1.083 in / 27.5 mm
• Mounting: 2 ears, 10.2 mm unthreaded holes, 2.862 in / 72.7 mm center to center
• Registry OD: 2.421 in / 61.5 mm
• Length: 6.555 in / 166.5 mm
• Nose: Closed nose
• Solenoid: Attached
• Terminals: M8 B+ and motor studs, blade S terminal inside plug
• Weight: 7.16 lb / 3.26 kg
• Condition: New aftermarket
