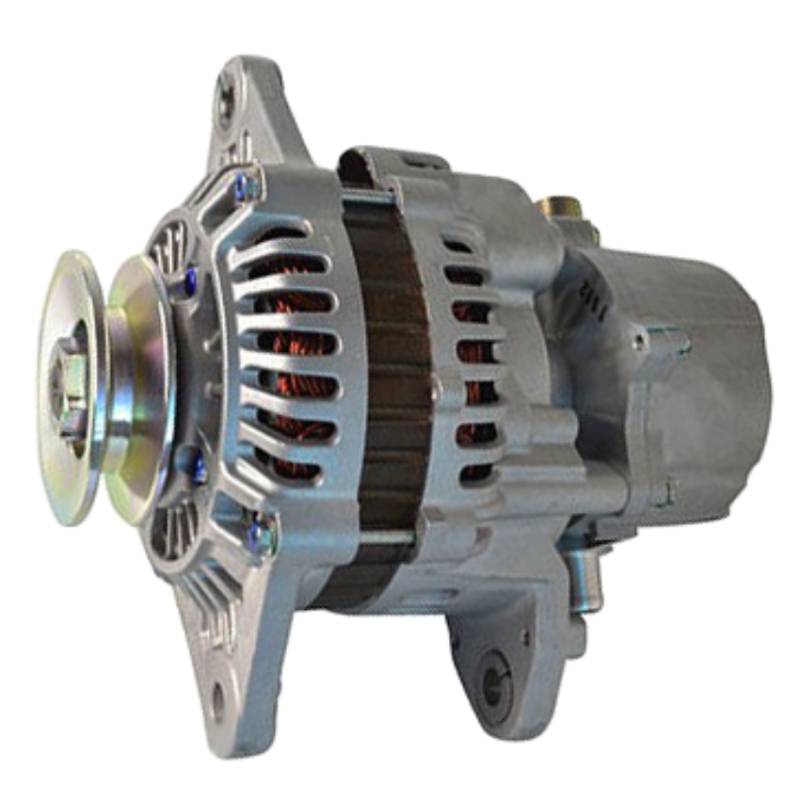

New Alternator Fits Mitsubishi Lift Truck Fd-40D Fd-45D2 A3tn5883 A-8836

12435*2
MITSUBISHI PART NUMBERS:
• 32B68-00200, 32B6800200
• 32B68-00201, 32B6800201
• 32B68-00202, 32B6800202
• A003TN5883, A3TN5883
• A003TN5883ZC, A3TN5883ZC
• A003TN5883ZT, A3TN5883ZT

CLARK PART NUMBERS:
• 920687

DELCO REMY PART NUMBERS:
• DRA0465

WILSON PART NUMBERS:
• 90-27-3291, 90273291

SPECIFICATIONS:
• Type: Mitsubishi
• Voltage: 24 Volt
• Amperage: 35 A
• Rotation: Clockwise (CW)
• Fan: internal
• Regulator: internal, clock 4:00
• Vacuum pump: yes, rear
• Pulley: 1 groove V belt, 82 mm / 3.228 in OD
• Ear 1: M12-1.25 threaded, 14 mm thick
• Ear 2: 12.5 mm unthreaded, 12.9 mm thick
• Ear 3: 12.3 mm unthreaded, 18 mm thick
• B+ terminal: M5-0.8
• R and L terminals: spade
• Polarity: negative ground
• Weight: about 17 lb

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $524.39
Sale: $299.65
Save: 43%
Save: $224.74
Qty:
Free Shipping!

Description

⚠️ 24 VOLT 35 AMP ALTERNATOR WITH VACUUM PUMP:
• 24V, 35 amp, clockwise, internal fan and regulator, vacuum pump
• 1 groove V pulley 82 mm OD, M12-1.25 threaded top ear, B+ M5, R and L spade terminals
• Replaces Mitsubishi A3TN5883 / 32B68-00200 and Clark 920687

MITSUBISHI FORKLIFTS, S6E / S6S DIESEL OPTION:
• Mitsubishi FD35D, FD35D2, FD35DS
• Mitsubishi FD38
• Mitsubishi FD40D, FD40D2
• Mitsubishi FD45D, FD45D2
• Mitsubishi FD50C, FD50C-D

MITSUBISHI ENGINES:
• 1994-up Mitsubishi S4E VP
• Mitsubishi S4E, S6E, S6S medium duty diesel

Details

Shipping Information

  • Item Requires Shipping
  • 17.9 lbs.
  • W10.0000” x H10.0000” x L10.0000”
  • Free Shipping!
