OEM PART NUMBERS:
• Honda Piston (ATC200X): 13102-965-000 / 13102965000
• Honda Piston (TRX200SX / TRX200 / TRX200D): 13102-HF1-670 / 13102HF1670
• Honda Piston Rings .25mm Over: 13012-958-671 / 13012958671
• Honda Piston Rings .25mm Over: 13012-958-672 / 13012958672
SPECIFICATIONS:

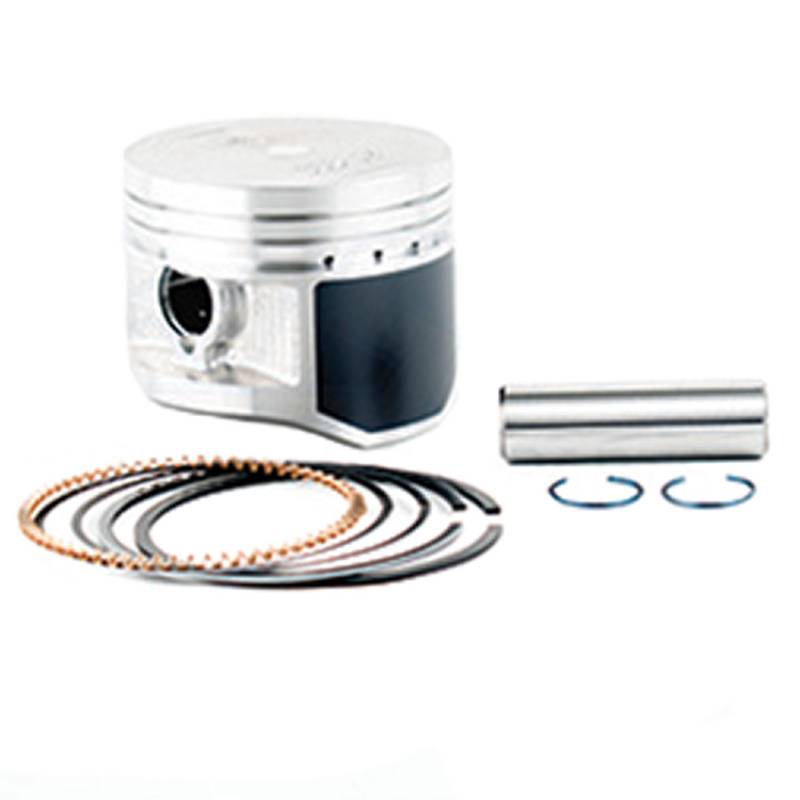

• Type: Piston Kit (Piston, Rings, Pin, Clips)
• Bore Size: .25mm Over Size (Oversize)
• Outside Diameter: 65.25mm (+0.25mm / +0.010")
• Standard Bore Reference: 65mm
• ATC200X Bore × Stroke: 65mm × 57.8mm (192cc)
• TRX200SX / TRX200 / TRX200D Bore × Stroke: 65mm × 60mm (199cc)
• Engine Type: Air-Cooled OHC Single-Cylinder 4-Stroke
• Condition: New
APPLICATIONS SUMMARY:
• Honda ATC200X 192cc OHC 4-Stroke (1983-1987)
• Honda TRX200SX FourTrax 200SX 199cc OHC 4-Stroke (1986-1988)
• Honda TRX200 FourTrax 199cc OHC 4-Stroke (1990-1991)
• Honda TRX200D FourTrax Type II 199cc OHC 4-Stroke (1991-1997)
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
