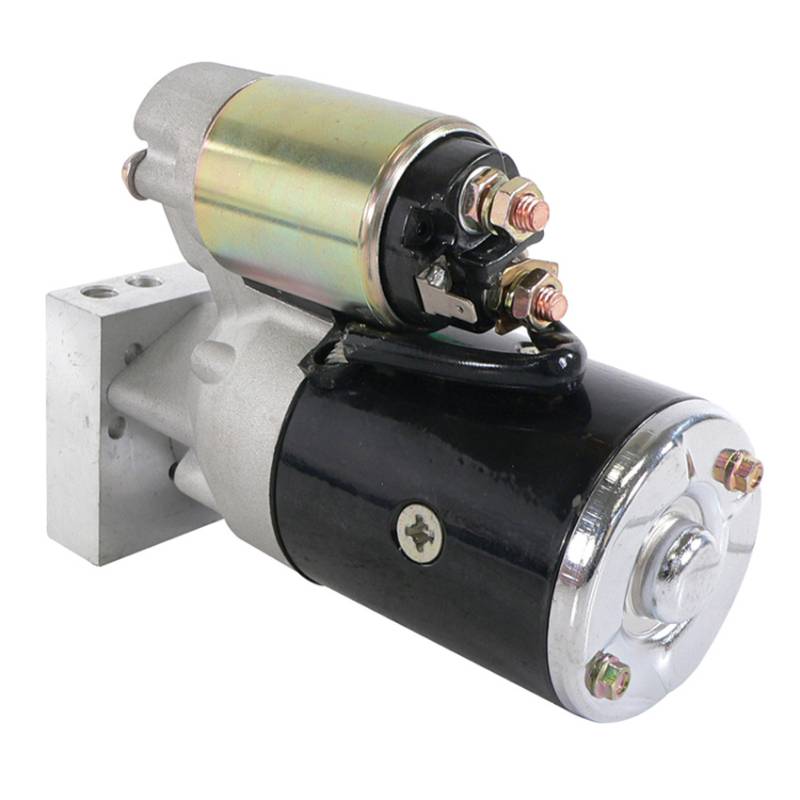

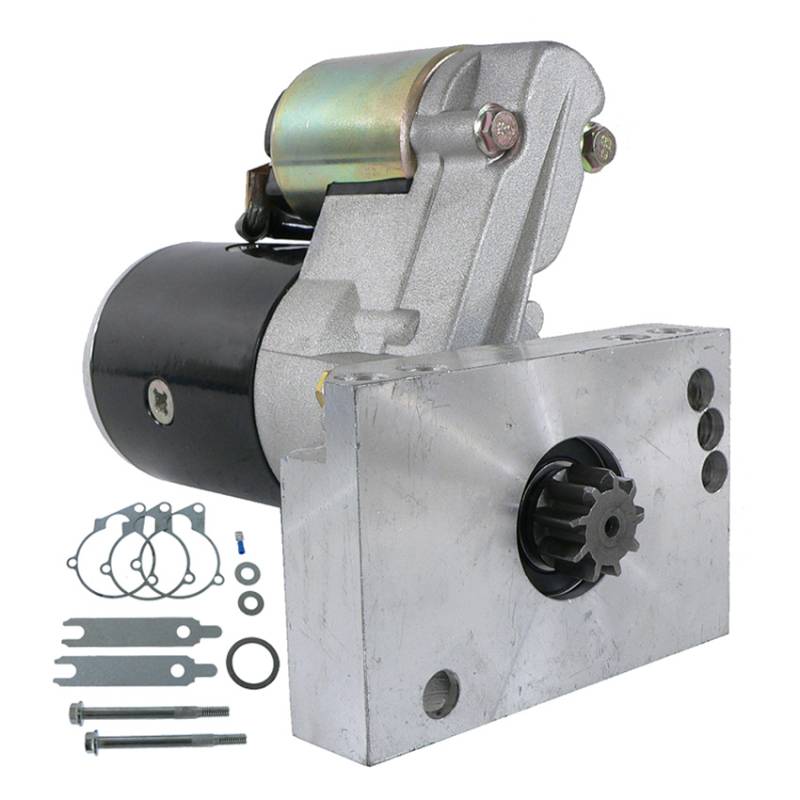

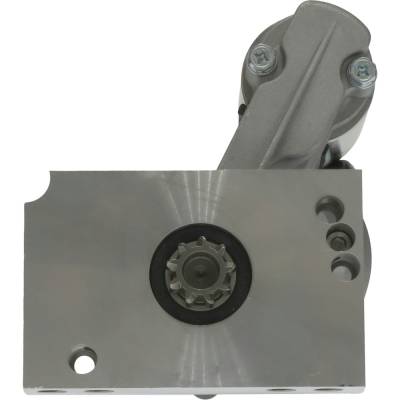

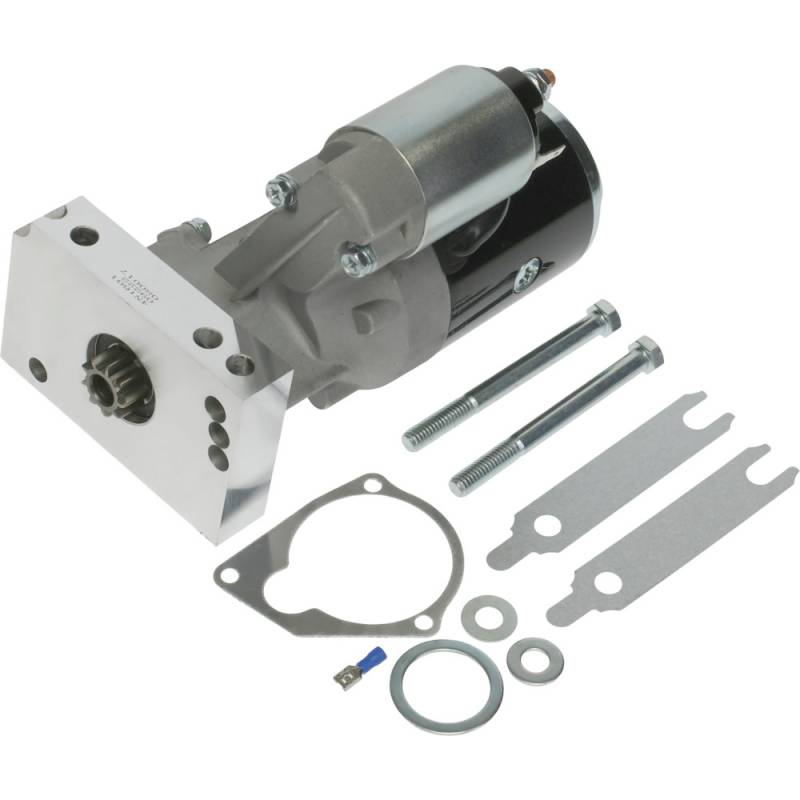

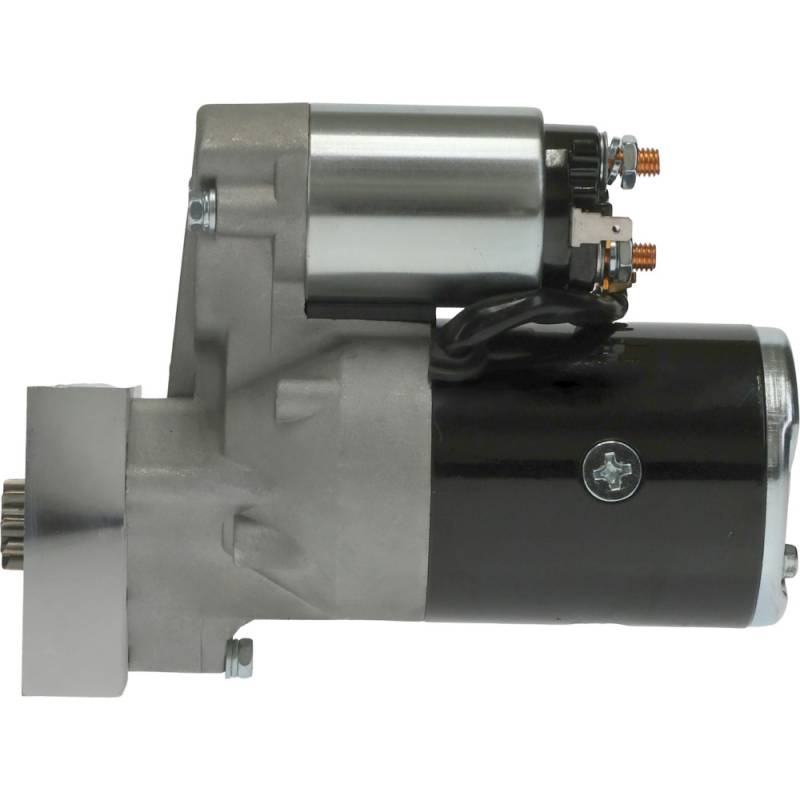

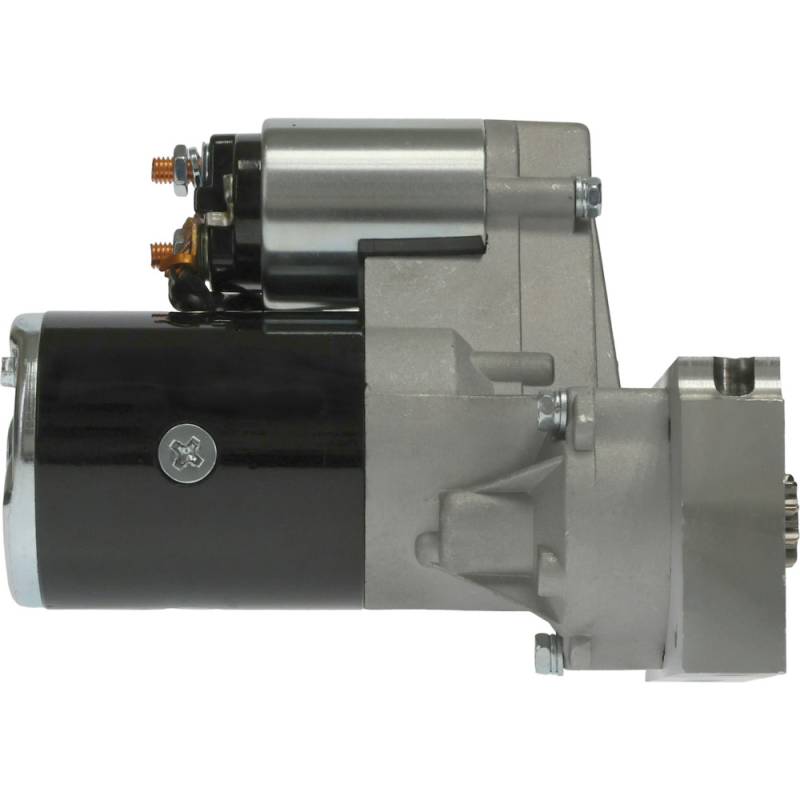

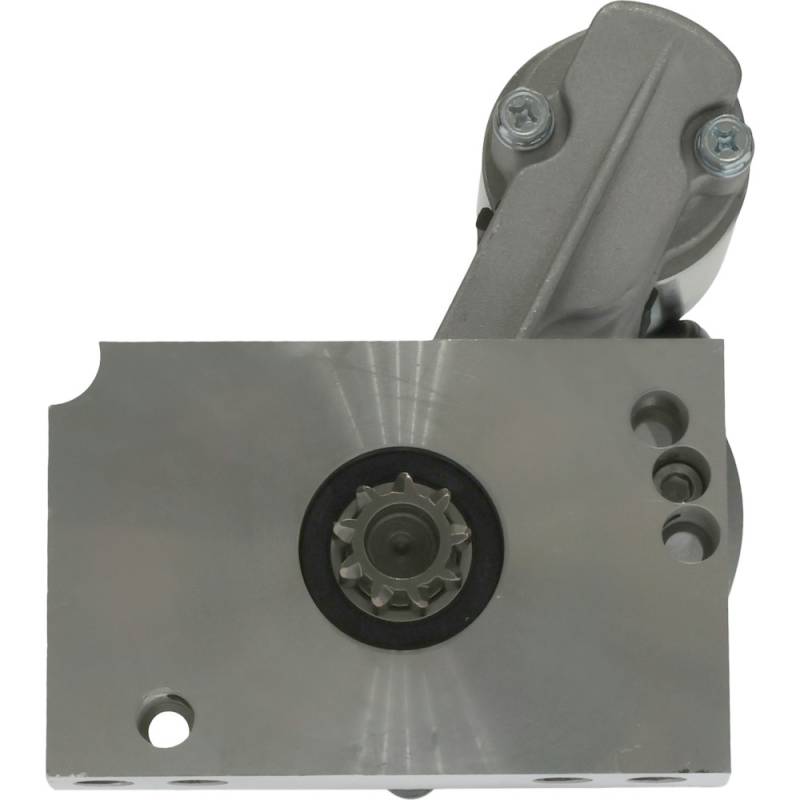

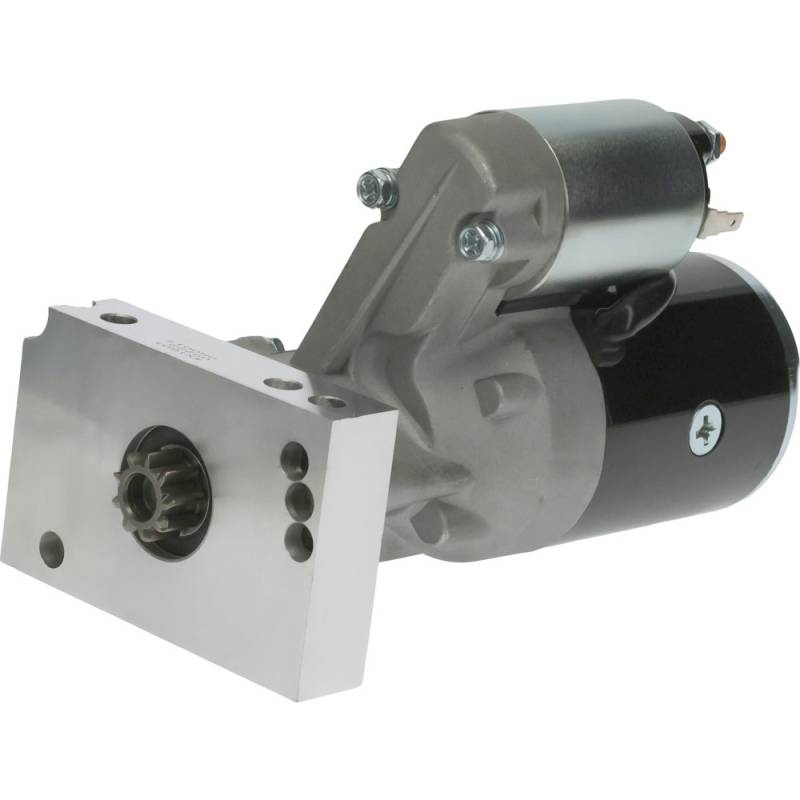

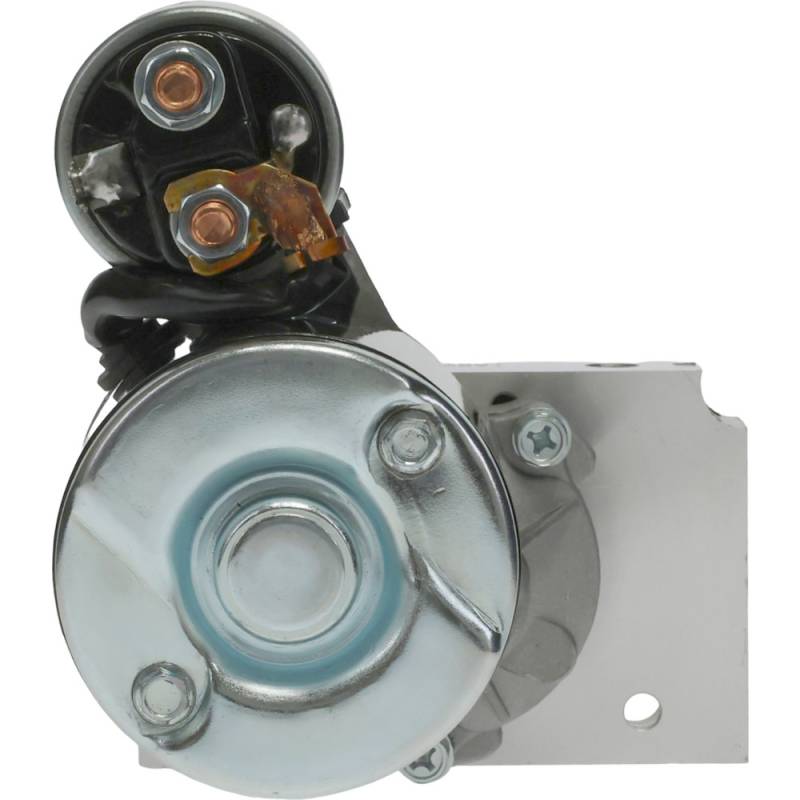

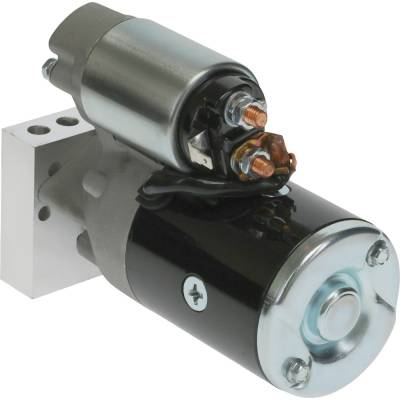

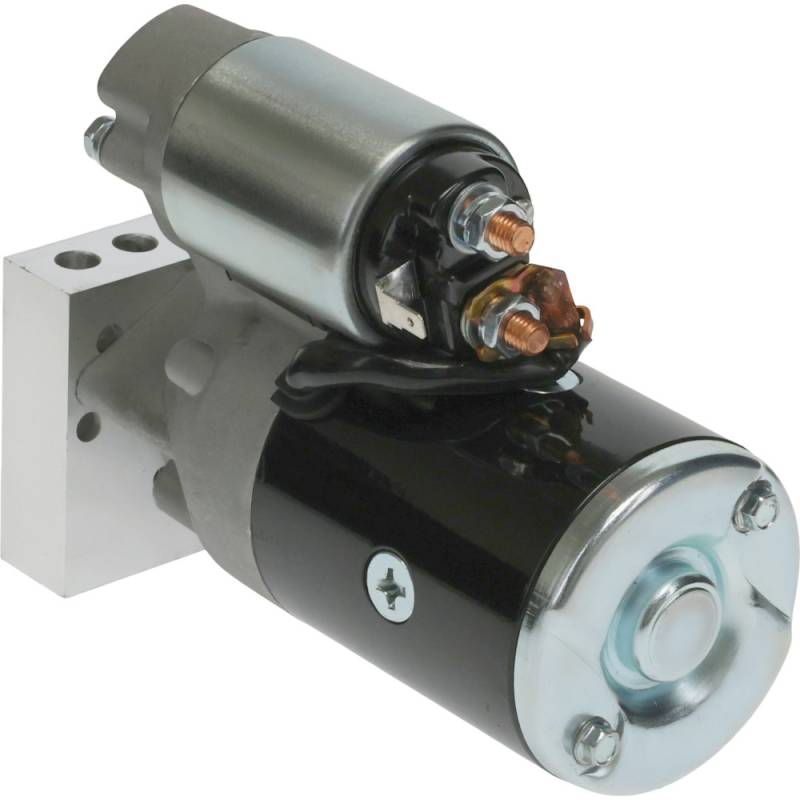

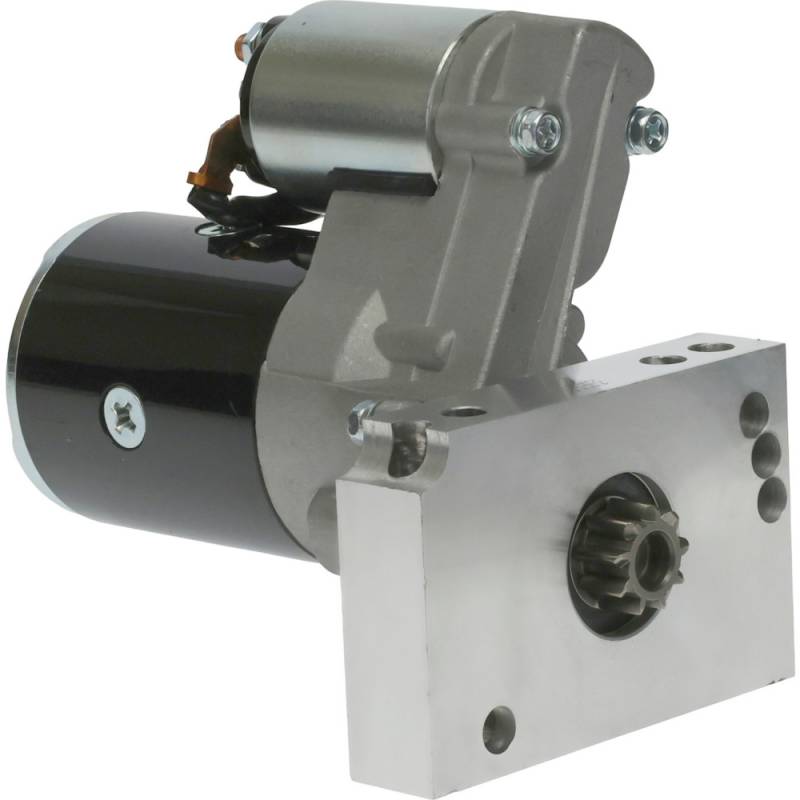

New 12V Starter Fits Gmc G15/G1500 G25/G2500 G35/G3500 Van 1970S S114254s1bx

18492H3
GM (CHEVROLET PERFORMANCE) MINI STARTER NUMBERS:
• 12363128
• 12361146

HITACHI PART NUMBERS:
• PP106, PP-106

INTERCHANGE NUMBERS:
• SD114-254S1, SD114254S1
• S114-823SBX, S114823SBX
• S114-254S1BX, S114254S1BX

WILSON PART NUMBERS:
• 91-25-1122N, 91251122N
• 91-25-1122, 91251122

SPECIFICATIONS:
• Type: mini offset gear reduction (OSGR) starter
• Voltage: 12 Volt
• Power: 1.4 kW
• Rotation: Clockwise (CW)
• Teeth: 9
• Gear OD: 25.1 mm / 0.988 in
• Flywheel: 153 or 168 tooth ring gear
• Mounting: 3 unthreaded 10 mm holes, rotatable block, 3 clocking positions
• Length: about 210 mm / 8.28 in
• Weight: about 11.8 lb / 5.35 kg
• Used on: Pontiac cars with Chevrolet built 265 to 454 V8 engines 1955-1986
• Condition: New aftermarket, not a Hitachi, GM or Delco Remy branded unit

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $324.78
Sale: $185.59
Save: 43%
Save: $139.19
Qty:
Free Shipping!

Description

⚠️ NEW AFTERMARKET MINI GEAR REDUCTION (OSGR) STARTER, 12V 1.4 KW, 9 TOOTH, CW:
• Offset gear reduction (OSGR), 12 volt, 1.4 kW, clockwise (CW)
• 9 tooth pinion, gear OD 25.1 mm (0.988 in), for 153 and 168 tooth flywheels
• Three 10 mm unthreaded mounting holes, rotatable mounting block with 3 clocking positions
• About 210 mm (8.28 in) long, about 11.8 lb (5.35 kg)
• Listed for Chevrolet built V8 engines; Pontiac, Buick and Oldsmobile built engines, inline 6 and diesel engines are not listed

PONTIAC LAURENTIAN, PARISIENNE, STRATO-CHIEF AND PATHFINDER (CANADA):
• Pontiac Laurentian with the 4.3L 265 V8 1955-1957
• Pontiac Laurentian with the 4.6L 283 V8 1957-1967
• Pontiac Laurentian with the 5.4L 327 V8 1962-1969
• Pontiac Laurentian with the 6.5L 396 V8 1966-1969
• Pontiac Laurentian with the 5.0L 307 V8 1968-1969
• Pontiac Laurentian with the 7.4L 454 V8 1970
• Pontiac Laurentian with the 6.6L 400 V8 1972-1974
• Pontiac Laurentian (Safari) with the 5.0L 305 V8 1977-1981
• Pontiac Laurentian (Safari) with the 4.4L 267 V8 1980-1981
• Pontiac Parisienne with the 4.6L 283 V8 1959-1967
• Pontiac Parisienne with the 5.4L 327 V8 1962-1969
• Pontiac Parisienne with the 6.5L 396 V8 1966-1969
• Pontiac Parisienne with the 5.0L 307 V8 1968-1970
• Pontiac Parisienne with the 7.4L 454 V8 1970
• Pontiac Parisienne with the 6.6L 400 V8 1972-1974
• Pontiac Parisienne (Brougham, Safari) with the 5.0L 305 V8 1977-1986
• Pontiac Parisienne (Brougham, Safari) with the 4.4L 267 V8 1980-1982
• Pontiac Pathfinder with the 4.3L 265 V8 1955-1957
• Pontiac Pathfinder with the 4.6L 283 V8 1957-1958
• Pontiac Strato-Chief with the 4.6L 283 V8 1958-1967
• Pontiac Strato-Chief with the 5.4L 327 V8 1962-1969
• Pontiac Strato-Chief with the 6.5L 396 V8 1965-1969
• Pontiac Strato-Chief with the 5.0L 307 V8 1968-1970
• Pontiac Strato-Chief with the 7.4L 454 V8 1970

PONTIAC ACADIAN AND BEAUMONT (CANADA):
• Pontiac Acadian with the 4.6L 283 V8 1964-1967
• Pontiac Acadian with the 5.4L 327 V8 1965-1968
• Pontiac Acadian with the 5.0L 307 V8 1968-1971
• Pontiac Acadian with the 6.5L 396 V8 1968-1969
• Pontiac Acadian with the 7.4L 454 V8 1970-1971
• Pontiac Beaumont with the 4.6L 283 V8 1964-1967
• Pontiac Beaumont with the 5.4L 327 V8 1964-1968
• Pontiac Beaumont with the 6.5L 396 V8 1965-1969
• Pontiac Beaumont with the 5.0L 307 V8 1968-1969

PONTIAC FIREBIRD:
• Pontiac Firebird (Esprit, Formula) with the 5.0L 305 V8 1977-1986
• Pontiac Firebird with the 4.4L 267 V8 1981

PONTIAC LEMANS, GRAND LEMANS, GRAND PRIX AND GRAND AM:
• Pontiac Grand Am with the 5.0L 305 V8 1978-1980
• Pontiac Grand LeMans (BR, LE, SA, Safari) with the 5.0L 305 V8 1976-1983
• Pontiac Grand LeMans (BR, LE, SA) with the 4.4L 267 V8 1979-1982
• Pontiac Grand Prix with the 5.0L 305 V8 1978-1986
• Pontiac Grand Prix with the 4.4L 267 V8 1981-1982
• Pontiac LeMans (Safari, Sport, Sport Coupe) with the 5.0L 305 V8 1976-1981
• Pontiac LeMans (Safari) with the 4.4L 267 V8 1979-1981

PONTIAC BONNEVILLE, CATALINA, PHOENIX, SUNBIRD AND VENTURA:
• Pontiac Bonneville with the 5.0L 305 V8 1983-1986
• Pontiac Catalina with the 4.4L 267 V8 1980-1981
• Pontiac Catalina with the 5.0L 305 V8 1980-1981
• Pontiac Phoenix with the 5.0L 305 V8 1977-1979
• Pontiac Sunbird with the 5.0L 305 V8 1978-1979
• Pontiac Ventura with the 5.0L 307 V8 1971-1973
• Pontiac Ventura with the 5.0L 305 V8 1977
