New Starter Compatible With International Power Unit Ud-301 Tractor I-3800D I-3850D Sr10003x

(0) Reviews: Write first review
3991N*3
DELCO REMY PART NUMBERS:
• 1113640
• 1993769 (37MT supersession)
• 1993886 (37MT supersession)

WHITE / AGCO PART NUMBERS:
• 1227413
• W1227413
• W1227413V
• 158776AS, 158-776AS

ACDELCO PART NUMBERS:
• 323-835, 323835

BOSCH PART NUMBERS:
• SR10003X

LUCAS PART NUMBERS:
• LRS01236, LRS1236

WILSON PART NUMBERS:
• 91-01-3780, 91013780
• 91-01-4148, 91014148

SPECIFICATIONS:
• Type: Delco 35MT type direct drive (DD), superseded by the 37MT
• Voltage: 12 Volt
• Rotation: Clockwise (CW)
• Pinion: 10 teeth, 8/10 pitch, 39.9 mm (1.571 in) OD
• Mounting: SAE 1, three ears with 10.0 mm unthreaded holes
• Solenoid position: 45 degrees
• Polarity: grounded
• Weight: 53.21 lb (24.19 kg)
• Condition: New

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $928.25
Sale: $530.43
Save: 43%
Save: $397.82
Qty:
Free Shipping!

Description

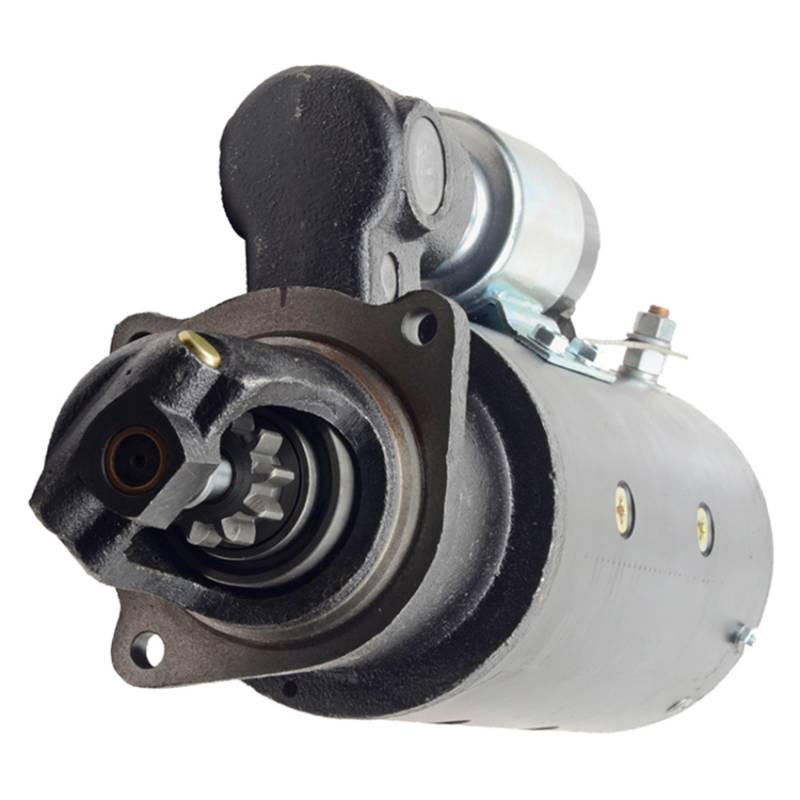

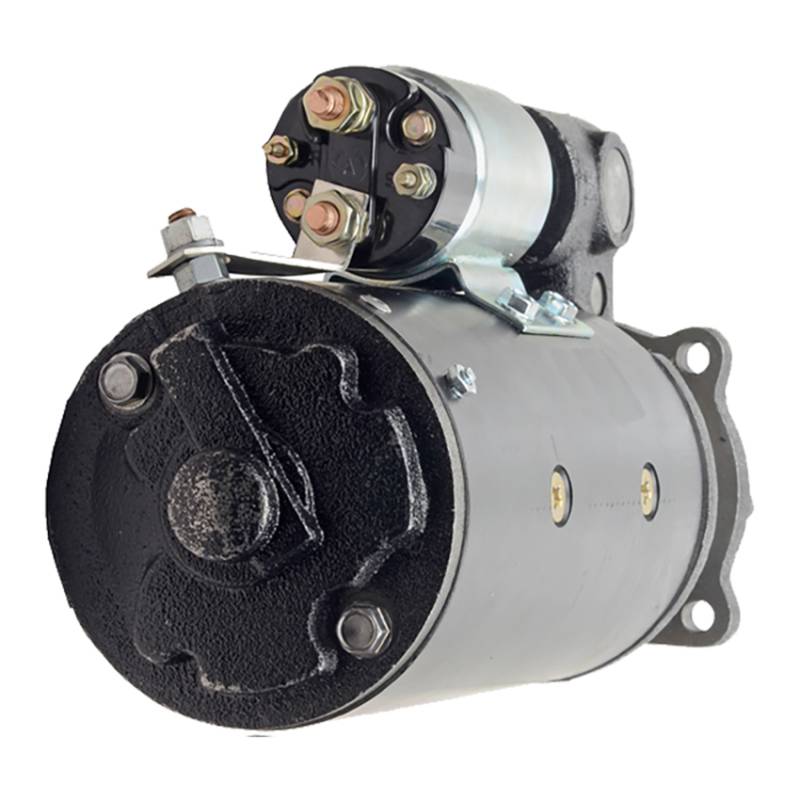

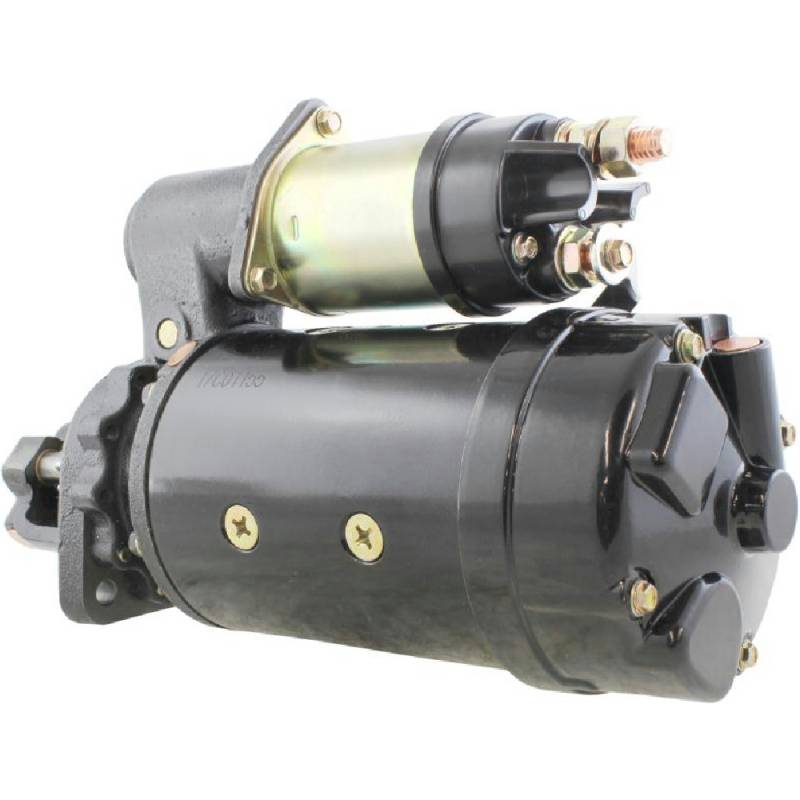

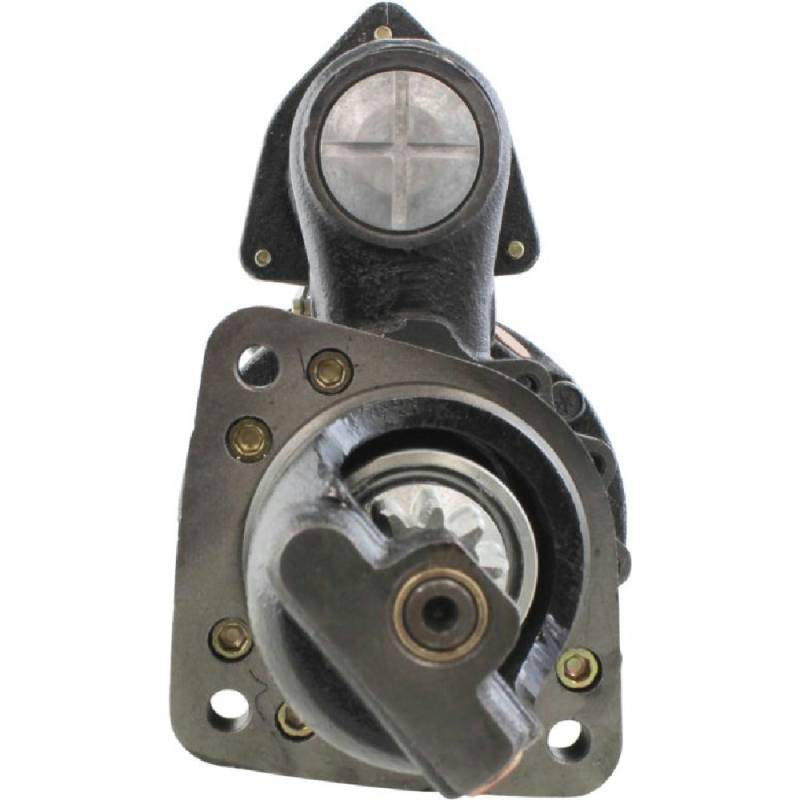

⚠️ 12 VOLT 10 TOOTH CW DELCO 35MT DIRECT DRIVE STARTER, SOLENOID AT 45 DEGREES:
• 12V, clockwise, direct drive, 10 tooth 8/10 pitch pinion, 39.9 mm (1.571 in) gear OD
• SAE 1 three ear mount, three 10.0 mm unthreaded holes, solenoid at 45 degrees, grounded
• 53.21 lb (24.19 kg), full size Delco 35MT build (Delco supersedes it with the 37MT)
• A 12 tooth pinion or a different solenoid clock position is a different starter

WHITE / AGCO WHITE COMBINES, PERKINS 6.354 DIESEL:
• White 7300 combine Perkins 6.354 diesel 1974-1980
• White 8600 combine Perkins 6.354 diesel 1974-1978
• White 8700 combine Perkins 6.354 diesel 1977-1984

WHITE / AGCO WHITE COMBINES, PERKINS T6.354 TURBO DIESEL:
• White 8800 combine Perkins T6.354 turbo diesel 1974-1977 (S/N 40701 and up)
• White 8900 combine Perkins T6.354 turbo diesel 1977-1984
• White 8920 combine Perkins T6.354 turbo diesel 1984-1986

BOBCAT / CLARK (MELROE) LOADERS, PERKINS 4.236 DIESEL:
• Bobcat 974 skid steer loader Perkins 4.236 diesel 1977-1984
• Clark Bobcat 974 skid steer loader Perkins 4.236 diesel 1977-1984
• Bobcat 1074 wood loader Perkins 4.236 diesel 1975-1982
• Clark Bobcat 1074 skid steer loader Perkins 4.236 diesel 1981-1982

INTERNATIONAL HARVESTER INDUSTRIAL, DIESEL:
• International 3800 backhoe loader IHC D-282 diesel 1967-1972
• International 3850 loader IHC D-282 diesel 1967-1972
• International UD-301 power unit IHC D-301 diesel 1962-1964

TEREX LIFT TRUCKS, PERKINS DIESEL:
• Terex V-30 lift truck Perkins 3.152 diesel 1972
• Terex V-30 lift truck Perkins 4.236 diesel 1972
• Terex V-40 lift truck Perkins 3.152 diesel 1972
• Terex V-40 lift truck Perkins 4.236 diesel 1972
• Terex V-41 lift truck Perkins 3.152 diesel 1972
• Terex V-41 lift truck Perkins 4.236 diesel 1972
• Terex V-50 lift truck Perkins 3.152 diesel 1972
• Terex V-50 lift truck Perkins 4.236 diesel 1972
• Terex V-51 lift truck Perkins 3.152 diesel 1972
• Terex V-51 lift truck Perkins 4.236 diesel 1972
• Terex V-60 lift truck Perkins 3.152 diesel 1972
• Terex V-60 lift truck Perkins 4.236 diesel 1972

PERKINS ENGINES:
• Perkins 6.354 diesel industrial and generator set engines with the Delco 35MT starter, 1975
