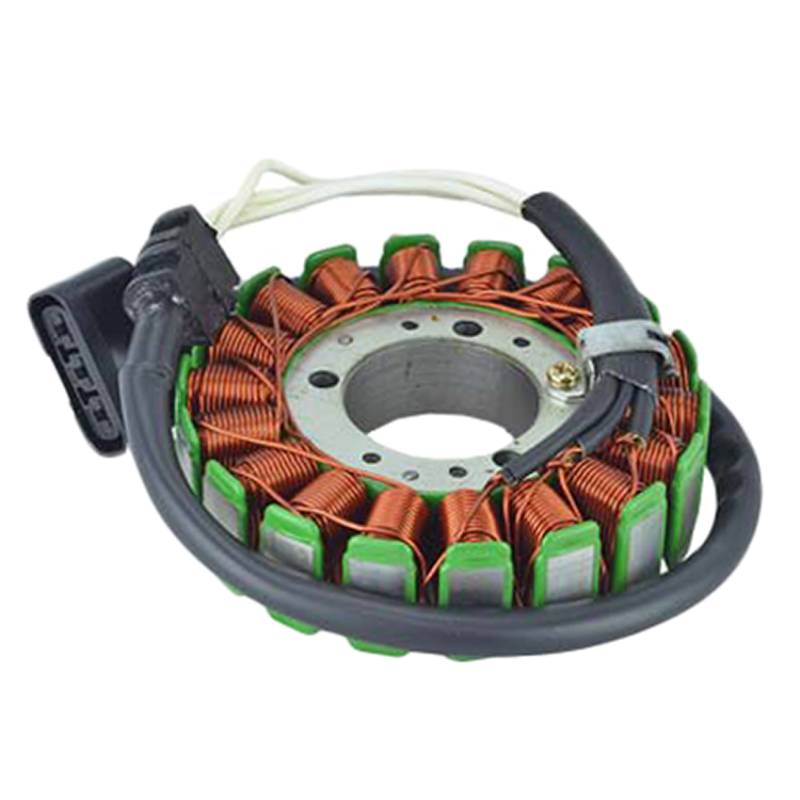

12V 3-Phase Stator Compatible With 2002-2003 Yamaha Yzf-R1 Yzfr1 998Cc Inline-4 Cylinder Dohc

27-7061*2
OEM PART NUMBERS:
• Yamaha: 5PW-81410-00-00 / 5PW814100000
• Yamaha: 5PW-81410-01-00 / 5PW814100100

SPECIFICATIONS:
• Type: Stator / Magneto Generator
• Voltage: 12V
• Phase: 3-Phase
• Wires: 3-Wire / 3-Pin Connector / 1 Plug
• Lam Stack ID: 1.625" / 41.28mm
• Lam Stack OD: 4.54" / 115.31mm
• Lam Stack Thickness: 1.323" / 33.6mm
• Weight: 2.03 lbs / 0.92 kg
• Condition: New

YAMAHA YZF-R1 APPLICATIONS (2002-2003):
• YZF-R1 YZFR1P / YZFR1PC 998cc Inline-4 DOHC 20-Valve (2002)
• YZF-R1 YZFR1R / YZFR1R-F / YZFR1RC / YZFR1RC-F 998cc (2003)
• Engine: 998cc (60.9ci) 4-Cyl DOHC 20-Valve Liquid-Cooled 152HP
• Bore x Stroke: 74mm x 58mm / Compression: 11.8:1

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $153.21
Sale: $87.55
Save: 43%
Save: $65.66
Qty:
Free Shipping!

Description

YAMAHA YZF-R1 998cc SUPERSPORT (2002-2003):
• YZF-R1 (YZFR1P) 998cc Inline-4 DOHC 20-Valve Liquid-Cooled 152HP (2002)
• YZF-R1 (YZFR1PC) 998cc Inline-4 DOHC 20-Valve Liquid-Cooled 152HP (2002)
• YZF-R1 (YZFR1R) 998cc Inline-4 DOHC 20-Valve Liquid-Cooled 152HP (2003)
• YZF-R1 W-Flames (YZFR1R-F) 998cc Inline-4 DOHC 20-Valve 152HP (2003)
• YZF-R1 (YZFR1RC) 998cc Inline-4 DOHC 20-Valve Liquid-Cooled 152HP (2003)
• YZF-R1 W-Flames (YZFR1RC-F) 998cc Inline-4 DOHC 20-Valve 152HP (2003)

ENGINE SPECIFICATIONS:
• 998cc (60.9ci) Inline-4 Cylinder DOHC 20-Valve (5 Per Cylinder)
• Bore x Stroke: 74mm x 58mm (2.91" x 2.28")
• Compression Ratio: 11.8:1
• Liquid-Cooled / Fuel Injected
• 152 HP @ 10,500 RPM / 105 Nm (77 lb-ft) @ 8,500 RPM

Details

Shipping Information

  • Item Requires Shipping
  • 3.5 lbs.
  • W7.0000” x H3.0000” x L7.0000”
