OEM PART NUMBERS:
• Deutz: 01182968 / 01183439
• Deutz: 01183624 / 01183842
• Mahle: 11.203.524 / 11203524
• Mahle: 11.204.049 / 11204049
• Mahle: 11.204.463 / 11204463
• Mahle: 11.204.708 / 11204708
• Mahle: AAK3817, AAK4378, AAK4849
• Mahle: IA1326 / IA-1326 / IA 1326
• Mahle: MG24 / MG-24 / MG 24
SPECIFICATIONS:
• Voltage: 12V / Amperage: 95A
• Rotation: CW (Clockwise)
• Fan: External / Regulator: Internal
• Mount Type: Spool
• Mounting Ears: 10.6mm Unthreaded, 56mm (2.205") Thickness
• B+ Terminal: M8-1.25 / D+ Terminal: M5-0.8 / W Terminal: Spade
• Polarity: Negative
• Shaft OD: 17mm (0.669") / Shaft Threads: M16-1.5
• Dust-Proof Unit
• Weight: 12.6 lbs (5.73 kg)
• Condition: New
APPLICATION:
• Linde H50D / H60D / H70D / H80D Diesel Forklifts
• Linde H80D-900 / H80D-1100 Diesel Forklifts
• Type 396 Series (396-01 / 396-02) Hydrostatic Drive

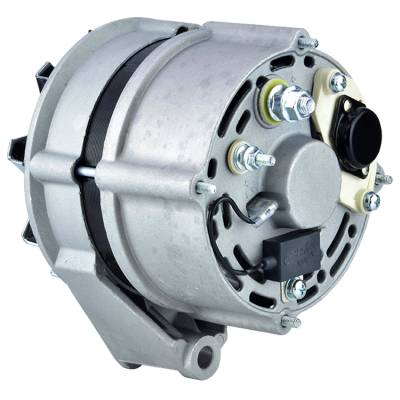

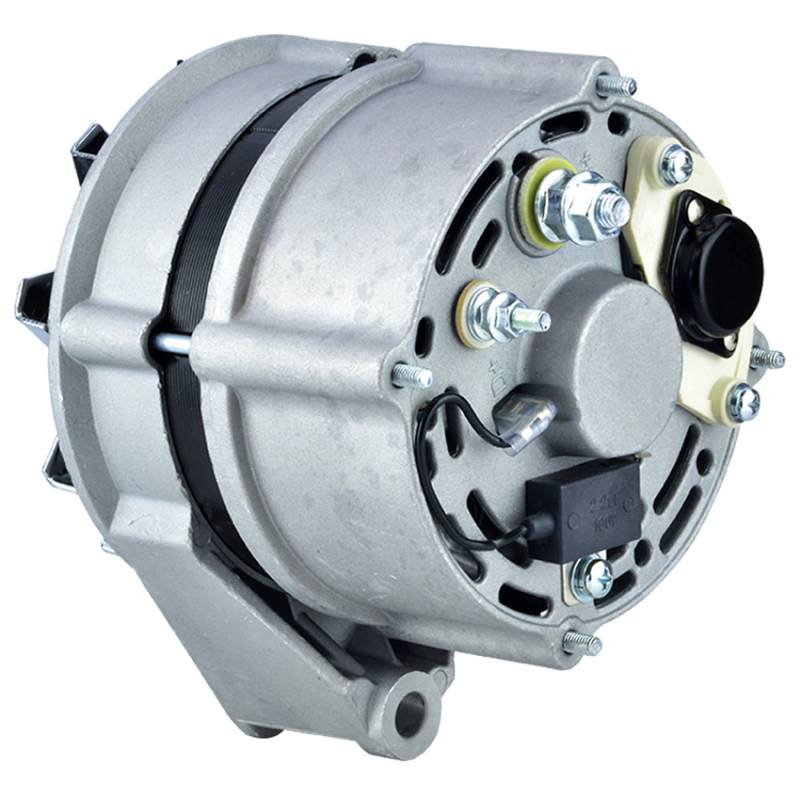

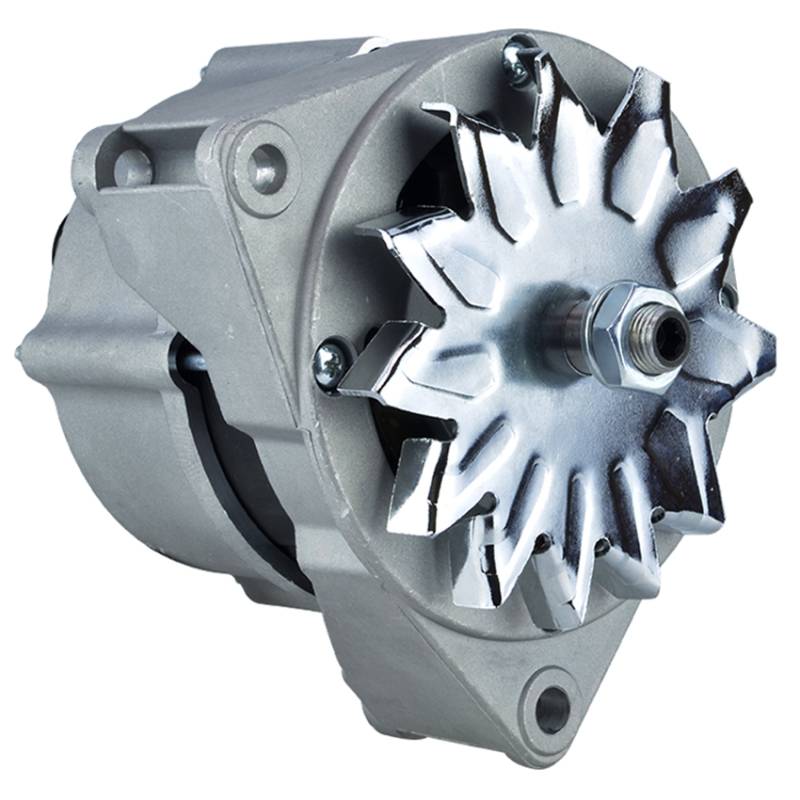

12V 95 Amp Alternator — Mahle AAK4378 / 11.204.708 / Deutz 01183624
New 12V 95 amp dust-proof alternator for Linde H-Series diesel forklifts. CW rotation, external fan, internal regulator, spool mount. 10.6mm unthreaded mounting ears with 56mm thickness. M8-1.25 B+ terminal, M5-0.8 D+ terminal, spade W terminal. 17mm shaft OD with M16-1.5 threads. Negative polarity. Replaces all Deutz and Mahle OEM numbers listed above.
