OEM PART NUMBERS:
• John Deere: RE205273
• Bosch: 0-124-325-155 / 0124325155
• Dixie: A-6605 / A6605
• Dixie New: 160-32101 / 16032101
• Item Reference: 12879N / 12879
SPECIFICATIONS:

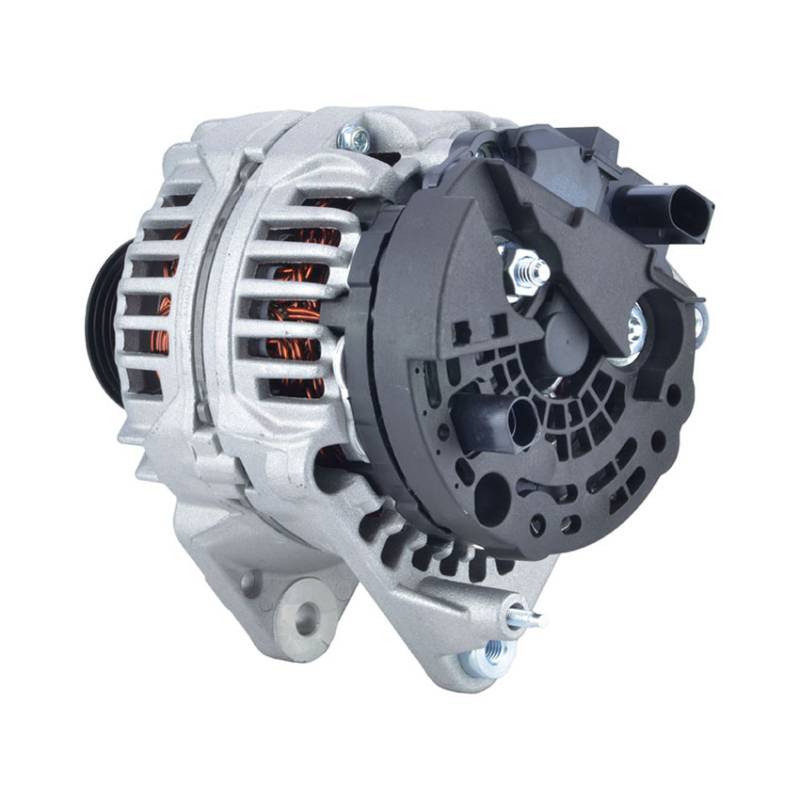

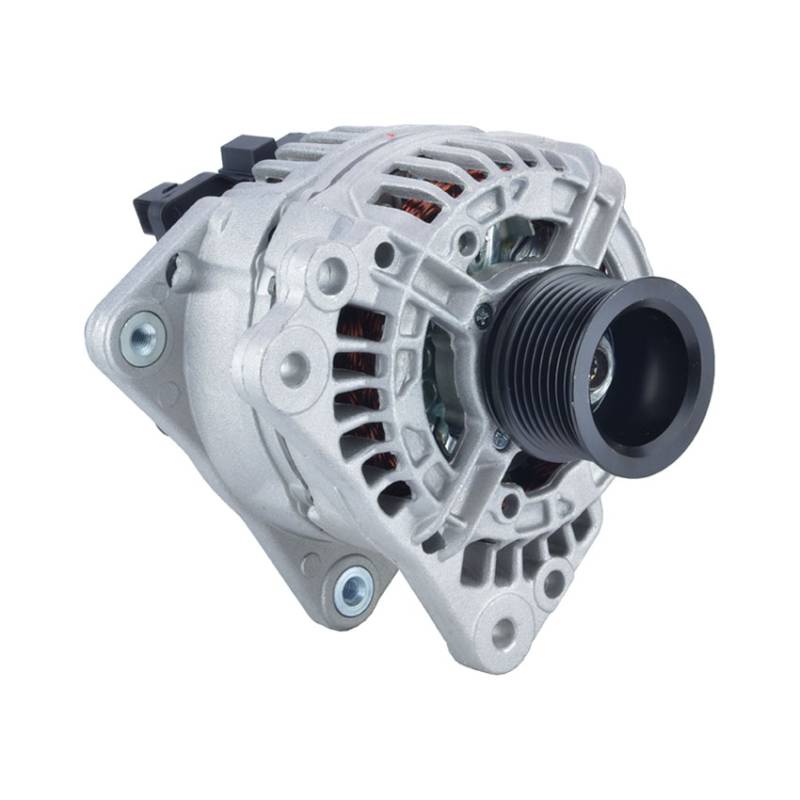

• Product Type: Alternator
• Unit Type / OEM Design: Bosch
• Voltage: 12 Volts
• Amperage: 90 Amps
• Design: IR/IF (Internal Regulator / Internal Fan)
• Rotation: Clockwise (CW)
• Regulator Clock Position: 1:30
• Pulley Design: Serpentine
• Pulley Type: Solid
• Number of Grooves: 8
• Pulley OD: 2.402" / 61mm
• B+ Terminal: M8-1.25
• L Terminal: Blade
• FR Terminal: Blade
• Polarity: Negative
• Weight: 13.88 lbs / 6.31 kg
• Mounting Ear 1 Hole: 9.6mm Unthreaded
• Mounting Ear 1 Thickness: 0.543" / 13.8mm
• Mounting Ear 2 Hole: M8-1.25 Threaded
• Mounting Ear 2 Thickness: 0.795" / 20.2mm
• Mounting Ear 3 Hole: 9.4mm Unthreaded
• Mounting Ear 3 Thickness: 0.551" / 14mm
• Mounting Ear 4 Hole: M10-1.5 Threaded
• Mounting Ear 4 Thickness: 0.756" / 19.2mm
• Fan Location: Internal
• Regulator Location: Internal
• Mounting Hardware Included: No
• Condition: New Aftermarket
• Country of Origin: Taiwan / CN
VEHICLE APPLICATIONS SUMMARY:
• John Deere 5M Series Farm Tractors 5065M / 5075M / 5085M / 5095M / 5095MH / 5105M / 5105ML (2008-2011)
• John Deere 5E Limited Series 5076E / 5076EF / 5076EL / 5078E / 5082E / 5083E / 5083EN / 5085E / 5090E / 5090EH / 5093E / 5101E (2009-2015)
• John Deere Utility / Narrow 5093EN / 5101EN / 5425N Narrow Tractors (2005-2015)
• John Deere 5025 Series 5225 / 5325 / 5325N / 5425 / 5525 Utility (2005-2008)
• Engines: JD 5-186 3-Cyl and JD 4-276 4.5L PowerTech 4-Cylinder Diesel
• Horsepower Range: 65HP to 105HP
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
