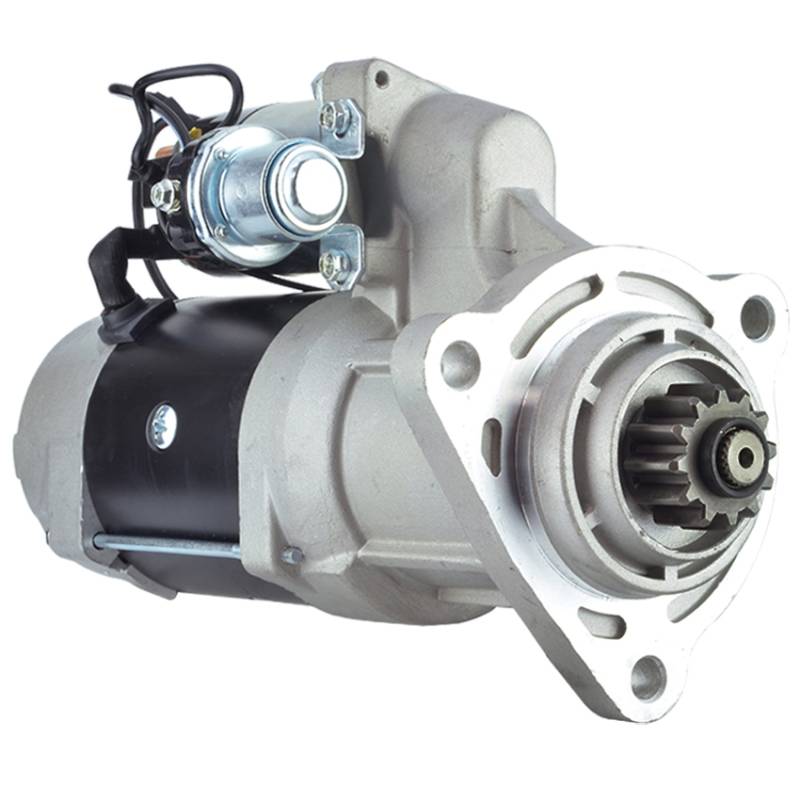

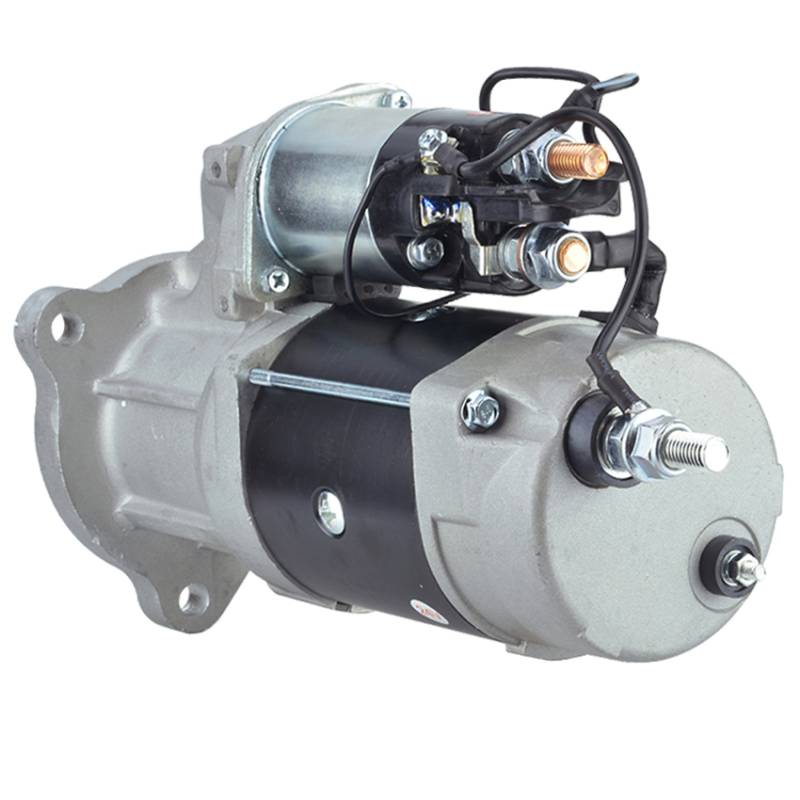

New Starter Motor Compatible With Fiat-Allis 1984-1995 10C Fd-10C Crawler Fg-75 Fg-85 Fg-95 Grader

6803NB3
OEM PART NUMBERS:
• Cummins: 5256414
• Delco: 19011524
• Delco: 8200447

SPECIFICATIONS:
• Type: Delco 39MT PLGR (Planetary Gear Reduction)
• Voltage: 24V
• Power: 9 kW / 12.06 HP
• Rotation: Clockwise (CW)
• Tooth Count: 12
• Gear OD: 1.732in / 44mm
• Solenoid Position: 308 Degrees
• Mounting: 3x 13.0mm Unthreaded
• Semi-Solid Link Solenoid: Yes
• Soft Start with IMS Relay
• Weight: 32.11 lbs / 14.6 kg

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $728.35
Sale: $416.20
Save: 43%
Save: $312.15
Qty:
Free Shipping!

Description

CATERPILLAR AG. & IND. SCRAPER 615 3306 ENGINE 1986-1987
CATERPILLAR AG. & IND. SCRAPER 615C CAT. 3306 1985-1993
CATERPILLAR AG. & IND. SCRAPER 627E CAT. 3306 1986-1993
CATERPILLAR AG. & IND. SCRAPER 637E CAT. 3306 1986-1991
CATERPILLAR AG. & IND. TRACK LOADER 973 CAT. 3306 1985-1995
CATERPILLAR AG. & IND. TRACK TRACTOR D4E CAT. 3304 1985-1986
CATERPILLAR AG. & IND. TRACK TRACTOR D4H CAT. 3304 1985-1996
CATERPILLAR AG. & IND. WHEEL LOADER 966D CAT. 3306 1985-1987
CATERPILLAR AG. & IND. WHEEL LOADER 966E CAT. 3306 1987-1990
CATERPILLAR AG. & IND. WHEEL LOADER 966F CAT. 3306 1990-1996
CATERPILLAR AG. & IND. WHEEL SKIDDER 518 CAT. 3304 1985
CATERPILLAR AG. & IND. WHEEL SKIDDER 528 CAT. 3306 1985-1995
CATERPILLAR AG. & IND. WHEEL TRACTOR DOZER 814B CAT. 3306 1985-1995
CONSOLIDATED DIESEL ENGINE HEAVY DUTY 6C 8.3L ENG 1991-1992
CUMMINS ENGINES ENGINE MEDIUM DUTY C SERIES 8.3L 1987-1988
CUMMINS ENGINES ENGINE MEDIUM DUTY ISC SERIES CUMMINS ISC 8.3L 2003-2007
CUMMINS ENGINES ENGINE MEDIUM DUTY L SERIES 14.0L 1994
DRESSER LOADER 530 CUMMINS 6CT - 8.3L 1984-1992
DRESSER LOADER 540 CUMMINS 6CT - 8.3L 1984-1992
FIAT-ALLIS CRAWLERS 10C 8365 DIESEL 1984-1986
FIAT-ALLIS CRAWLERS 10CL 8365 DIESEL 1984-1986
FIAT-ALLIS CRAWLERS 10CTA 8365 DIESEL 1984-1985
FIAT-ALLIS CRAWLERS FD-10C 8365 DIESEL 1984-1985
FIAT-ALLIS GRADER FG-75 8365 DIESEL 1984-1985
FIAT-ALLIS GRADER FG-85 8365 DIESEL 1984-1985
FIAT-ALLIS GRADER FG-95 8365 DIESEL 1984-1985
FIAT-ALLIS WHEEL LOADER FL-10C 8365 DIESEL 1984-1986
FIAT-ALLIS WHEEL LOADER FR-15 8365 DIESEL 1984-1986
FIAT-ALLIS WHEEL LOADER FR-15B 8365 DIESEL 1985-1995
TIMBERJACK FELLER BUNCHER 2618 CUMMINS 8.3L DIESEL 1995-2006
TIMBERJACK FELLER BUNCHER 2628 CUMMINS 8.3L DIESEL 1995-2006
TIMBERJACK FELLER BUNCHER 618 CUMMINS 8.3L DIESEL 1995-2006
TIMBERJACK FELLER BUNCHER 628 CUMMINS 8.3L DIESEL 1995-2006
