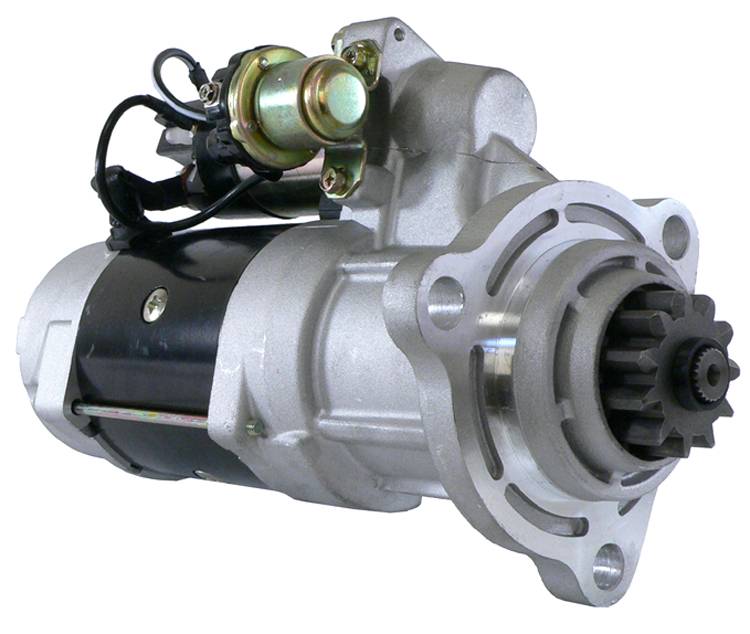

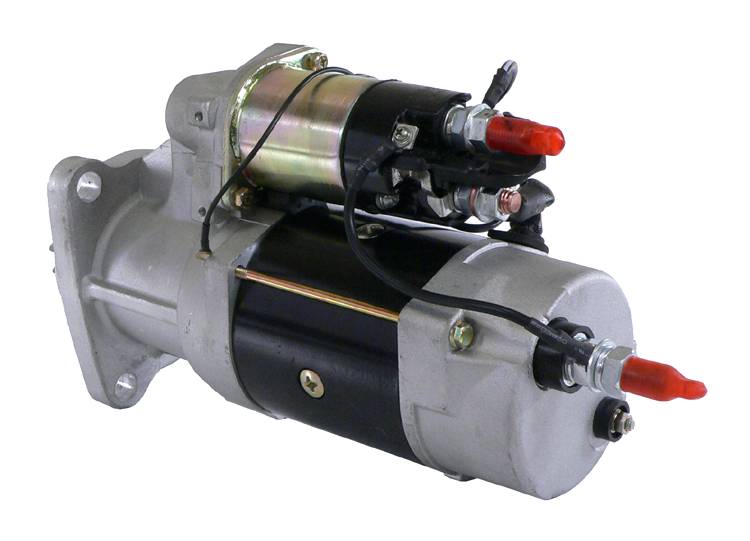

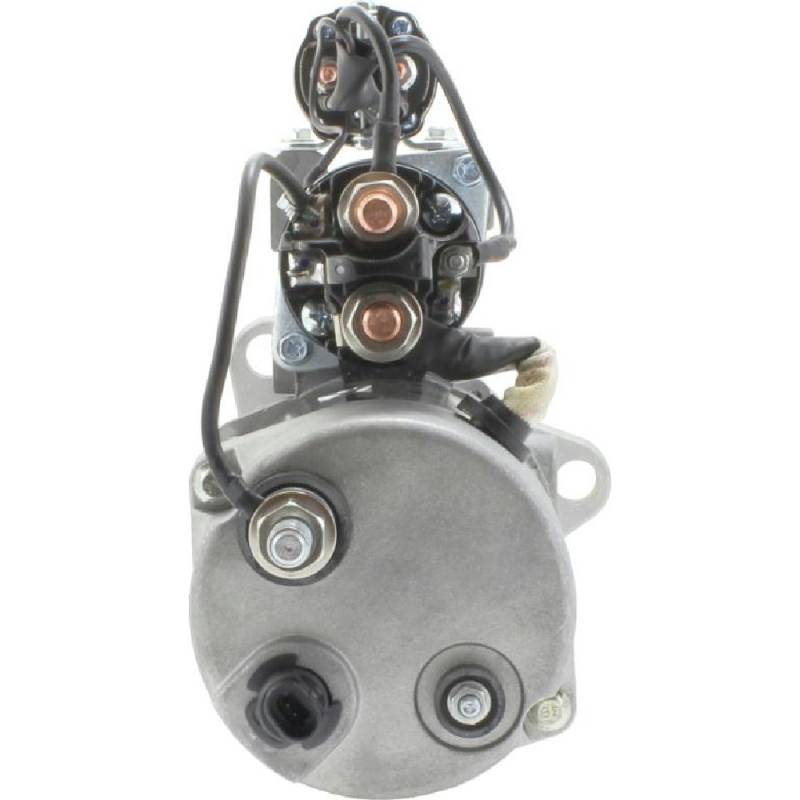

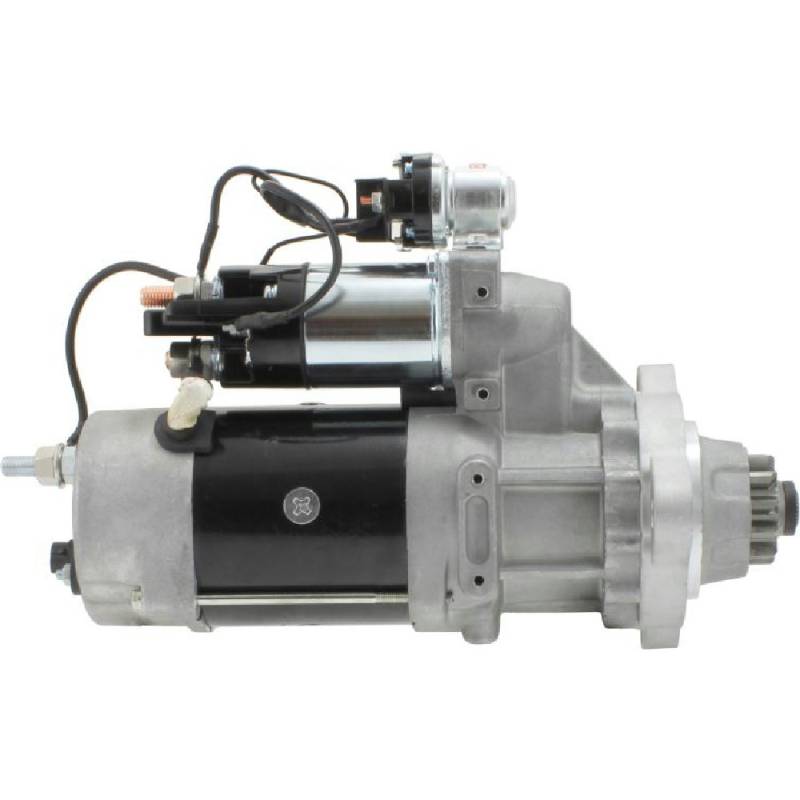

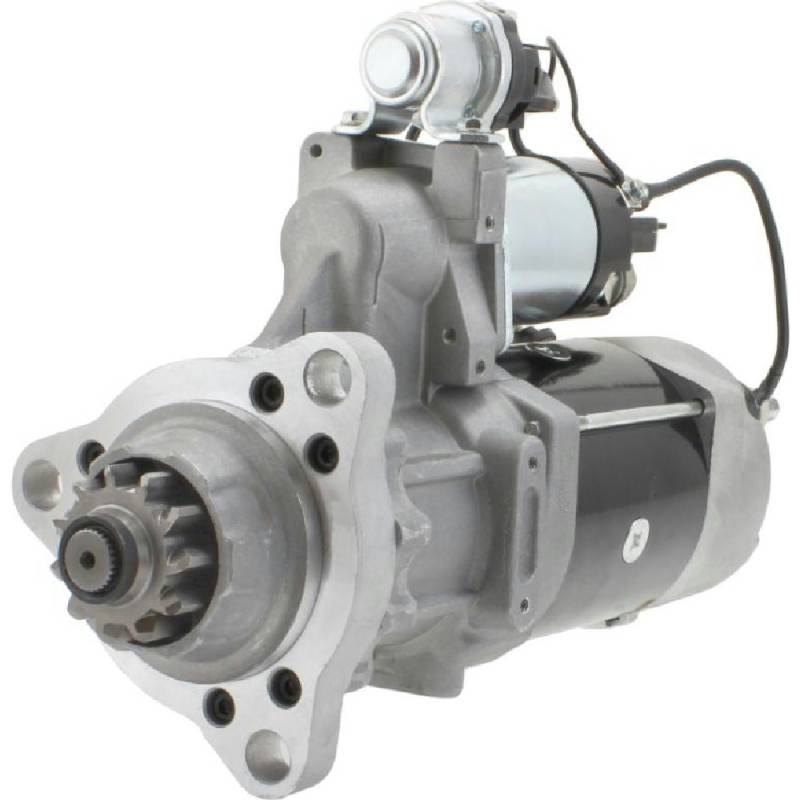

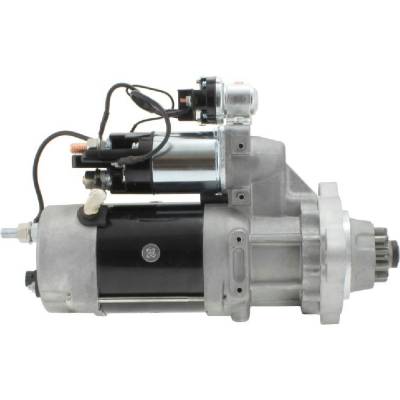

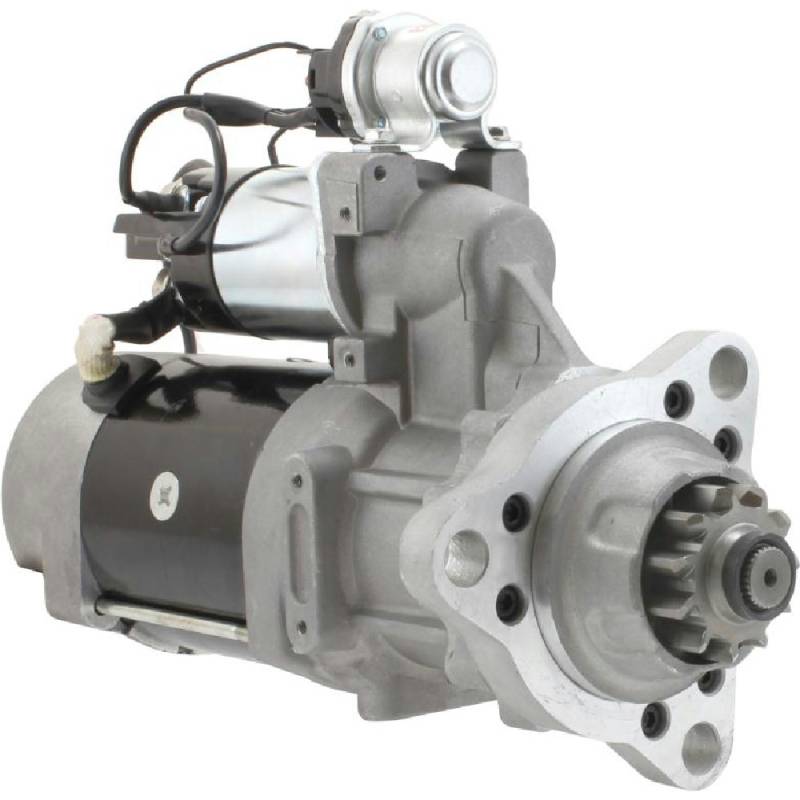

New 24V Starter Fits Grove Mfg Crane 300 475 Rt-58B Rt-625 Rt980 Tm-1075 8200041

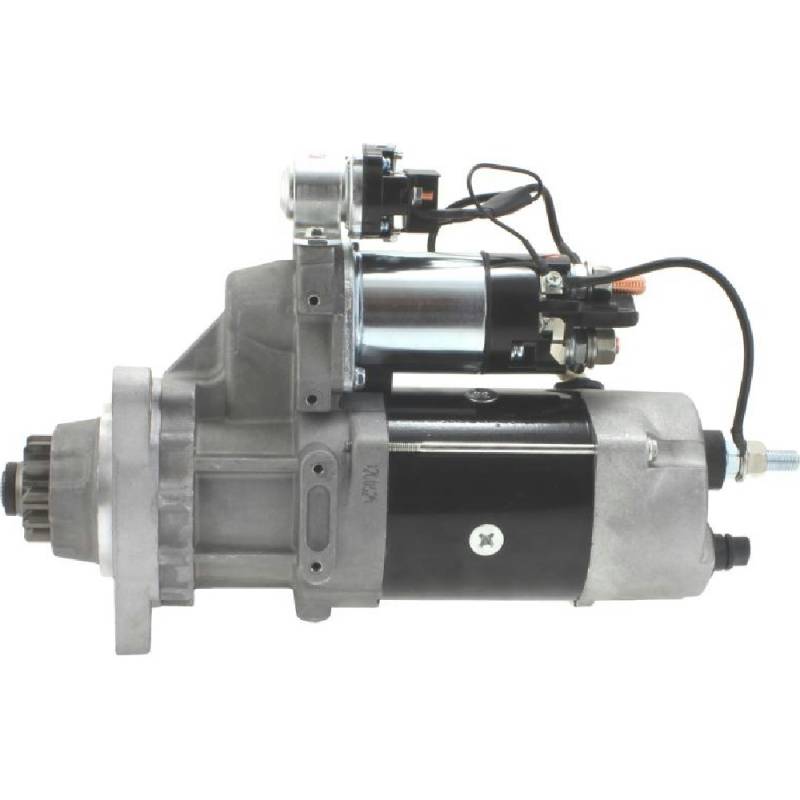

⚠️ 24 VOLT 11 TOOTH 39MT TYPE PLGR STARTER, INSULATED CASE, CASE IH, NEW HOLLAND, CASE, FIAT-ALLIS, GROVE, VOLVO:
• 24V, 8.3 kW, clockwise, insulated case, planetary gear reduction, IMS switch, over-crank protection

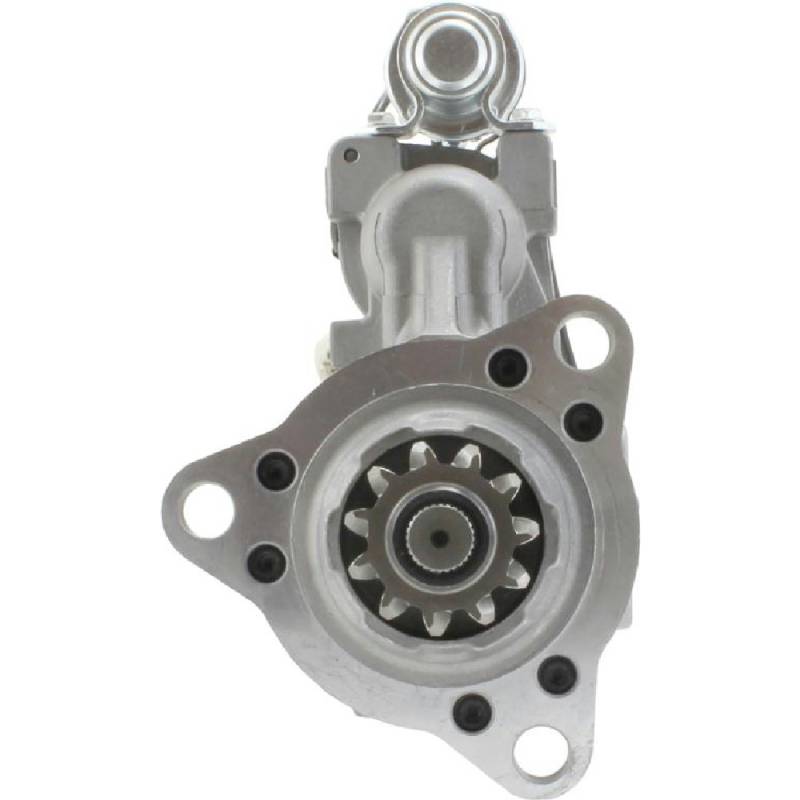

• 11 tooth 6/8 pitch pinion, 2.185 in (55.5 mm) gear OD, open nose
• Re-clockable SAE 3 flange, 3 bolt holes, solenoid at 82 degrees as shipped, 32.3 lb
• A grounded case 39MT or a 12 tooth 8/10 pitch starter is a different unit
• Replaces Leece-Neville M105702, Delco 8200041 and 10479119, CNH 87417338

CASE IH STEIGER AND NEW HOLLAND 4WD TRACTORS:
• Case IH Steiger STX375 with the Cummins QSX15 2000-2008
• Case IH Steiger STX425 with the Cummins QSX15 2001-2006
• Case IH Steiger STX450 with the Cummins QSX15 2001-2006
• Case IH Steiger STX500 with the Cummins QSX15 2001-2007
• Case IH Steiger STX500QT Quadtrac with the Cummins QSX15 2004-2007
• New Holland TJ375 with the Cummins QSX15, serial RVS001918 and up
• New Holland TJ425 with the Cummins QSX15, serial RVS001918 and up
• New Holland TJ450 with the Cummins QSX15, serial RVS001918 and up
• New Holland TJ500 with the Cummins QSX15, serial RVS001918 and up

CASE EXCAVATORS, WOODLAND, TRACTOR AND CRANES:
• Case 40D excavator with the Detroit Diesel 4-71 1985-1986
• Case 50D excavator with the Detroit Diesel 4-71 1985-1986
• Case 45DR with the Detroit Diesel 4-71 1986-1995
• Case Cruz-Air 45DR with the Detroit Diesel 4-71
• Case 45R woodland with the Detroit Diesel 4-71 1985-1986
• Case 50LC woodland with the Detroit Diesel 4-71 1985-1986
• Case 980 with the Detroit Diesel 4-71 1985-1986
• Case 1000 Travelift crane with the Detroit Diesel 4-71 1985-1994
• Case 650CA Travelift crane with the Detroit Diesel 4-71 1985-1994
• Case 800 Travelift crane with the Detroit Diesel 4-71 1985-1994

FIAT-ALLIS CRAWLERS, SCRAPERS AND LOADER:
• Fiat-Allis 14C crawler with the Fiat-Allis 8205 diesel 1984-1985
• Fiat-Allis 14CL crawler with the 8205 diesel 1984-1985
• Fiat-Allis 14CLGP crawler with the 8205 diesel 1985
• Fiat-Allis 14CTA crawler with the 8205 diesel 1984-1985
• Fiat-Allis FL-14C wheel loader with the 8205 diesel 1984-1985
• Fiat-Allis 260B scraper with the Allis 25000 diesel 1985
• Fiat-Allis 261B scraper with the Allis 25000 diesel 1985

GROVE CRANES:
• Grove 300 with the Cummins NTC 1985-1987
• Grove 475 with the Cummins NTC 1985-1987
• Grove RT-58B with the Cummins V378 1985
• Grove RT-625 with the Cummins V504C 1985
• Grove RT-980 with the Cummins NT855 1985-1987
• Grove TM-875 with the Cat 3406 1985-1986
• Grove TM-875 with the Cummins NTC 1985-1987
• Grove TM-875 with the Detroit Diesel 8V-71N 1985-1987
• Grove TM-1075 with the Cat 3406 1985-1986
• Grove TM-1075 with the Cummins NTC-350 1985-1987
• Grove TM-1075 with the Detroit Diesel 8V-71T 1985-1987
• Grove TM-1150 with the Cat 3406 1985-1986
• Grove TM-1150 with the Cummins NTC-350 1985-1987
• Grove TM-1150 with the Cummins V555 1985-1987
• Grove TM-1150 with the Detroit Diesel 8V-71TA 1985-1987
• Grove TM-1400 with the Cummins V555C 1985-1987
• Grove TMS-250 with the Cummins VT225 1985-1987
• Grove TMS-865 with the Cummins NTC 1985-1987

VOLVO MOTOR GRADERS:
• Volvo G740 with the Cummins M11 2001-2002
• Volvo G780 with the Cummins M11 2001-2002
• Volvo G740B with the Volvo D10B 2002-2006
• Volvo G746B with the Volvo D10B 2002-2006
• Volvo G780B with the Volvo D10B 2002-2006
