DELCO: 1117894 1117953 10459026 19010101 19010157
FORD: F3HT-10300-HB F3HZ10346H F4HT10300EA F5HZ10346ARM
FORD ENGINEERING: F3HTBA F4HT-KA
IHC, NAVISTAR: 1680859C92
MOTORCRAFT: GL358RM

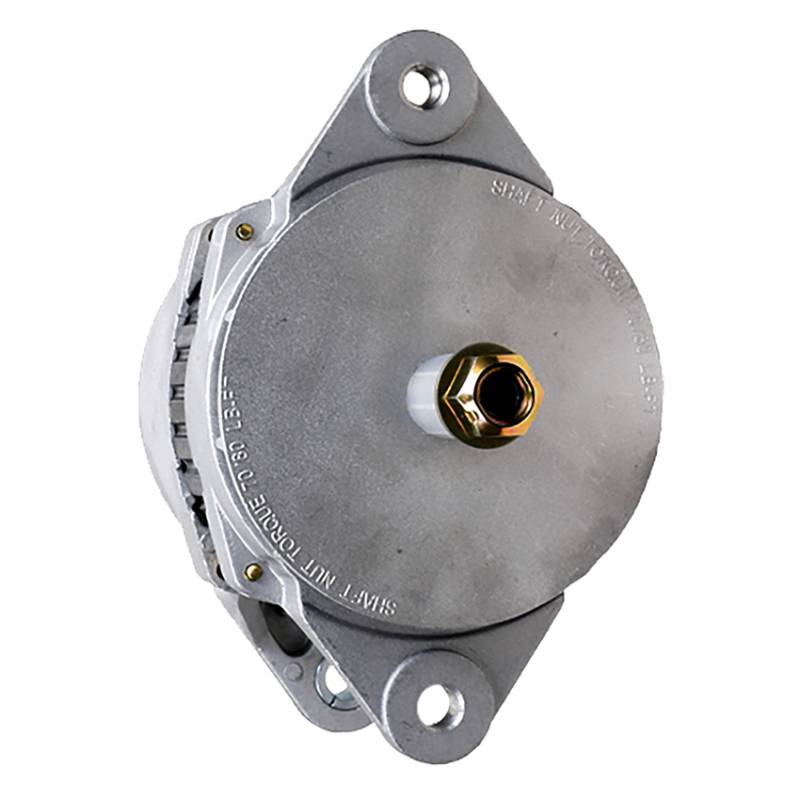

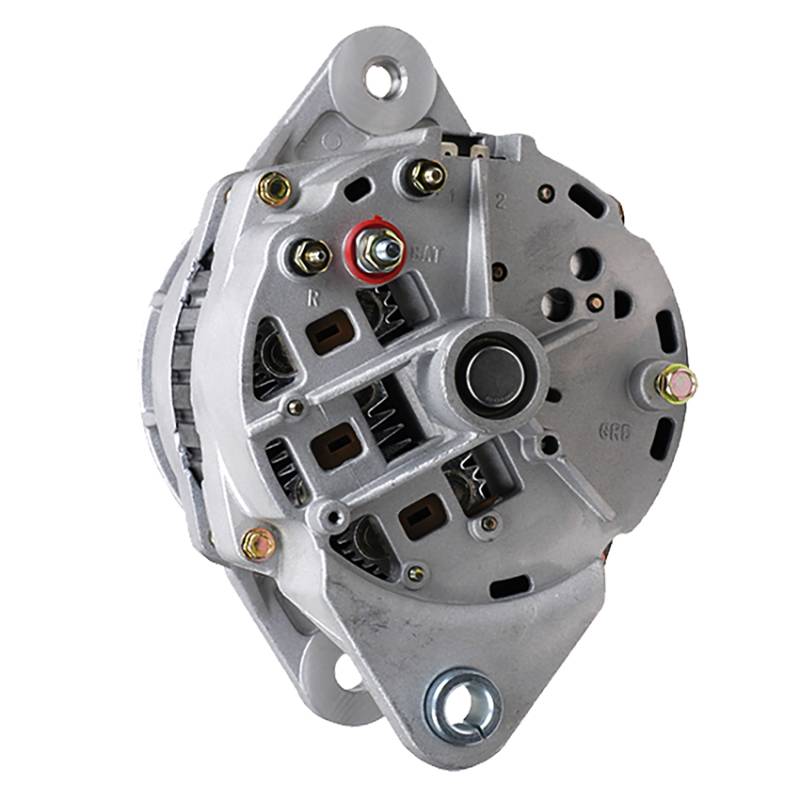

ITEM DESCRIPTION: ALTERNATOR
UNIT TYPE: DELCO
VOLTAGE: 12
AMPERAGE: 100
FAN: EXTERNAL
REGULATOR: INTERNAL
SHAFT OD (PULLEY): 0.874IN / 22.2MM
MOUNT TYPE: J180
J180 HINGE LENGTH: 7.79IN / 197.87MM
MOUNTING EAR 1 HOLE: 1/2-13 THREADED
MOUNTING EAR 2 HOLE: 13.4MM UNTHREADED
MOUNTING EAR 3 HOLE: 13.2MM UNTHREADED
MOUNTING EAR 1 THICKNESS: 0.476IN / 12.1MM
MOUNTING EAR 2 THICKNESS: 0.488IN / 12.4MM
MOUNTING EAR 3 THICKNESS: 0.787IN / 20MM
POLARITY: NEGATIVE
SPECIFICATIONS: 1-WIRE SYSTEM
SPECIFICATIONS: THREADED I TERMINAL
SPECIFICATIONS: COMBO PIN/THREADED R TERMINAL
WEIGHT: 16.46 LBS / 7.48 KG
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
INTERNATIONAL HEAVY DUTY 5000-5900 SERIES SEVERE SERVICE CATERPILLAR 3406 1988-1992
INTERNATIONAL HEAVY DUTY 5000-5900 SERIES SEVERE SERVICE CUMMINS L-10 1988-1992
INTERNATIONAL HEAVY DUTY 5000-5900 SERIES SEVERE SERVICE CUMMINS N14 1991-1992
INTERNATIONAL HEAVY DUTY 5000-5900 SERIES SEVERE SERVICE CUMMINS NTC-855 1990-1992
INTERNATIONAL MEDIUM DUTY 1754 IHC DT-466 1988-1989
INTERNATIONAL MEDIUM DUTY 1954 IHC DT-466 1988-1989
INTERNATIONAL MEDIUM DUTY 2554 / 2564 SERIES IHC DT-466 1988-1992
INTERNATIONAL MEDIUM DUTY 2574 / 2575 SERIES CUMMINS 855 1988-1992
INTERNATIONAL MEDIUM DUTY 2574 / 2575 SERIES CUMMINS L-10 1988-1992
INTERNATIONAL MEDIUM DUTY 2574 / 2575 SERIES CUMMINS NTC-855 1988-1992
INTERNATIONAL MEDIUM DUTY 2654 SERIES IHC DT-466 1988-1992
INTERNATIONAL MEDIUM DUTY 2674 / 2675 SERIES CUMMINS L-10 1988-1992
INTERNATIONAL MEDIUM DUTY 2674 / 2675 SERIES CUMMINS NTC-855 1988-1992
INTERNATIONAL MEDIUM DUTY 2674 / 2675 SERIES IHC DT-466 1988-1992
INTERNATIONAL MEDIUM DUTY 4000-4900 SERIES MEDIUM-DUTY IHC 7.3L (T-444E) 1988-1992
INTERNATIONAL MEDIUM DUTY 4000-4900 SERIES MEDIUM-DUTY IHC DT-360 / 408 1990-1992
INTERNATIONAL MEDIUM DUTY 4000-4900 SERIES MEDIUM-DUTY IHC DT-466 1988-1992
INTERNATIONAL MEDIUM/HEAVY TRUCK 2300-2375 SERIES CUMMINS L-10 1988-1992
INTERNATIONAL MEDIUM/HEAVY TRUCK 7100-7700 SEVERE SERVICE IHC DT-466 1990-1992
INTERNATIONAL MEDIUM/HEAVY TRUCK 8100-8600 HEAVY-DUTY CATERPILLAR 3176 1990-1992
INTERNATIONAL MEDIUM/HEAVY TRUCK 8100-8600 HEAVY-DUTY CATERPILLAR 3406 1988-1992
INTERNATIONAL MEDIUM/HEAVY TRUCK 8100-8600 HEAVY-DUTY CUMMINS L-10 1988-1992
INTERNATIONAL MEDIUM/HEAVY TRUCK 8100-8600 HEAVY-DUTY CUMMINS N14 1991-1992
INTERNATIONAL MEDIUM/HEAVY TRUCK 8100-8600 HEAVY-DUTY CUMMINS NTC-855 1988-1992
INTERNATIONAL MEDIUM/HEAVY TRUCK 8100-8600 HEAVY-DUTY DD 50 / 60 SERIES 1992
INTERNATIONAL MEDIUM/HEAVY TRUCK 8100-8600 HEAVY-DUTY IHC DT-466 1990-1992
INTERNATIONAL MEDIUM/HEAVY TRUCK 9100-9900 HEAVY-DUTY CATERPILLAR 3176 1988-1992
INTERNATIONAL MEDIUM/HEAVY TRUCK 9100-9900 HEAVY-DUTY CATERPILLAR 3406 1987-1992
INTERNATIONAL MEDIUM/HEAVY TRUCK 9100-9900 HEAVY-DUTY CUMMINS L-10 1988-1992
INTERNATIONAL MEDIUM/HEAVY TRUCK 9100-9900 HEAVY-DUTY CUMMINS N14 1986-1992
INTERNATIONAL MEDIUM/HEAVY TRUCK 9100-9900 HEAVY-DUTY CUMMINS NTC-855 1986-1992
INTERNATIONAL MEDIUM/HEAVY TRUCK 9100-9900 HEAVY-DUTY DD 60 SERIES 1992
VOLVO MEDIUM/HEAVY TRUCK ALL MODELS (BY ENGINE) VARIOUS ENGINES 1989-1993
