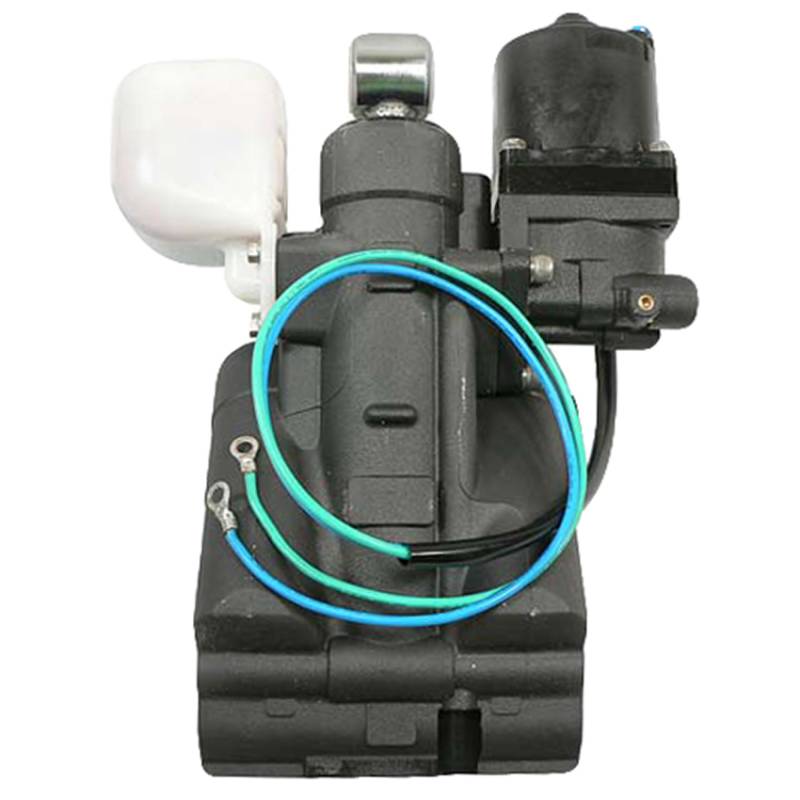

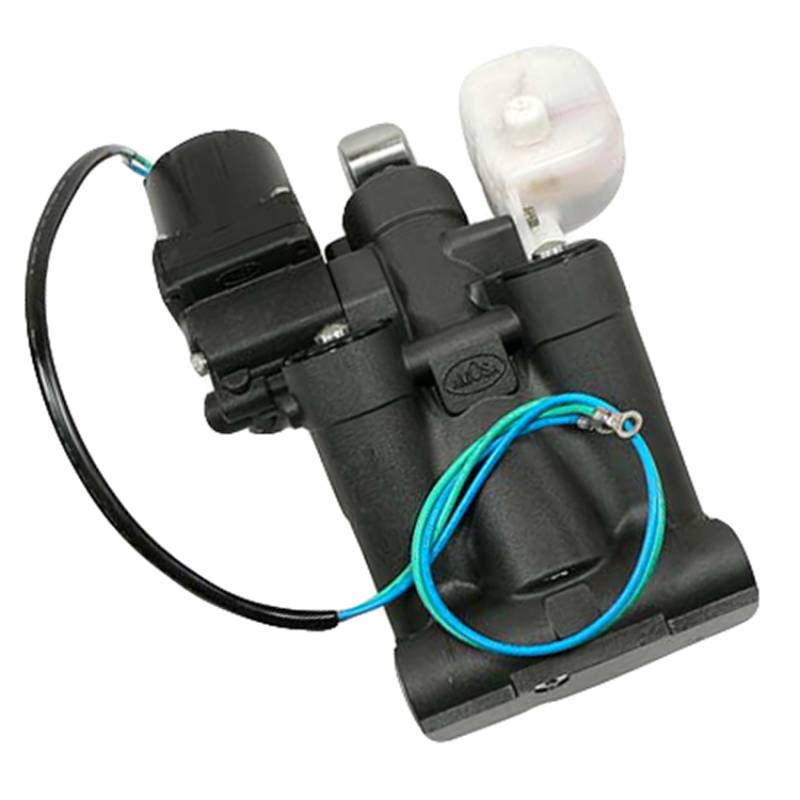

Tilt Trim Hydraulic Pump Assembly Compatible With Suzuki Df200 200Hp Df250 250Hp 4-Stroke Outboard

OEM PART NUMBERS:
• Suzuki: 48503-93J12 / 4850393J12
• Suzuki: 48503-94900-OED / 4850394900OED
• Yamaha: 63P-43800-03-00 / 63P438000300
• Yamaha: 64E-43800-02-40 / 64E438000240
• Yamaha: 68V-43800-03-40 / 68V438000340

SPECIFICATIONS:
• Type: Complete Tilt Trim Hydraulic Pump Assembly
• System: 3 Ram (SHOWA Style)
• Voltage: 12V
• Rotation: Reversible
• Motor OD: 76mm (2.992 in)
• Motor Length: 103mm (4.055 in)
• Shaft OD: 8mm (0.315 in)
• Shaft: 2.6mm Drive Tang
• Current Type: DC
• Condition: New

SUZUKI APPLICATIONS:
• Suzuki DF200 200HP 4-Stroke (2013-2016)
• Suzuki DF250 250HP 4-Stroke (2013-2016)
• Suzuki DF250AP 250HP 4-Stroke (2014+)

YAMAHA APPLICATIONS:
• Yamaha 150HP F150/LF150/VZ150 (2006-On)
• Yamaha 175HP VZ175 VMAX (2006-On)
• Yamaha 200HP Z200/LZ200/VZ200R (2006-On)
• Yamaha 225HP F225/VZ225H (2006-On)
• Yamaha 250HP VZ250F / 300HP VZ300B (2006-On)

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
