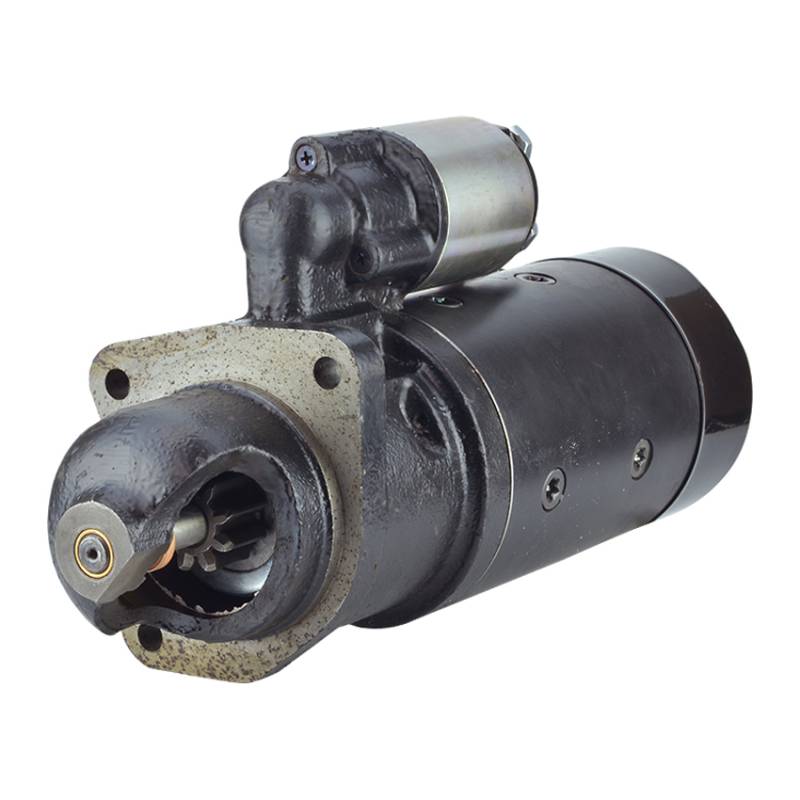

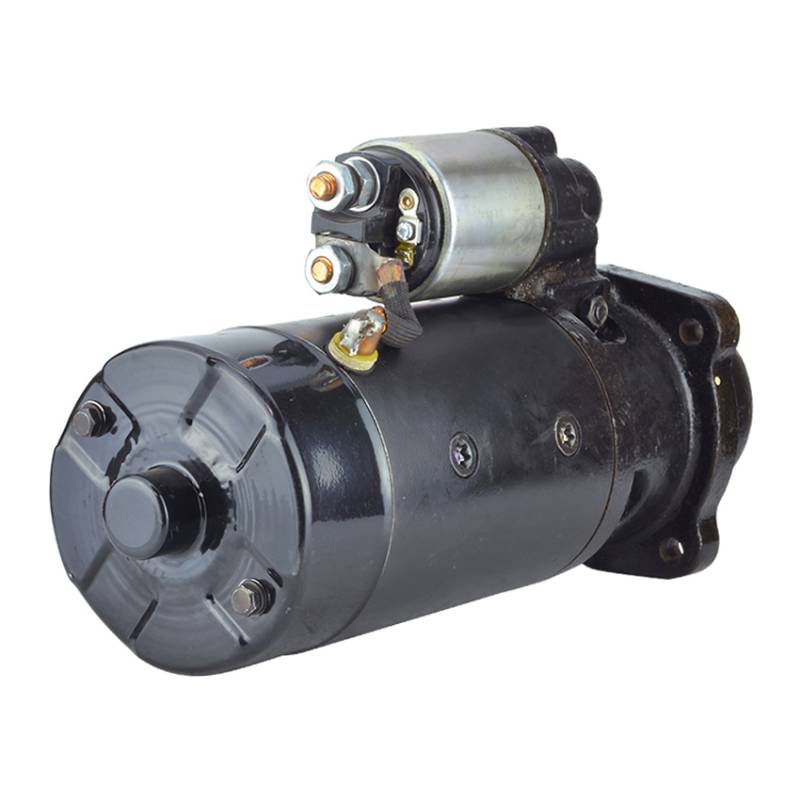

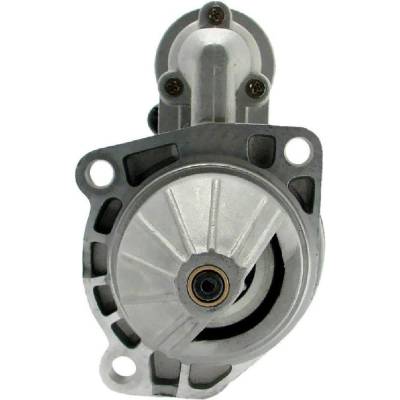

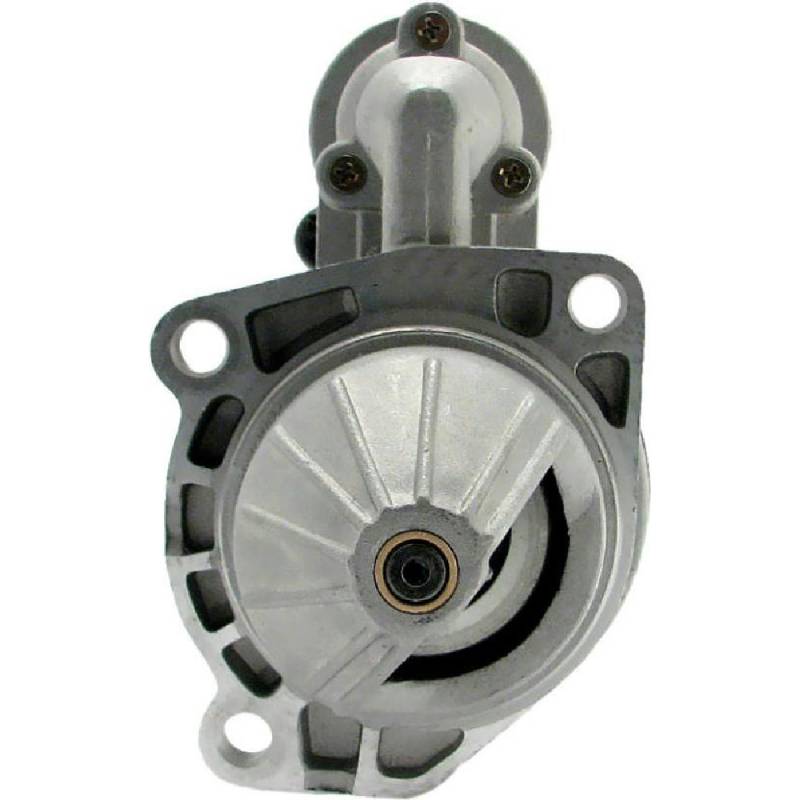

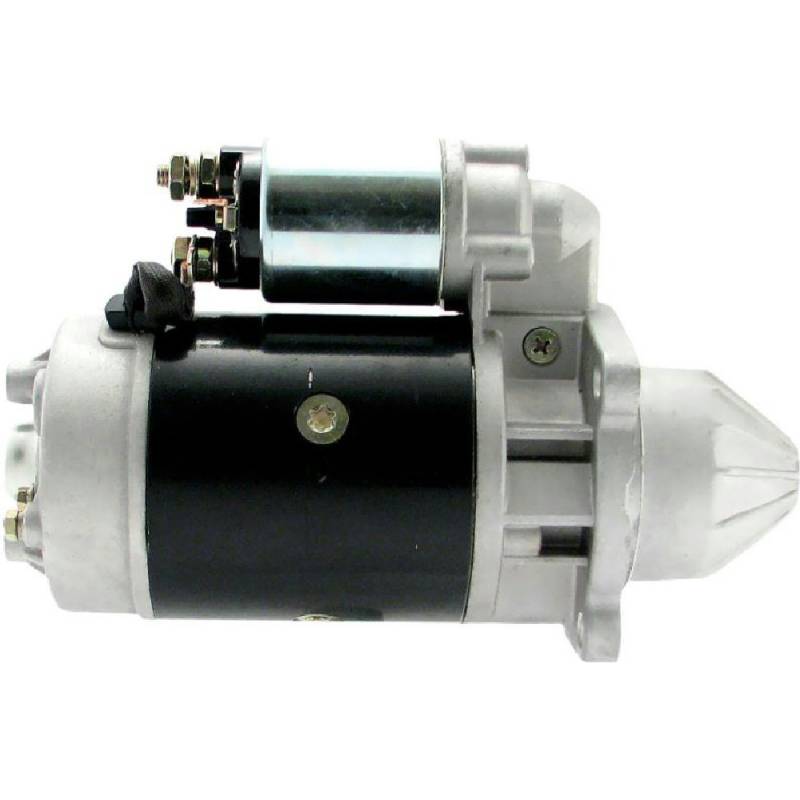

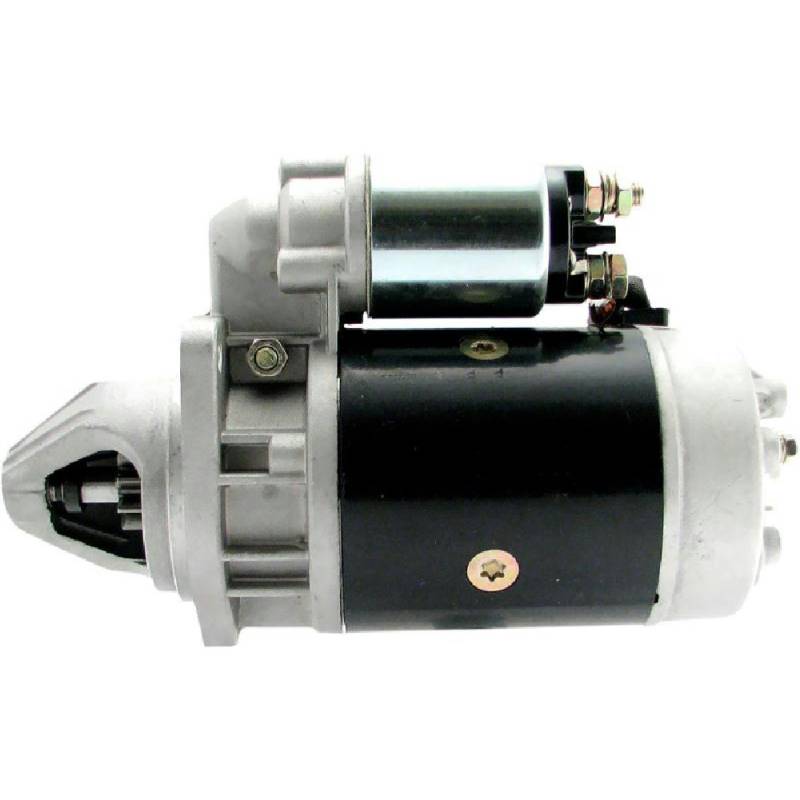

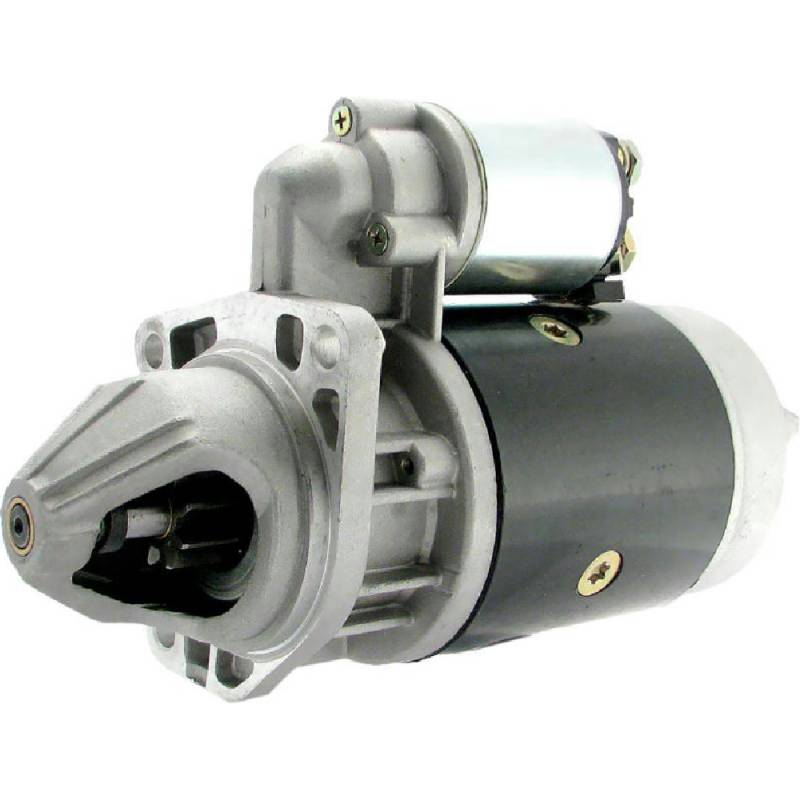

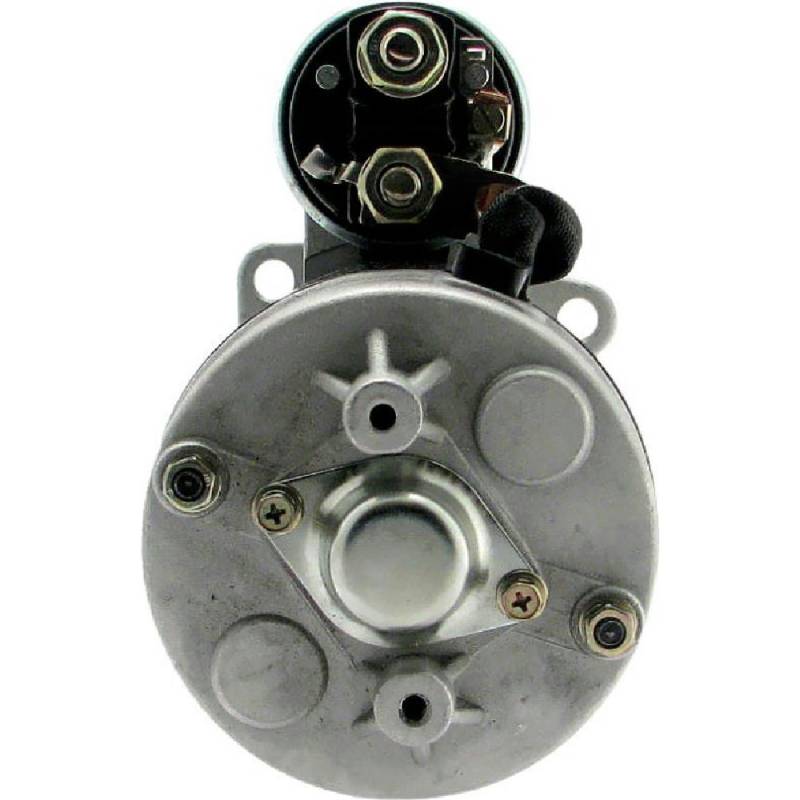

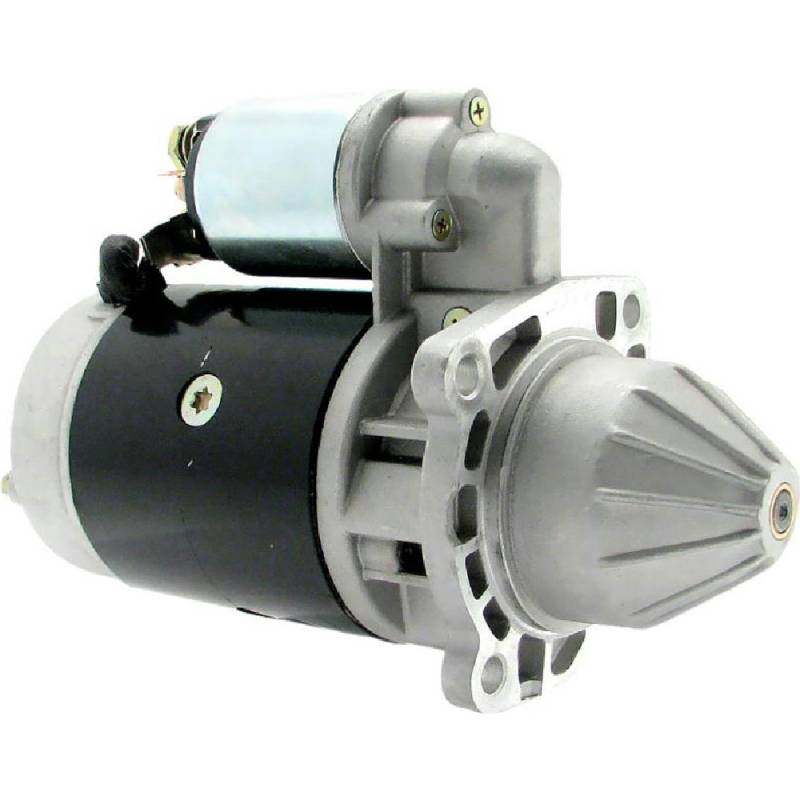

New 9T 12V Starter Fits Fahr Combine M1322h M1322ha 80-87 0-001-365-004 1163758

17076NB3
BOSCH PART NUMBERS:
• 0001365004, 0 001 365 004

KHD / IVECO PART NUMBERS:
• 0116 3758, 01163758
• Iveco 42498131

LUCAS PART NUMBERS:
• LRS00672, LRS672

HELLA PART NUMBERS:
• 8EA726146001

LETRIKA / ISKRA / MAHLE PART NUMBERS:
• 11130619
• MS108

SPECIFICATIONS:
• 12V, 3.7 kW (5.0 HP), clockwise (CW), Bosch direct drive (DD), 9 tooth pinion, 33.9 mm (1.335 in) gear OD
• 89 mm flange, 3 unthreaded 11.5 mm mounting holes, 16.18 kg (35.6 lb)
• Length 360 mm (14.17 in), registry 88.9 mm (3.5 in)
• M10-1.50 B+ and motor studs, M4-0.7 threaded S terminal
• Condition: New

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $449.33
Sale: $256.76
Save: 43%
Save: $192.57
Qty:
Free Shipping!

Description

⚠️ 12 VOLT 3.7 KW 9 TOOTH CW BOSCH DIRECT DRIVE STARTER, FAHR COMBINES AND MAGIRUS-DEUTZ TRUCKS:
• 12V, 3.7 kW (5.0 HP), clockwise (CW), Bosch direct drive (DD), 9 tooth pinion, 33.9 mm (1.335 in) gear OD
• 89 mm flange, 3 unthreaded 11.5 mm mounting holes, 16.18 kg (35.6 lb)
• Length 360 mm (14.17 in), registry 88.9 mm (3.5 in)
• M10-1.50 B+ and motor studs, M4-0.7 threaded S terminal
• Condition: New

FAHR COMBINES:
• Fahr M1300H, BF6L913, 1974-1976
• Fahr M1302, BF6L913, 1976-1979
• Fahr M1302H, BF6L913, 1976-1979
• Fahr M1302HA, BF6L913, 1976-1979
• Fahr M1320, F6L913, 1980-1987
• Fahr M1322, KHD BF6L913 6.1L, 1980-1987
• Fahr M1322H, KHD BF6L913 6.1L, 1980-1987
• Fahr M1322HA, KHD BF6L913 6.1L, 1980-1987
• Fahr M2685, KHD BF6L913 6.1L, 1979-1987
• Fahr M2780, KHD BF6L913 6.1L, 1983-1987
• Fahr M2780H, KHD BF6L913 6.1L, 1983-1987

MAGIRUS-DEUTZ TRUCKS:
• Magirus-Deutz M130 (M8FK, M8FL, M8FS, M9FK, M9FL, M9FS, M11FK, M11FL, M13FK, M13FL), F6L913 6.1L, 1975-1982
• Magirus-Deutz M160 (M11FK, M11FL, M11FS, M13FK, M13FL, M13FS), BF6L913 6.1L, 1975-1982
