OEM PART NUMBERS:
• Deutz: 01182968 / 01183439
• Deutz: 01183624 / 01183842
• Mahle: 11.203.524 / 11203524
• Mahle: 11.204.049 / 11204049
• Mahle: 11.204.463 / 11204463
• Mahle: 11.204.708 / 11204708
• Mahle: AAK3817, AAK4378, AAK4849
• Mahle: IA1326 / IA-1326 / IA 1326
• Mahle: MG24 / MG-24 / MG 24
SPECIFICATIONS:
• Voltage: 12V / Amperage: 95A
• Rotation: CW (Clockwise)
• Fan: External / Regulator: Internal
• Mount Type: Spool
• Mounting Ears: 10.6mm Unthreaded, 56mm (2.205") Thickness
• B+ Terminal: M8-1.25 / D+ Terminal: M5-0.8 / W Terminal: Spade
• Polarity: Negative
• Shaft OD: 17mm (0.669") / Shaft Threads: M16-1.5
• Dust-Proof Unit
• Weight: 12.6 lbs (5.73 kg)
• Condition: New
APPLICATION:
• Linde H50D / H60D / H70D / H80D Diesel Forklifts
• Linde H80D-900 / H80D-1100 Diesel Forklifts
• Type 396 Series (396-01 / 396-02) Hydrostatic Drive

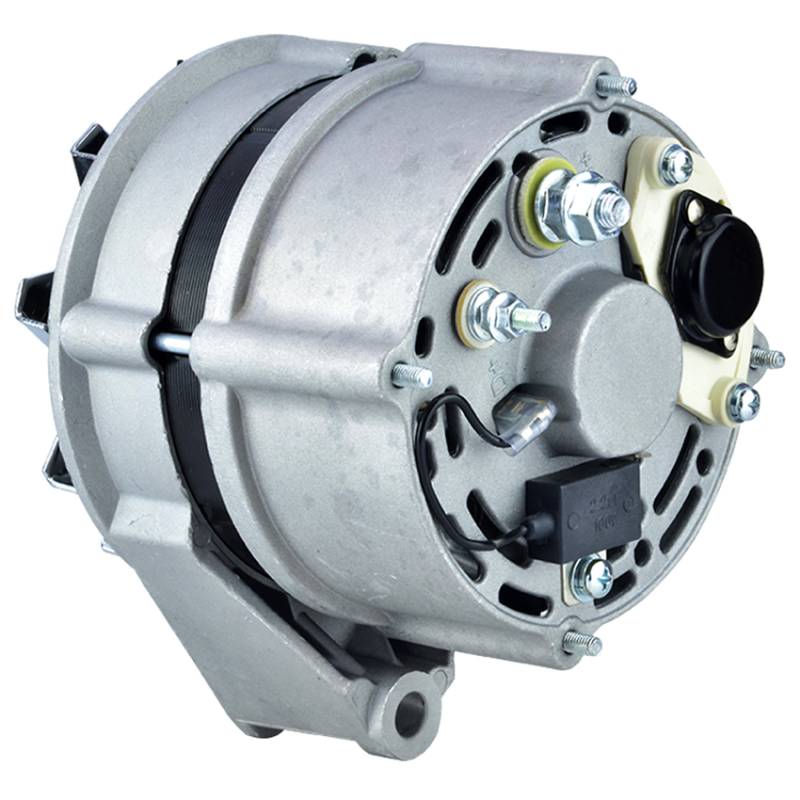

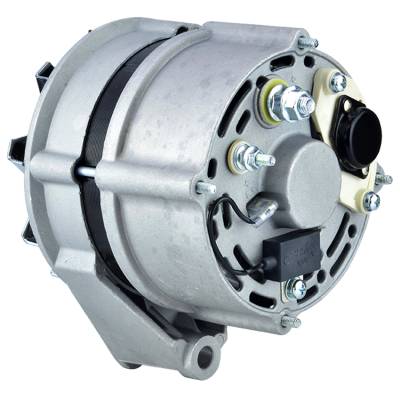

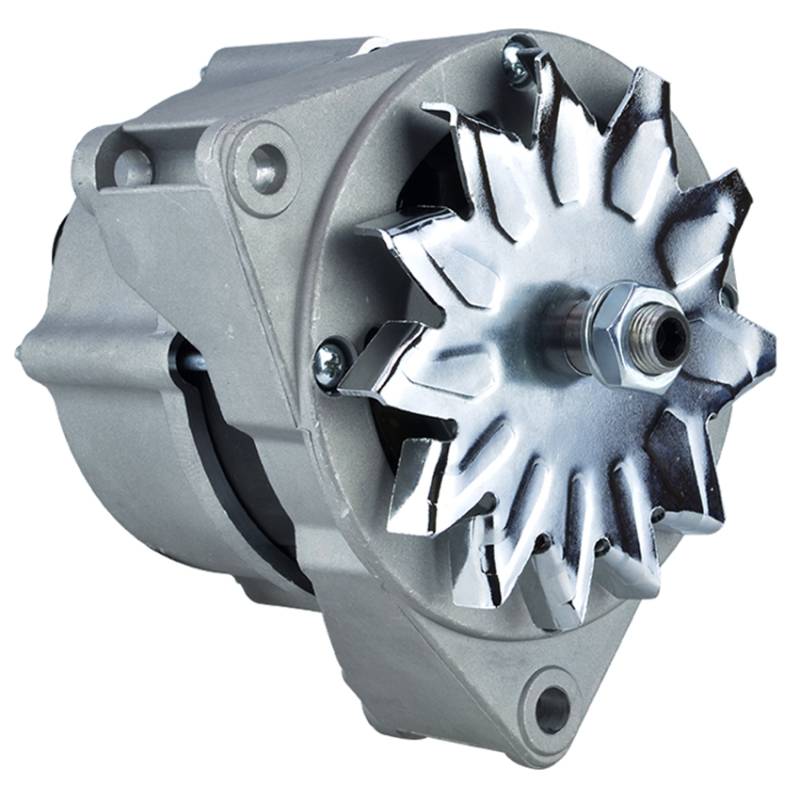

95 Amp Dust-Proof Alternator — Deutz 01183439 / 01183624 / Mahle 11.204.049
New 95 amp 12V dust-proof alternator for Linde H-Series Type 396 diesel forklifts. CW rotation with external fan, internal regulator, and spool mount. 10.6mm unthreaded mounting ears with 56mm thickness. M8-1.25 B+ terminal, M5-0.8 D+ terminal, spade W terminal. 17mm shaft OD with M16-1.5 threads. Replaces all Deutz and Mahle OEM numbers listed above.
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
