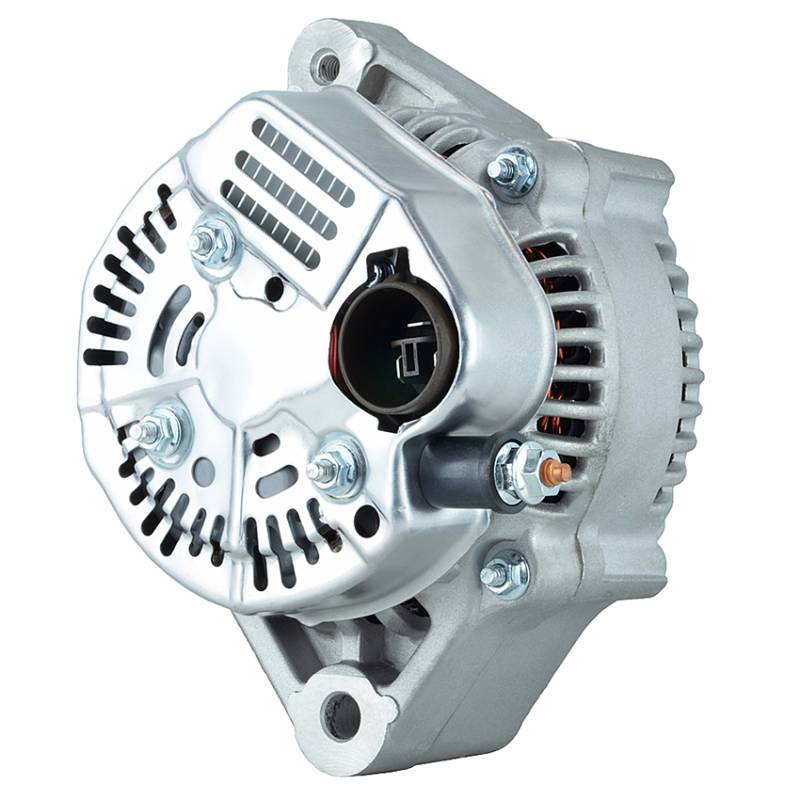

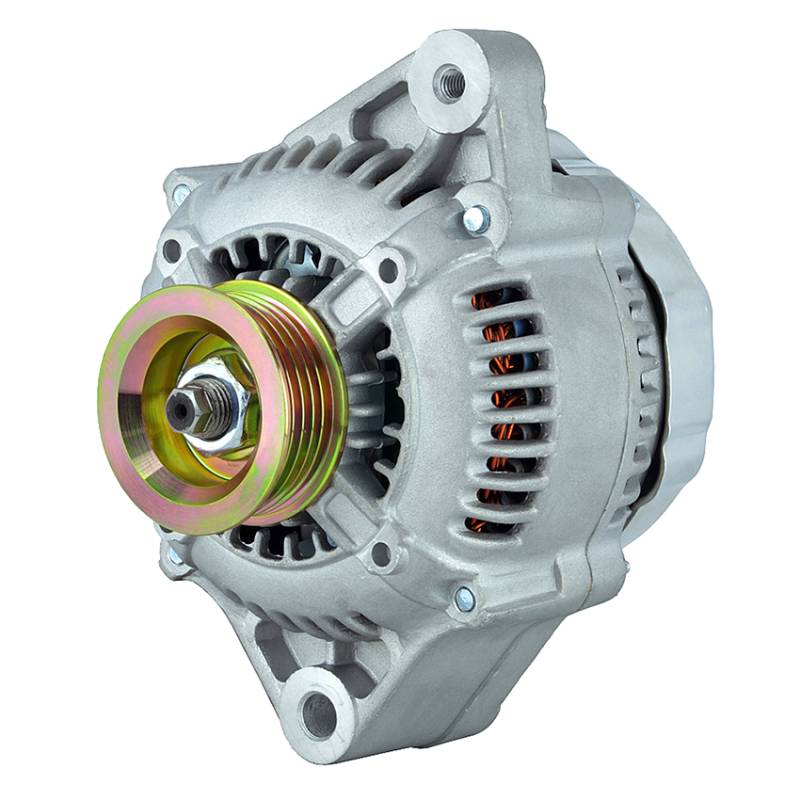

New 70A Alternator Fits Toyota Supra 3.0L 1986 1987-92 27060-63101 270607401084

14611NH5
TOYOTA PART NUMBERS:
• 27060-63020, 2706063020
• 27060-63102, 2706063102
• 27060-63101, 2706063101
• 27060-74010-84, 270607401084
• 27060-63102-84, 270606310284
DENSO PART NUMBERS:
• 100211-1000, 1002111000
• 100211-2170, 1002112170
• 100211-3151, 1002113151
• 100211-2020, 1002112020
BOSCH PART NUMBERS:
• 0-986-035-501, 0986035501
HELLA PART NUMBERS:
• 8EL726307001, 8EL 726 307-001
WILSON PART NUMBERS:
• 90-29-5070, 90295070
ACDELCO PART NUMBERS:
• 334-1659, 3341659

SPECIFICATIONS:
• Type: Alternator
• Voltage: 12V
• Amperage: 70A
• Unit type: Denso design
• Regulator: Internal
• Fan: Internal
• Pulley: 5 groove serpentine, solid
• Rotation: Clockwise
• Regulator plug clock: 3:00
• Pulley OD: 2.287 in / 58.1 mm
• Serpentine grooves OD: 2.083 in / 52.9 mm
• Mount type: Spool
• Mounting ear 1: M8-1.25 threaded, 0.874 in / 22.2 mm thick
• Mounting ear 2: 10.5 mm unthreaded, 2.291 in / 58.2 mm thick
• B+ terminal: M6-1.0
• S, IG and L terminals: spade
• Polarity: Negative ground
• Weight: 10.54 lb / 4.79 kg
• Condition: New aftermarket

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $435.93
Sale: $249.10
Save: 43%
Save: $186.83
Qty:
Free Shipping!

Description

TOYOTA (USA):
• TOYOTA SUPRA L6 3.0L 2954CC 1986
• TOYOTA SUPRA L6 3.0L 2954CC W/TURBO 1987
• TOYOTA SUPRA L6 3.0L 2954CC WO/TURBO 1987-1992

TOYOTA (USA), ADDED TURBO AND TRANSMISSION DETAIL:
• Toyota Supra 3.0L non-turbo 1986-1988
• Toyota Supra 3.0L non-turbo with manual transmission 1989-1992

SPECIFICATIONS:
• Voltage: 12V
• Amperage: 70A
• Unit type: Denso design
• Regulator: Internal
• Fan: Internal
• Pulley: 5 groove serpentine, solid
• Rotation: Clockwise
• Regulator plug clock: 3:00
• Pulley OD: 2.287 in / 58.1 mm
• Serpentine grooves OD: 2.083 in / 52.9 mm
• Mount type: Spool
• Mounting ear 1: M8-1.25 threaded, 0.874 in / 22.2 mm thick
• Mounting ear 2: 10.5 mm unthreaded, 2.291 in / 58.2 mm thick
• B+ terminal: M6-1.0
• S, IG and L terminals: spade
• Polarity: Negative ground
• Weight: 10.54 lb / 4.79 kg
• Condition: New aftermarket
• Supra Turbo from 1/1987 and 1989-1992 Supra with automatic transmission use an 80A alternator
