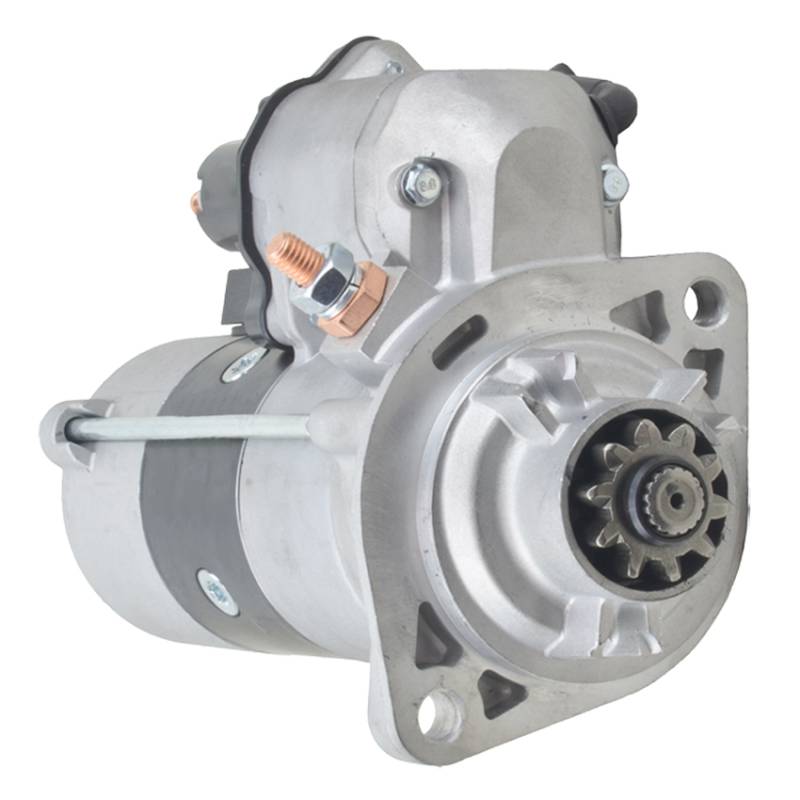

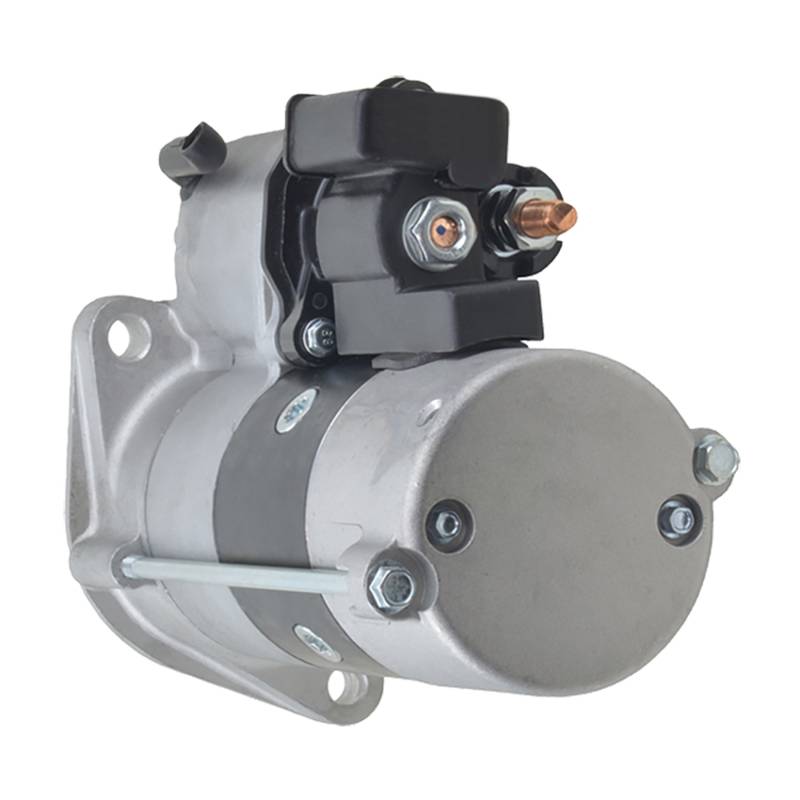

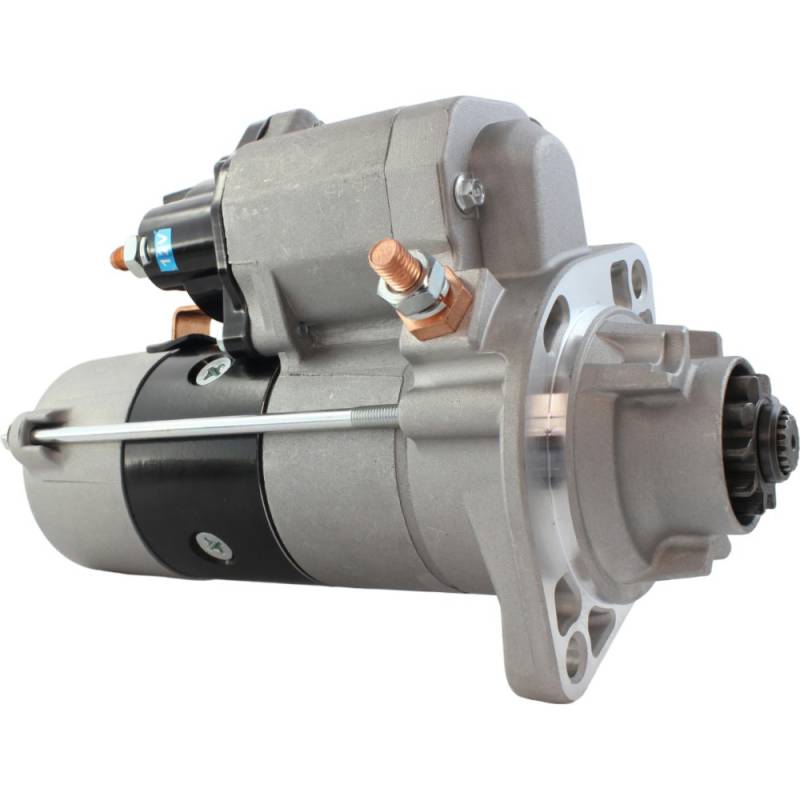

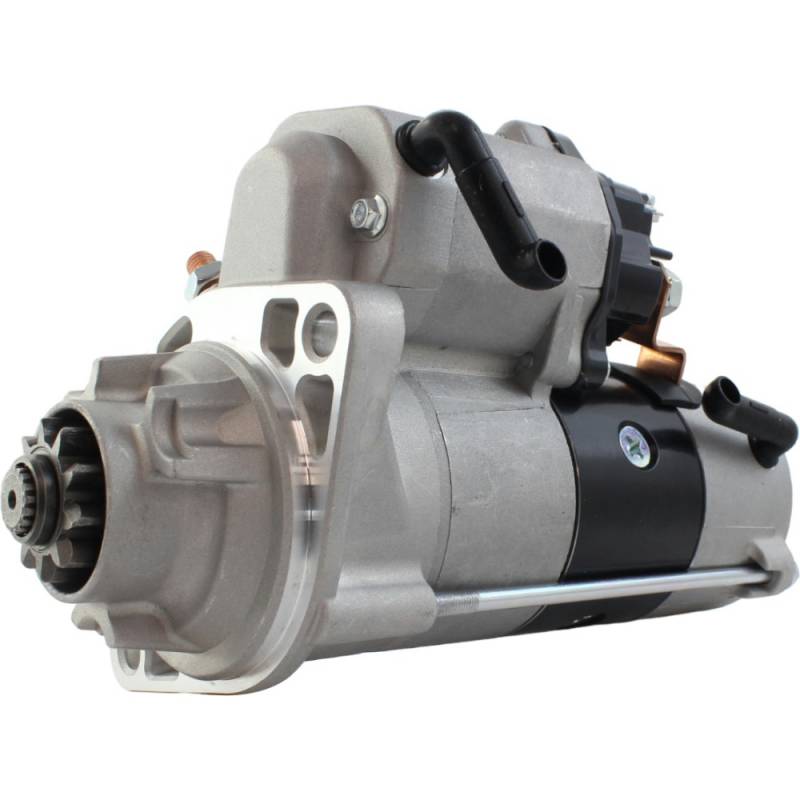

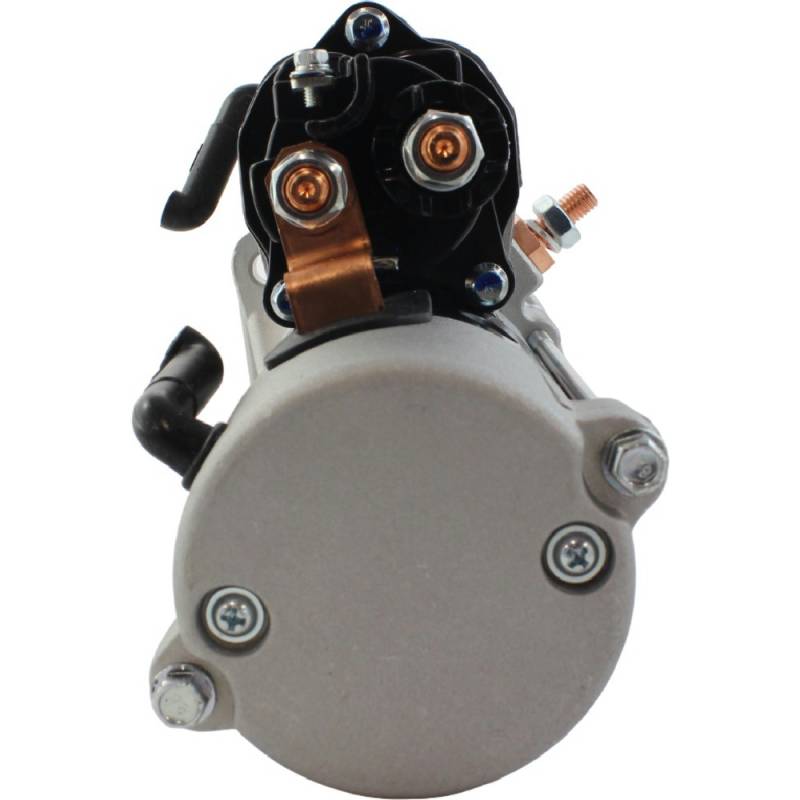

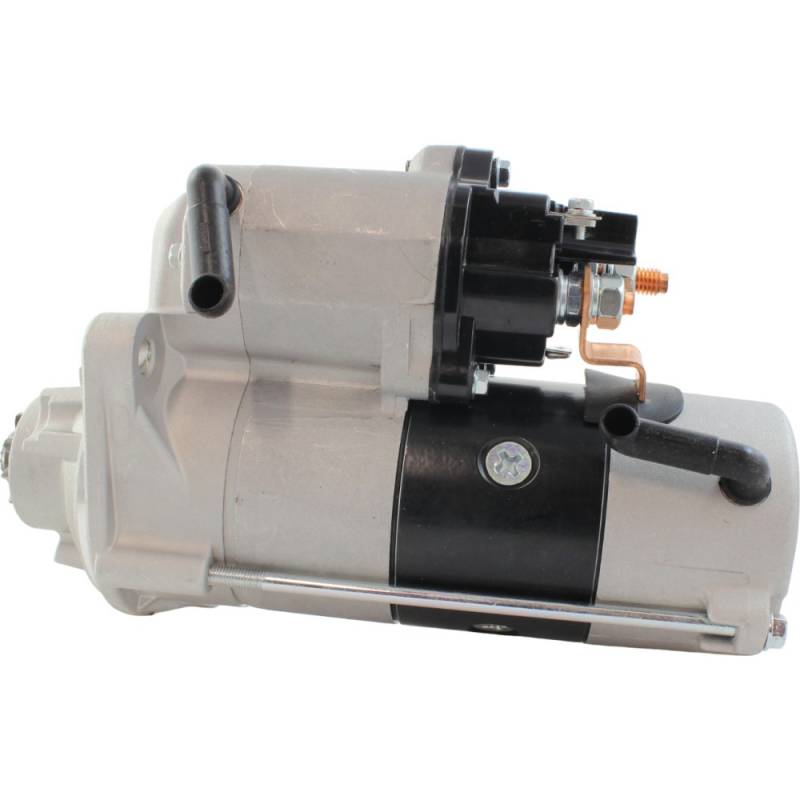

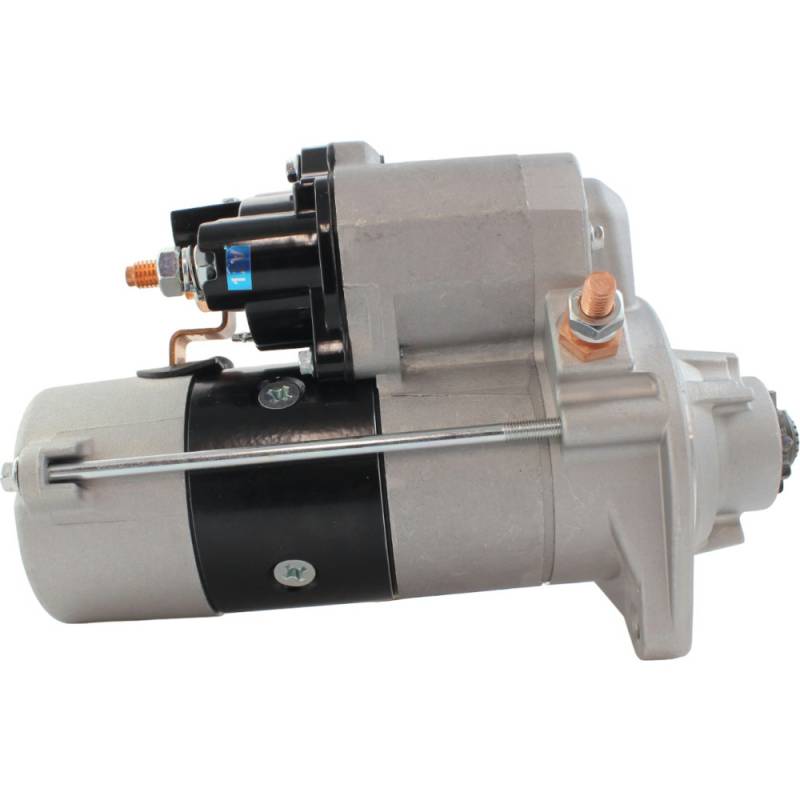

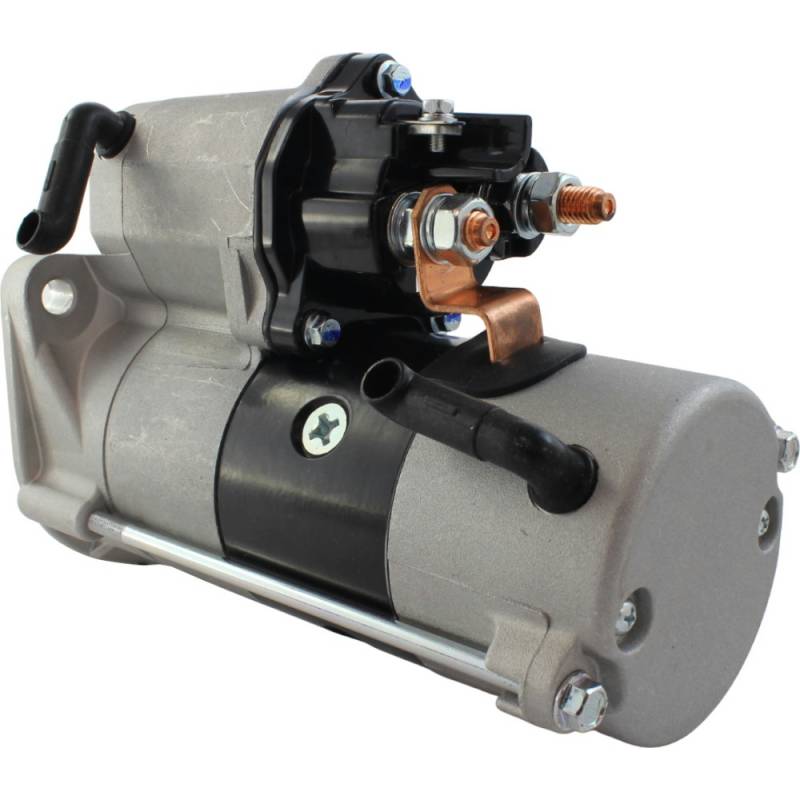

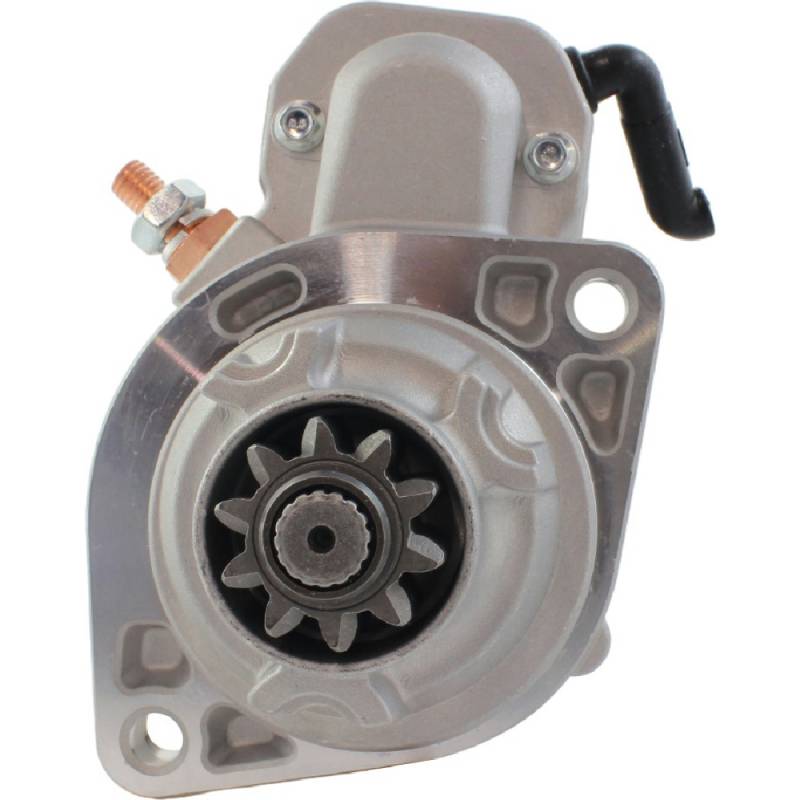

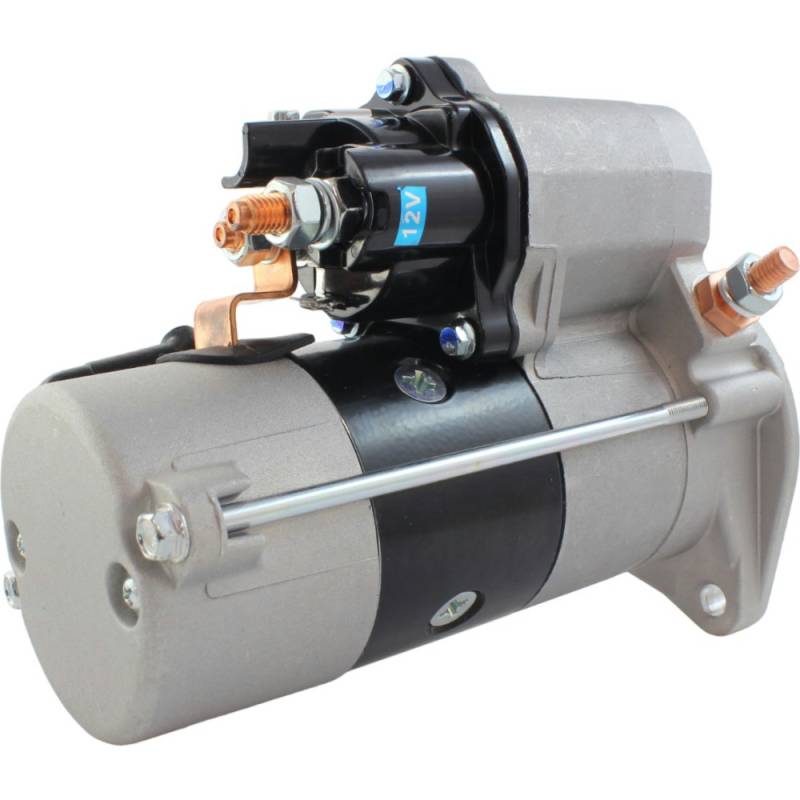

New 12V 10T Starter Compatible With Cummins Industrial Engines Qsb Series 5.9 6.7 4380003110

16096N*5
CUMMINS PART NUMBERS:
• 4996706

DENSO PART NUMBERS:
• 428000-7090, 4280007090
• 428000-7091, 4280007091
• 428000-7092, 4280007092
• 438000-3110, 4380003110
• DSN2154
• 5-128000-980, 5128000980

SPECIFICATIONS:
• Type: Denso PA90S planetary gear reduction (PLGR)
• Voltage: 12 Volt
• Power: 2.7 kW
• Rotation: Clockwise (CW)
• Pinion: 10 teeth, 40.4 mm (1.591 in) OD
• Length: 223.5 mm (8.799 in)
• Mounting: 2 ears, 11.5 mm unthreaded, 126.7 mm (4.988 in) centers
• Registry OD: 88.8 mm (3.496 in)
• Wet clutch seal: yes
• Ground: M10-1.5 stud on the drive end housing
• Weight: 17.3 lb (7.86 kg)
• Condition: New

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $444.15
Sale: $253.80
Save: 43%
Save: $190.35
Qty:
Free Shipping!

Description

⚠️ 12V 2.7 KW 10 TOOTH CW DENSO PLGR STARTER FOR CUMMINS B / ISB / QSB / ISD / ISF, NEW:
• 12 volt, 2.7 kW, clockwise rotation, Denso PA90S planetary gear reduction, 10 tooth pinion, 40.4 mm (1.591 in) gear OD
• 2 unthreaded mounting ears, 11.5 mm holes on 126.7 mm (4.988 in) centers, 88.8 mm (3.496 in) registry, wet clutch seal
• Length 223.5 mm (8.799 in), M10-1.5 ground stud on the drive housing, 17.3 lb (7.86 kg)
• Not the 4.8 kW 12V or the 24V Cummins starter, and not the 12 tooth Ram pickup starter

CUMMINS QSB SERIES DIESEL ENGINES:
• Cummins QSB3.9-30 diesel
• Cummins QSB4.5 diesel
• Cummins QSB4.5-30 diesel
• Cummins QSB5.9 diesel
• Cummins QSB5.9-30 diesel
• Cummins QSB5.9-44 diesel
• Cummins QSB6.7 diesel

CUMMINS ISF SERIES DIESEL ENGINES:
• Cummins ISF2.8 diesel
• Cummins ISF3.8 diesel
