OEM PART NUMBERS:
• Yamaha: 5S7-81890-00-00 / 5S7818900000
• Yamaha: 5S7-81890-10-00 / 5S7818901000
• SMU0554
SPECIFICATIONS:

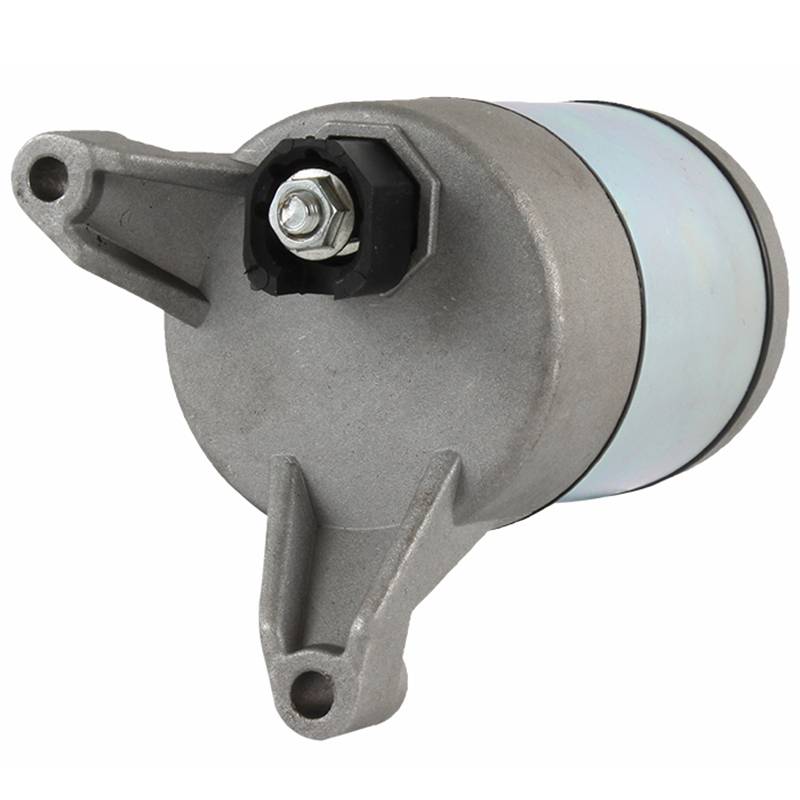

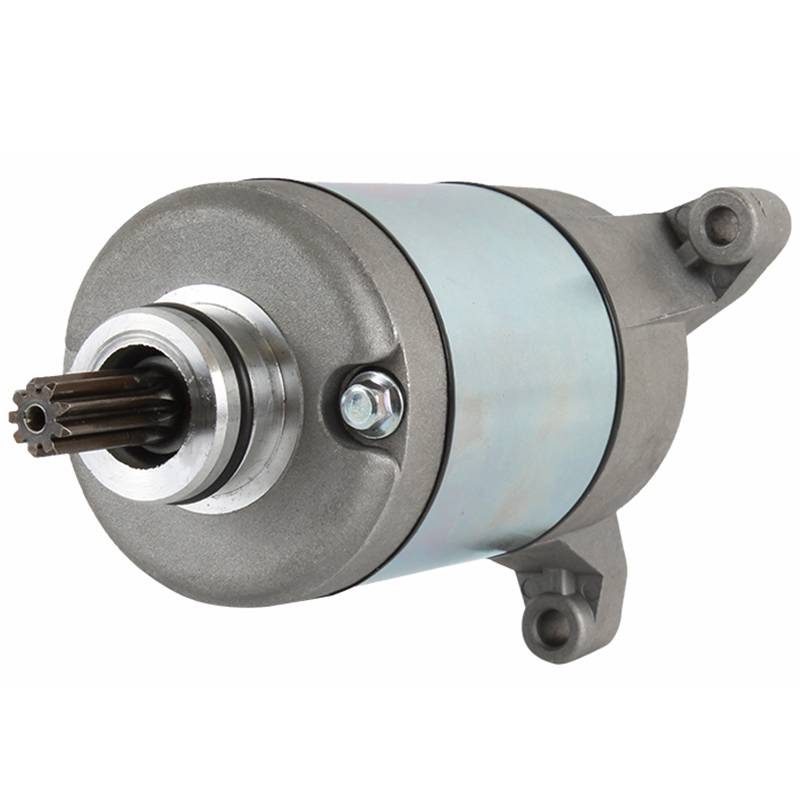

• Product Type: Starter Motor
• Manufacturer: Mitsuba
• Type: PMDD (Permanent Magnet Direct Drive)
• Voltage: 12V DC
• Rotation: CW (Clockwise)
• Teeth: 9 (9-Spline)
• Gear OD: 11.5mm (0.453")
• Length: 127mm (5")
• Mount: Flange — 2 Ears (6.5mm + 7.0mm Unthreaded)
• Center to Center: 84.5mm (3.327")
• Registry OD: 29.7mm (1.169")
• B+ Terminal: M6-1.0
• Weight: 3.29 lbs / 1.49 kg
• Condition: New
APPLICATIONS:
• V Star 1300: XVS1300 / XVS1300A / XVS1300BG / XVS1300CT / XVS1300CU (2010-2017)
• Stryker: XVS13 / XVS13CF / XVS1300CU Bullet Cowl (2011-2017)
• V Star 950: XVS950 / XVS950A / XVS950C Bolt / XVS950CT (2009-2017)
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
