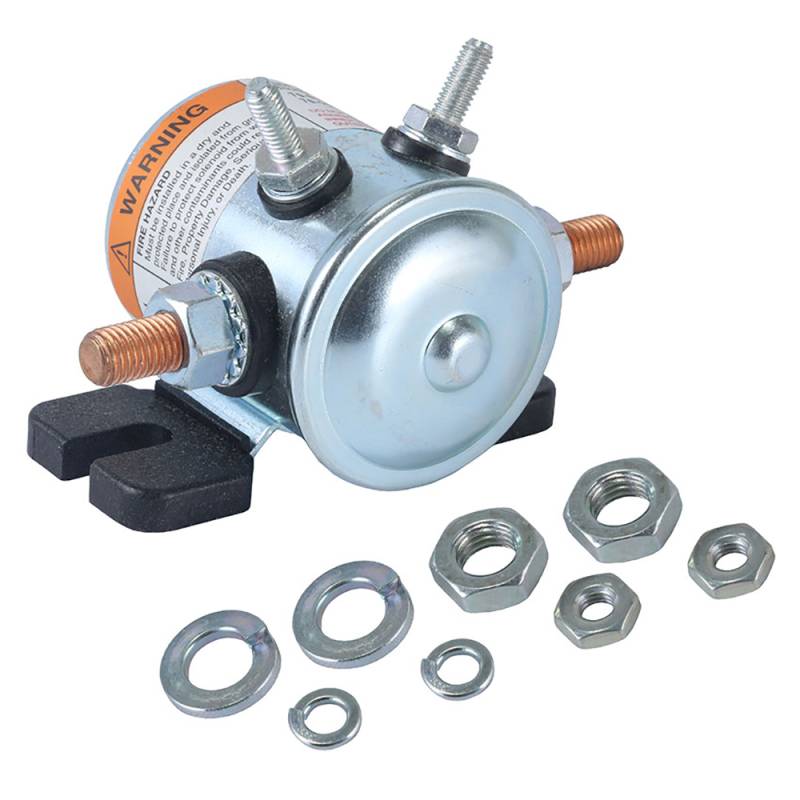

12V 80 Amp Continuous Duty Solenoid Compatible With White Rodgers 70-902S1 70-111224-5A Prestolite

OEM PART NUMBERS:
• 70-902 / 70902 (White Rodgers)
• 70-902S1 / 70902S1 (White Rodgers)
• 70-111224 / 70111224 (White Rodgers)
• 70-111224-5 / 701112245 (White Rodgers)
• 70-111224-5A / 701112245A (White Rodgers)
• 24059BX (Cole Hersee)
• 24059 (Cole Hersee)
• 77-181S1 / 77181S1 (Goodall)
• 15-132 / 15132 (Prestolite)
• 15-236 / 15236 (Prestolite)
• 15-311 / 15311 (Prestolite)
• 15-315 / 15315 (Prestolite)
• 5117440 (Johnson Electric)
• SO51174 (Johnson Electric)
• 6C028 (General)

ADDITIONAL CROSS-REFERENCES:
• 6600-1017 / 36600-1017
• 240-01000 / 240-01004
• 1114214 / 1114217 / 1114218
• 1114223 / 1114227 / 1114534 / 1118820
• 10-CD104 / 10-CH71017 / 7-1017
• SPL6008 / 546-028 / 11885
• 3635820 / 70-6910 / 66GMM-115
• D2-6090N / 3178M / APL3004
• SAS-4201 / UAC172 / 21-1501
• SSMU-1017 / 67-702 / 67-702-1-C / 67-702-1-S / 67-702-S / 7-1013

SPECIFICATIONS:
• Type: Solenoid / DC Power Contactor
• Contact Configuration: SPST - Normally Open (SPST-NO)
• Voltage: 12V DC
• Continuous Amperage: 80A
• Surge Amperage: 150A
• Duty Cycle: Continuous
• Coil Type: Isolated
• Terminals: 4 Total - (2) 5/16-24 Power, (2) 10-32 Coil
• Contact Material: Copper
• Case Material: Metal (Dust-Resistant)
• Mounting: Flat 180 (F180) Standard Bracket
• Weight: 0.9 lbs / 0.41 kg
• Certification: UL 538
