OEM PART NUMBERS:
• Daewoo: 300516-00042 / 30051600042
• Daewoo: 172746
• Doosan: 65.26201-7075 / 65262017075, 65.2601-7075A / 6526017075A
• Doosan: 65.26201-7075A / 65262017075A
• Doosan: 65.26201-7093 / 65262017093
• Delco: 8200776, 8200222

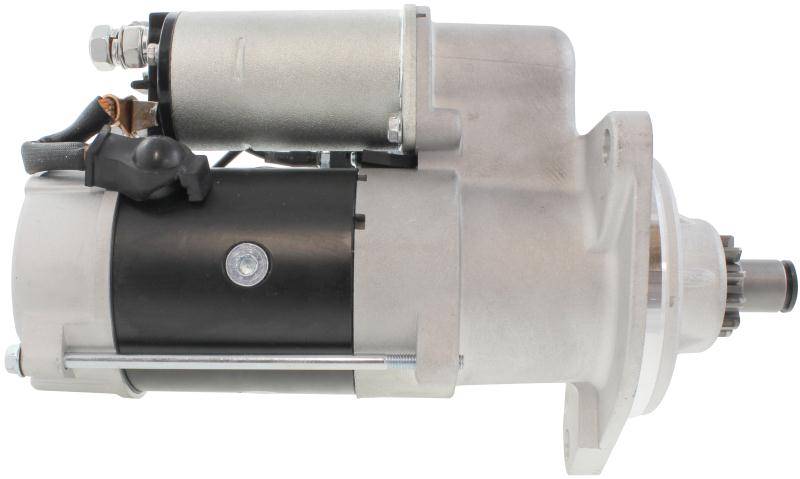

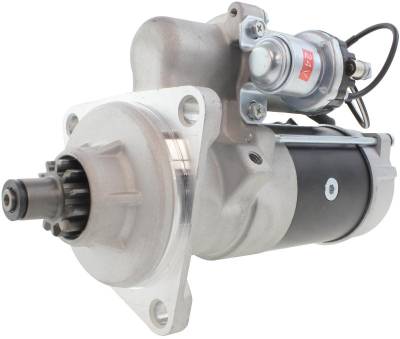

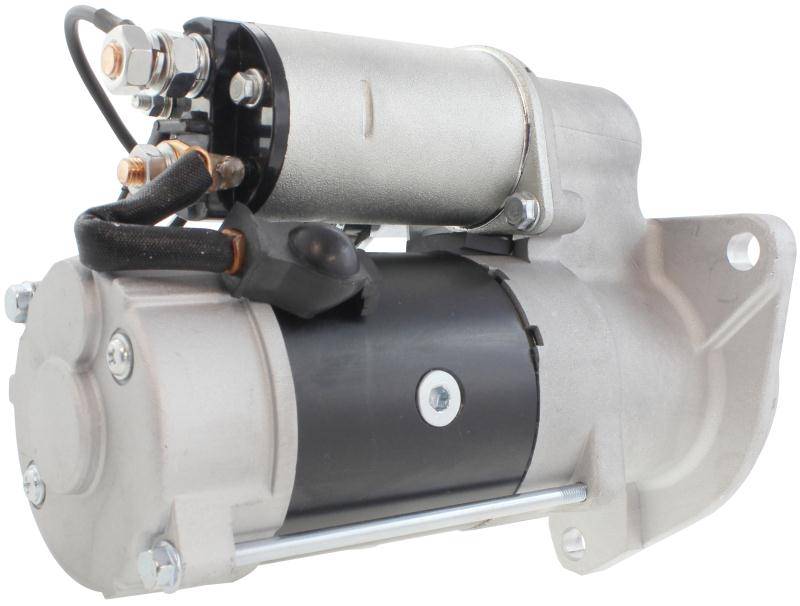

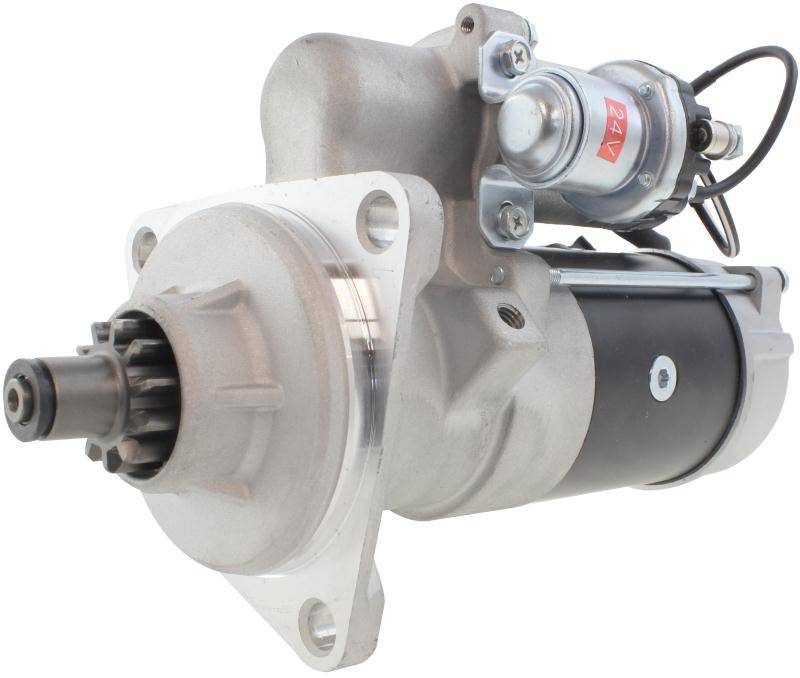

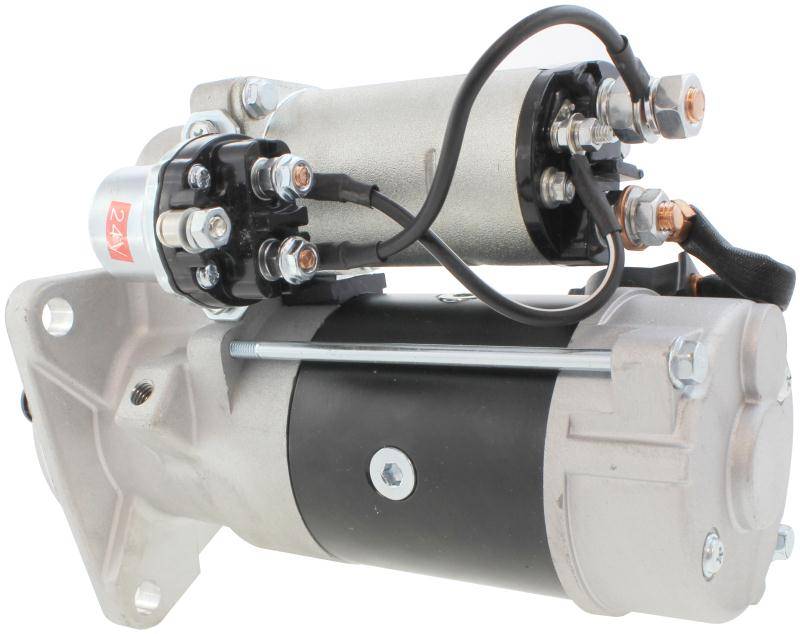

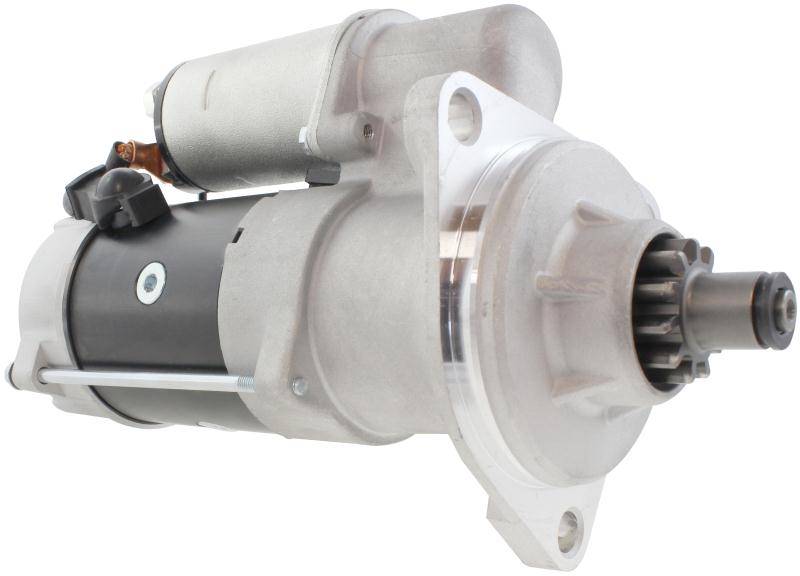

SPECIFICATIONS:

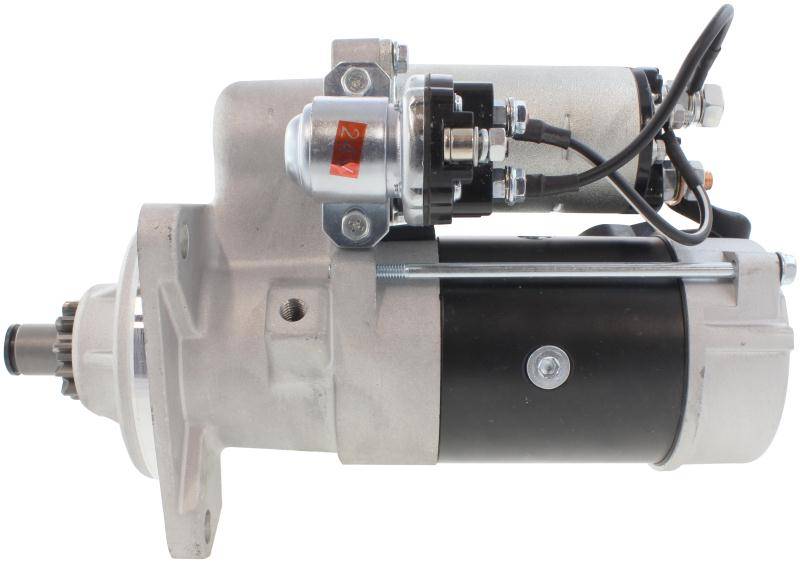

• Type: OSGR (Offset Gear Reduction)
• Voltage: 24V
• Power: 4.5 kW / 6.03 HP
• Rotation: Clockwise (CW)

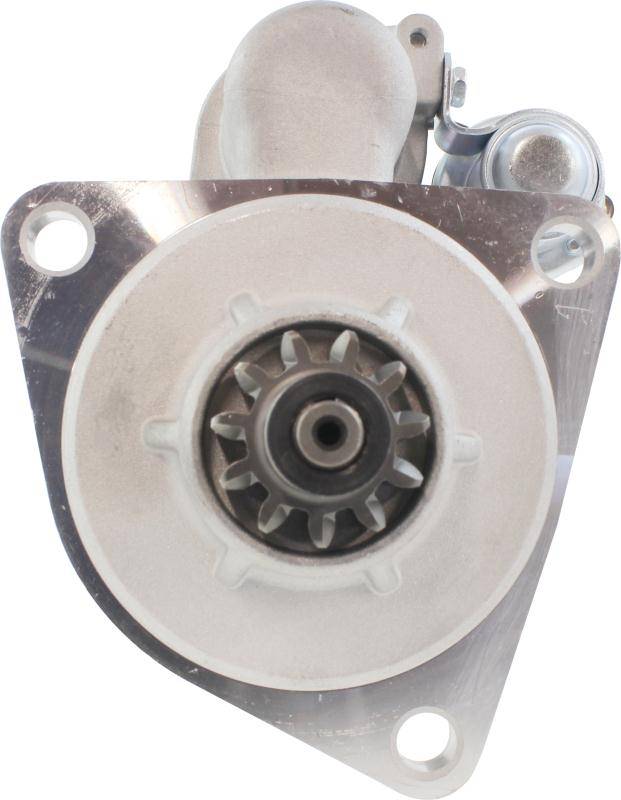

• Teeth: 11
• Gear OD: 40.1mm / 1.579in
• Length: 233mm / 9.173in
• Mounting: Three 13mm ID Unthreaded Holes
• Mounting CTC: 110.7mm, 134.7mm, 110.7mm
• Registry OD: 104.7mm / 4.122in

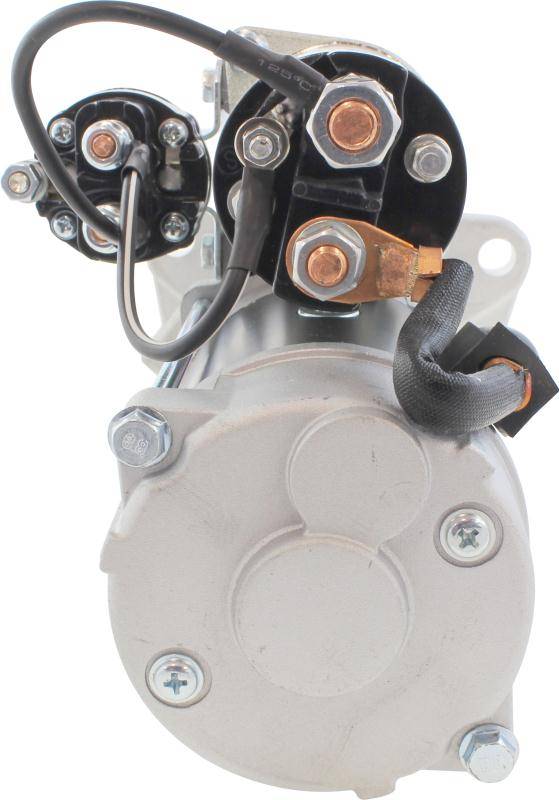

• Terminal: M10 B+ Stud, M8 Motor Stud, M5 Threaded S Tab
• Weight: 19 lbs / 8.63 kg
• Condition: New
EQUIPMENT APPLICATIONS:
• Doosan DX140LC/DX140W/DX160W/DX170W/DX180LC/DX190W Excavators
• Doosan DX225LC/DX225LL/DX225NLC/DX230LC/DX235NLC/DX255LC Excavators
• Doosan DL200/DL200TC/DL220/DL250/DL250TC Wheel Loaders
• Engine: Doosan DL06 Inline 6-Cyl 5.9L Turbo Diesel
