BOSCH PART NUMBERS: • SR0802X
• 0001108137, 0 001 108 137
• 0001110120, 0 001 110 120
• 1986S00723, 1 986 S00 723
LAND ROVER PART NUMBERS: • ERR6087E
• ERR6087
• NAD100380
• NAD101490
LUCAS PART NUMBERS: • 25681A
• 25696J
• LRS00196, LRS196
MAGNETI MARELLI PART NUMBERS: • 943253138010, 943253138
MAHLE PART NUMBERS: • MS172
LETRIKA (ISKRA) PART NUMBERS: • AZE2201
VALEO PART NUMBERS: • 458566

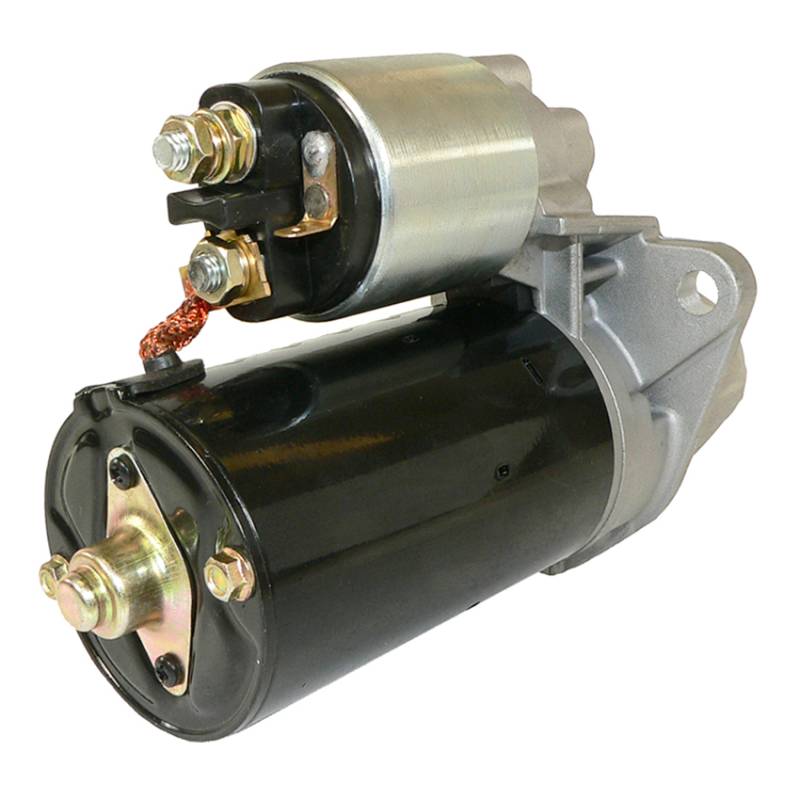

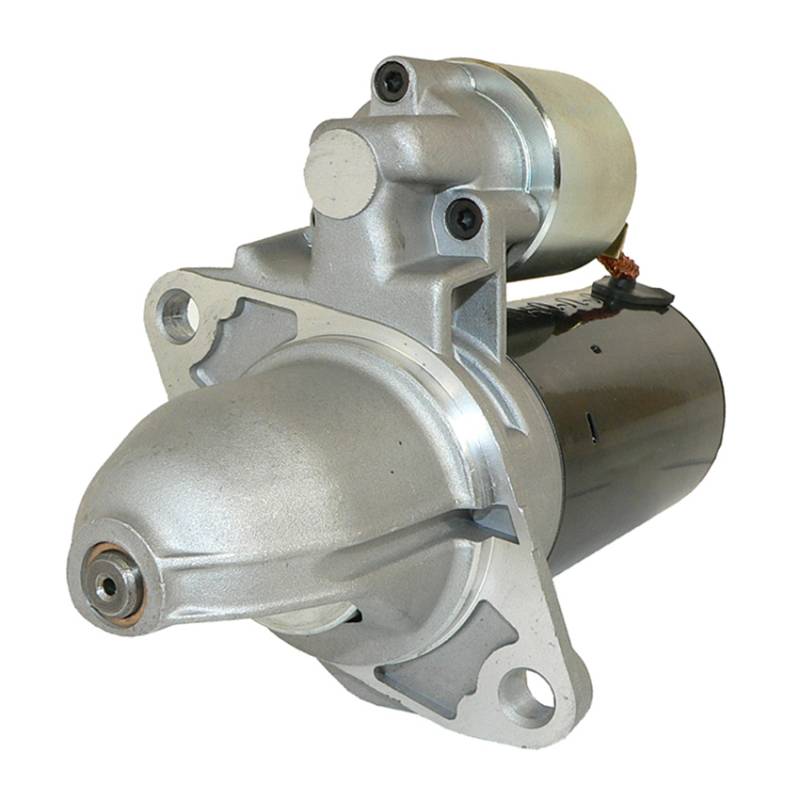

SPECIFICATIONS: • Type: Bosch 0001108137 type permanent magnet gear reduction (PMGR)
• Voltage: 12 Volt
• Power: 1.4 kW (1.9 HP)
• Rotation: Clockwise (CW)
• Pinion: 9 teeth, 24.2 mm (0.953 in) OD
• Flange: 73 mm (2.86 in) registry
• Mounting: 2 ears, 11.3 mm unthreaded holes, 118.5 mm (4.665 in) centers
• Battery terminal: M8 stud
• Field case: 112.5 mm
• Weight: 8.06 lb (3.66 kg)
• Condition: New
