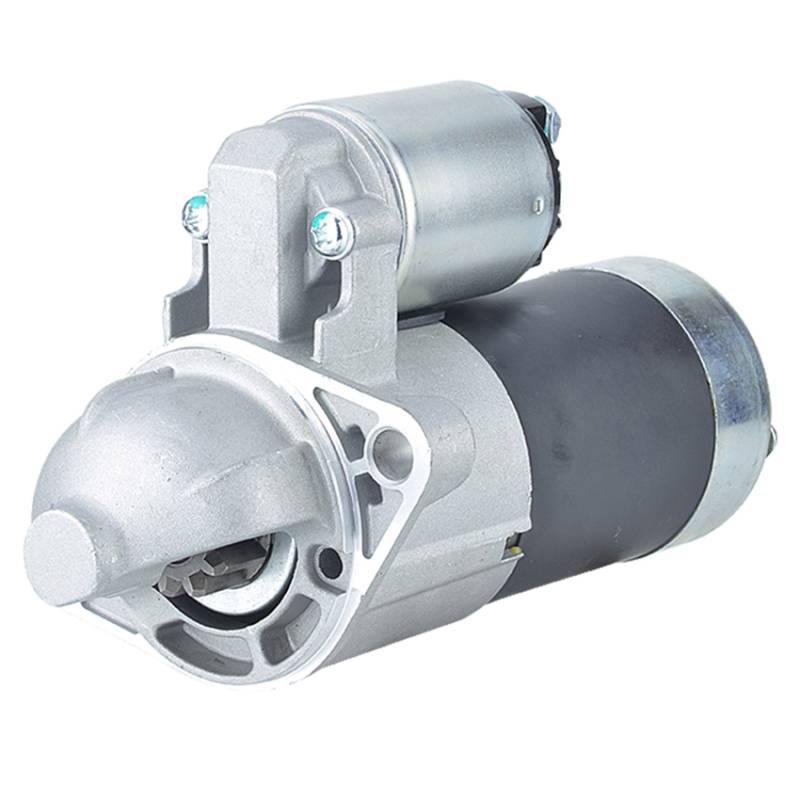

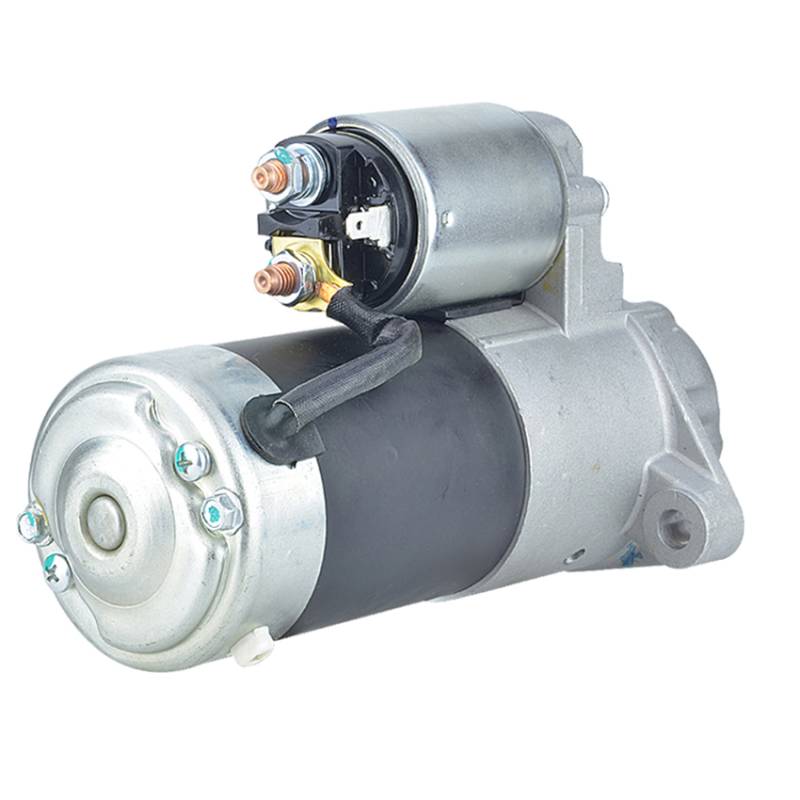

New 12V Pmgr Starter Compatible With Kioti Mec2200 Mec2240 Utv Ck20s Ck205 Ck30 Dk40 Dk50 Tractor

(0) Reviews: Write first review
30576N*2
KIOTI OEM PART NUMBERS (SOURCE / RESEARCH-CORRECTED):
• Kioti: E5760-63011 (Source Primary OEM)
• Kioti: E576063011 (Source No-Dash Variant)
• Kioti: E5760-63010 (Research-Added Variant)

VALEO OEM PART NUMBERS (SOURCE):
• Valeo: 1251016 (Source Primary)
• Valeo: 600326 (Source)
• Valeo: S000V251016 (Source)

CATALOG CROSS-REFERENCE (RESEARCH-ADDED):
• (Industry Catalog Reference)
• Item Reference: 30576N

SPECIFICATIONS:
• Product Type: Starter Motor
• Unit Type: Valeo OEM Design
• Starter Type: PMGR (Permanent Magnet Gear Reduction)
• Voltage: 12V DC
• Power Output: 1.7 kW / 2.28 HP
• Rotation: Clockwise (CW)
• Teeth on Drive: 10
• Gear Outer Diameter: 1.226 in / 31.15 mm
• Overall Length: 6.89 in / 175 mm
• Registry OD: 3.031 in / 77 mm
• Mounting Ear 1 Hole: 11.0 mm Unthreaded
• Mounting Ear 2 Hole: 10.5 mm Unthreaded
• Mounting Ear Center-to-Center: 4.134 in / 105 mm
• Weight: 8.7 lbs / 3.96 kg
• Quantity: 1 Unit
• Condition: New Aftermarket
• Source: Aftermarket Quality Parts
• Recommended Use: OE Replacement for Valeo PMGR Starters
• Product Fit: Direct Fit for Kioti UTV/Tractor, EZGO, Cushman Applications

EQUIPMENT APPLICATIONS SUMMARY:
• Kioti UTV MEC2200 / MEC2200GW / MEC2200SW / MEC2240
• Kioti Tractors CK20 / CK20S / CK205 / CK25 / CK27 / CK30 / CK35
• Kioti Tractors DK35 / DK40 / DK45 / DK50 / DK55
• Kioti Tractors DS4110 / DS4110HS / DS4510
• Kioti Tractors LK2554 / LK3054
• E-Z-GO Gold Series Golf Carts
• Cushman UTV 1600XD / 1600XD4

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $193.55
Sale: $110.60
Save: 43%
Save: $82.95
Qty:
Free Shipping!

Description

SOURCE APPLICATIONS PRESERVED EXACTLY:
• Kioti UTV Kioti Utility Vehicle MEC2200 (Valeo 1.7kW PMGR Starter)
• Kioti UTV Kioti Utility Vehicle MEC2240 (Valeo 1.7kW PMGR Starter)

KIOTI UTV APPLICATIONS (RESEARCH-EXPANDED):
• Kioti UTV Kioti Utility Vehicle MEC2200 12V
• Kioti UTV Kioti Utility Vehicle MEC2200GW 12V
• Kioti UTV Kioti Utility Vehicle MEC2200SW 12V
• Kioti UTV Kioti Utility Vehicle MEC2240 12V

KIOTI TRACTOR APPLICATIONS (RESEARCH-ADDED per TractorPartsAsap):
• Kioti Tractor Kioti Tractor CK20 12V Compact Tractor
• Kioti Tractor Kioti Tractor CK20S 12V Compact Tractor
• Kioti Tractor Kioti Tractor CK205 12V Compact Tractor
• Kioti Tractor Kioti Tractor CK25 12V Compact Tractor
• Kioti Tractor Kioti Tractor CK27 12V Compact Tractor
• Kioti Tractor Kioti Tractor CK30 12V Compact Tractor
• Kioti Tractor Kioti Tractor CK35 12V Compact Tractor
• Kioti Tractor Kioti Tractor DK35 12V Compact Tractor
• Kioti Tractor Kioti Tractor DK40 12V Compact Tractor
• Kioti Tractor Kioti Tractor DK45 12V Compact Tractor
• Kioti Tractor Kioti Tractor DK50 12V Compact Tractor
• Kioti Tractor Kioti Tractor DK55 12V Compact Tractor
• Kioti Tractor Kioti Tractor DS4110 12V Compact Tractor
• Kioti Tractor Kioti Tractor DS4110 HS 12V Compact Tractor
• Kioti Tractor Kioti Tractor DS4510 12V Compact Tractor
• Kioti Tractor Kioti Tractor LK2554 12V Compact Tractor
• Kioti Tractor Kioti Tractor LK3054 12V Compact Tractor

E-Z-GO GOLF CART APPLICATIONS (RESEARCH-ADDED):
• EZGO E-Z-GO Gold Series Golf Carts 12V
• EZGO E-Z-GO Utility Golf Cart Applications 12V

CUSHMAN UTV APPLICATIONS (RESEARCH-ADDED):
• Cushman Cushman 1600XD UTV 12V Utility Vehicle
• Cushman Cushman 1600XD4 UTV 12V Utility Vehicle

STARTER MOTOR TYPE:
• Design: PMGR (Permanent Magnet Gear Reduction)
• Type: Valeo Style Permanent Magnet Starter
• Drive Type: Gear Reduction (Higher Cranking Torque)
• Pinion: 10-Tooth Drive Pinion
• Rotation: Clockwise (CW) viewed from drive end
• Mounting: 2-Hole Flange Mounting Pattern

STARTER MOTOR SPECIFICATIONS:
• Product Type: Starter Motor
• Unit Type: Valeo OEM Design
• Starter Type: PMGR (Permanent Magnet Gear Reduction)
• Voltage: 12V DC
• Power Output: 1.7 kW / 2.28 HP
• Rotation: Clockwise (CW)
• Teeth on Drive: 10
• Gear Outer Diameter: 1.226 in / 31.15 mm
• Overall Length: 6.89 in / 175 mm
• Registry OD: 3.031 in / 77 mm
• Mounting Ear 1 Hole: 11.0 mm Unthreaded
• Mounting Ear 2 Hole: 10.5 mm Unthreaded
• Mounting Ear Center-to-Center: 4.134 in / 105 mm
• Weight: 8.7 lbs / 3.96 kg
• Quantity: 1 Unit
• Condition: New Aftermarket
