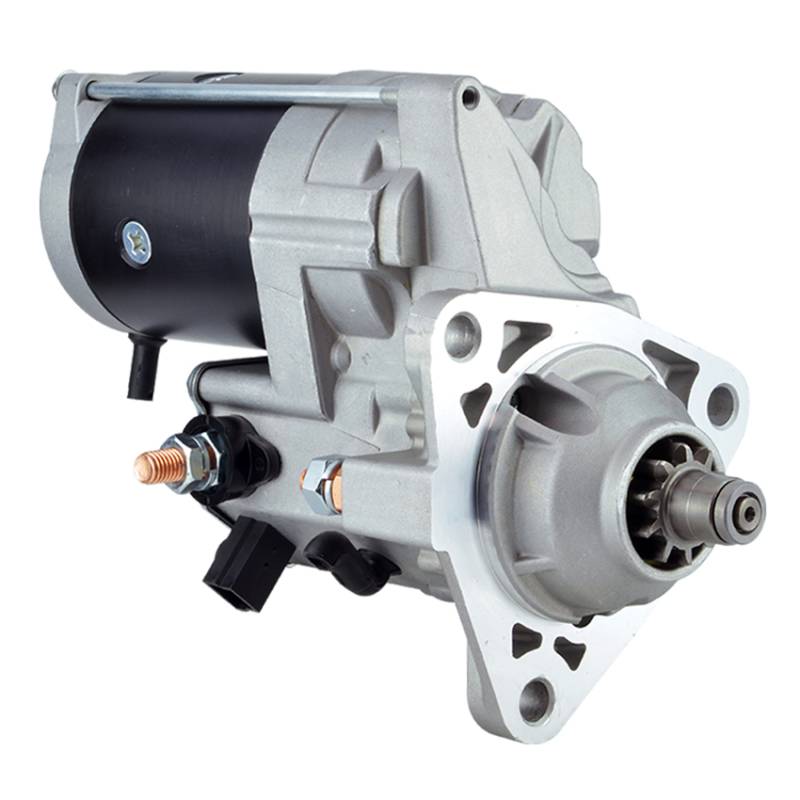

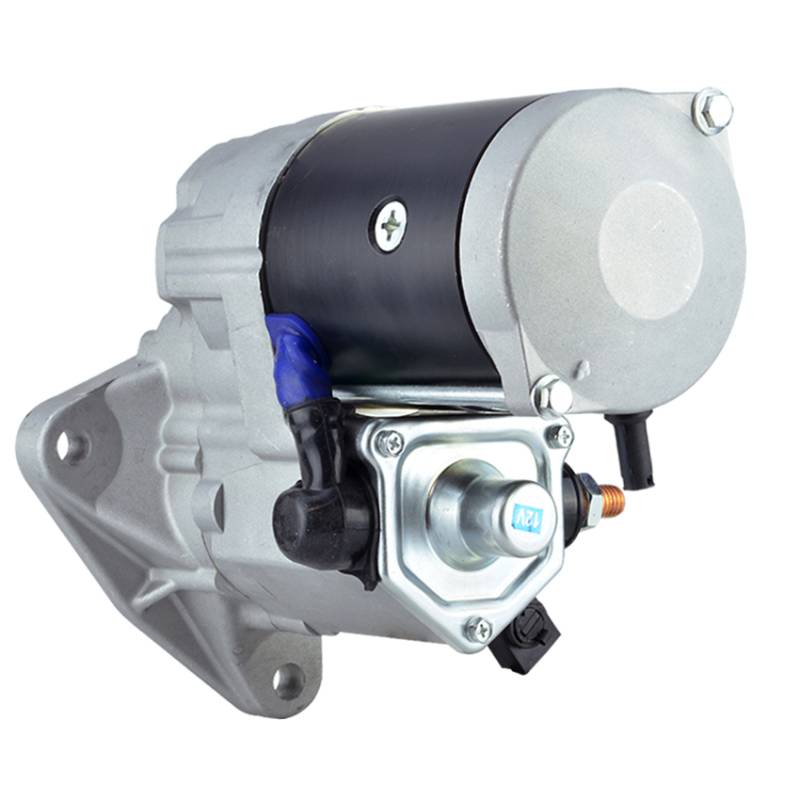

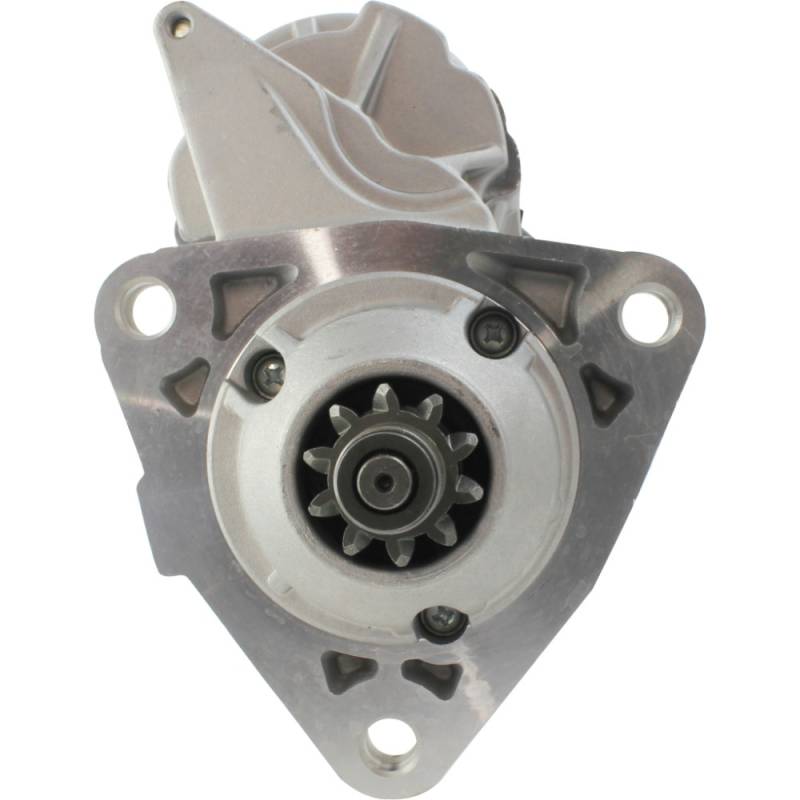

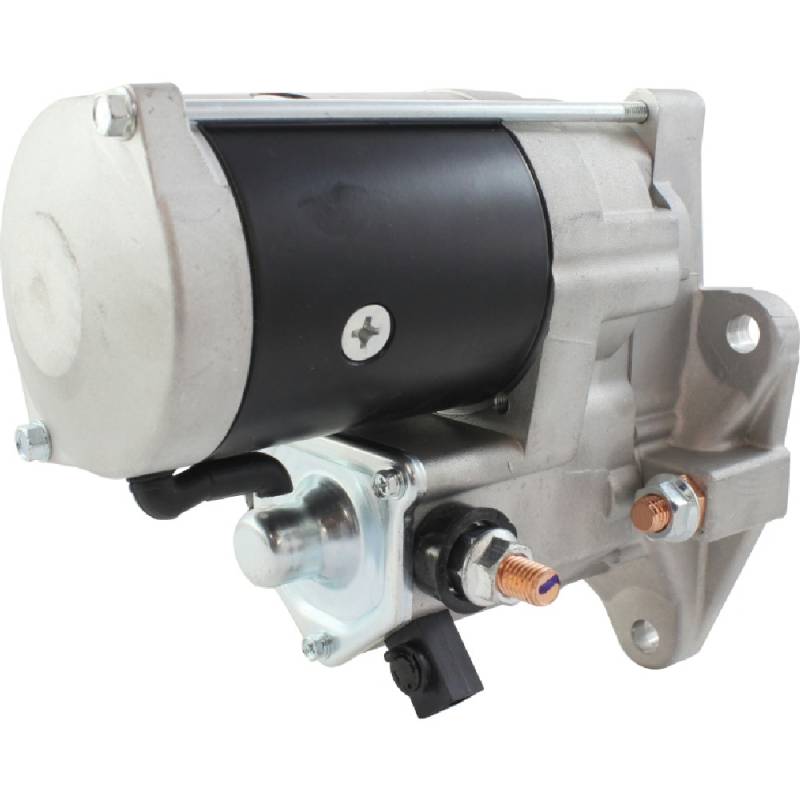

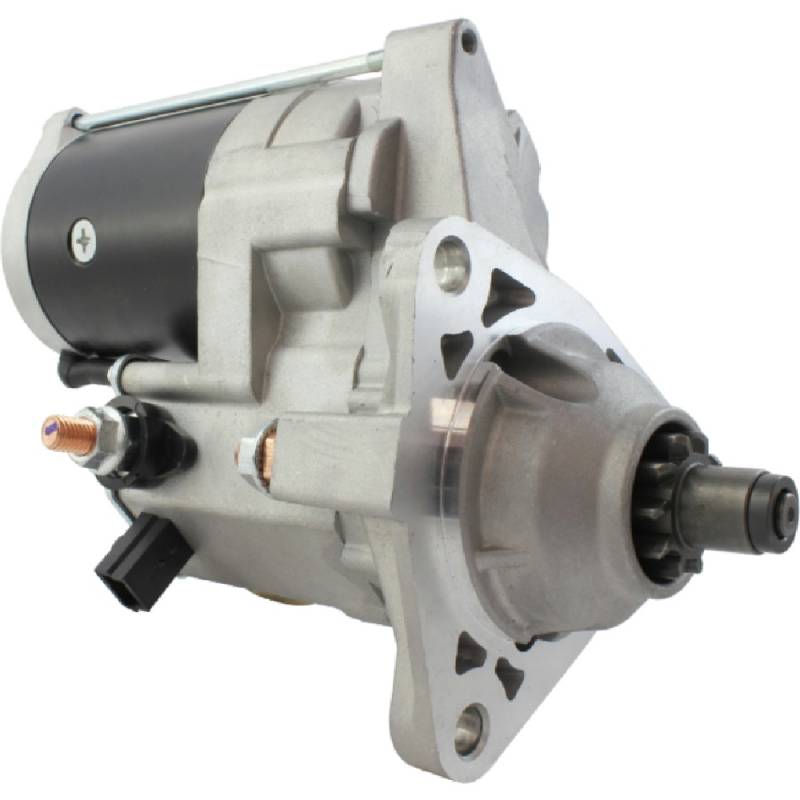

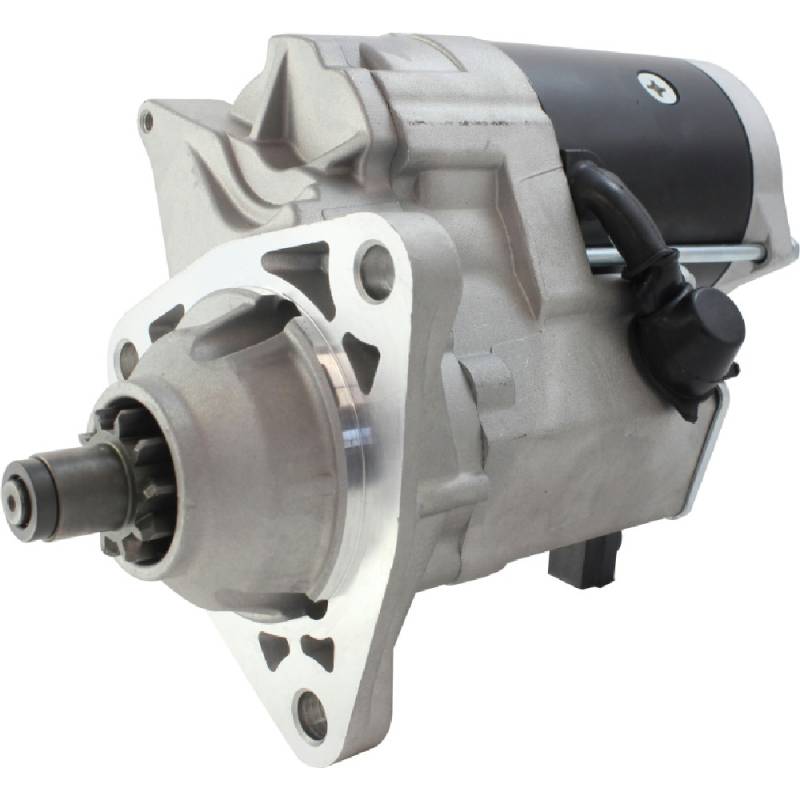

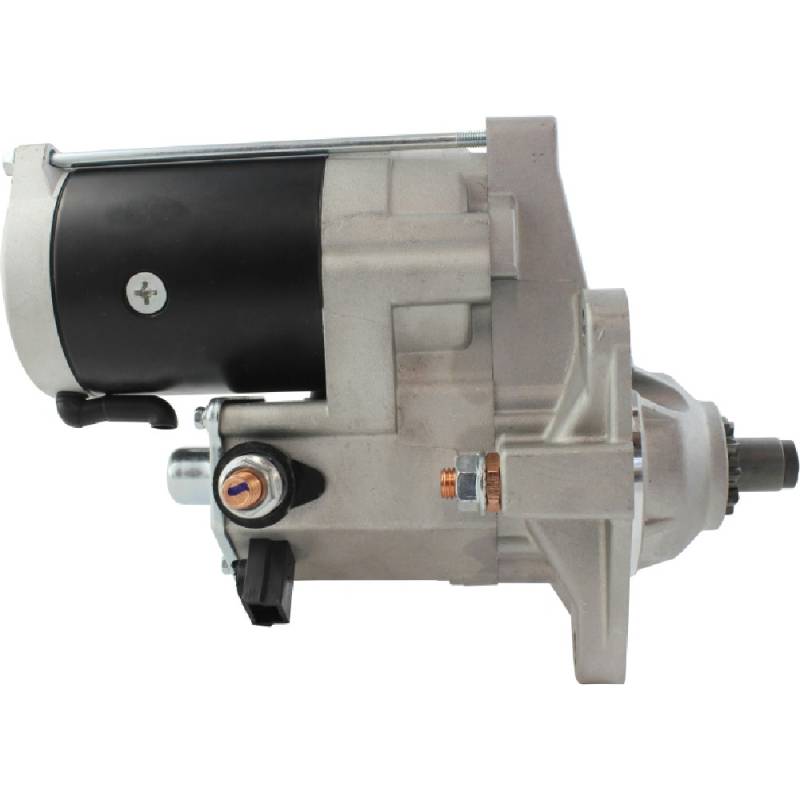

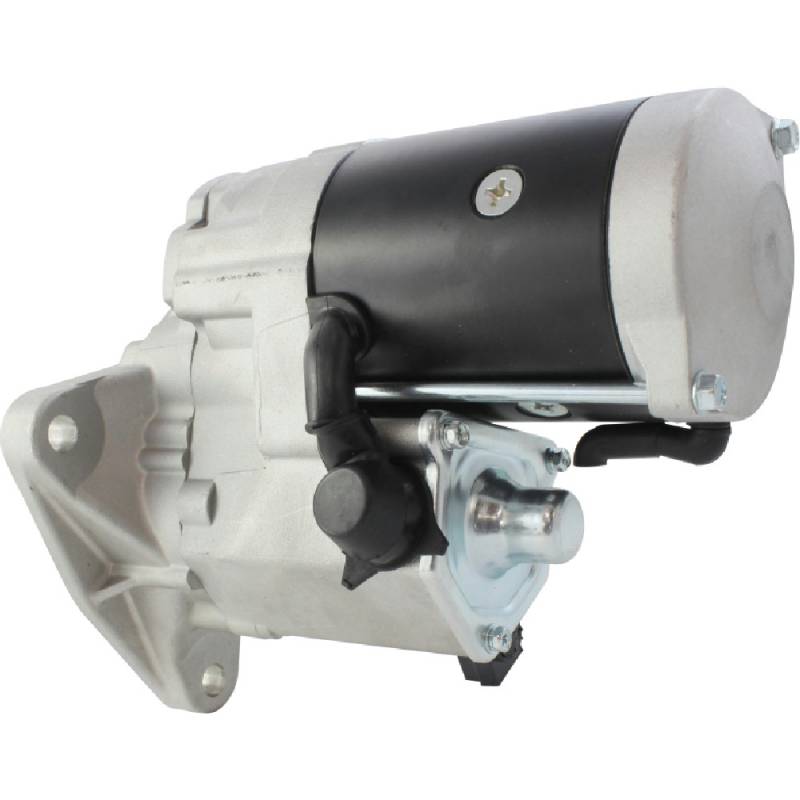

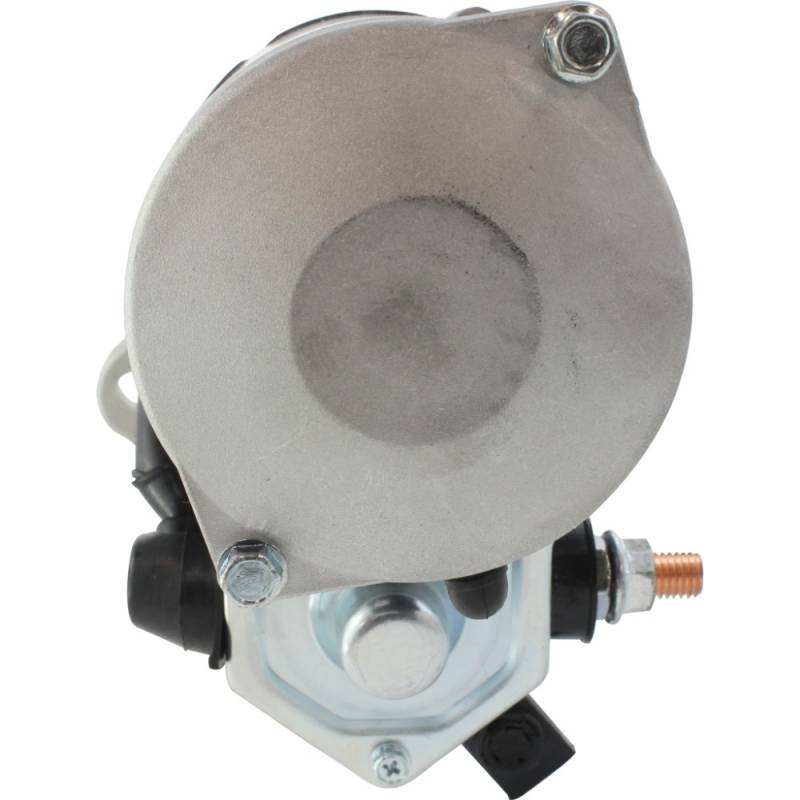

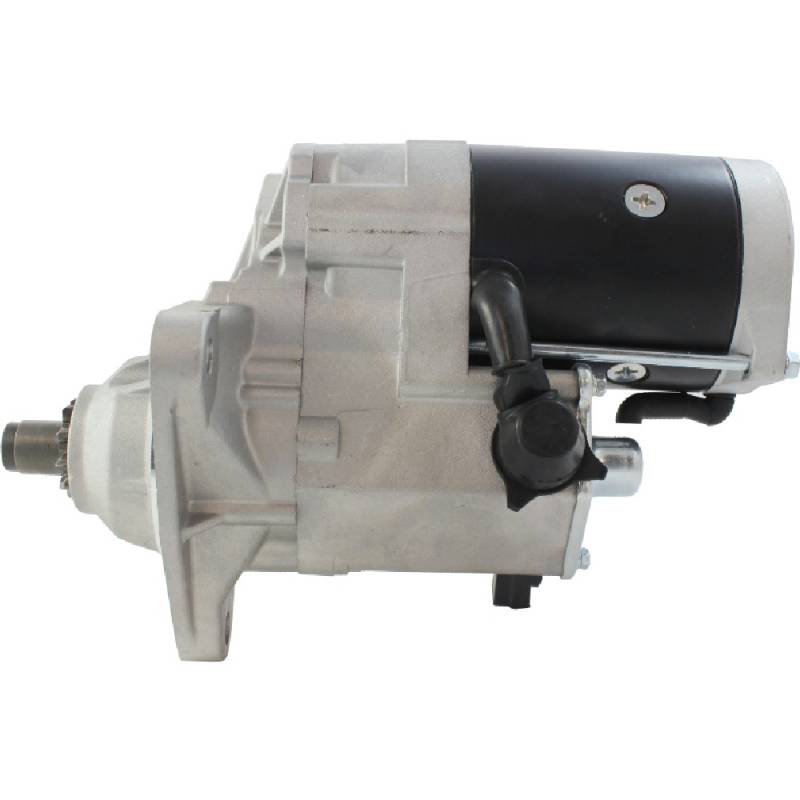

New 12V Starter Compatible With New Holland Tractor T8.360 2010-2015 428000-7360 428000736

(0) Reviews: Write first review
19994N*2
CASE IH / NEW HOLLAND PART NUMBERS:
• 504357253
• 504357253R
• 87750408 (earlier number, replaced by 504357253)

DENSO PART NUMBERS:
• 428000-7360, 4280007360
• 428000-736, 428000736

SPECIFICATIONS:
• Type: Denso offset gear reduction (OSGR)
• Voltage: 12 Volt
• Power: 5.0 kW (6.7 HP)
• Rotation: Clockwise (CW)
• Pinion: 10 teeth, 39.2 mm (1.543 in) OD
• Length: 316.5 mm (12.461 in)
• Registry: 92 mm (3.622 in)
• Mounting: three unthreaded 13.5 mm ears, 125.8 mm (4.953 in) center to center
• Terminals: M12-1.75 battery and ground studs, M10-1.5 motor stud, M5-0.8 S terminal in plastic housing
• Weight: 24.91 lb (11.32 kg)
• Condition: New

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $545.69
Sale: $311.82
Save: 43%
Save: $233.87
Qty:
Free Shipping!

Description

⚠️ 12 VOLT 5.0 KW 10 TOOTH CW DENSO OSGR STARTER:
• 12V, 5.0 kW, clockwise, Denso offset gear reduction (OSGR)
• 10 tooth pinion, 39.2 mm (1.543 in) gear OD, 316.5 mm (12.461 in) long
• 92 mm registry, three unthreaded 13.5 mm ears on 125.8 mm centers
• M12-1.75 battery and ground studs, M10-1.5 motor stud, M5-0.8 S terminal, 24.91 lb
• 24 volt combine starters and the Tier 3 Magnum / T8000 starters are different units

NEW HOLLAND T8 TRACTORS, TIER 4A:
• New Holland T8.275 with the FPT Cursor 9 8.7L F2CFE613N 2011-2014
• New Holland T8.300 with the FPT Cursor 9 8.7L F2CFE613N 2011-2014
• New Holland T8.330 with the FPT Cursor 9 8.7L F2CFE613J 2011-2014
• New Holland T8.360 with the FPT Cursor 9 8.7L F2CFE613F 2011-2014
• New Holland T8.390 with the FPT Cursor 9 8.7L F2CFE613C 2011-2014
• New Holland T8.420 with the FPT Cursor 9 8.7L F2CFE614A 2013-2014

NEW HOLLAND T8 TRACTORS, TIER 4B:
• New Holland T8.320 with the FPT Cursor 9 8.7L F2CFE613G 2014 and later
• New Holland T8.350 with the FPT Cursor 9 8.7L F2CFE614G 2014 and later
• New Holland T8.380 and T8.380 SmartTrax with the FPT Cursor 9 8.7L F2CFE614D 2014 and later
• New Holland T8.410 and T8.410 SmartTrax with the FPT Cursor 9 8.7L F2CFE614C 2014 and later
• New Holland T8.435 and T8.435 SmartTrax with the FPT Cursor 9 8.7L F2CFE614A 2014 and later

NEW HOLLAND T8 TRACTORS, LATIN AMERICA:
• New Holland T8.295 with the FPT 8.7L
• New Holland T8.325 with the FPT 8.7L 2014
• New Holland T8.355 with the FPT 8.7L
• New Holland T8.385 with the FPT 8.7L

NEW HOLLAND T9 4WD TRACTORS:
• New Holland T9.390 with the FPT Cursor 9 8.7L 2011-2014

CASE IH MAGNUM TRACTORS, TIER 4A:
• Case IH Magnum 235 with the FPT 8.7L F2CFE613N 2011-2014
• Case IH Magnum 260 with the FPT 8.7L F2CFE613N 2011-2014
• Case IH Magnum 290 with the FPT 8.7L F2CFE613J 2011-2014
• Case IH Magnum 315 with the FPT 8.7L F2CFE613F 2011-2014
• Case IH Magnum 340 with the FPT 8.7L F2CFE613C 2011-2014
• Case IH Magnum 370 CVT with the FPT 8.7L F2CFE614A 2013-2014

CASE IH MAGNUM TRACTORS, TIER 4B:
• Case IH Magnum 250 with the FPT 8.7L 2014 and later
• Case IH Magnum 280 with the FPT 8.7L F2CFE614G 2014 and later
• Case IH Magnum 310 with the FPT 8.7L F2CFE614D 2014 and later
• Case IH Magnum 340 with the FPT 8.7L F2CFE614C 2014 and later
• Case IH Magnum 380 with the FPT 8.7L F2CFE614A 2014 and later
• Case IH Magnum 2654 with the FPT 8.7L 2016-2019
• Case IH Magnum 3154 with the FPT 8.7L 2016-2020

CASE IH STEIGER 4WD TRACTORS:
• Case IH Steiger 350 with the FPT Cursor 9 8.7L 2010-2014

CASE IH TITAN FLOATERS:
• Case IH Titan 3030 with the FPT 8.7L Tier 4A 2012-2015
• Case IH Titan 3530 with the FPT 8.7L Tier 4A 2012-2015

FPT (IVECO) CURSOR 9 8.7L ENGINES:
• F2CFE613C, F2CFE613F, F2CFE613J, F2CFE613N (A010 / A011)
• F2CFE614A (A010, A011, A013, B002, B003)
• F2CFE614C, F2CFE614D, F2CFE614G (B002 / B003)
• F2CFP614C, F2CFP614E (H003)
