OEM PART NUMBERS:
• 70-902 / 70902 (White Rodgers)
• 70-902S1 / 70902S1 (White Rodgers)
• 70-111224 / 70111224 (White Rodgers)
• 70-111224-5 / 701112245 (White Rodgers)
• 70-111224-5A / 701112245A (White Rodgers)
• 24059BX (Cole Hersee)
• 24059 (Cole Hersee)
• 77-181S1 / 77181S1 (Goodall)
• 15-132 / 15132 (Prestolite)
• 15-236 / 15236 (Prestolite)
• 15-311 / 15311 (Prestolite)
• 15-315 / 15315 (Prestolite)
• 5117440 (Johnson Electric)
• SO51174 (Johnson Electric)
• 6C028 (General)
ADDITIONAL CROSS-REFERENCES:
• 6600-1017 / 36600-1017
• 240-01000 / 240-01004
• 1114214 / 1114217 / 1114218
• 1114223 / 1114227 / 1114534 / 1118820
• 10-CD104 / 10-CH71017 / 7-1017
• SPL6008 / 546-028 / 11885
• 3635820 / 70-6910 / 66GMM-115
• D2-6090N / 3178M / APL3004
• SAS-4201 / UAC172 / 21-1501
• SSMU-1017 / 67-702 / 67-702-1-C / 67-702-1-S / 67-702-S / 7-1013
SPECIFICATIONS:

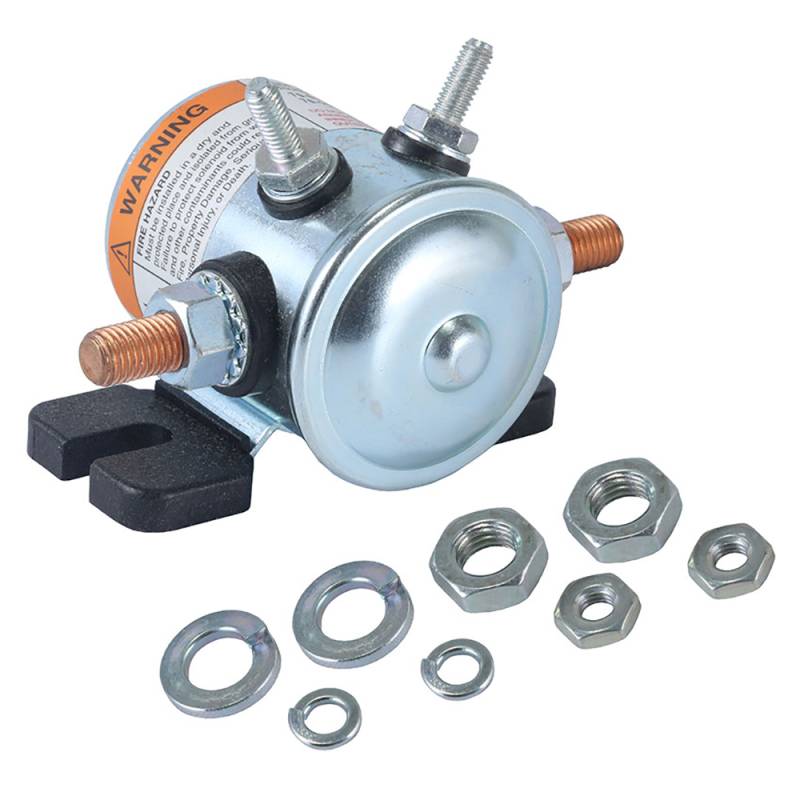

• Type: Solenoid / DC Power Contactor
• Contact Configuration: SPST - Normally Open (SPST-NO)
• Voltage: 12V DC
• Continuous Amperage: 80A
• Surge Amperage: 150A
• Duty Cycle: Continuous
• Coil Type: Isolated
• Terminals: 4 Total - (2) 5/16-24 Power, (2) 10-32 Coil
• Contact Material: Copper
• Case Material: Metal (Dust-Resistant)
• Mounting: Flat 180 (F180) Standard Bracket
• Weight: 0.9 lbs / 0.41 kg
• Certification: UL 538
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
WARNING - This product may expose you to chemicals such as Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
