New 50A 24V Alternator Fits Caterpillar Gensets Olympian 8600688 8600075 8600282

CATERPILLAR: 3276712 327-6712
DELCO: 8600075 8600282 8600210 8600336 8600688
J & N: 400-12382
LESTER: 8865
PERKINS: 2871A503

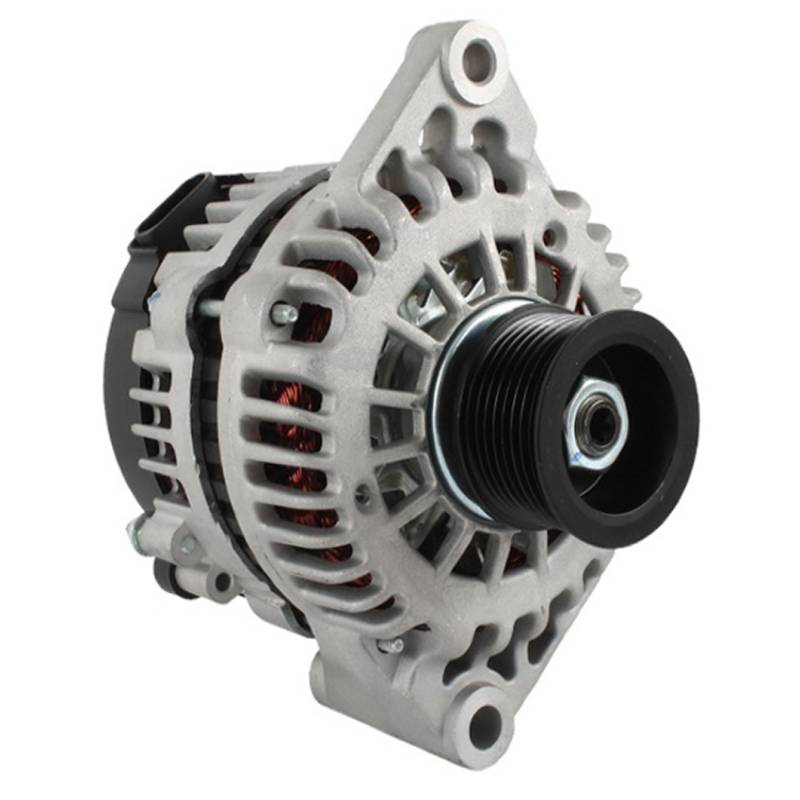

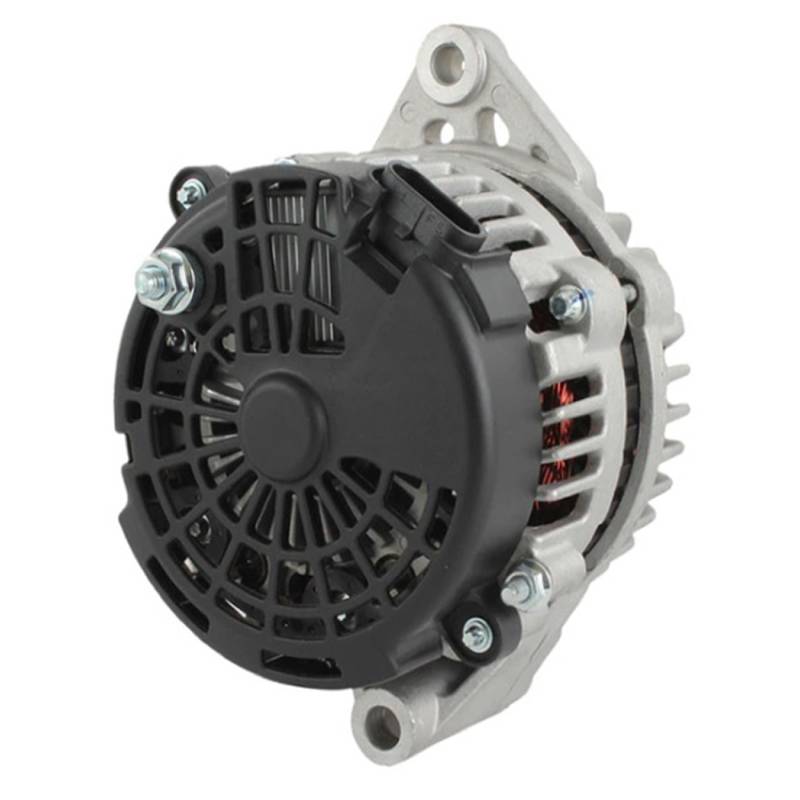

ITEM DESCRIPTION: ALTERNATOR
UNIT TYPE: DELCO
VOLTAGE: 24
AMPERAGE: 50
FAN: INTERNAL
REGULATOR: INTERNAL
REGULATOR CLOCK: 0.0833333333333333
GROOVES: 8
PULLEY: SOLID
PULLEY OD: 2.358IN / 59.9MM
MOUNT TYPE: SPOOL
MOUNTING EAR 1 HOLE: 9.5MM UNTHREADED
MOUNTING EAR 2 HOLE: 12 UNTHREADED
MOUNTING EAR 1 THICKNESS: 0.835IN / 21.2MM
MOUNTING EAR 2 THICKNESS: 3.004IN / 76.3MM
REAR MOUNTING FOOT: 3" 75MM
CENTER TO CENTER TOP MOUNT: 6.75" INCH 173.4MM
B+ TERMINAL: M8-1.25
P TERMINAL: BLADE
L TERMINAL: BLADE
F TERMINAL: BLADE
S TERMINAL: BLADE
POLARITY: NEGATIVE
