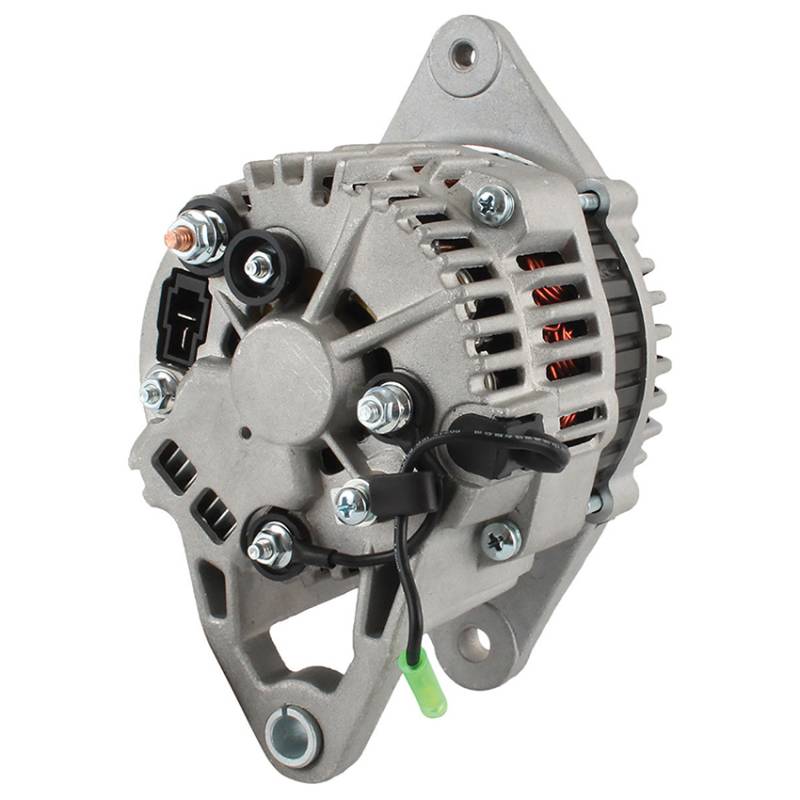

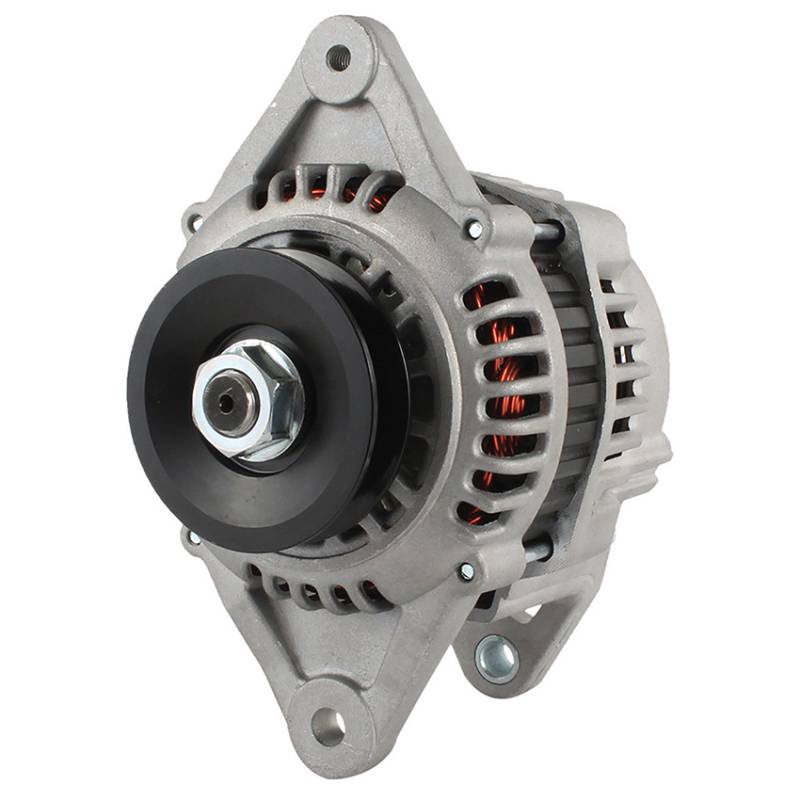

New Alternator Compatible With Yanmar Marine Diesel 4Jh3e 4Jh3-Ce 4Jh3-Tce 3Jh3e 3Jh4e 3Ym20 3Ym30

OEM PART NUMBERS:
• Hitachi: LR160-741 / LR160741
• Lucas: LRA03783
• Yanmar: 128271-77200 / 12827177200

SPECIFICATIONS:
• Series: Hitachi LR160 Permanent Magnet
• Voltage: 12V
• Amperage: 60 Amp
• Rotation: Clockwise (CW)
• Design: IR/IF (Internal Regulator / Internal Fan)
• Pulley: V-Belt 1-Groove 73.9mm OD (2.909 in)
• Regulator Clock: 10:00
• Plug Code: 193 / Rear Orientation
• Mounting Ear 1: M8-1.25 Threaded, 13.3mm Thick
• Mounting Ear 2: 10.4mm Unthreaded, 13.3mm Thick
• Mounting Ear 3: 10.5mm Unthreaded, 16mm Thick
• B+ Terminal: M6-1.0
• IG Terminal: Spade / L Terminal: Spade
• Polarity: Negative Ground
• Weight: 10.16 lbs / 4.62 kg
• Condition: New

YANMAR MARINE ENGINE APPLICATIONS:
• 2-Cyl: 2GM20F, 2YM15 (10.5HP)
• 3-Cyl: 3JH3E (39HP), 3JH4E 1.64L (39HP), 3YM20 (21HP), 3YM30 1.116L (29HP)
• 4-Cyl: 4JH3-CE (52HP), 4JH3-TCE Turbo (64HP), 4JH3E (52HP) — 1994-2003

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
