New 12V 50A Alternator Fits Toyota 5Fd-25 5Fd-28 5Fd-30 1989-2002 270702304171

Rareelectrical
Additional Images
    • Free Shipping!
    MSRP $259.04
    Price: $148.02
    Save: 43%
    Save: $111.02
    (0) Reviews: Write first review
    12185NA3
    Qty:

    DENSO: 100211-6960 1002116961 210-7019
    HELLA: 8EL-737-225-001
    TOYOTA: 27070-23041 270702304171

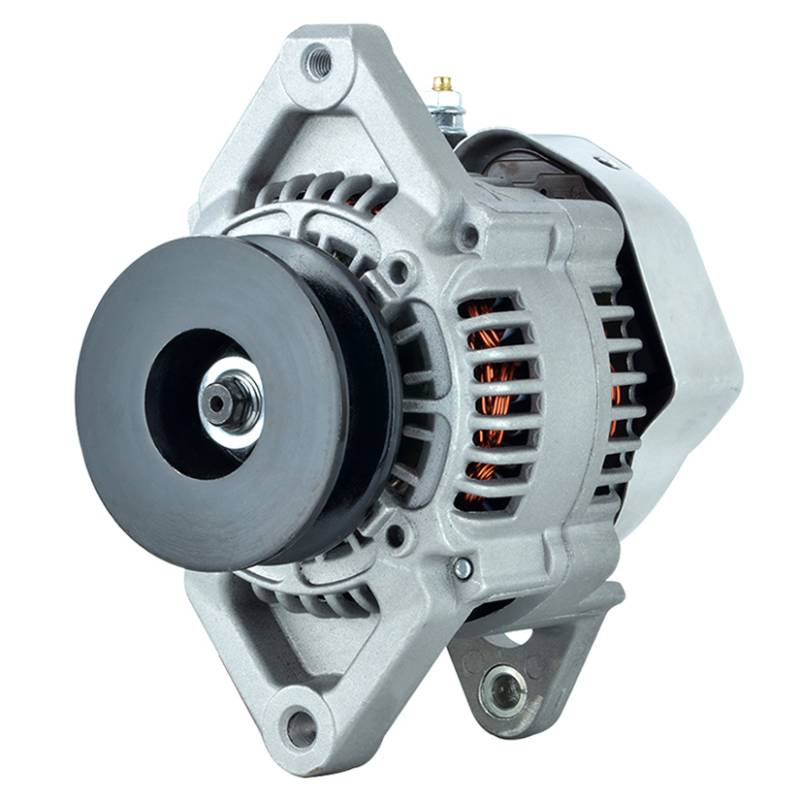

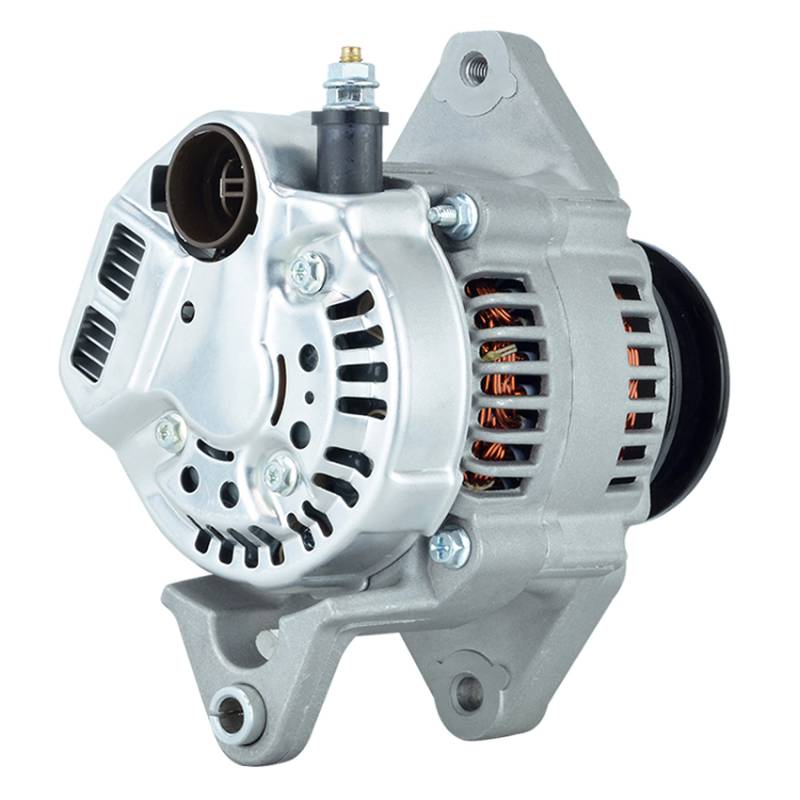

    ITEM DESCRIPTION: ALTERNATOR
    UNIT TYPE: DENSO
    VOLTAGE: 12
    AMPERAGE: 50
    FAN: INTERNAL
    REGULATOR: INTERNAL
    GROOVES: 1
    PULLEY TYPE: SOLID
    PULLEY OD: 2.992IN / 76MM
    MOUNTING EAR 1 HOLE: M8-1.25 THREADED
    MOUNTING EAR 2 HOLE: 8.5MM UNTHREADED
    MOUNTING EAR 3 HOLE: 8.3MM UNTHREADED
    MOUNTING EAR 1 THICKNESS: 0.614IN / 15.6MM
    MOUNTING EAR 2 THICKNESS: 0.787IN / 20MM
    MOUNTING EAR 3 THICKNESS: 0.657IN / 16.7MM
    S TERMINAL: SPADE
    IG TERMINAL: SPADE
    L TERMINAL: SPADE
    POLARITY: NEGATIVE
    WEIGHT: 8.3 LBS / 3.77 KG

    PRODUCT NOTICE:
    As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

    WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

    Description

    TOYOTA LIFT TRUCK 5FD-10 1DZ ENGINE 1989-1994
    TOYOTA LIFT TRUCK 5FD-14 1DZ ENGINE 1989-1994
    TOYOTA LIFT TRUCK 5FD-15 1DZ ENGINE 1989-1994
    TOYOTA LIFT TRUCK 5FD-18 1DZ ENGINE 1989-1994
    TOYOTA LIFT TRUCK 5FD-20 1DZ ENGINE 1989-1994
    TOYOTA LIFT TRUCK 5FD-20 1Z ENGINE 1989-1994
    TOYOTA LIFT TRUCK 5FD-23 1DZ ENGINE 1989-1994
    TOYOTA LIFT TRUCK 5FD-23 1Z ENGINE 1989-1994
    TOYOTA LIFT TRUCK 5FD-25 1DZ ENGINE 1989-1994
    TOYOTA LIFT TRUCK 5FD-25 1Z ENGINE 1989-2002
    TOYOTA LIFT TRUCK 5FD-28 1Z ENGINE 1989-2002
    TOYOTA LIFT TRUCK 5FD-30 1Z ENGINE 1989-2002
    TOYOTA LIFT TRUCK 5FD-33 11Z ENGINE 1989-2007
    TOYOTA LIFT TRUCK 5FD-35 11Z ENGINE 1989-2007
    TOYOTA LIFT TRUCK 5FD-38 11Z ENGINE 1989-2007
    TOYOTA LIFT TRUCK 5FD-40 11Z ENGINE 1989-2007
    TOYOTA LIFT TRUCK 5FD-45 11Z ENGINE 1989-2007
    TOYOTA LIFT TRUCK 5FDE-35 11Z ENGINE 1989-2007
    TOYOTA LIFT TRUCK 5FG-20 4P ENGINE 1995-2007
    TOYOTA LIFT TRUCK 5FG-20 4Y ENGINE 1995-2007
    TOYOTA LIFT TRUCK 5FG-20 5K ENGINE 1989-1994
    TOYOTA LIFT TRUCK 5FG-23 4Y ENGINE 1995-2007
    TOYOTA LIFT TRUCK 5FG-23 5P ENGINE 1989-2007
    TOYOTA LIFT TRUCK 5FG-25 5P ENGINE 1989-2007
    TOYOTA LIFT TRUCK 5FG-28 4Y ENGINE 1995-2007
    TOYOTA LIFT TRUCK 5FG-30 4Y ENGINE 1995-2007
    TOYOTA LIFT TRUCK 5FG-33 3F ENGINE 1989-1994
    TOYOTA LIFT TRUCK 5FG-33 3F ENGINE 2004-2007
    TOYOTA LIFT TRUCK 5FG-35 3F ENGINE 1989-1994
    TOYOTA LIFT TRUCK 5FG-35 3F ENGINE 2004-2007
    TOYOTA LIFT TRUCK 5FG-38 3F ENGINE 1989-1994
    TOYOTA LIFT TRUCK 5FG-38 3F ENGINE 2004-2007
    TOYOTA LIFT TRUCK 5FG-40 3F ENGINE 1989-1994
    TOYOTA LIFT TRUCK 5FG-40 3F ENGINE 2004-2007
    TOYOTA LIFT TRUCK 5FG-45 3F ENGINE 1989-1994
    TOYOTA LIFT TRUCK 5FG-45 3F ENGINE 2004-2007
    TOYOTA LIFT TRUCK 5FG-50 3F ENGINE 1990-2007
    TOYOTA LIFT TRUCK 5FG-60 3F ENGINE 1990-2007
    TOYOTA LIFT TRUCK 5FGE-35 3F ENGINE 1990-2007
