OEM PART NUMBERS: • Hatz: 50495900, 504959000733, 50495901, 504959010733, 50496200, 50496201, 50466201, 01721000, 000001721000
• Letrika Iskra: IS1150, AZE2605, AZE2606, AZE2657, AZE2663, 11.130.922 / 11130922, 11.130.923 / 11130923, 11.131.496 / 11131496, 11.131.528 / 11131528
• Mahle: MS432
• Bomag: 05710924, 05726001, 05728551, 05821275
• Bobcat Melroe: 55169.7 / 551697
• TVH: QZ01721000

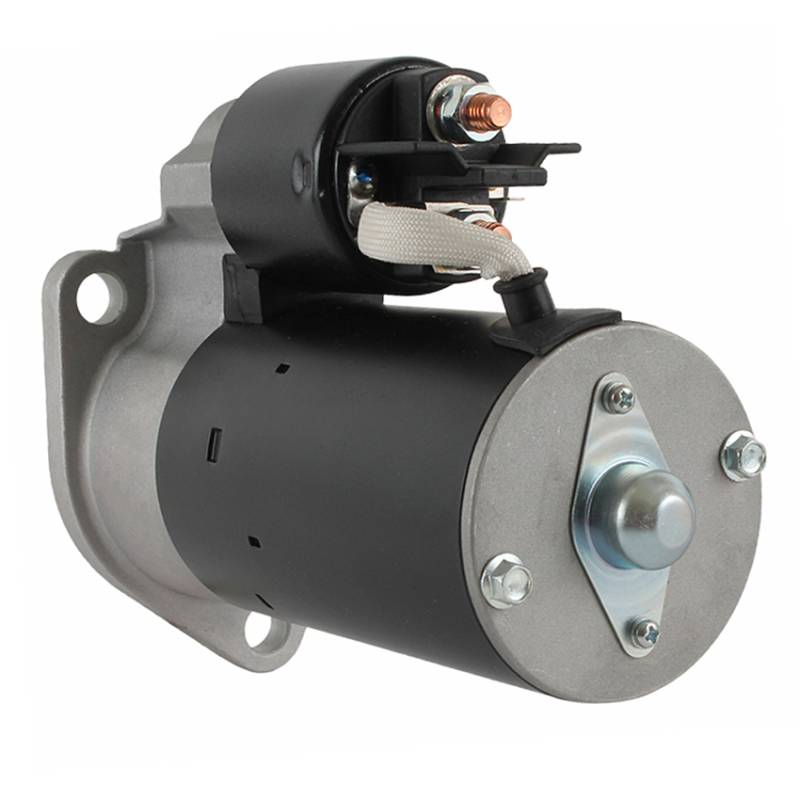

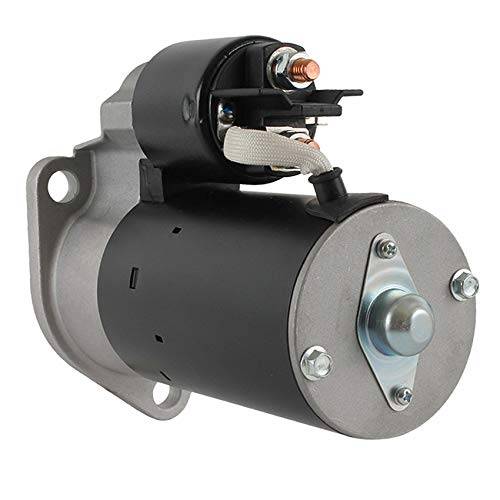

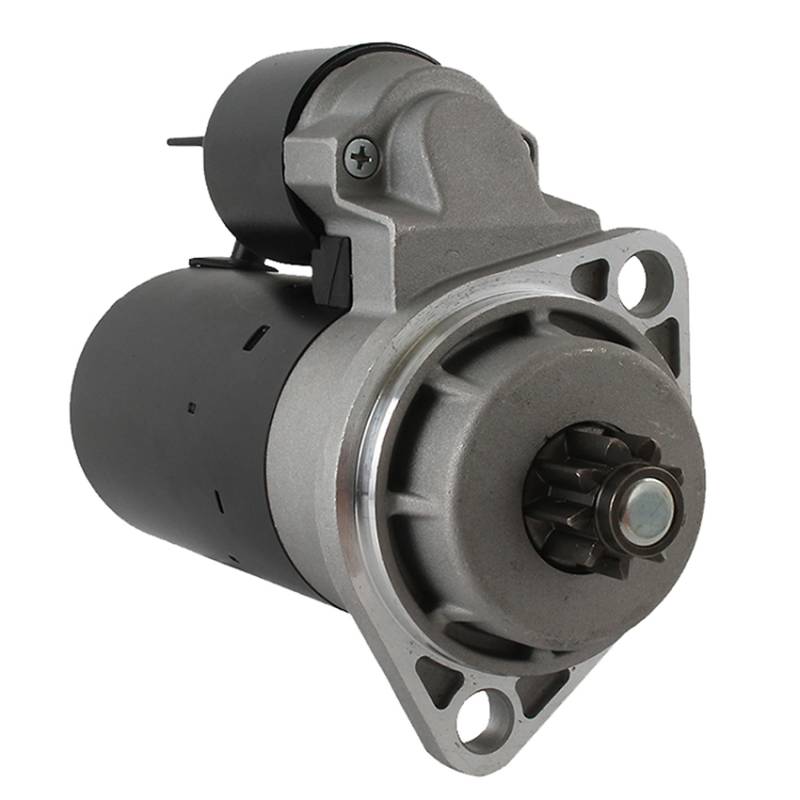

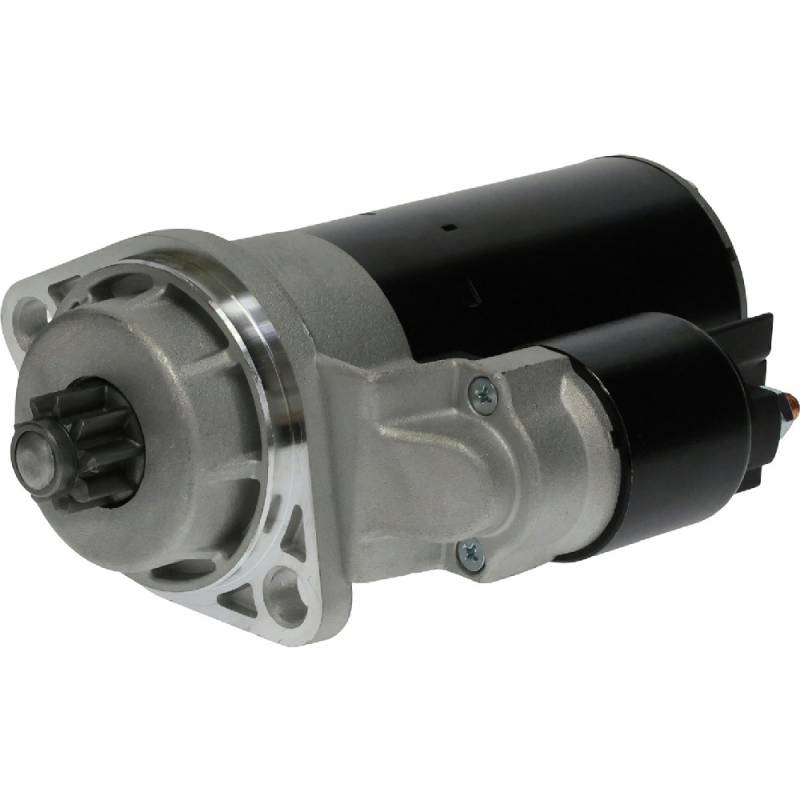

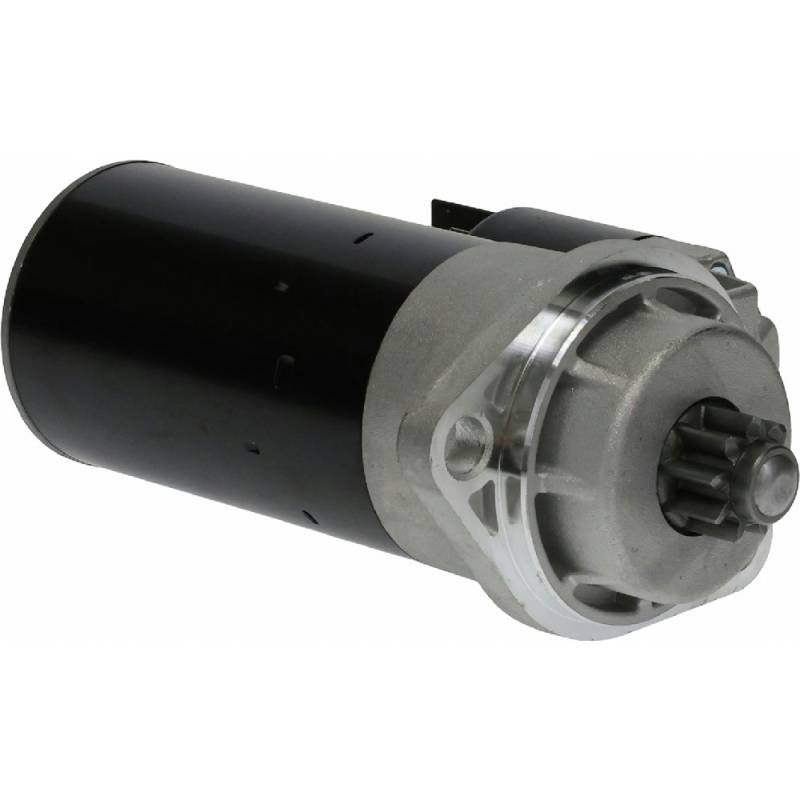

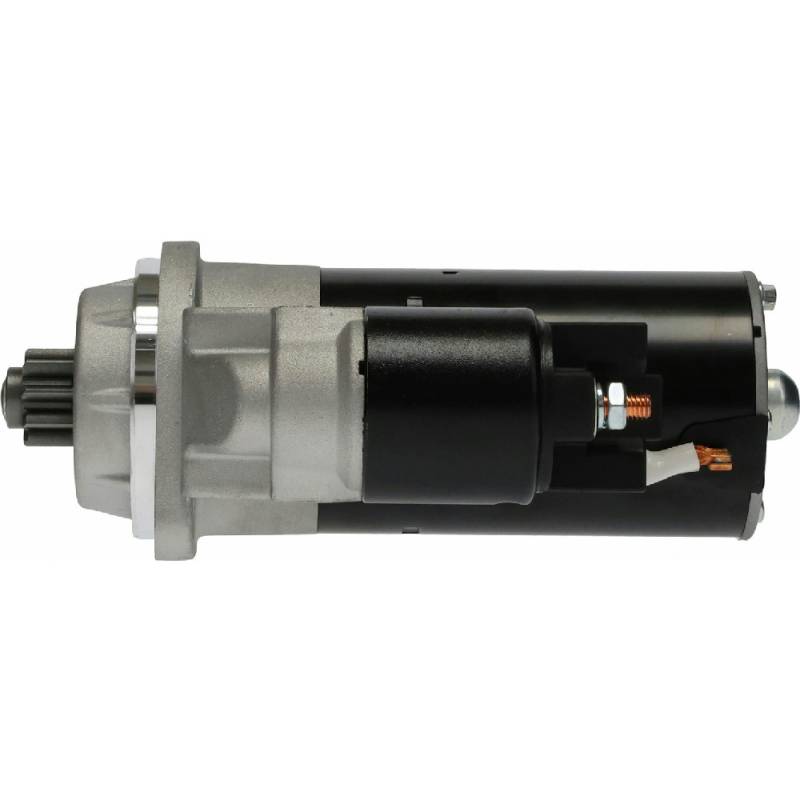

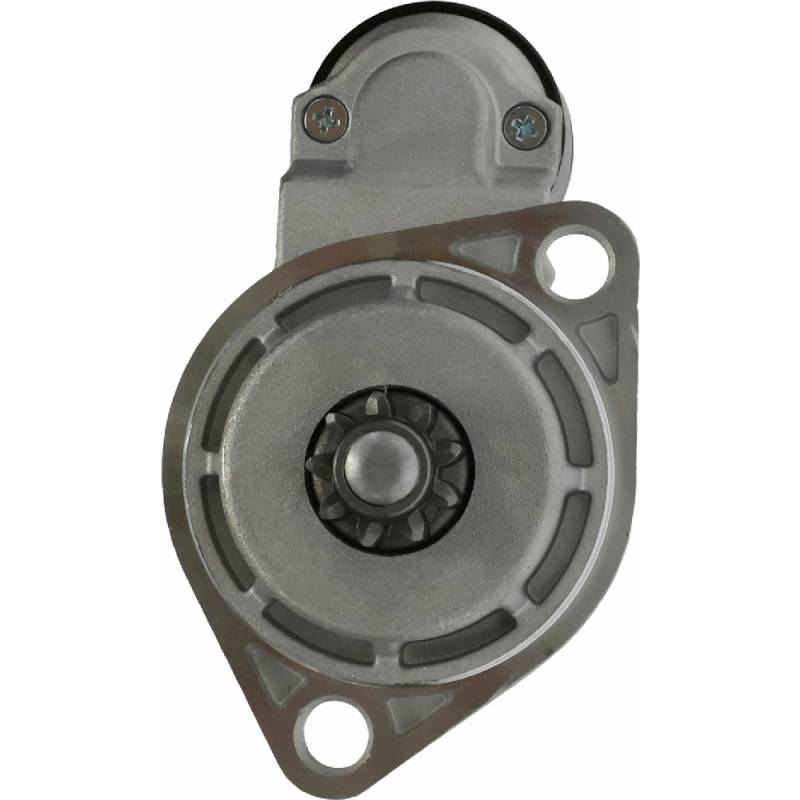

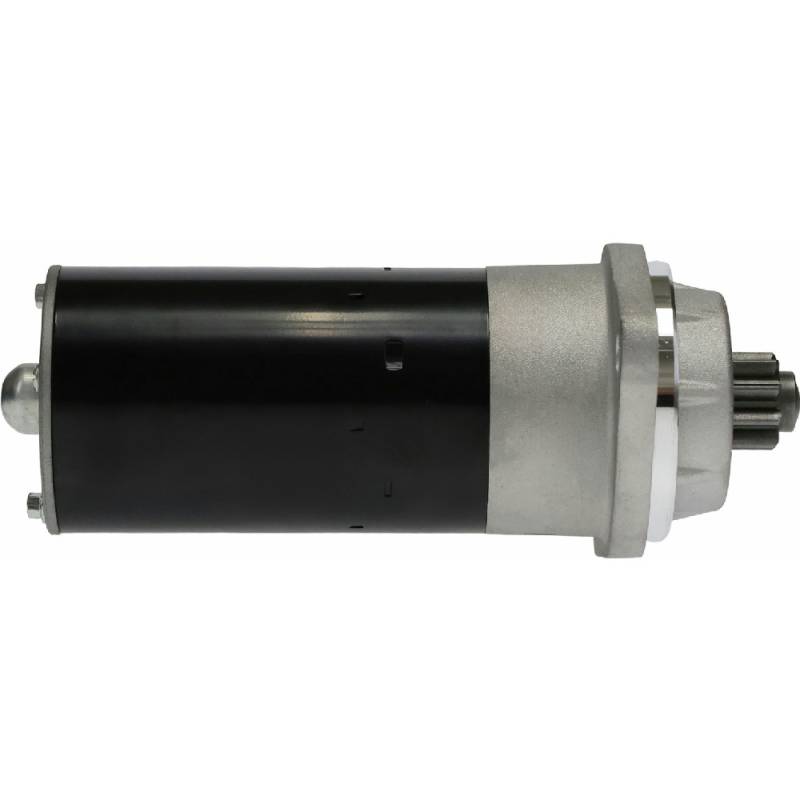

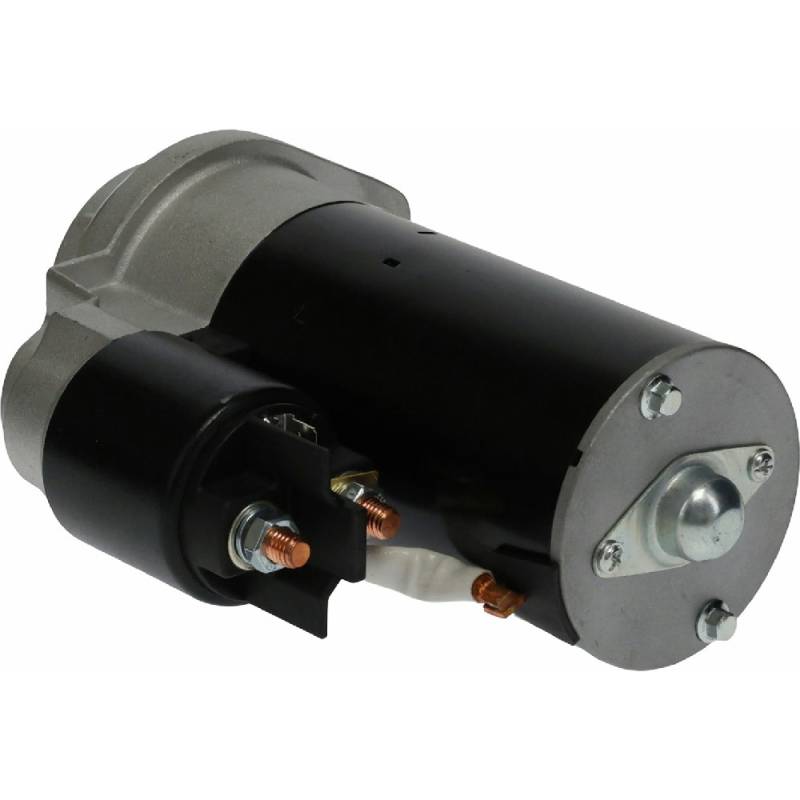

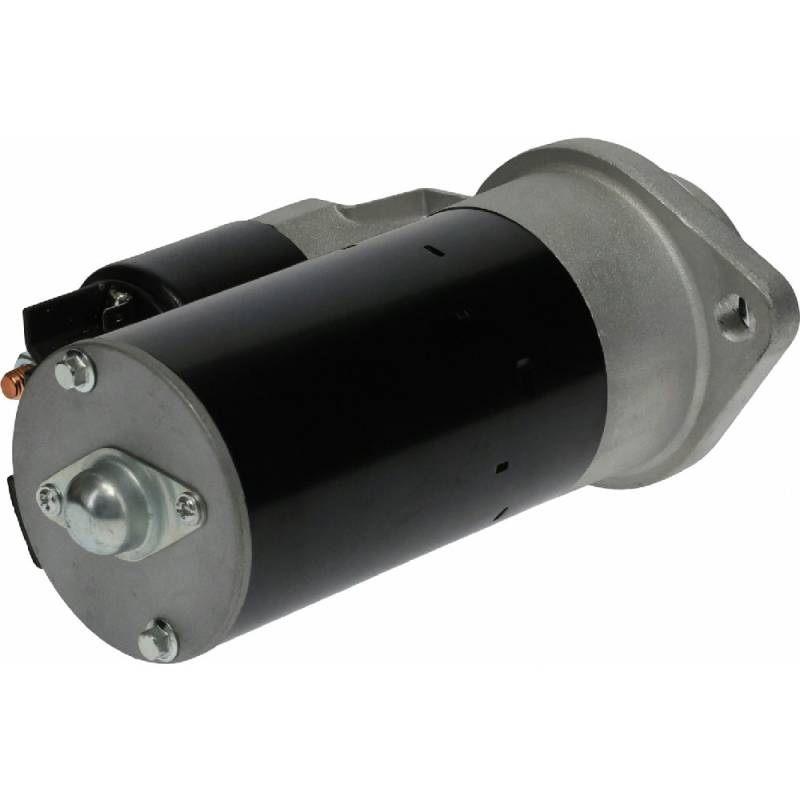

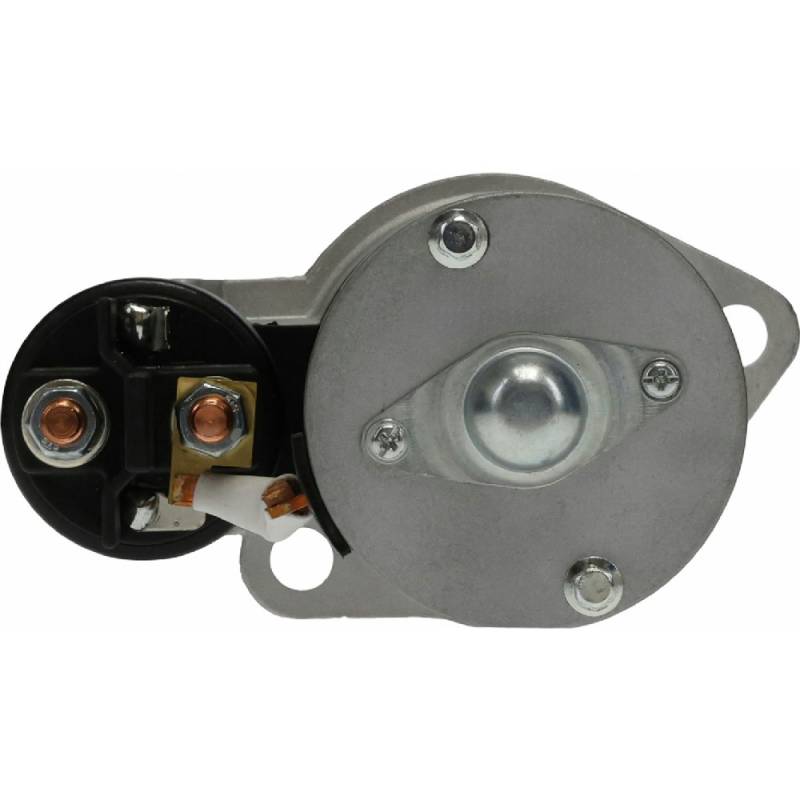

SPECIFICATIONS: • Type: Starter
• OE Manufacturer: Mahle Letrika Iskra
• Voltage: 12V
• Power: 2.0 kW / 2.68 HP
• Rotation: CW
• Pinion: 9 teeth
• Pinion Gear OD: 29mm / 1.142in
• Overall Length: 233.7mm / 9.201in
• Registry OD: 82.4mm / 3.244in
• Mounting Ear Holes: 12.7mm unthreaded, both ears
• Mounting Ear Centres: 102.3mm / 4.028in
• Drive End Frame Offset: 26mm
• Battery and Motor Studs: M8-1.25 threaded
• S Terminal: Spade
• Jump Start Protection: Yes
• Weight: 10.08 lbs / 4.58 kg
• Warranty: 1 Year
• Condition: New
APPLICATIONS: • Ammann APH5020, APH5030, APH5075, APH6020, APH6530, APH6585, APH100-20
• Atlas Copco LG504, LP6505 and LP7505 vibratory plate 2015-2018
• Ausa D150RM, D150RMA, D150RMG, D175RMS and X 500 RM X4 dumper
• Bomag BPH 80/65 S, BPR 100/80 D, BPR 70/70 D and BPR 50/52 D-3
• Wacker Neuson DPU 6055, Weber CR8 MDM and Cedima CF 2011 DE
• Hatz 1D41S, 1D42S, 1D50S, 1D60, 1D80, 1D81 and 1D90 engine
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
