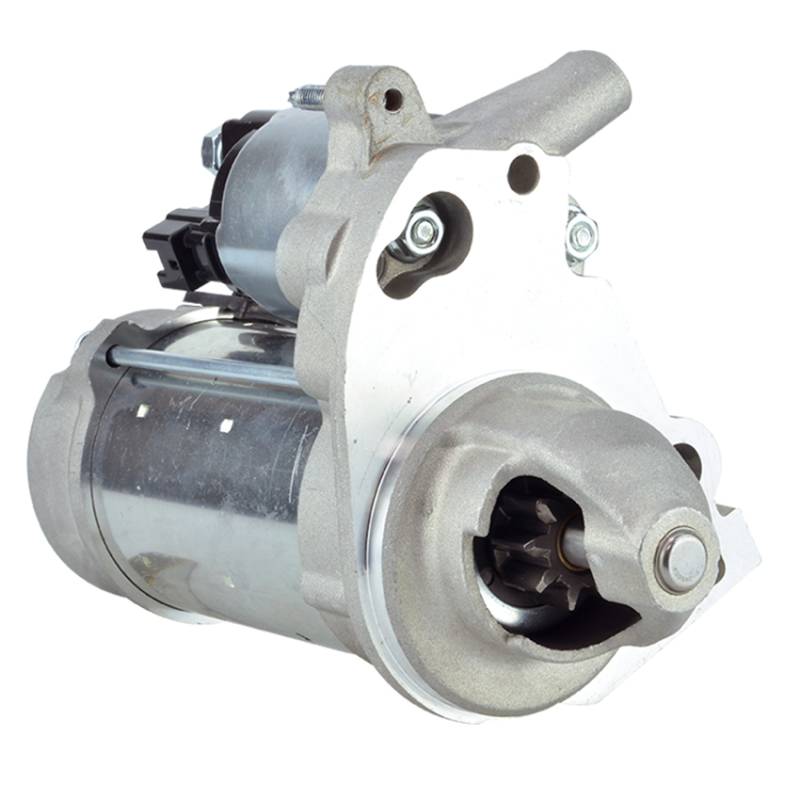

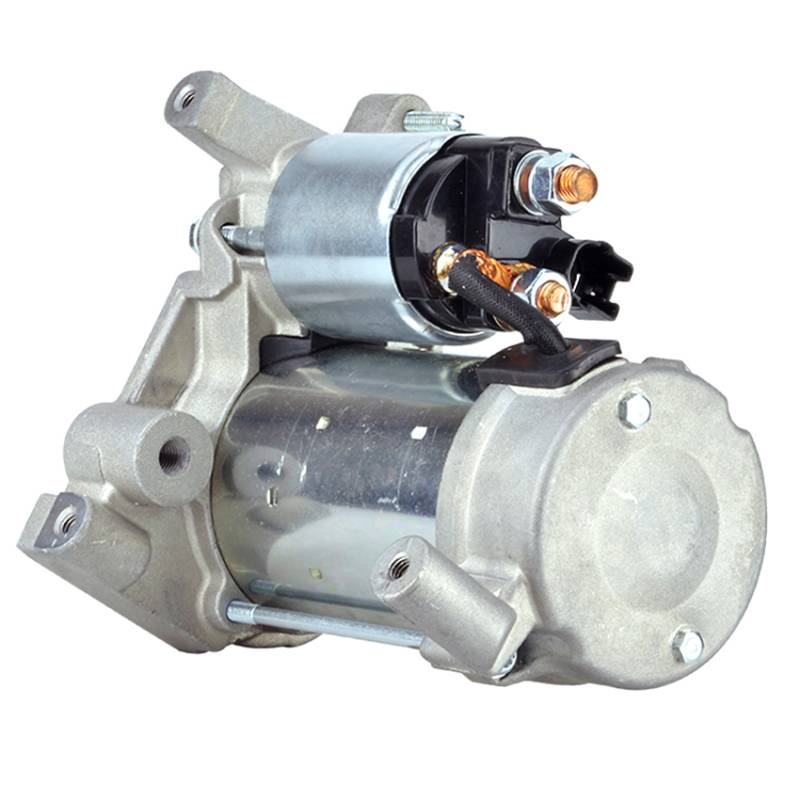

New Pmgr 12V Starter Fits Lexus Lc500 5.0L 2018 4280009800 4280009801 2810038090

19314N*2
LEXUS PART NUMBERS:
• 28100-38091, 2810038091
• 28100-38090, 2810038090

DENSO PART NUMBERS:
• 428000-9800, 4280009800
• 428000-9801, 4280009801
• 280-0452, 2800452

DENSO EUROPE PART NUMBERS:
• DSN1233

REMY PART NUMBERS:
• 16234

WILSON PART NUMBERS:
• 91-29-5841, 91295841

SPECIFICATIONS:
Type: Starter, permanent magnet gear reduction (PMGR)
Voltage: 12V
Power: 1.5 kW / 2.01 HP
Rotation: Clockwise (CW)
Pinion: 9 tooth, gear OD 1.138in / 28.9mm
Length: 8.102in / 205.8mm
Mounting: 2 ears, M10 x 1.25 threaded, registry OD 2.909in / 73.9mm
Terminals: M8 x 1.25 B+, spade S terminal in plastic housing
Weight: 7.84 lbs / 3.56 kg
Condition: New aftermarket

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $388.47
Sale: $221.98
Save: 43%
Save: $166.49
Qty:
Free Shipping!

Description

LEXUS GS F:
• LEXUS GS F V8 5.0L 4969CC 303CID 2016-2018
• Lexus GS F 5.0L V8 2019-2020

LEXUS RC F:
• LEXUS RC F V8 5.0L 4969CC 303CID 2015-2018
• Lexus RC F 5.0L V8 2019-2024

LEXUS LC500:
• LEXUS LC500 V8 5.0L 4969CC 303CID 2018
• Lexus LC500 5.0L V8 2019-2024

LEXUS IS500:
• Lexus IS500 5.0L V8 2022-2024

LEXUS LS460:
• LEXUS LS460 V8 4.6L 4608CC 2013-2017
• Lexus LS460 4.6L V8 2015 AWD, and rear wheel drive built before February 2015
• Lexus LS460 4.6L V8 2016-2017 AWD only

SPECIFICATIONS:
• Voltage: 12V
• Starter Type: PMGR (Permanent Magnet Gear Reduction)
• Power: 1.5kW / 2.01HP
• Rotation: Clockwise (CW)
• Tooth Count: 9
• Gear OD: 1.138in / 28.9mm
• Length: 8.102in / 205.8mm
• Mounting Ear 1 Hole: M10-1.25 threaded
• Mounting Ear 2 Hole: M10-1.25 threaded
• Registry OD: 2.909in / 73.9mm
• (3) M6-1.0 threaded bosses
• (1) M6-1.0 threaded stud attached to DE housing
• M8-1.25 B+ terminal
• Spade S terminal encased in plastic housing
• Weight: 7.84 lbs / 3.56 kg
• Condition: New
• Lexus LS460 rear wheel drive built from February 2015 on uses a different starter, Lexus 28100-38021: match the number on your old starter
• ⚠️ 12 volt, clockwise, 9 tooth PMGR starter. Lexus LS460 rear wheel drive built from February 2015 on uses a different starter, Lexus 28100-38021: on a 2015-2017 LS460 check AWD or rear wheel drive and match the number on your old starter before ordering.
