OEM ARCTIC CAT / ARCTCO PART NUMBERS:
• Arctco OEM: 3303-857 / 3303857 (Primary)
OEM BOMBARDIER / CAN-AM / SEA-DOO PART NUMBERS:
• Bombardier OEM: S3585A-RCA-000 / S3585ARCA000
• Can-Am OEM: S3585A-RCA-000 / S3585ARCA000
• Sea-Doo OEM: S3585A-RCA-000 / S3585ARCA000
INDUSTRY CROSS-REFERENCES:
• Industry: 67-784
• Other Names: Starter Solenoid / Starter Relay
• Other Names: Solenoid Relay / Magnetic Switch
• Other Names: Starter Switch / Relay Solenoid
• Other Names: 12V Solenoid / 4-Terminal Solenoid
• Other Names: ATV Starter Solenoid
• Other Names: Starting Solenoid
• Other Names: Arctic Cat Starter Solenoid
• Other Names: Can-Am Starter Solenoid
PRODUCT SPECIFICATIONS:

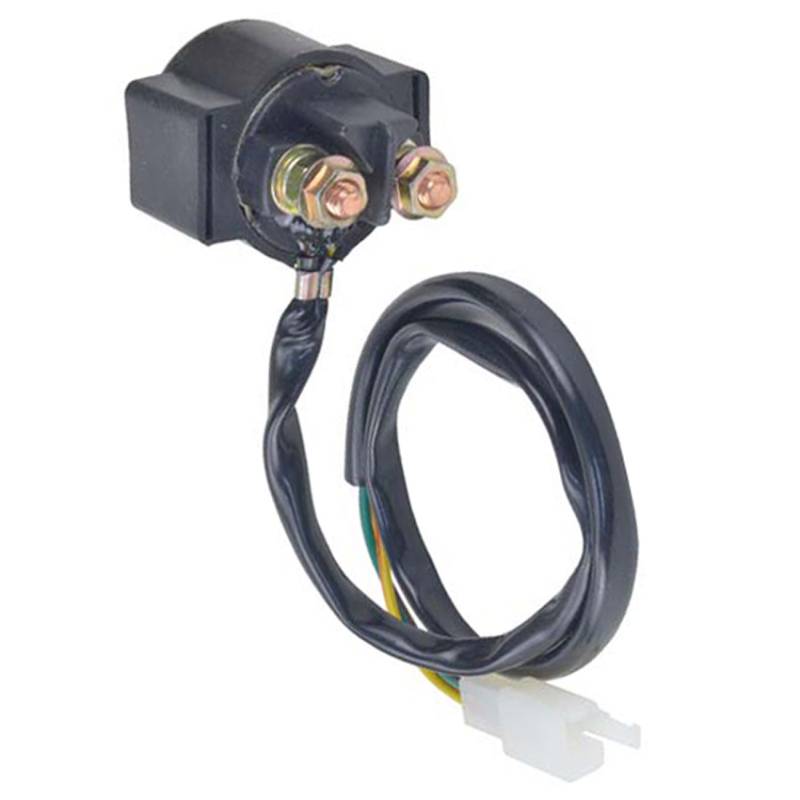

• Product Type: Starter Solenoid Relay
• Unit Type: Arctic Cat / Bombardier / Can-Am
• Voltage: 12 Volt DC
• Duty Cycle: Intermittent
• Number of Terminals: 4
• Harness Length: 4 Inches
• Condition: New Aftermarket
• Country of Origin: China (Replacement Part)
• Product Fit: Direct Fit OEM Replacement
• Compliance: OEM Specification
• Dimensions: 49mm L x 39.7mm W x 52.6mm H
VEHICLE COMPATIBILITY:
• 2009-2018 Arctic Cat 150 2x4 Utility (149cc)
• 2006-2008 Arctic Cat 250 DVX Sport (249cc)
• 2006-2009 Arctic Cat 250 Utility 2x4 (249cc)
• 2009-2015 Arctic Cat 300 DVX Sport (270cc)
• 2010-2016 Arctic Cat 300 Utility 2x4 (270cc)
• 2017-2018 Arctic Cat Alterra 300 (270cc)
• 2006 Bombardier DS250 (249cc)
• 2007-2017 Can-Am DS250 (249cc)
ENGINE COMPATIBILITY:
• Arctic Cat 149cc Inline-1 4-Stroke (150)
• Arctic Cat 249cc Inline-1 4-Stroke (250)
• Arctic Cat 270cc Inline-1 4-Stroke (300)
• Bombardier / Can-Am 249cc (DS250)
FUNCTION / PURPOSE:
• Transfers High Current Battery to Starter
• Isolates Low-Current Key Circuit
• Protects Key Switch Contacts
• Critical Starting Circuit Component
CRITICAL FITMENT NOTES:
• For Sport / Utility ATV Models Only
• Does NOT Fit Arctic Cat 400/450/500/550/650
• Does NOT Fit Arctic Cat 700/1000
• Does NOT Fit Pre-2006 Arctic Cat
• Does NOT Fit Post-2018 150/Alterra
• Does NOT Fit Can-Am Outlander / Renegade
• Does NOT Fit Sea-Doo PWC
• 4-Terminal (NOT 3-Terminal)
• Verify OEM Part Number / Harness Length
WHAT IS INCLUDED:
• One (1) Starter Solenoid Relay
• 4-Terminal Configuration
• 4-Inch Harness
• Ready-to-Install Drop-In Replacement
WHAT IS NOT INCLUDED:
• Mounting Hardware
• Additional Wiring
• Terminal Lugs
• Installation Instructions
INSTALLATION STEPS:
• Disconnect ATV Battery (Negative First)
• Locate Existing Starter Solenoid
• Note Original Wire Configuration
• Remove Main Cables and Control Wires
• Remove Solenoid Mounting Fasteners
• Install New Solenoid / Reconnect Wires
• Secure Mounting / Reconnect Battery
• Test Starter Operation
SYMPTOMS OF FAILED SOLENOID:
• ATV Won't Start (No Crank)
• Clicking Sound When Key Turned
• Intermittent Starting Issues
• Burned / Melted Terminal Contacts
• Stuck Contacts / Corroded Studs
• Battery Drain From Sticking Solenoid
ARCTIC CAT / CAN-AM HERITAGE:
• Arctic Cat Single-Cylinder ATV Platform
• Bombardier Transitioned to Can-Am Brand 2006-2007
• Shared Solenoid Specification Across Brands
• Sport and Utility ATV Coverage
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
WARNING - This product may expose you to chemicals such as Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
