OEM PART NUMBERS:
• Honda Piston: 13101-HC4-000 / 13101HC4000
• Honda Ring Set: 13011-HC4-306 / 13011HC4306
• Honda Wrist Pin: 13111-HC0-000 / 13111HC0000
• Honda Cylinder: 12100-HC4-000 / 12100HC4000
SPECIFICATIONS:
• Type: Piston Kit (Standard Bore)
• Standard Bore: 74mm (2.913")
• Stroke: 65.5mm
• Displacement: 282cc
• Piston Type: Cast
• Engine: Single-Cylinder 4-Stroke OHV Air-Cooled
• Horsepower: 20HP
• Weight: 2 lbs / Condition: New

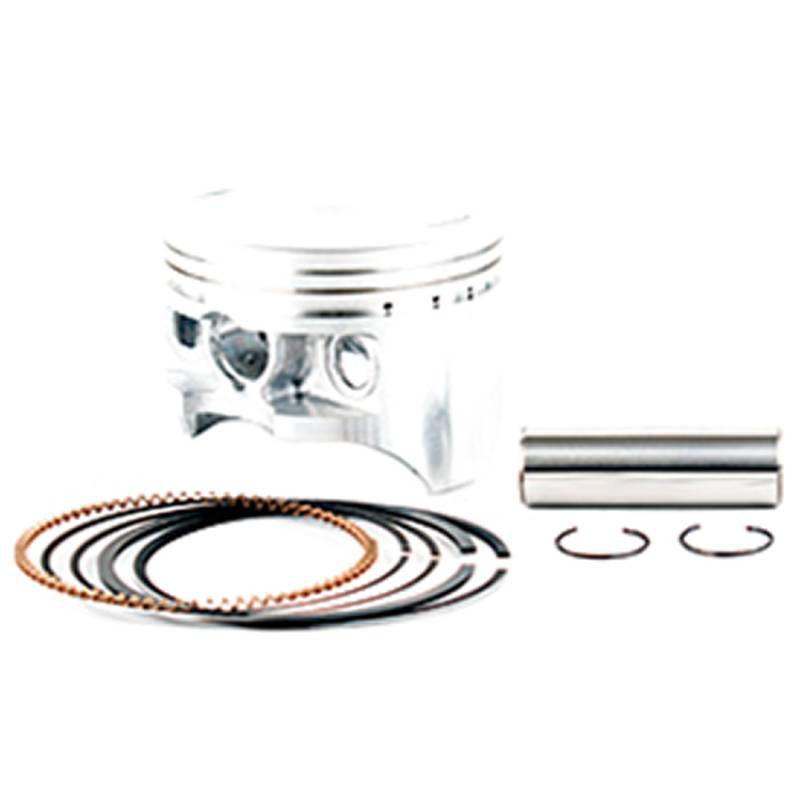

KIT CONTENTS (Single Cylinder):
• (1) Cast Piston — Standard Bore 74mm
• (1) Ring Set / (1) Wrist Pin / (2) Circlips
• Single cylinder engine — one kit completes rebuild
BORE SIZE CHART (Honda TRX300 Fourtrax 282cc):
• Standard: 74.00mm (50-223K) — THIS KIT
• 0.25mm Over: 74.25mm (50-223-04K)
• 0.50mm Over: 74.50mm (50-223-05K)
• 0.75mm Over: 74.75mm (50-223-06K)
• 1.00mm Over: 75.00mm (50-223-07K)
APPLICATIONS:
• Honda TRX300 Fourtrax 300 2x4 282cc OHV (1988-2000)
• Honda TRX300FW Fourtrax 300 4x4 282cc OHV (1988-2000)
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
