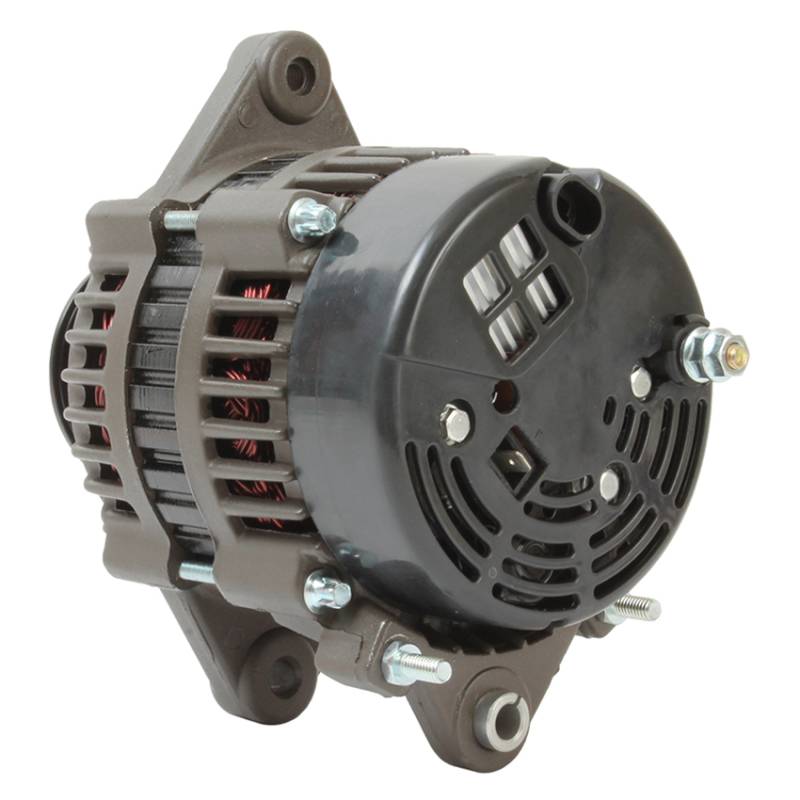

⚠️ 12 VOLT 70 AMP, J180 HINGE, SIX GROOVE SERPENTINE:
• This is the 70 AMP build, the original output on these engines
• The mount is a J180 hinge with THREE ears
• Ear 1 is M8-1.25 threaded, ears 2 and 3 are 8 mm plain

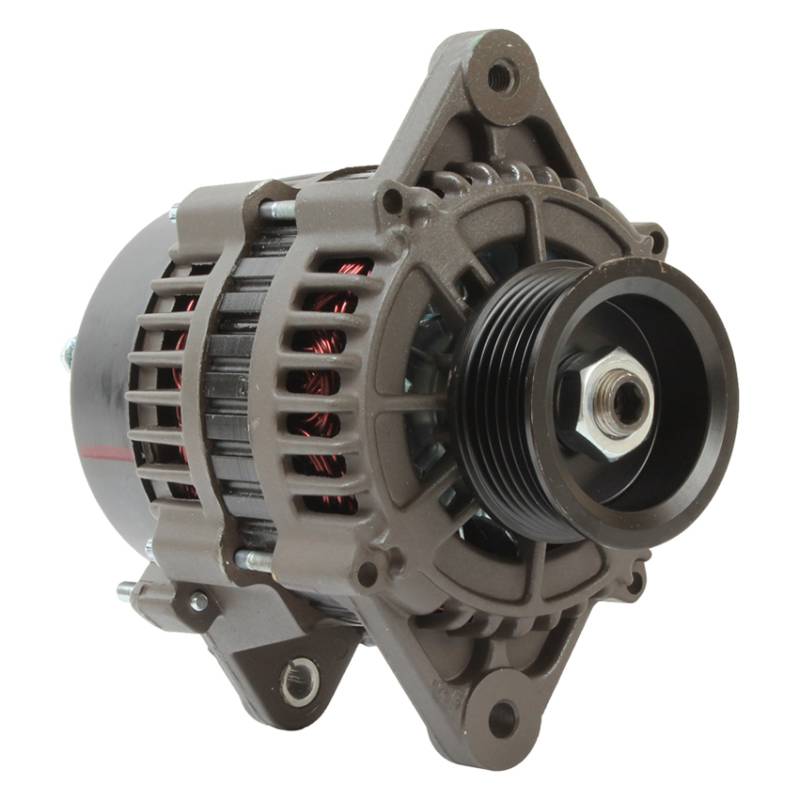

• The pulley is SIX groove serpentine, solid, 2.44 in across
• The regulator and the fan are both internal, clock 12 o'clock
MERCRUISER 5.7L, GM 350 CID V8:
• MerCruiser 350 Mag MPI Gen Plus
• MerCruiser 350 Mag MPI Alpha and Bravo, 1998 to 2000
• MerCruiser 350 Mag MPI Hor Alpha and Bravo
• MerCruiser 350 Mag MPI Horizon
• MerCruiser 350 Mag MPI Ski Gen Plus
• MerCruiser 5.7L EFI Gen Plus, 1999 to 2001
• MerCruiser 5.7L EFI Gen Plus MIE
• MerCruiser 5.7L MIE
• MerCruiser 5.7L Ski Gen Plus
• MerCruiser 5.7L 2 BBL Gen Plus, 1998 to 2002
MERCRUISER 5.0L, GM 305 CID V8:
• MerCruiser 5.0L 2 BBL Gen Plus, 1998 to 2002
• MerCruiser 5.0L EFI Gen Plus, 1999 to 2001
• MerCruiser 5.0L MPI Alpha and Bravo
MERCRUISER 4.3L, GM 262 CID V6:
• MerCruiser 4.3L Gen Plus
• MerCruiser 4.3L EFI, 1999
• MerCruiser 4.3L EFI Gen Plus TBI, 1998 to 2000
• MerCruiser 4.3L MPI, 2001 to 2002
• MerCruiser 4.3LH Gen Plus 4 BBL
MERCRUISER 7.4L, GM 454 CID V8:
• MerCruiser 454 Mag Bravo MPI Gen VI
• MerCruiser 454 Mag MPI Gen VI
• MerCruiser 454 Mag MPI Horizon Gen VI
• MerCruiser 454 Mag MPI Horizon
• MerCruiser 7.4L MIE MPI L29 Gen VI, 1998 to 2000
• MerCruiser 7.4LX MPI Gen VI L29, 1998 to 2000
MERCRUISER 8.2L AND 6.2L:
• MerCruiser 502 Mag MPI Gen VI, GM 8.2L 502 cid
• MerCruiser 8.2L MIE MPI LH Gen VI, GM 502 cid
• MerCruiser MX 6.2L MPI, GM 377 cid
• MerCruiser MX 6.2L MPI Horizon, GM 377 cid
CLARK, HYSTER AND DAEWOO INDUSTRIAL:
• Clark lift truck, Clark number 67005282 and 067005282
• Hyster lift truck, Hyster number 1534017
• Daewoo and Doosan, Daewoo number 219232
• Yale lift truck, Yale number 5800396-72
• Also catalogued for JLG and Perkins industrial engines
THE YEAR RANGE RUNS LATER THAN MOST LISTINGS SAY:
• Most sellers stop the MerCruiser range at 2002
• Delco Remy's own catalog lists this unit through 2011
• It covers the GM 4.3, 5.0, 5.7, 6.2 and 7.4 gas engines
• If your boat is a 2003 to 2011 build, it is still listed
THREE CORRECTIONS TO THE COMMON SPEC BLOCK:
• Some blocks print the word external in the voltage field
• Some blocks print the word internal in the amperage field
• It is 12 Volt and 70 AMP
• The pulley row is often blank, it is SIX groove serpentine
HOW TO VERIFY FIT:
• Count the pulley grooves, this unit has SIX
• Measure the pulley, this one is 2.44 in / 62 mm across
• Count the mounting ears, this unit has THREE
• Ear 1 is M8-1.25 threaded, ears 2 and 3 are 8 mm plain
• The B+ stud is M6-1.0 and the shaft is 17 mm
CHECK THE PULLEY, IT IS CLOSE TO THE 8461:
• This unit, Delco 19020601 and 19020609: pulley 2.44 in
• Delco 19020611 and 19020612: pulley 2.193 in, ears 8.4 mm
• Both have three ears, six grooves and a 12 o'clock clock
• The pulley diameter and the ear hole size are the tell
• Delco 19020601 is listed against both, so measure the pulley
DO NOT ORDER IF:
• Your pulley measures 2.193 in, that is the 19020612 unit
• Your mounting feet are 8.4 mm rather than 8 mm
• Your old unit has ONE or TWO V grooves instead of six
• Your old unit uses an external regulator
• Your engine is 24 volt, this unit is 12 volt
CROSS REFERENCE:
• Delco 19020601, 19020609
• Remy Light Duty RA00105
• Mercury Marine 862031, 862031T, 862031T1, 8M0095472
• Clark 67005282, 067005282
• Hyster 1534017
• Daewoo 219232
• Yale 5800396-72
• Prestolite 20115019TBA
• ARCO Marine 20800
• Sierra Marine 18-6293, 186293
• Mallory 9-19110, Lucas LRA02327, PIC 240-6313
